Process West Stage 2.3 Performance Package - Ford Falcon XR6 Turbo (BA / BF)

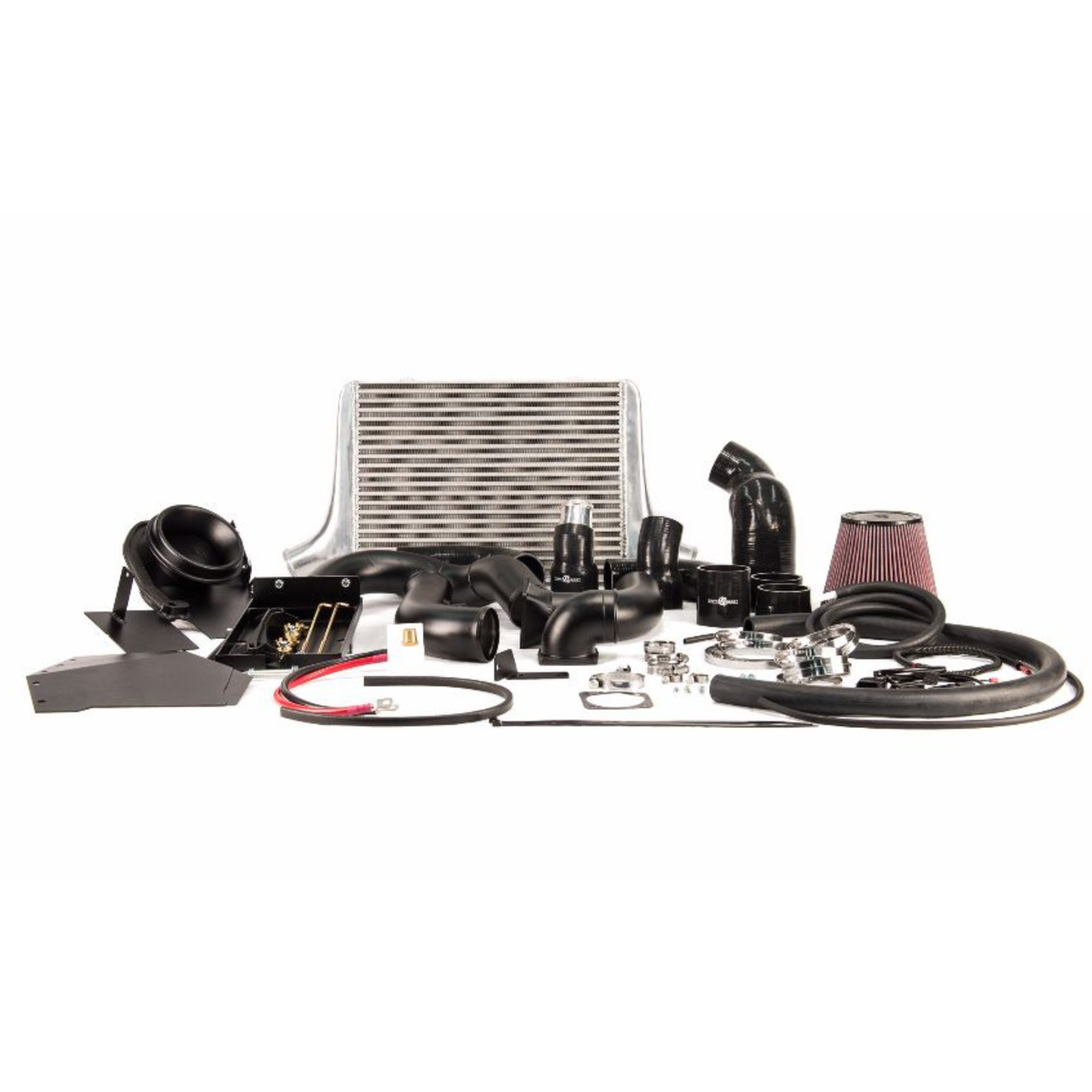

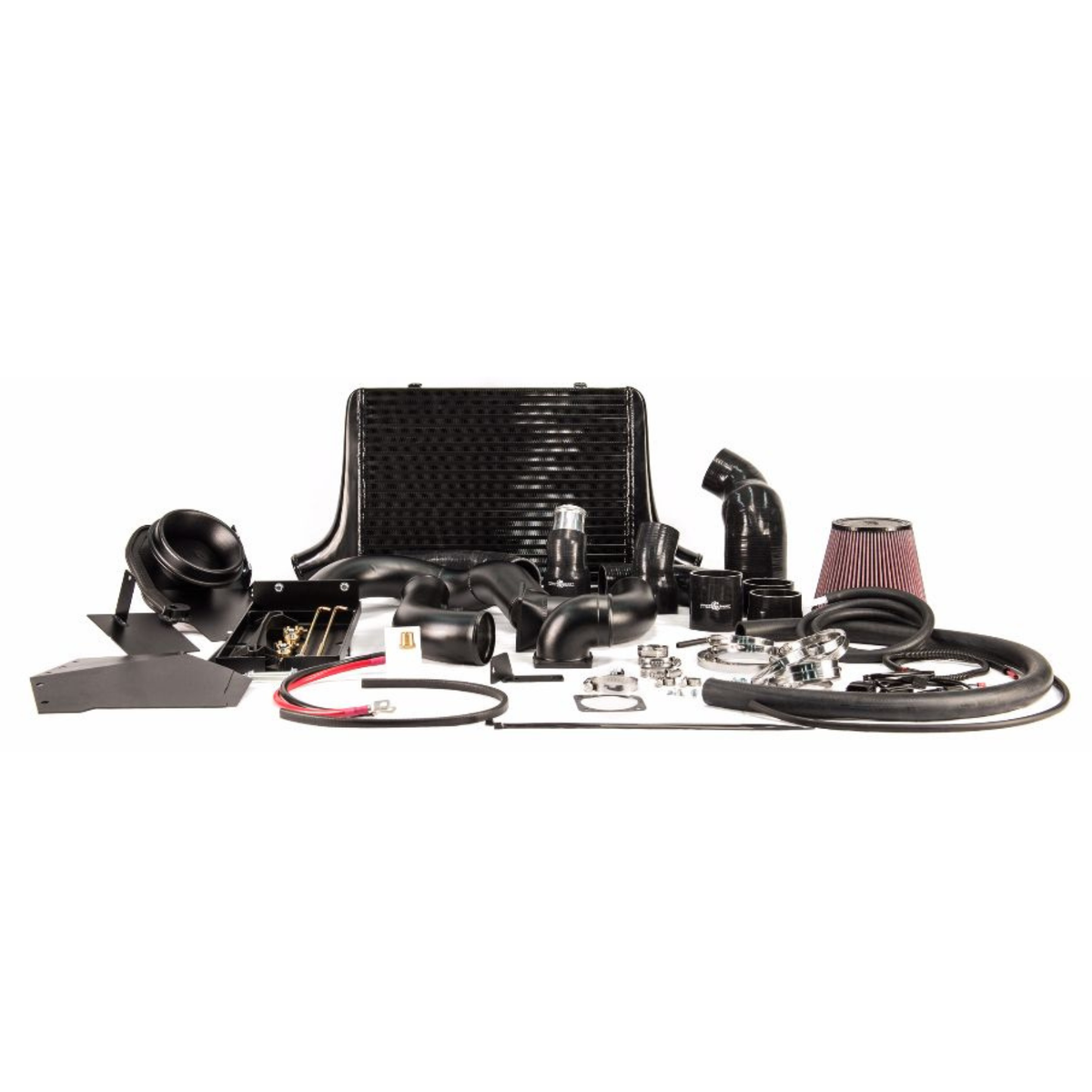

The Process West Stage 2.3 Performance Package for the Ford Falcon BA and BF XR6 Turbo combines a Stage 2 intercooler core, a throttle body relocation kit, a battery relocation kit and a 4 inch race air box. The 500 x 360 x 80mm bar and plate core has polished aluminium end tanks and comes in silver or black powdercoat, while the throttle body relocation shortens the intercooler piping, clears the bonnet and tidies the engine bay, with plug-in patch harnesses to extend the wiring. The battery moves behind the driver's side foglight area on a new tray and bracket with a terminal distribution block, and no cables are cut. The air box draws through a 6 inch K&N filter into a 6 inch to 4 inch bell mouth and reinforced silicone hose to the turbo, is rated for 500 rwkW and above, and a 4 inch to 4 inch hose (PWBACAI03-hose) is available for 0.7 A/R turbos.

Features

• Stage 2 intercooler core: 500 x 360 x 80mm bar and plate with polished aluminium end tanks
• Throttle body relocation kit shortens the intercooler piping and clears the bonnet
• Plug-in patch harnesses extend the throttle body wiring
• Battery relocation kit with new tray, bracket and terminal distribution block
• No battery cables cut
• 4 inch race air box with 6 inch K&N filter and 6 inch to 4 inch bell mouth
• Air box rated for 500 rwkW and above
• Intercooler core in silver or black powdercoat

Specifications

• Brand: Process West
• Product Type: Performance Package
• Includes: Stage 2 intercooler core, throttle body relocation kit, battery relocation kit, 4 inch race air box
• Intercooler Core: Bar and plate, 500 x 360 x 80mm
• Air Box Filter: 6 inch K&N
• Air Box Outlet: 4 inch, via 6 inch to 4 inch bell mouth
• Air Box Rating: 500 rwkW and above
• Optional Hose: PWBACAI03-hose, 4 inch to 4 inch for 0.7 A/R turbos
• Finish Options: Silver or black powdercoat (intercooler core)
• Part Numbers: PWBAPP23 (Silver), PWBAPP23B (Black)

Vehicle Compatibility: 1 application across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
