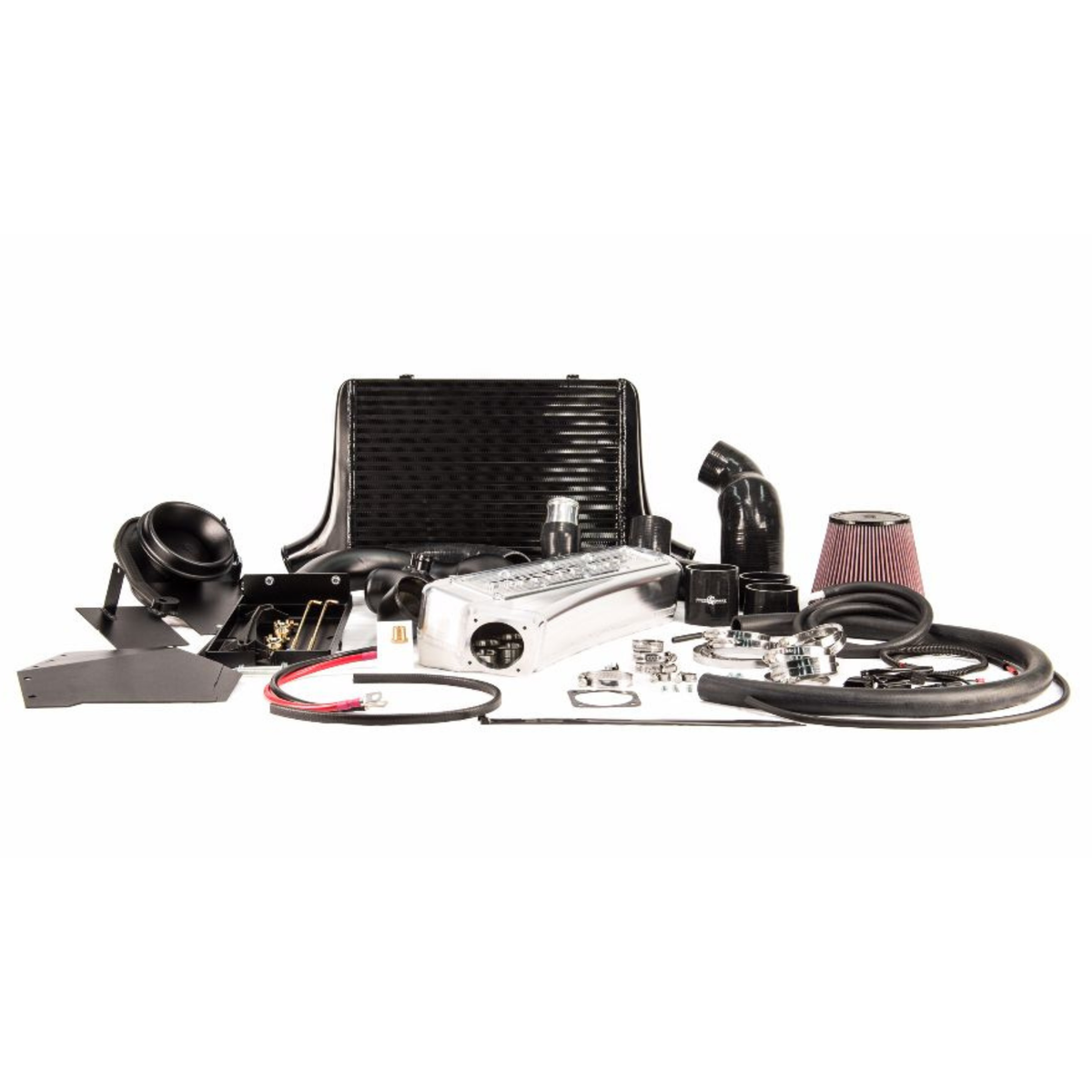

Process West Stage 3.4 Performance Package - Ford Falcon XR6 Turbo (BA / BF)

The Process West Stage 3.4 Performance Package for the Ford Falcon BA and BF XR6 Turbo combines a Stage 3 front-mount intercooler core, a billet plenum chamber, a battery relocation kit and a 4 inch race air box. The 500 x 425 x 100mm bar and plate core comes in silver or black powdercoat, and the plenum is CNC machined from solid 5083 aluminium billet with blended bell-mouth runner entries, a plug-in throttle body wiring loom and optional custom cover plates. The battery moves behind the factory foglight area on the driver's side to make room for a large air box, using extended cables with no cutting and a new terminal distribution block. The air box runs a 6 inch K&N filter, 6 inch to 4 inch bell mouth and reinforced silicone hose to the turbo, is rated for 500 rwkW and above, and works with high-mount turbos.

Features

• Stage 3 front-mount intercooler core: 500 x 425 x 100mm bar and plate
• Billet 5083 aluminium plenum with blended bell-mouth runner entries
• Plug-in throttle body wiring loom and optional custom cover plates
• Battery relocation with extended cables, no cutting
• New battery terminal distribution block
• 4 inch race air box with 6 inch K&N filter, rated for 500 rwkW and above
• 4 inch to 4 inch hose (PWBACAI03-hose) offered for 4 inch inlet turbos
• Intercooler core in silver or black powdercoat

Specifications

• Brand: Process West
• Product Type: Performance Package
• Includes: Stage 3 intercooler core, billet plenum chamber, battery relocation kit, 4 inch race air box
• Intercooler Core: Front-mount bar and plate, 500 x 425 x 100mm
• Plenum Material: Solid 5083 aluminium billet, CNC machined
• Air Box Filter: 6 inch K&N
• Air Box Rating: 500 rwkW and above
• Optional Hose: PWBACAI03-hose, 4 inch to 4 inch for 4 inch inlet turbos
• Finish Options: Silver or black powdercoat (intercooler core)
• Part Numbers: PWBAPP34 (Silver), PWBAPP34B (Black)

Vehicle Compatibility: 1 application across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
