Process West Verticooler Intercooler Kit - Subaru WRX (VA) 2015-2021

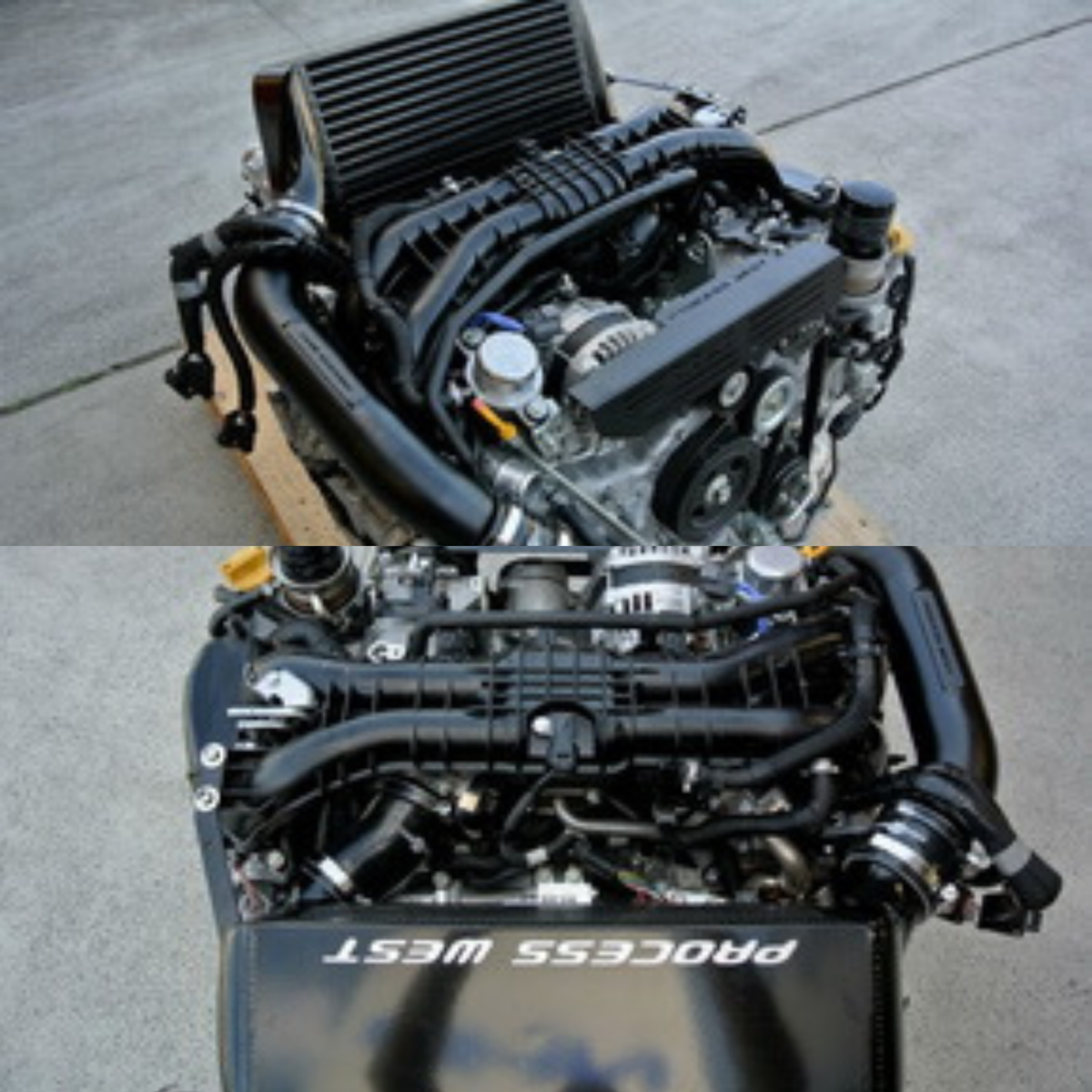

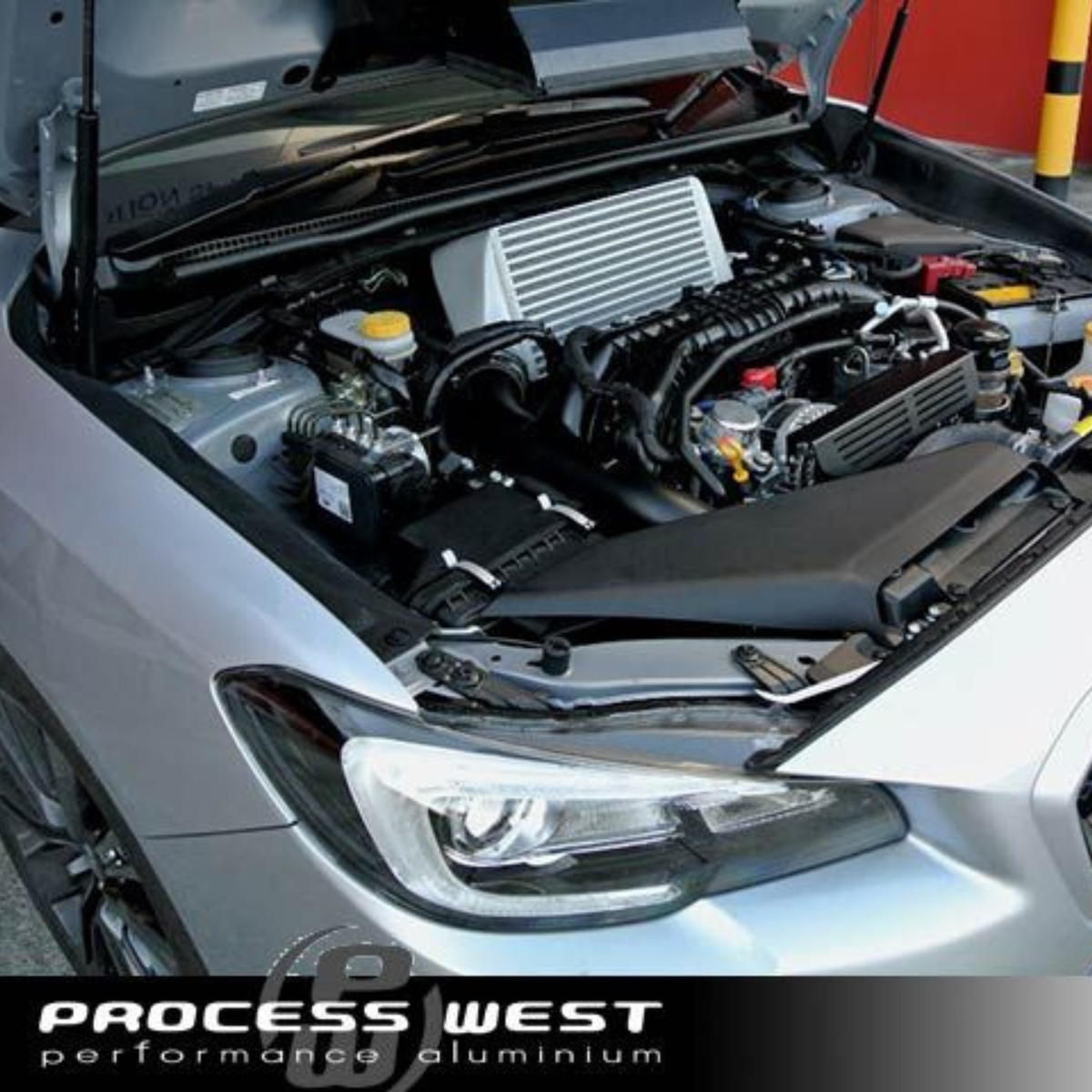

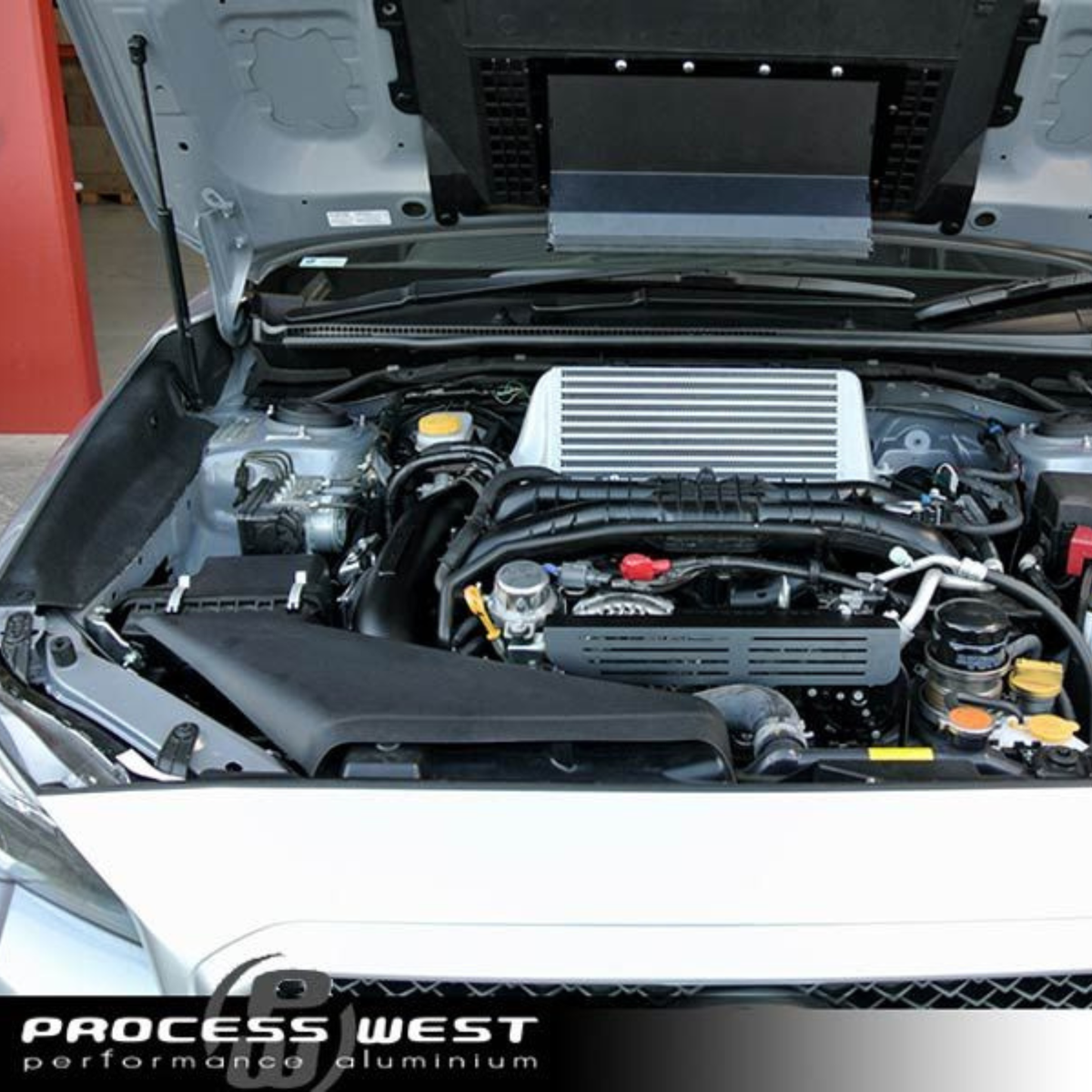

The Process West Verticooler Kit is a slant-mounted intercooler upgrade for the 2015-2021 Subaru WRX VA with the FA20DIT engine. The factory top mount dumps heated air onto the engine block, causing heat soak and power loss in sustained driving, so the Verticooler mounts a large 400 x 205 x 120mm core about 15 degrees from vertical with a vehicle-specific bonnet duct. Keeping intake air temperatures lower gives more consistent throttle response and sustained boost: at Wakefield Park in about 14°C ambient it held intake temperature to 23°C or less over 7-10 minute flat-out runs, where the factory cooler heat-soaked. The kit includes the satin black core, bonnet duct and splitter, silicone hoses and constant-tension clamps, with an optional hose available for tube-style outlet turbos.

Features

• Core mounted about 15 degrees from vertical
• Large 400 x 205 x 120mm core
• Vehicle-specific bonnet duct and splitter
• Lower intake air temperatures for consistent throttle response and sustained boost
• Dyno: stock outlet temperature rose to 51°C over three back-to-back pulls, while the Verticooler peaked at 26°C
• Tested in winter, with Process West expecting a bigger gap in summer
• Silicone hoses and constant-tension clamps included
• Optional hose available for tube-style outlet turbos

Specifications

• Brand: Process West
• Product Type: Verticooler Intercooler Kit
• Core Size: 400 x 205 x 120mm
• Mounting Angle: About 15 degrees from vertical

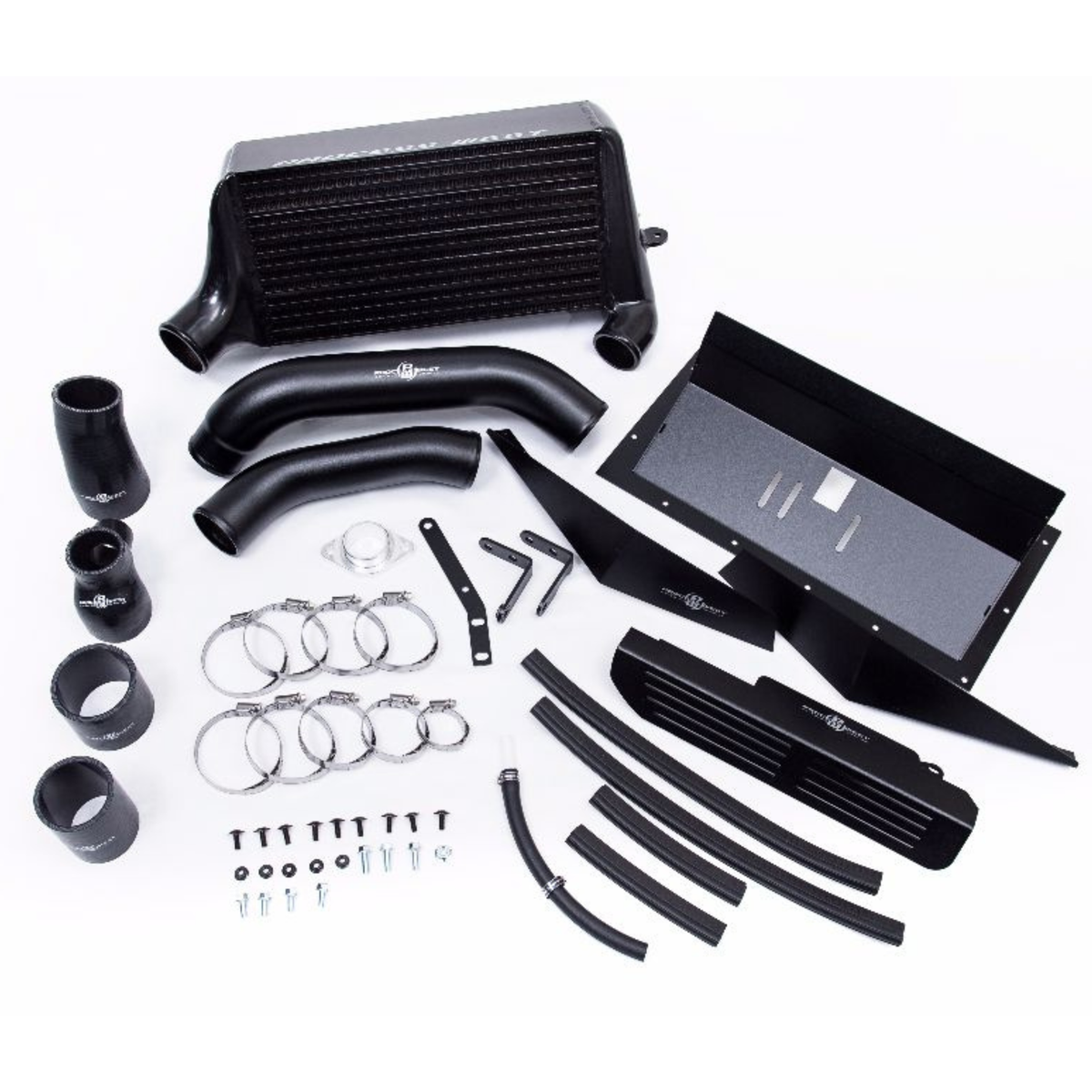

• Included: Satin black core, bonnet duct and splitter, silicone hoses, constant-tension clamps
• Optional: Hose for tube-style outlet turbos
• Finish: Satin black
• Engine: FA20DIT
• Application: Subaru WRX (VA) 2015-2021
• Part Number: PWTMIC14B

Vehicle Compatibility: 1 application across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
