RacingLine Subframe Alignment Kit - MQB & MQB EVO

This kit of 18 push-in billet aluminium bolt collars centres the front and rear subframes on MQB cars. The factory subframe mounts use oversized bolt holes that allow a wide range of positions, and RacingLine says its collars remove that slack so the subframes locate in the same spot every time they are refitted. The brand states this gives consistent alignment, sharper steering, handling and braking responses, and no need for a re-alignment after future subframe removal. Fitment needs no modification to the subframe or body, so it is fully reversible, and RacingLine reports no extra NVH or creaking mounts.

Features

• Full kit of 18 bolt collars for front and rear subframes
• T6061 billet aluminium, CNC machined and gloss black anodised
• Centres the subframe bolts, cutting out factory hole tolerance
• Simple push-in fitment into OEM subframes
• No modification to subframe or body, fully reversible
• No added NVH or creaking mounts, says RacingLine

Specifications

• Brand: Racingline
• Product Type: Subframe Alignment Bolt Collar Kit
• Contents: 18 bolt collars for front and rear subframes
• Material: T6061 billet aluminium
• Finish: CNC machined, gloss black anodised
• Installation: Push-in, no modification required
• Part Number: VWR150000

Vehicle Compatibility: 11 applications across 3 makes. Select a make to view.

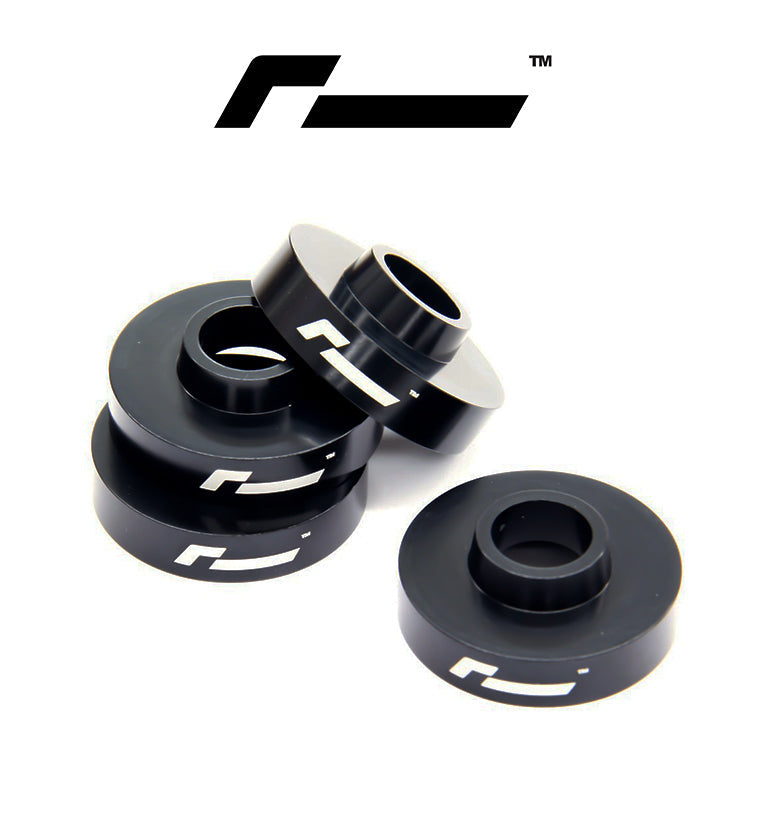

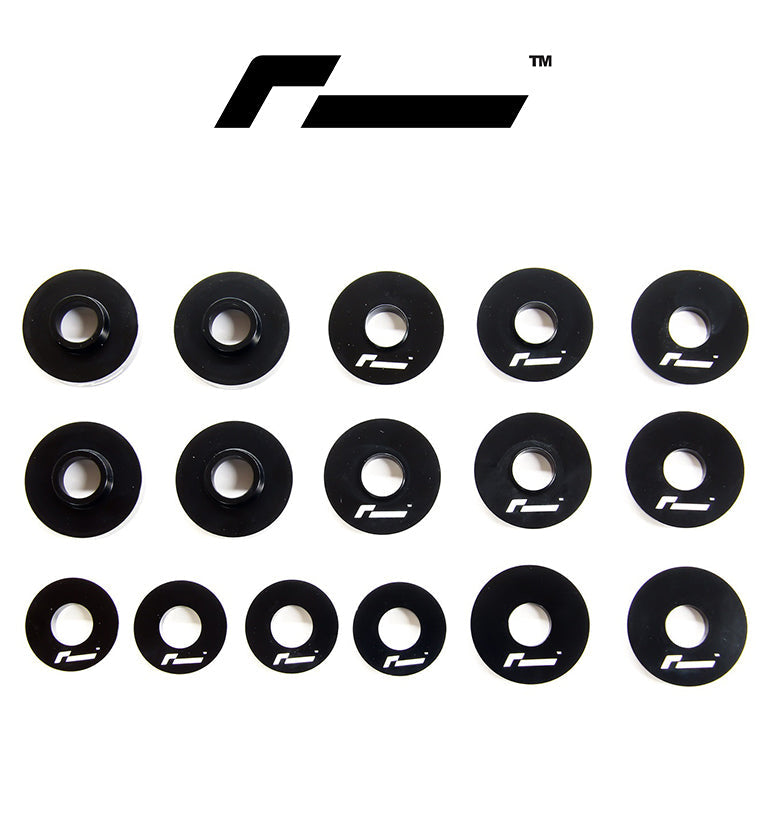

Images shown are generic and for illustration only. The part supplied may differ in appearance.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
