JDY T4 Sized Next Gen 6670/6870/6875/7275/7675 TTRS 8S/RS3 8V2 DAZA DNWA Turbo Kit

$12,000.00
Turbo option
Downpipe Option
Turbine Housing Size

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Engine Parts
  • Vendor JDY Performance
  • SKU 855-6670TK/0.81AR-3.5IN
  • Barcode 855-6670TK/0.81AR-3.5IN
Description Reviews

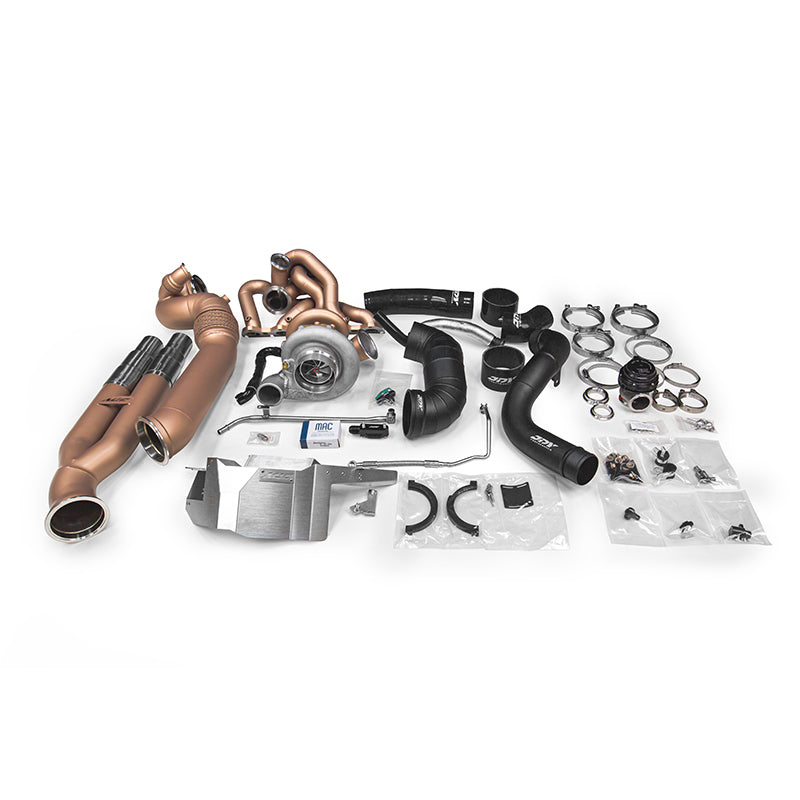

This T4 sized turbo kit from JDY Performance is a full-frame upgrade for the Audi TT RS 8S and RS3 8V2 with the DAZA or DNWA 2.5 TFSI engine. It is built around a Precision Turbo Next Gen CEA turbocharger, with options from the 6670 (rated for 1100HP) to the 7675 (1480HP), each with a compressor wheel machined from a 2618 aluminium forging and an air-cooled, dual ceramic ball-bearing CHRA. The kit includes a ceramic coated V-band turbo manifold and turbine housing, a recirculated downpipe in 3.5 or 4 inch, a 3.5 inch midpipe, a TiAL MVR 44mm external wastegate and the installation hardware. JDY states that no extra hardware or fabrication is needed and that the kit suits both left-hand and right-hand drive cars.

Features

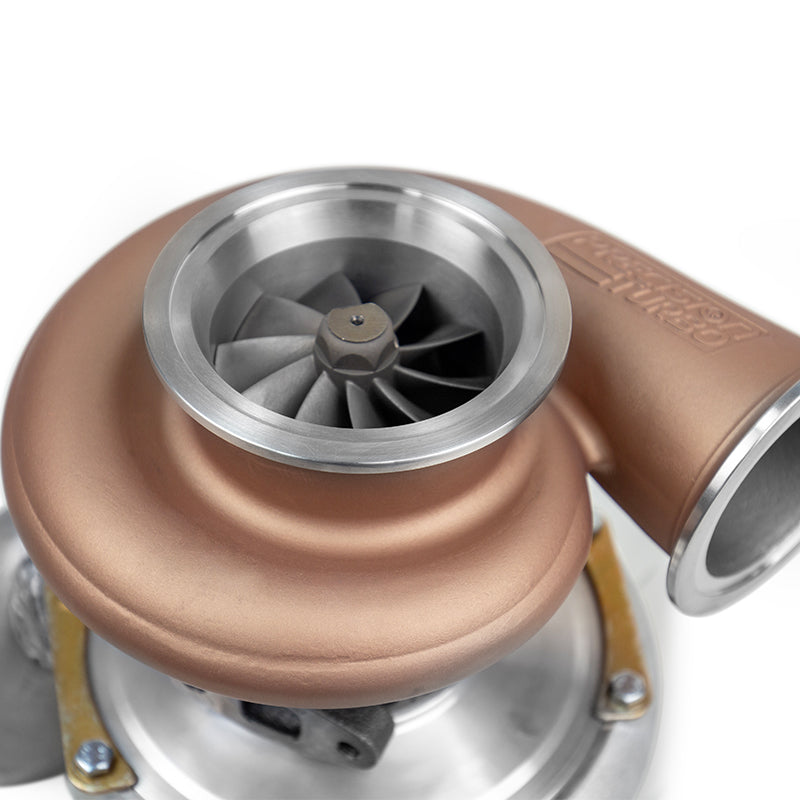

  • T4 sized Next Gen CEA turbo, five options from 1100HP to 1480HP

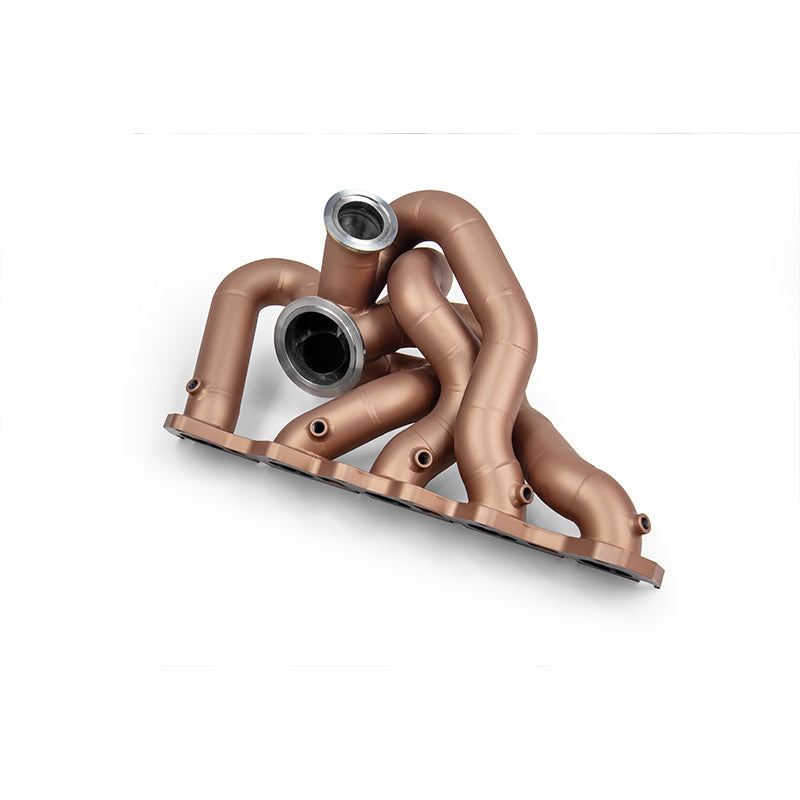

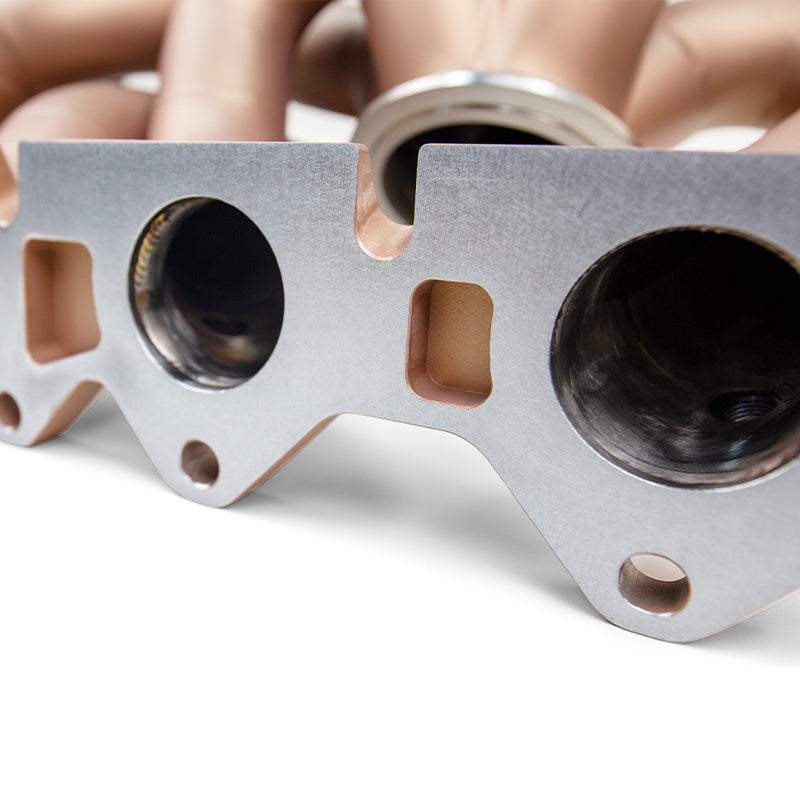

  • Ceramic coated V-band turbo manifold with an EGT port per cylinder

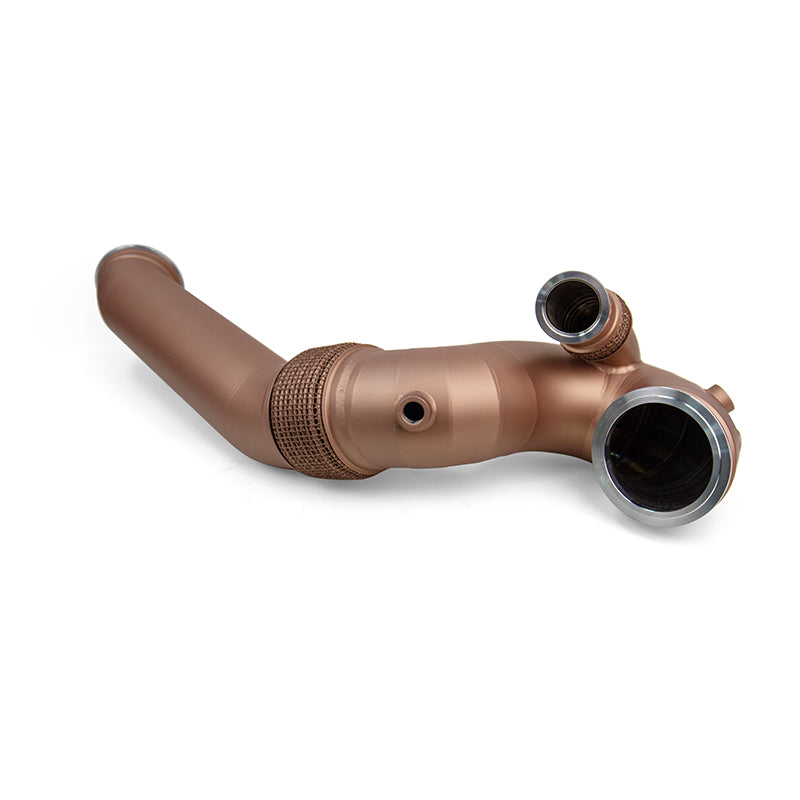

  • Recirculated V-band downpipe in 3.5 or 4 inch diameter

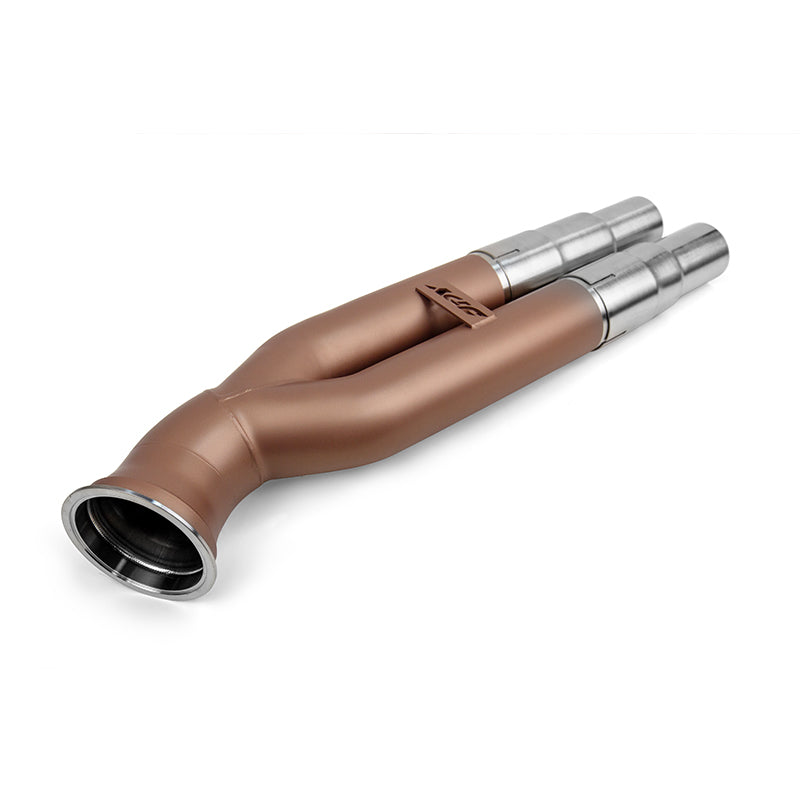

  • 3.5" ceramic coated midpipe that mates to OEM midpipes
  • TiAL MVR 44mm external wastegate with all springs

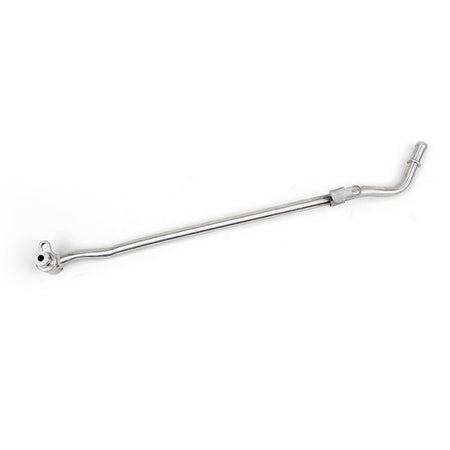

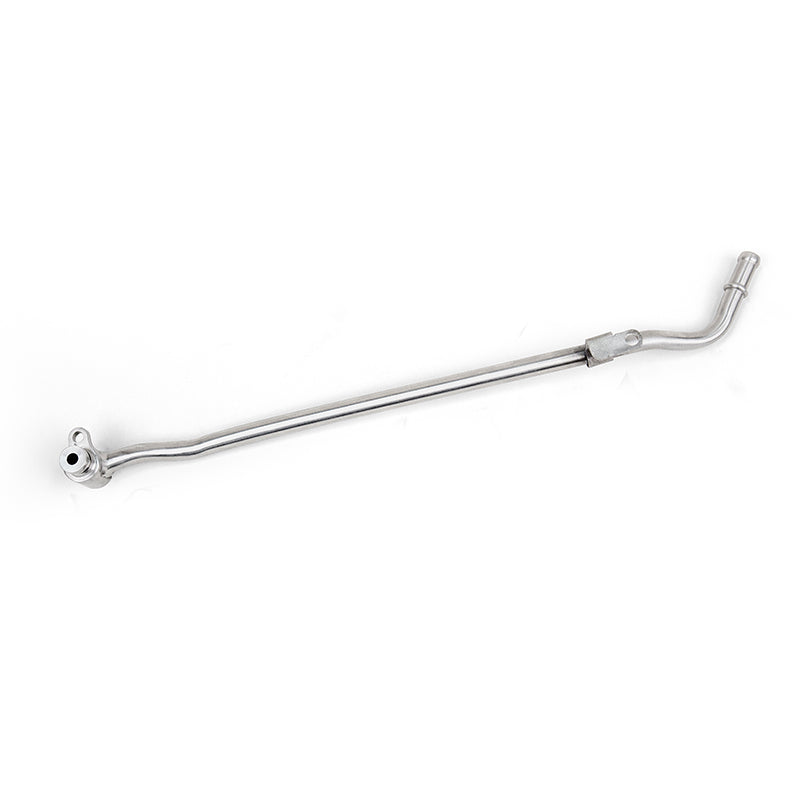

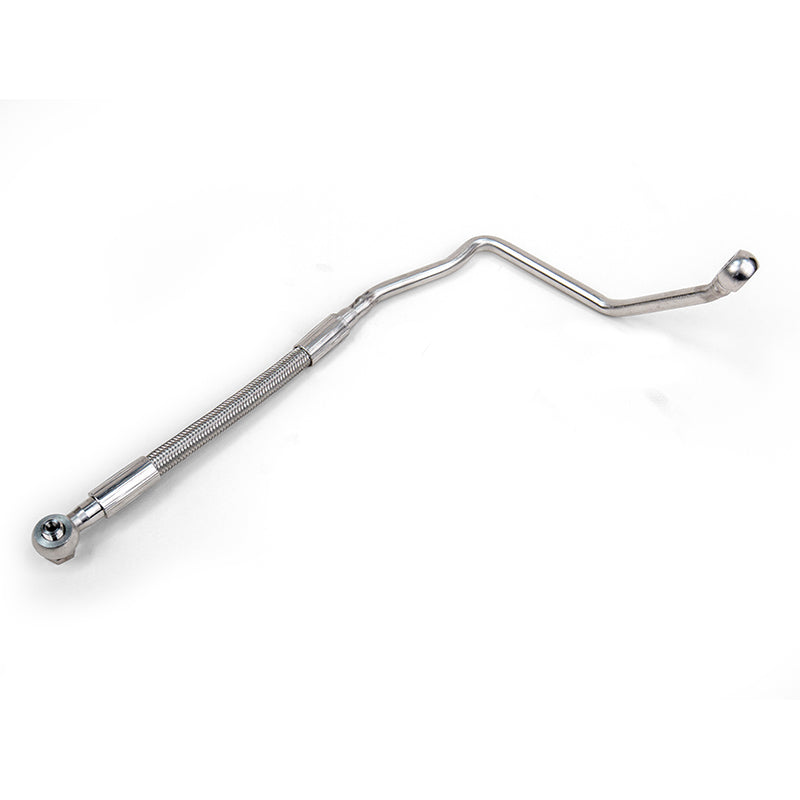

  • Oil lines, coolant crossover pipe, clamps and hardware included
  • Suits left-hand and right-hand drive vehicles

Specifications

  • Brand: JDY Performance
  • Product Type: Turbo Kit
  • Turbocharger: Precision Turbo Next Gen CEA: 6670 (1100HP), 6870 (1200HP), 6875 (1250HP), 7275 (1380HP), 7675 (1480HP)
  • Compressor Wheel: CEA, machined from a 2618 aluminium forging
  • CHRA: Air-cooled, dual ceramic ball-bearing
  • Turbine Housing: V-band 310 stainless steel, ceramic coated; 0.81 or 0.96 A/R options
  • Wastegate: TiAL MVR 44mm external, all springs included
  • Manifold: JDY V-band, ceramic coated, EGT port per cylinder
  • Downpipe and Midpipe: Recirculated downpipe in 3.5" or 4"; 3.5" midpipe; ceramic coated
  • Part Number: 855-6670TK, 855-6870TK and 855-6875TK series (varies by option)

Vehicle Compatibility: 2 applications across 1 make. Select a make to view.

Audi (2)
Model Variant Engine Years Notes
TT RS 8S 2.5 TFSI (DAZA/DNWA) LHD and RHD
RS3 8V2 facelift 2.5 TFSI (DAZA/DNWA) LHD and RHD

Images shown are generic and for illustration only. The part supplied may differ in appearance.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
