034Motorsport 4 Bar MAP Sensors - Audi B9 S4/S5/SQ5/RS4/RS5 EA839 2.9TT/3.0T - 034-111-5003

$399.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Electrics
  • Vendor 034Motorsport
  • SKU 034-111-5003
  • Barcode A3-4-1
Description Reviews

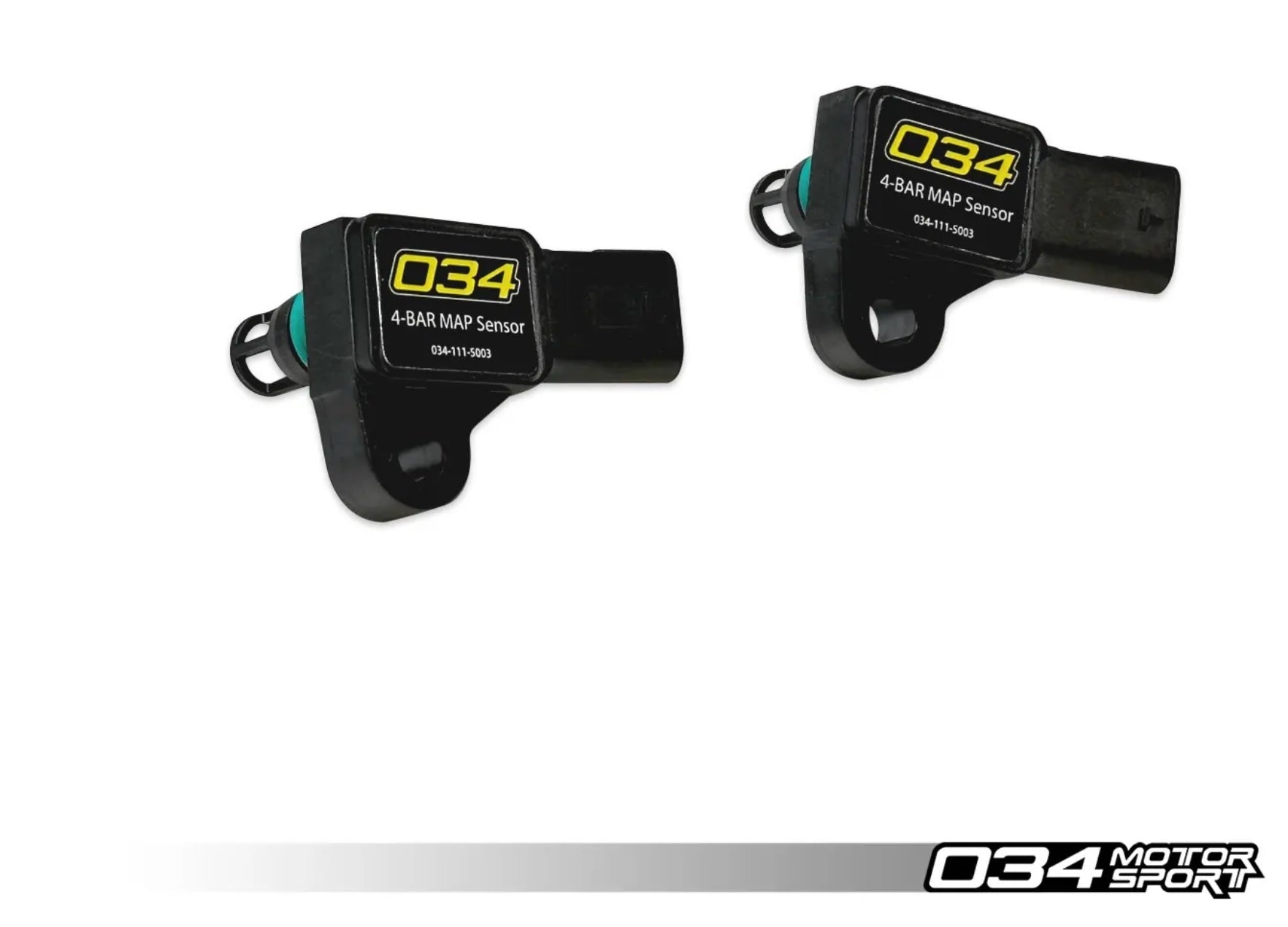

This pair of 4 bar MAP sensors replaces the factory 3 bar sensors on the Audi EA839 2.9 TFSI and 3.0 TFSI V6, as found in the B9 S4, S5, SQ5, RS4 and RS5 and several C8, D5 and 4M models. They allow tuning calibrations beyond the factory sensors' 3 bar limit and are a required upgrade for 034Motorsport's Dynamic+ Stage 3 software. Made by an OE supplier to 034Motorsport's specifications, they plug straight into the factory harness as a direct drop-in replacement. A specific software calibration is needed to use them.

Features

  • Replaces the factory 3 bar MAP sensors
  • Allows calibrations above the factory 3 bar limit
  • Required for 034Motorsport Dynamic+ Stage 3 software
  • Made by an OE supplier to 034Motorsport specifications
  • Plugs directly into the factory harness
  • Requires a matching software calibration

Specifications

  • Brand: 034Motorsport
  • Product Type: MAP Sensor
  • Rating: 4 bar
  • Engine: EA839 2.9 TFSI / 3.0 TFSI
  • Includes: 2 x 4 bar MAP sensors, installation hardware
  • Replaces OE Part: 06E906051AB, 06E906051AG, 06E906051AC
  • Part Number: 034-111-5003

Vehicle Compatibility: 10 applications across 1 make. Select a make to view.

Audi (10)
Model Variant Engine Years Notes
S4 B9 3.0 TFSI 2018-on Requires matching software calibration
S5 B9/B9.5 3.0 TFSI 2018-on Requires matching software calibration
SQ5 B9/B9.5 3.0 TFSI 2018-on Requires matching software calibration
RS4 B9 2.9 TFSI Requires matching software calibration
RS5 B9/B9.5 2.9 TFSI 2018-on Requires matching software calibration
A6 C8 3.0 TFSI 2019-on Requires matching software calibration
A7 C8 3.0 TFSI 2019-on Requires matching software calibration
A8 D5 3.0 TFSI 2019-on Requires matching software calibration
Q7 4M.5 3.0 TFSI 2020-on Requires matching software calibration
Q8 4M8 3.0 TFSI 2019-on Requires matching software calibration

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
