034Motorsport Bullet Nose Stud Kit, Pack of 20, M14x1.5, Volkswagen/Audi/Porsche Applications 55mm Length - 034-604-3002-20
Order In
034Motorsport

034Motorsport Bullet Nose Stud Kit, Pack of 20, M14x1.5, Volkswagen/Audi/Porsche Applications 55mm Length - 034-604-3002-20

$219.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Braking
  • Vendor 034Motorsport
  • SKU 034-604-3002-20
  • Barcode E3-4-1
Description Reviews

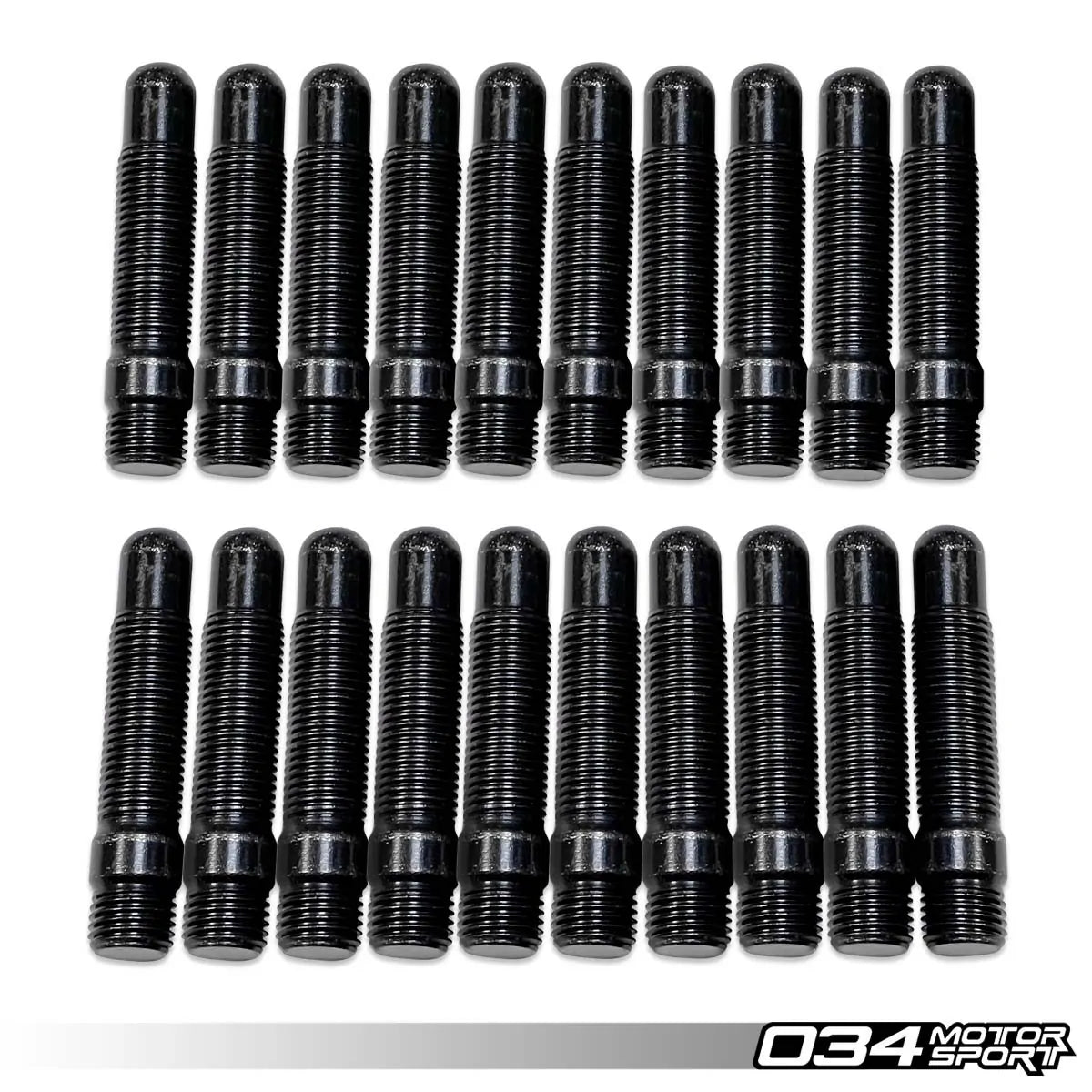

This pack of 20 bullet nose wheel studs in a 55mm length has an M14x1.5 thread and suits Volkswagen, Audi and Porsche applications. 034Motorsport designed the bullet nose so the wheel and nuts self-align, which makes installation faster and easier than with factory wheel bolts and removes the need to balance the wheel on the hub. The studs are made from Grade 10.9 chromoly steel with a heavy duty black zinc coating, which the brand says makes them less prone to corrosion and able to withstand intense heat from braking on track. A large shoulder adds strength and is sized for VAG brake rotor hats, and this 55mm stud allows a spacer up to 10mm thick.

Features

  • Pack of 20 bullet nose studs with M14x1.5 thread
  • Bullet nose lets the wheel and nuts self-align
  • Grade 10.9 chromoly steel with black zinc coating
  • Large shoulder sized for VAG brake rotor hats
  • 8mm unthreaded shoulder for the brake rotor
  • 55mm length allows a spacer up to 10mm thick

Specifications

  • Brand: 034Motorsport
  • Product Type: Bullet Nose Wheel Stud Kit
  • Quantity: Pack of 20
  • Stud Length: 55mm
  • Thread: M14x1.5mm
  • Material: Grade 10.9 chromoly steel, heavy duty black zinc coating
  • Unthreaded Shoulder: 8mm, for brake rotor
  • Hub Thread Length: 10mm
  • Maximum Spacer Size: 10mm
  • Nut Thread Length: 45mm to hub face
  • Hub Face to Stud Nose: 60mm
  • Part Number: 034-604-3002-20

Vehicle Compatibility: Suits Volkswagen, Audi and Porsche applications that use an M14x1.5 wheel thread; not vehicle specific. Check your hub thread and spacer requirements before ordering.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
