034Motorsport Audi B9 RS4/RS5 2-Piece Floating Rear Brake Rotor Upgrade Kit - 034-301-2010

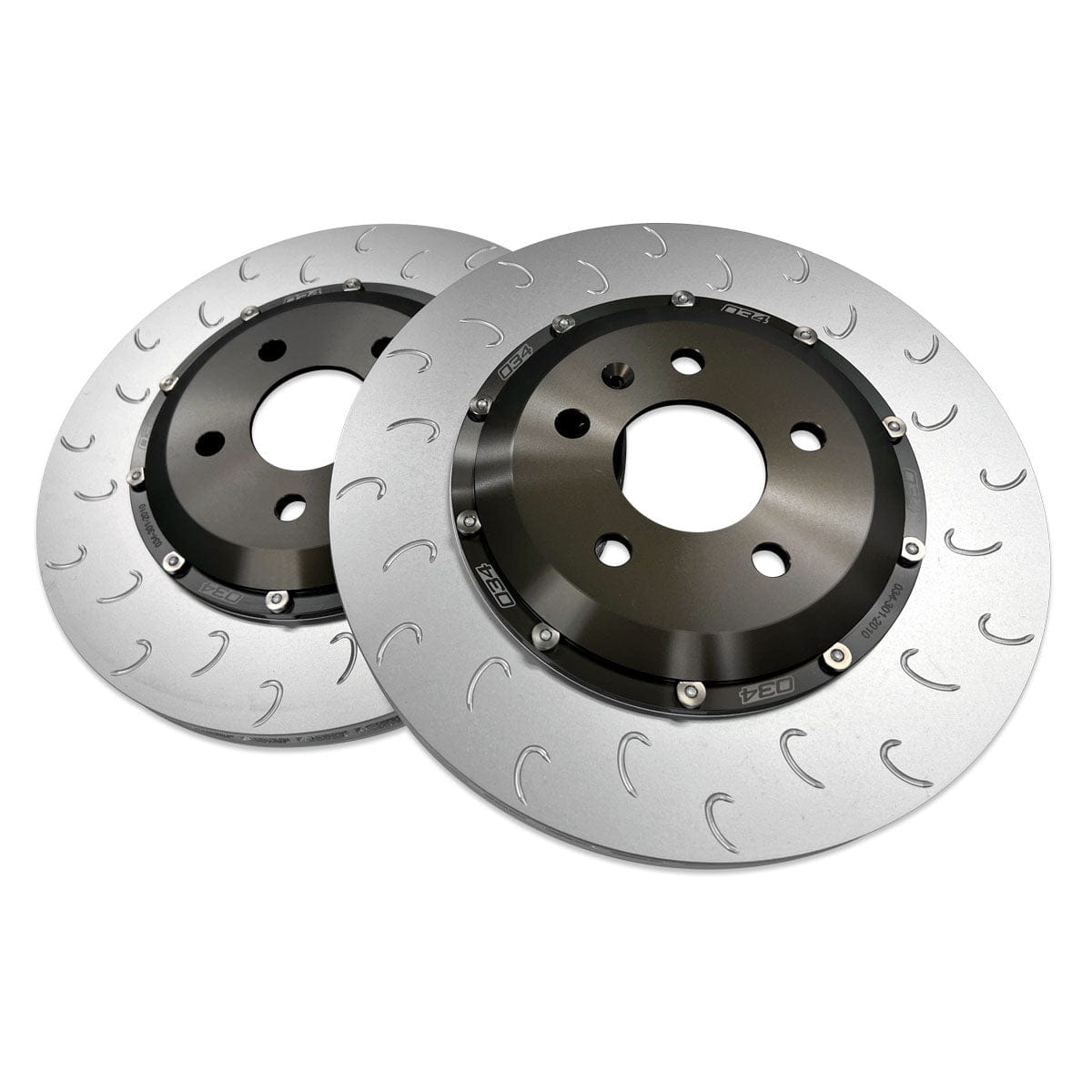

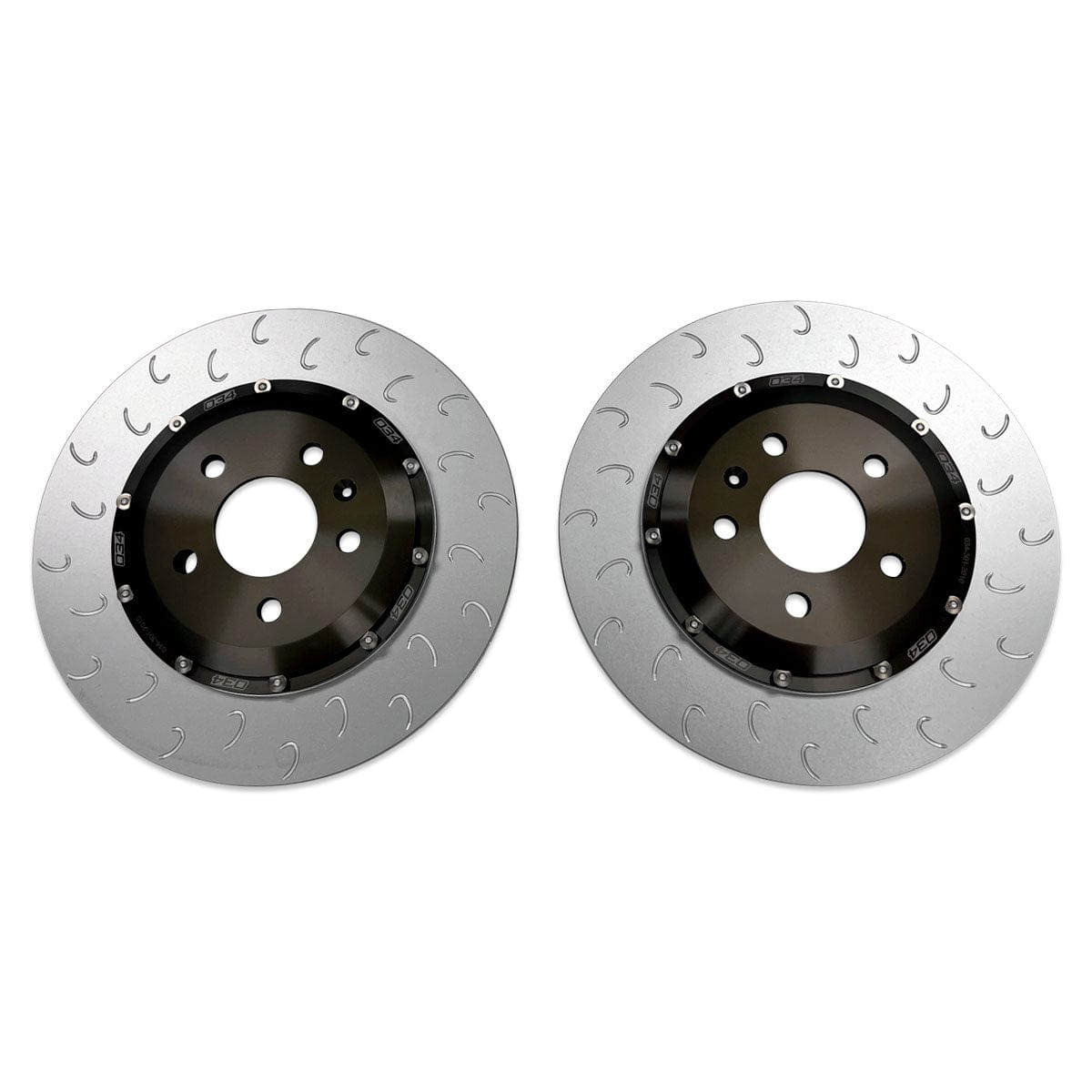

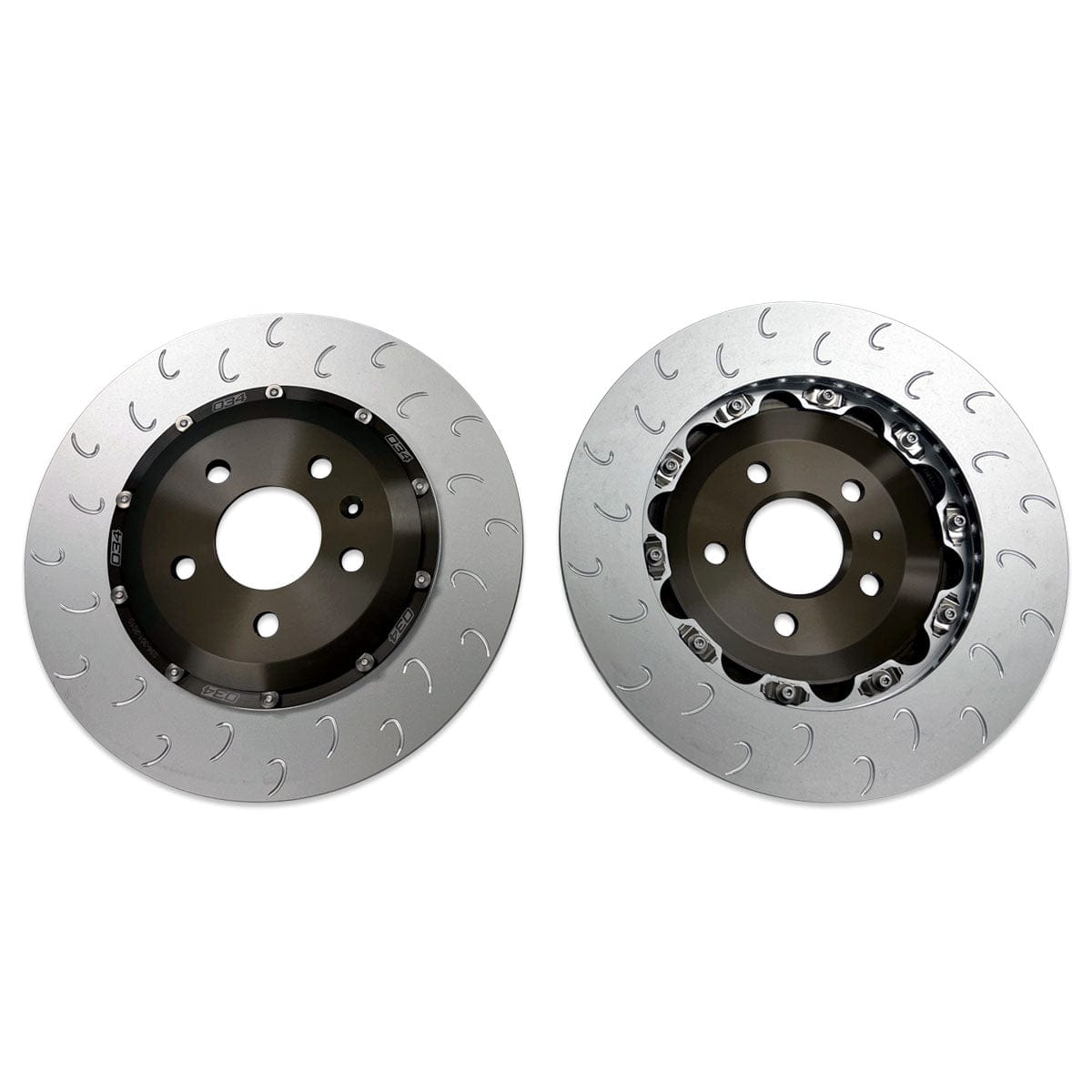

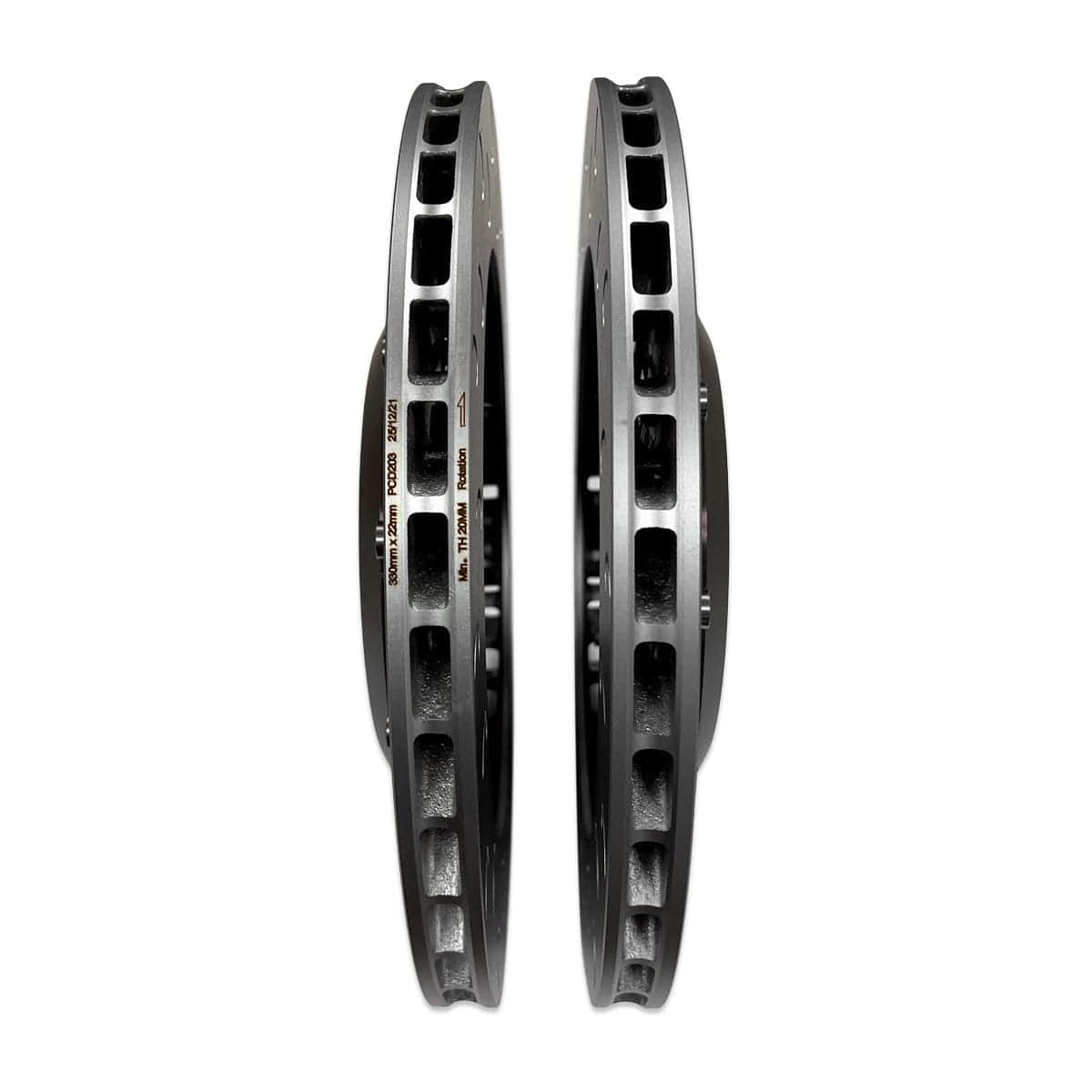

This 2-piece floating rear brake rotor kit is a 330mm x 22mm replacement for the factory rear rotors on the B9/B9.5 Audi RS5, and the title also names the RS4. Each rotor weighs approximately 12.1lbs, which 034Motorsport says is 1.7lbs less per corner than the factory 13.8lb rotor, while the rings retain enough thermal mass to capture and dissipate heat. The hat is made from 6061-T6 aircraft specification aluminium and is joined to a CM-250 alloy rotor ring by high strength alloy steel floating bobbins that allow safe expansion and contraction from heat. The rings have 72 directionally curved vanes and a J-slot friction face, and they are replaceable, which 034Motorsport says lowers long-term maintenance cost.
Features
- 330mm x 22mm two-piece floating rear rotors
- Approx 12.1lb per rotor against 13.8lb OE
- 6061-T6 aircraft specification aluminium hats
- CM-250 special alloy rotor rings

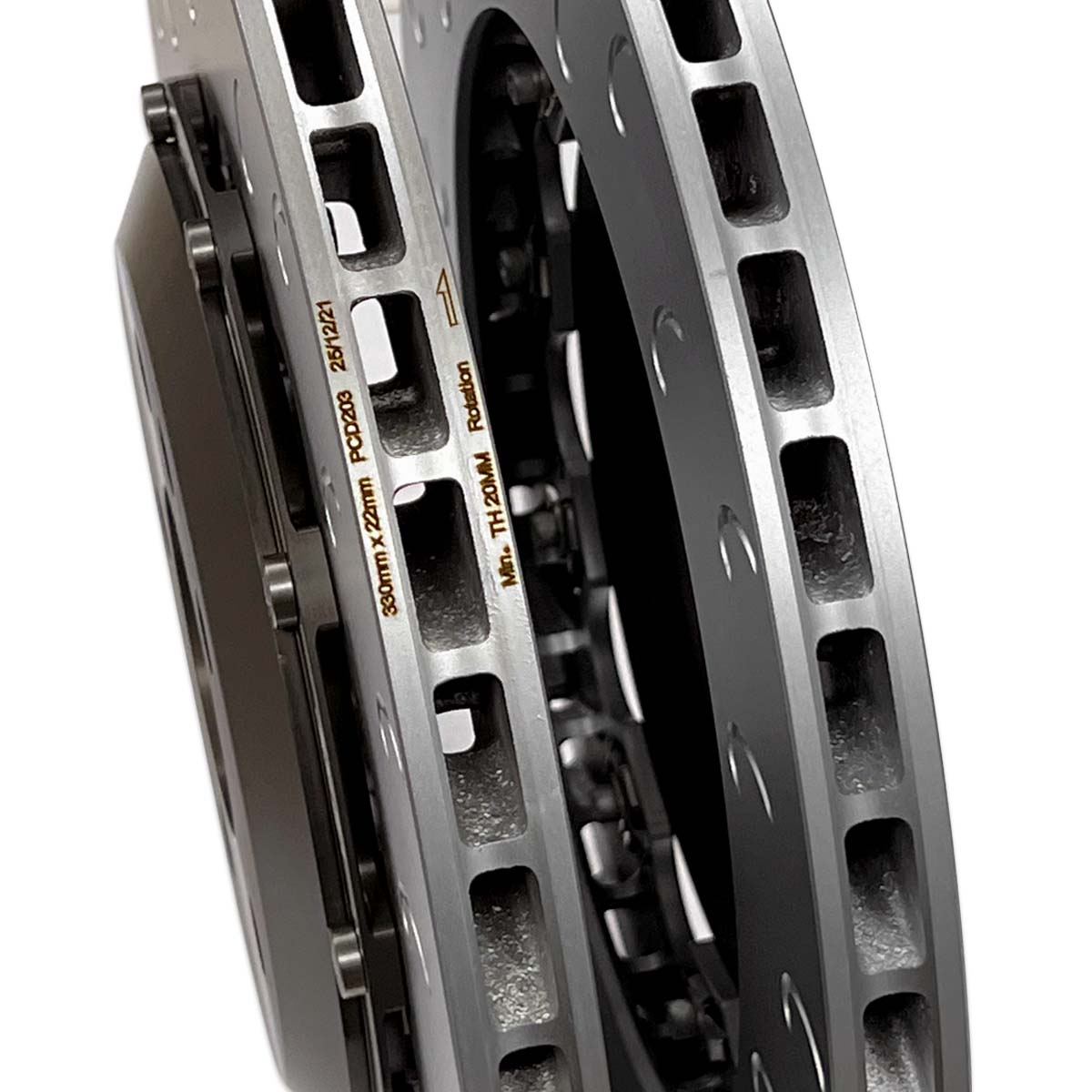

- 72 directionally curved vanes

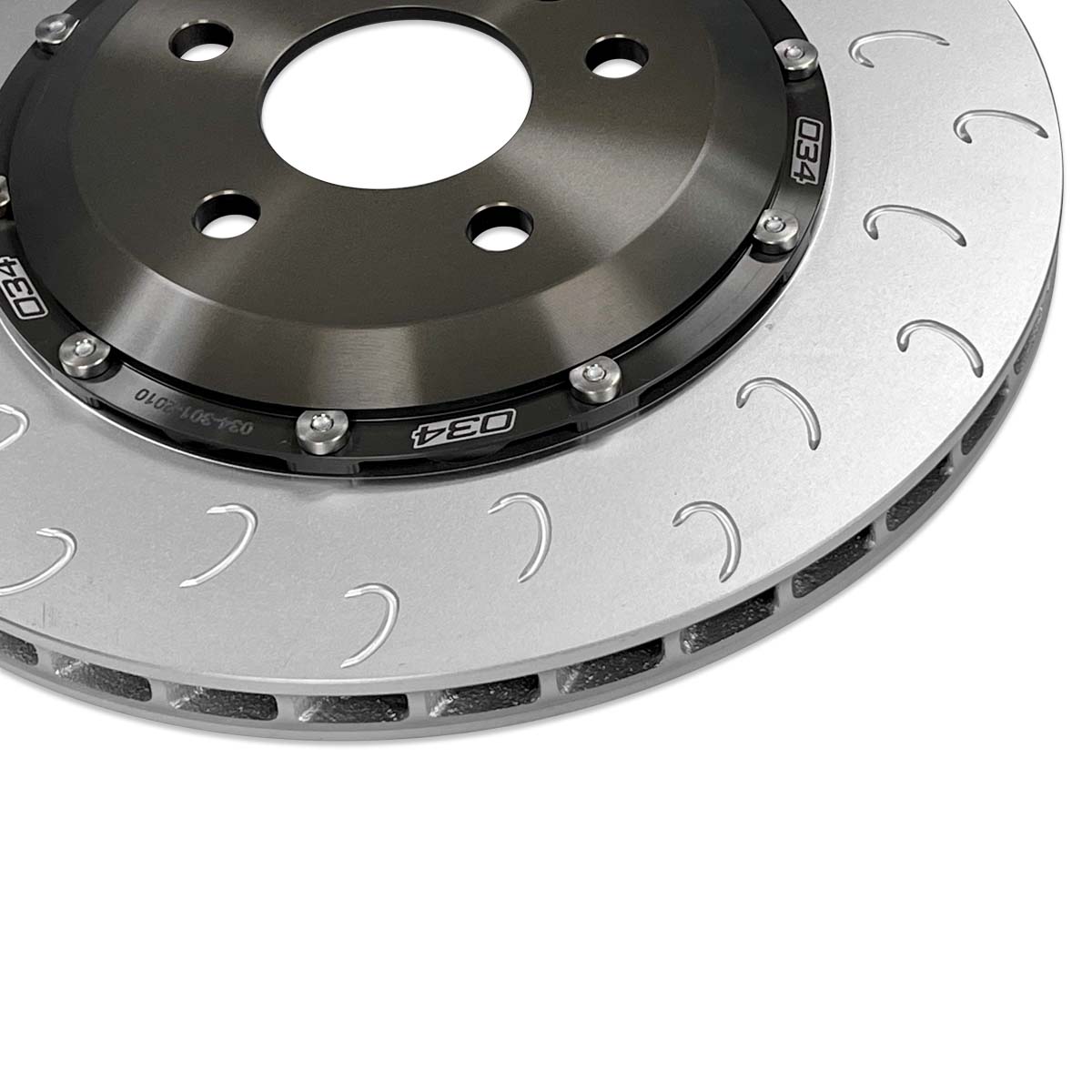

- J-slot friction face

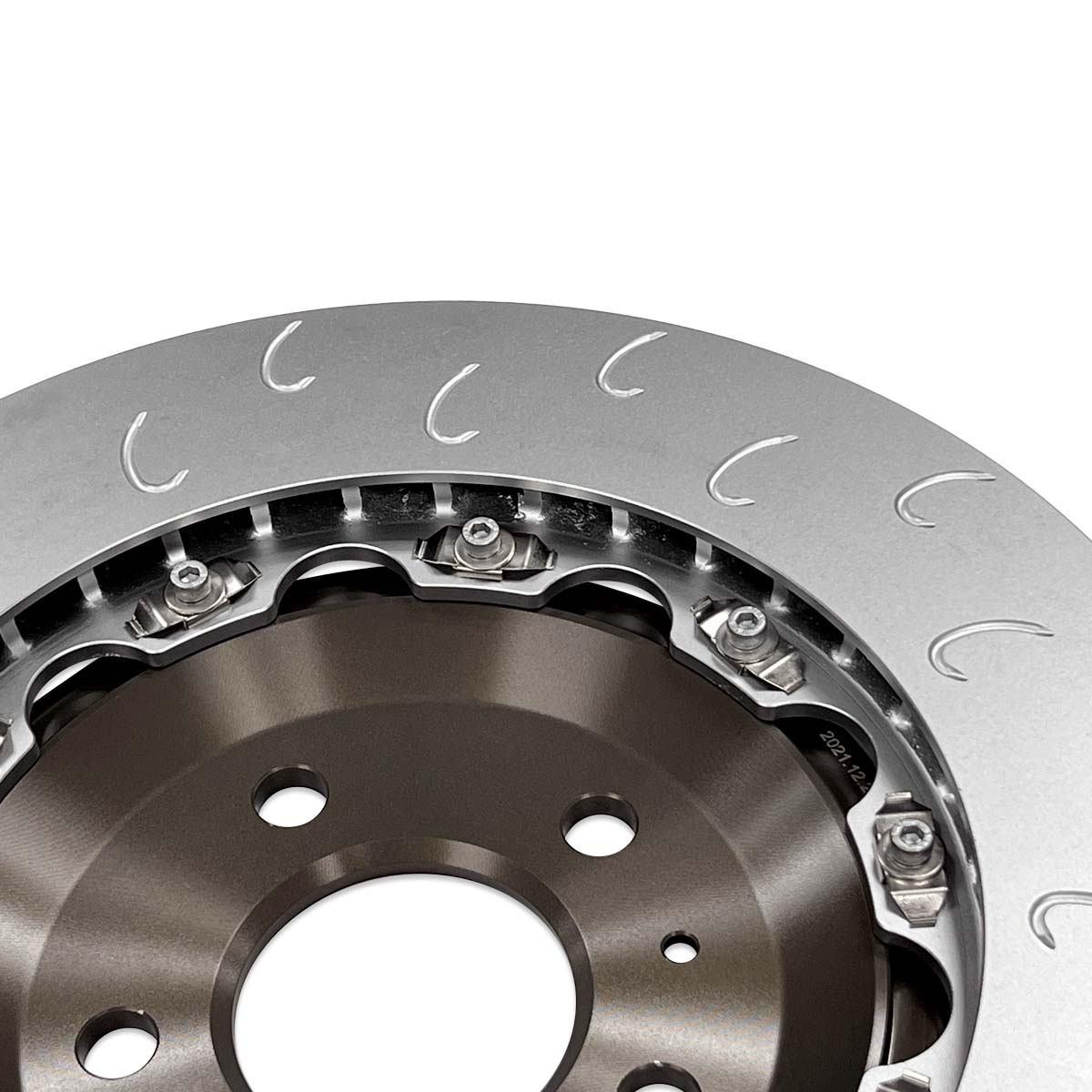

- Replaceable rotor rings, floating bobbin mounting
Specifications
- Brand: 034Motorsport
- Product Type: 2-Piece Floating Rear Brake Rotor Kit
- Rotor Size: 330mm x 22mm
- Weight: Approx 12.1lbs per rotor (OE 13.8lbs)
- Hat: 6061-T6 aluminium
- Rings: CM-250 special alloy, J-slot face, 72 curved vanes
- Mounting: Floating, high strength alloy steel bobbins
- Included: Rear rotor pair, installation and break-in instruction sheets
- OE Part Interchange: 8W0 615 601 G
- Part Number: 034-301-2010
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| RS5 | B9/B9.5 | 2.9 TFSI | 2018-on |
| RS4 | B9/B9.5 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
