034Motorsport Auxiliary Side Mount Radiator Upgrade Kit - Audi B9/B9.5 S4/S5 3.0T - 034-102-1007

This kit replaces the factory auxiliary side-mount radiator on B9 and B9.5 Audi S4 and S5 models with the EA839 3.0T engine with a larger CSF radiator. 034Motorsport developed it to hold coolant temperatures in check on track, on hard back-road drives and in hot climates, where extra power adds heat the factory unit can struggle to shed. The quad-pass CSF #8132 core measures 215mm high, 185mm wide and 40mm thick, which the brand says gives about 10% more frontal area and 78.1% more physical volume than the factory radiator. A precision-bent stainless steel bracket and CNC-machined billet aluminium adapters retain the factory air duct and shrouding, and cars without the factory auxiliary radiator can be retrofitted using OE parts 034Motorsport lists.

Features

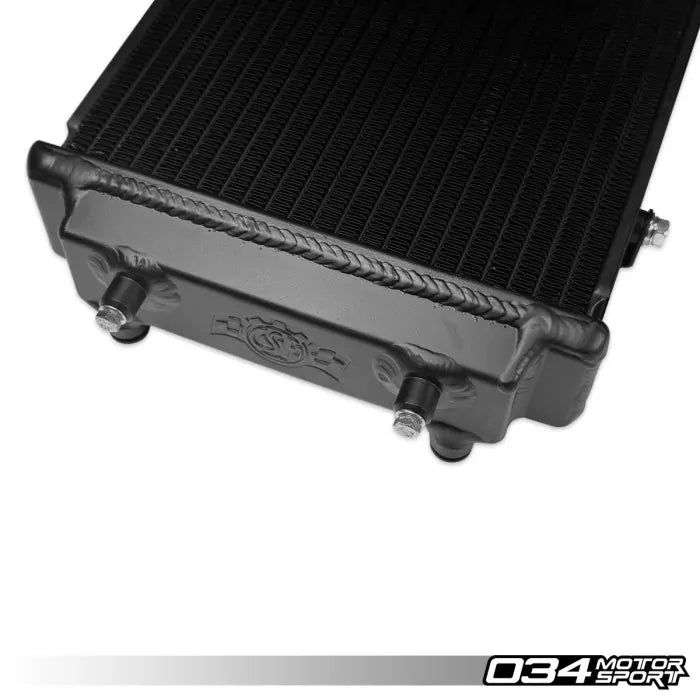

• CSF #8132 quad-pass radiator
• 215 x 185 x 40mm core versus 195 x 185 x 26mm OE
• About 10% more frontal area and 78.1% more volume

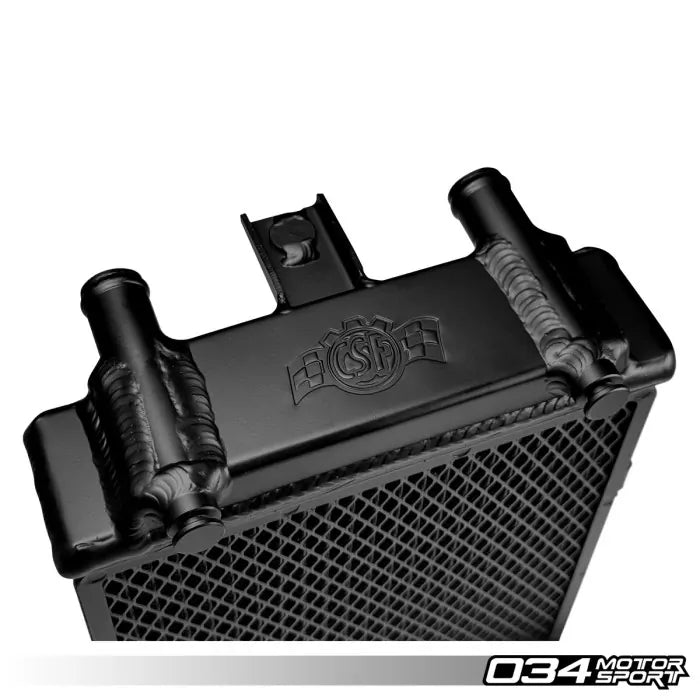

• CNC-machined inlet and outlet connections

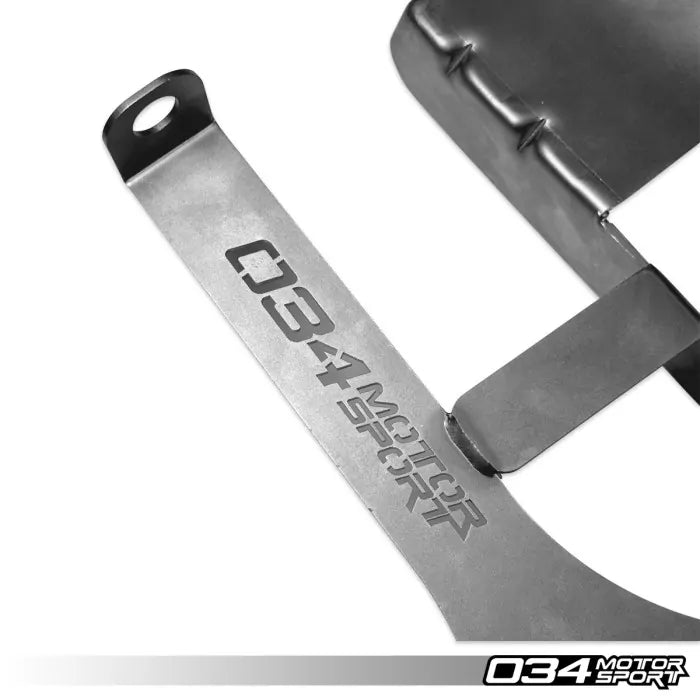

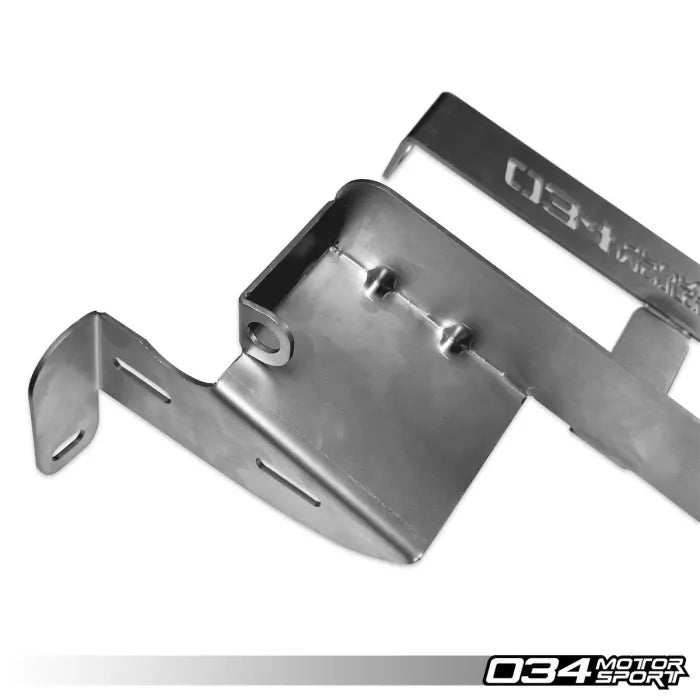

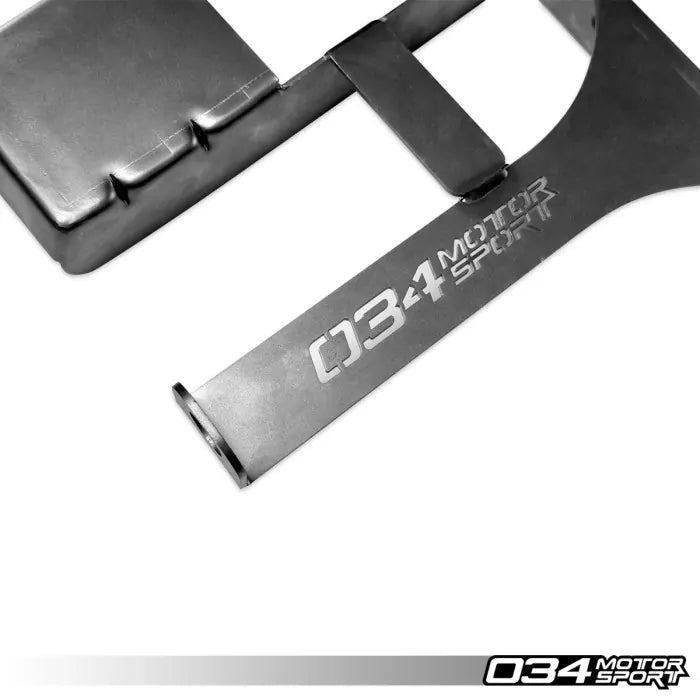

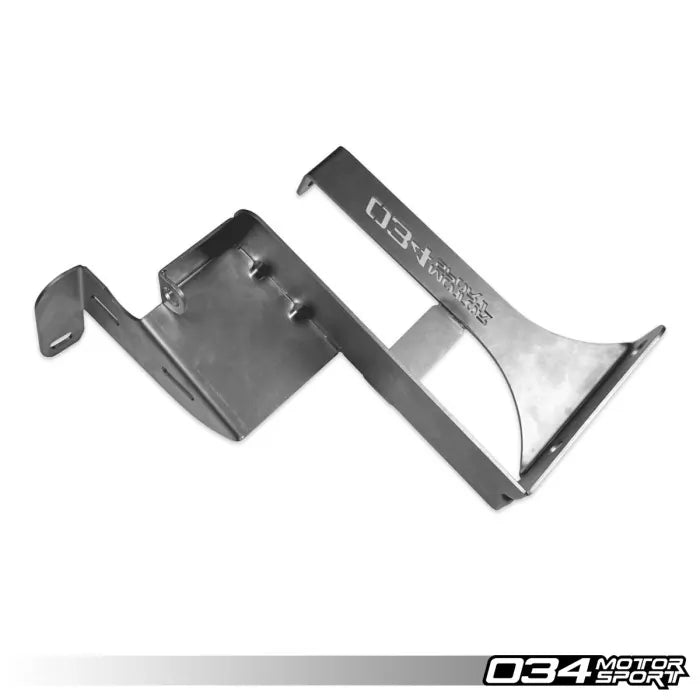

• Stainless steel bracket and billet aluminium shroud adapters
• Retains the OE air duct
• Removable metal rock guard included

Specifications

• Brand: 034Motorsport
• Product Type: Auxiliary Radiator Upgrade Kit
• Radiator: CSF #8132, quadruple pass
• Dimensions: 215mm H x 185mm W x 40mm T (OE 195mm H x 185mm W x 26mm T)
• Front Surface Area: 397.75 cm² (OE 360.75 cm²)
• Physical Volume: 1,671 cm³ (OE 938 cm³)

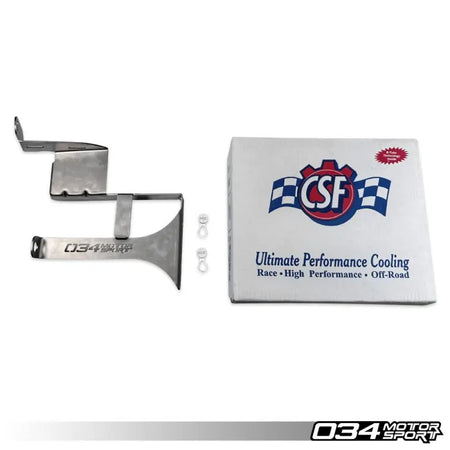

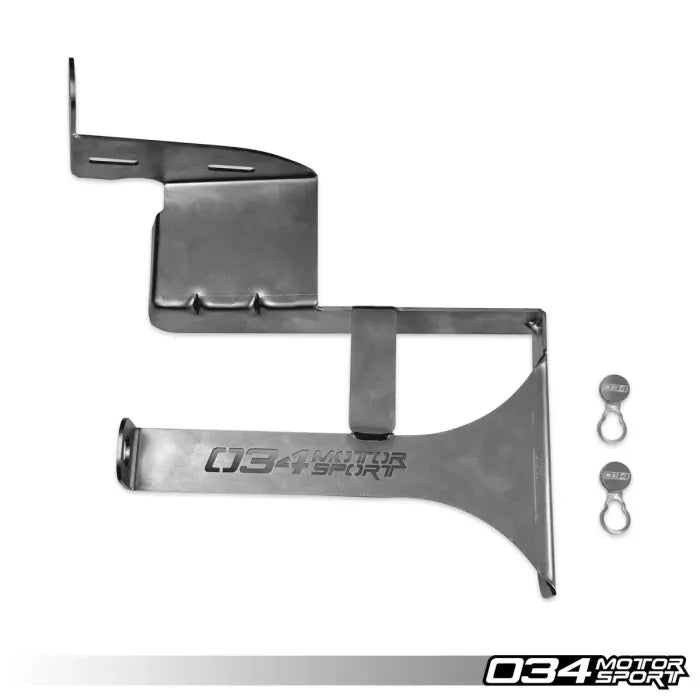

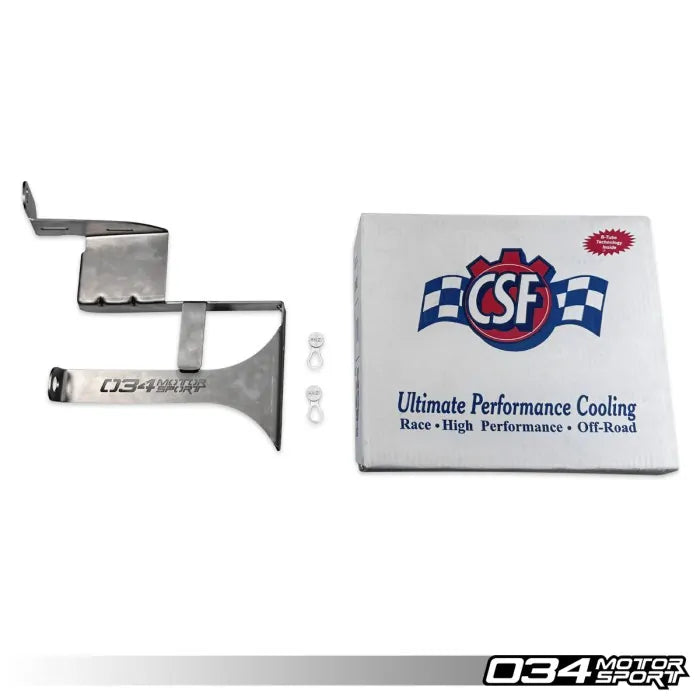

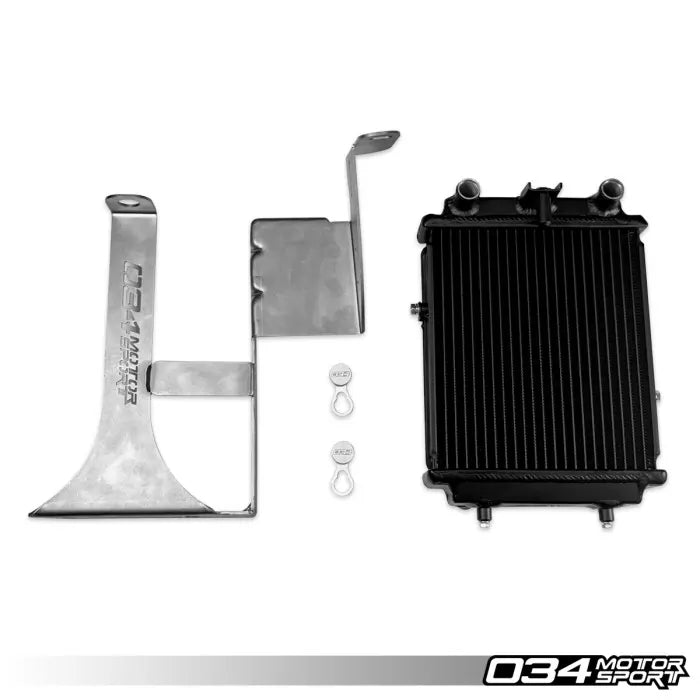

• Includes: CSF #8132 radiator, removable metal rock guard, 2 billet aluminium adapters, stainless steel mounting bracket
• OE Part Interchange: 8W0 121 251 H
• Part Number: 034-102-1007
