034Motorsport Billet Aluminium DSG Breather Catch Can Kit - Audi 8Y RS3 - 034-504-Z036

This catch can kit is designed for the 8Y Audi RS3 and replaces the small OE plastic transmission vent with a billet aluminium DSG breather catch can. 034Motorsport says that when the DSG heats up, especially with launch control, fluid can escape through the factory breather hose and coat the engine bay, and that the can traps this fluid and drains it back into the transmission. The body is CNC milled from 6061-T6 billet aluminium with a black anodised finish, an internal stainless steel baffle plate and powder coated mounting brackets. It retains the OE connector at the transmission, uses an 8mm I.D. silicone vent hose and mounts to stock mounting points with no drilling or cutting.

Features

• 6061-T6 billet aluminium body, black anodised
• Stainless steel internal baffle plate
• Powder coated mounting brackets
• 8mm I.D. silicone vent hose, 2ft supplied
• Retains the OE connector at the transmission
• Uses stock mounting points, no drilling or cutting
• Collected fluid drains back into the DSG

Specifications

• Brand: 034Motorsport
• Product Type: DSG Breather Catch Can Kit
• Body: CNC milled 6061-T6 billet aluminium, black anodised
• Baffle: Stainless steel internal baffle plate
• Vent Hose: 8mm I.D. silicone, 2ft

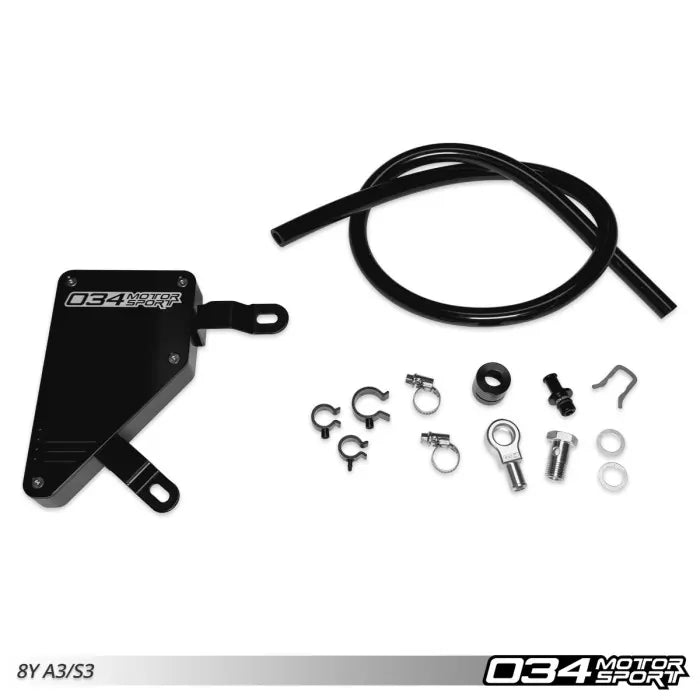

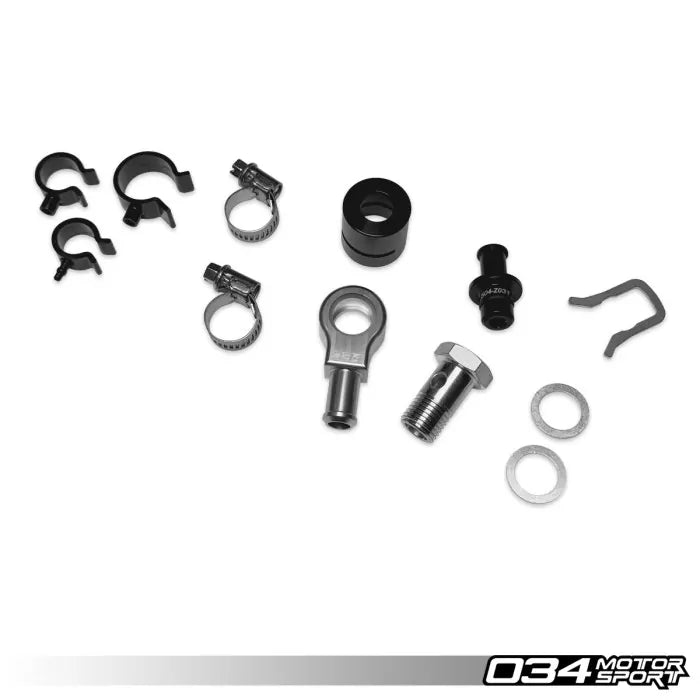

• Includes: Catch can body with brackets, 2ft silicone vent hose, zinc plated steel 14mm x 1.5 banjo bolt, billet aluminium 14mm banjo fitting, 2 aluminium crush washers (14mm x 20mm), 2 M8x16 worm drive clamps, 14-15mm to 20-25mm swivel clip
• Install Time: Approximately 30 minutes (per 034Motorsport)
• Part Number: 034-504-Z036

Vehicle Compatibility: 1 application across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
