034Motorsport Billet Magnetic Oil Drain Plug Kit, Audi & VW with Metal Oil Pan
Regular price
$34.99

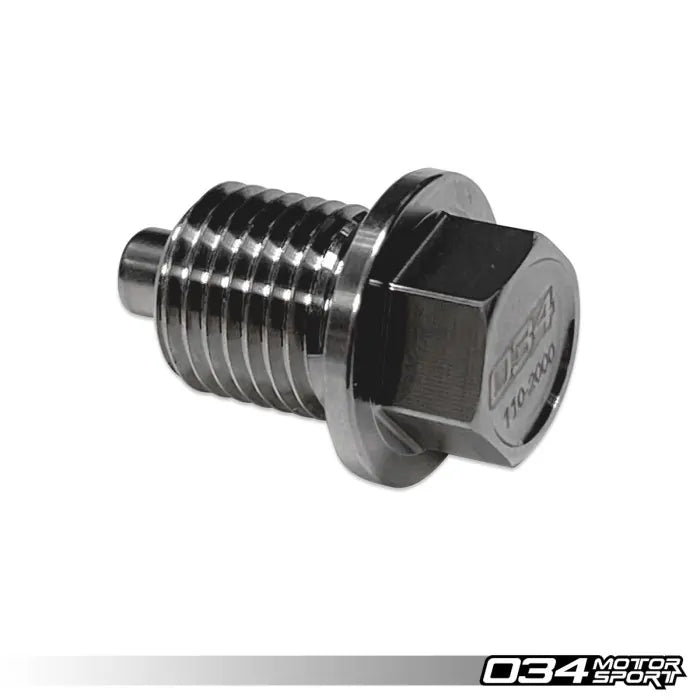

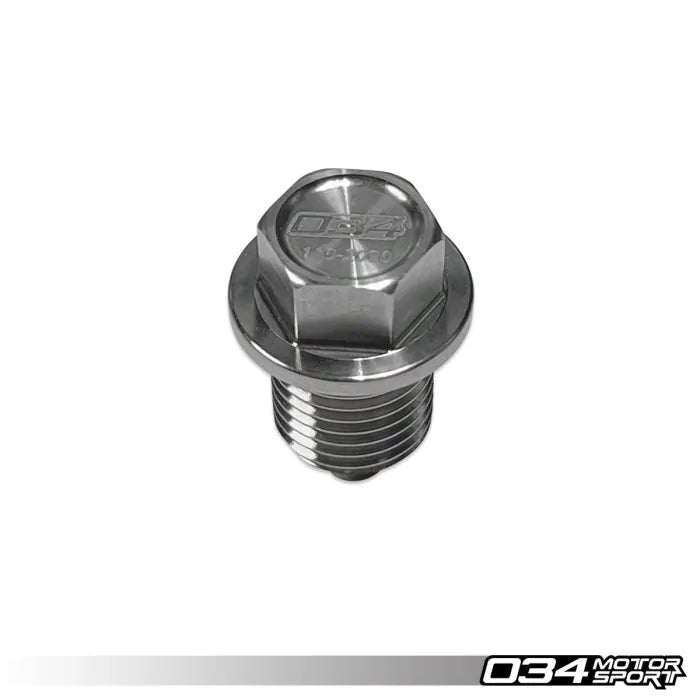

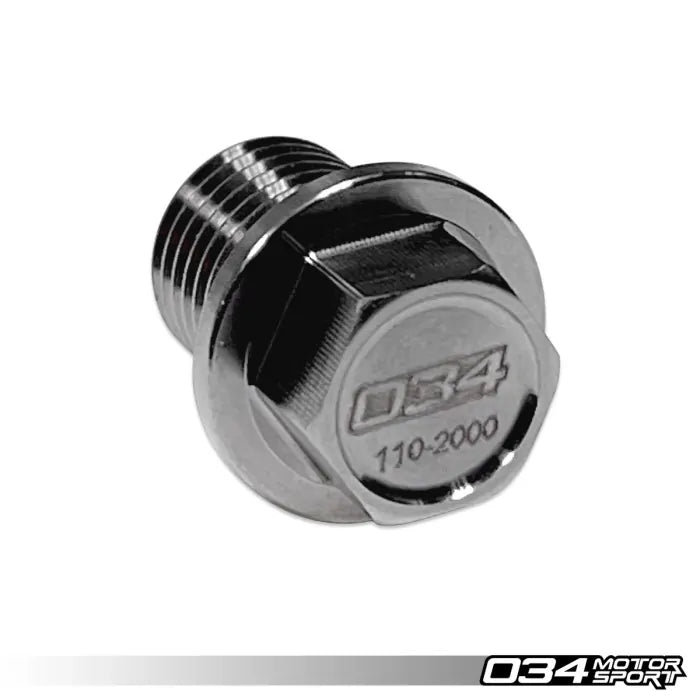

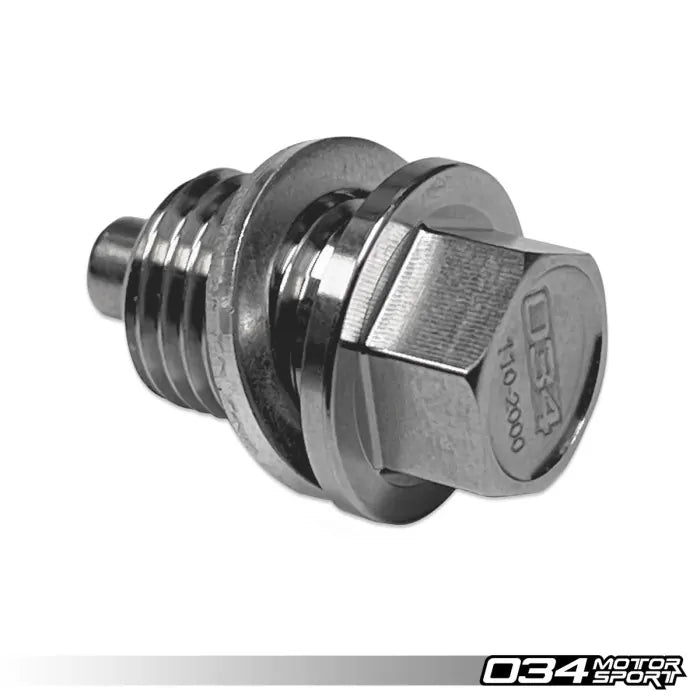

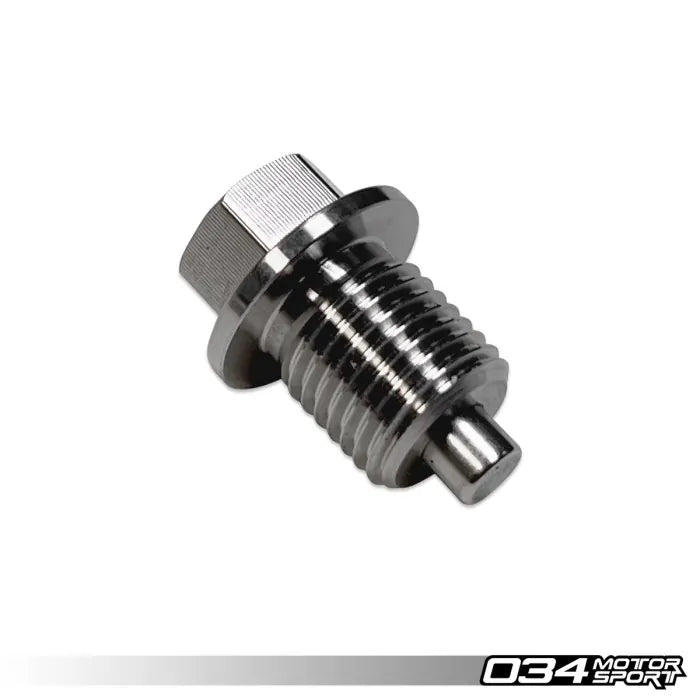

This kit replaces the factory oil drain plug on Audi and Volkswagen engines fitted with a metal oil pan. The plug is CNC-machined from billet 304 stainless steel and has a permanently attached neodymium magnet. The magnet attracts and holds the fine ferrous particles produced by normal wear, keeping them from circulating through the lubrication system. 034Motorsport says this helps limit wear on internal engine components.
Features
- CNC machined from billet 304 stainless steel
- Direct replacement for the OE drain plug
- Permanently attached neodymium magnet
- Holds fine abrasive ferrous particles out of circulation
- Includes 10 aluminium crush washers
Specifications
- Brand: 034Motorsport
- Product Type: Magnetic Oil Drain Plug Kit
- Material: Billet 304 stainless steel
- Magnet: Neodymium, permanently attached
- Oil Pan Type: Metal

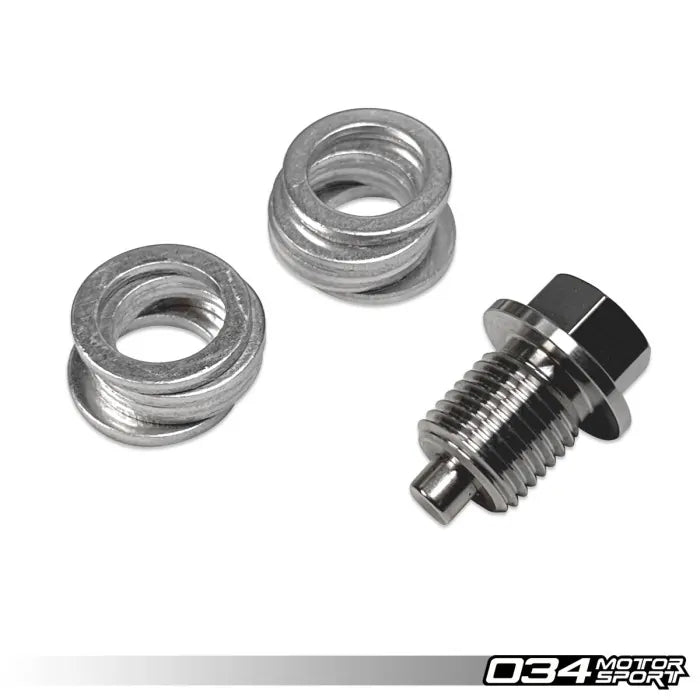

- Includes: 1 billet magnetic oil drain plug, 10 aluminium crush washers
- OE Part Number Exchange: N 908 132 02, N 911 014 01, N 016 027 6
- Installation Time: Approximately 30 minutes, per 034Motorsport
- Part Number: 034-110-2000
Vehicle Compatibility: 40 applications across 1 make. Select a make to view.
Audi (40)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8P | 2.0 TDI, 2.0 TSI, 2.0T FSI | 2006-2013 |
| A3 | 8P | 3.2 VR6 24V | 2006-2008 |
| A4 | B5 | 1.8T, 2.8 V6 12V, 2.8 V6 30V | 1996-2001 |
| A4 | B6 | 1.8T, 3.0 V6 30V | 2002-2005 |
| A4 | B7 | 2.0T FSI, 3.2 FSI | 2005-2008 |
| A4 | B8/B8.5 | 3.2 FSI | 2009-2016 |
| A5 | B8/B8.5 | 2.0 TFSI, 3.2 FSI | 2008-2017 |
| A6 | C4 | 2.8 V6 12V | 1995-1997 |
| A6 | C5 | 2.7T, 2.8 V6 30V, 3.0 V6 30V, 4.2 V8 40V | 1998-2004 |
| A6 | C6 | 3.0 TFSI, 3.2 FSI, 4.2 FSI | 2005-2011 |
| A6 | C7/C7.5 | 3.0 TDI, 3.0 TFSI | 2012-2018 |
| A6 | C8 | 3.0 TFSI | 2019-on |
| A8 | D4 | 3.0 TDI, 3.0 TFSI, 4.0 TFSI, 4.2 FSI | 2011-2018 |
| A8 | D5 | 3.0 TFSI | 2019-on |
| Allroad | C5 | 2.7T, 4.2 V8 40V | 2001-2005 |
| Allroad | B8/B8.5 | 2.0 TFSI | 2010-2016 |
| Allroad | C8 | 3.0 TFSI | 2019-on |
| Q5 | B8/B8.5 | 3.0 TDI, 3.0 TFSI, 3.2 FSI | 2009-2017 |
| Q7 | 4L | 3.0 TDI | 2005-2015 |
| Q7 | 4L | 4.0 TDI | 2007-2009 |
| Q7 | 4L | 3.0 TFSI | 2011-2015 |
| Q7 | 4M/4M.5 | 3.0 TFSI Supercharged | 2015-2021 |
| Q7 | 4M.5 | 3.0 TFSI Turbocharged | 2022-on |
| Q8 | 4M8 | 3.0 TFSI | 2019-on |
| RS3 | 8V.5 | 2.5 TFSI EVO | 2017-2022 |
| RS3 | 8Y | 2.5 TFSI | 2023-on |
| RS4 | B7 | 4.2 FSI | 2006-2008 |
| RS4 | B9/B9.5 | 2.9 TFSI | 2018-on |
| RS5 | B8/B8.5 | 4.2 FSI | 2010-2017 |
| RS5 | B9/B9.5 | 2.9 TFSI | 2018-on |
| RS6 | C7/C7.5 | 4.0 TFSI | 2012-2018 |
| RS6 | C8 | 4.0 TFSI | 2020-on |
| RS7 | C7/C7.5 | 4.0 TFSI | 2012-2018 |
| RS7 | C8 | 4.0 TFSI | 2019-on |
| RSQ8 | 4M8 | 4.0 TFSI | 2020-on |
| S4 | B5 | 2.7T | 2000-2002 |
| S4 | B6 | 4.2 V8 40V | 2003-2005 |
| S4 | B7 | 4.2 V8 40V | 2005-2008 |
| S4 | B8/B8.5 | 3.0 TFSI | 2010-2017 |
| S4 | B9/B9.5 | 3.0 TFSI | 2018-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
