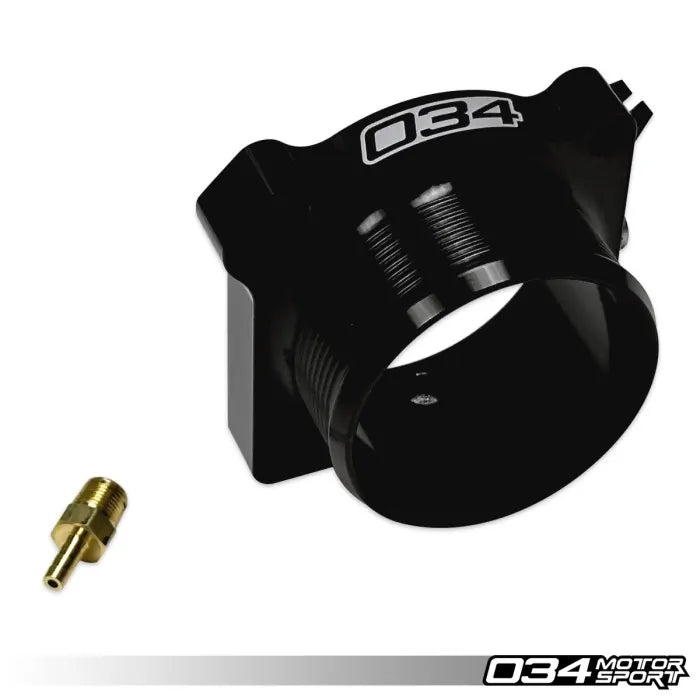

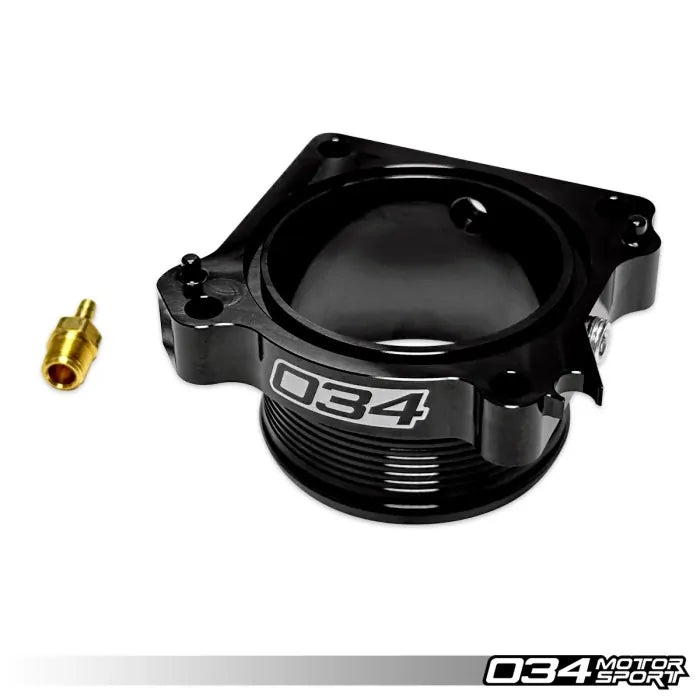

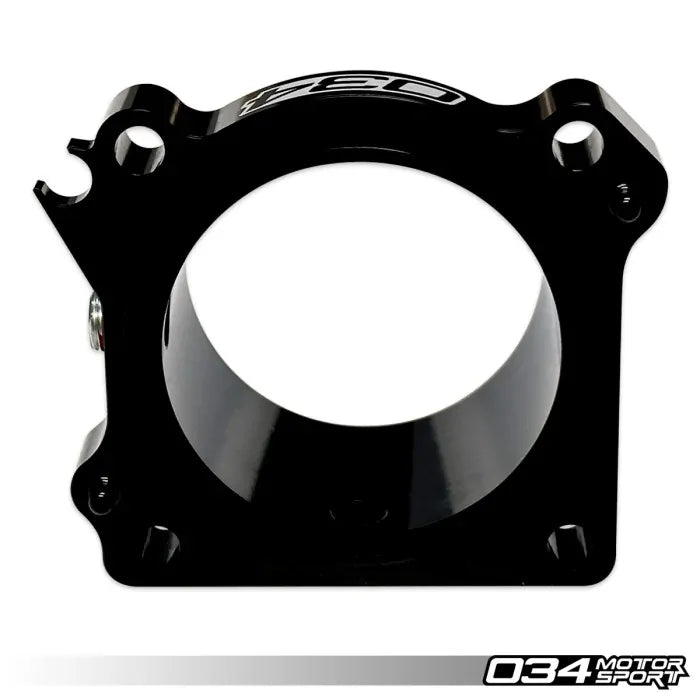

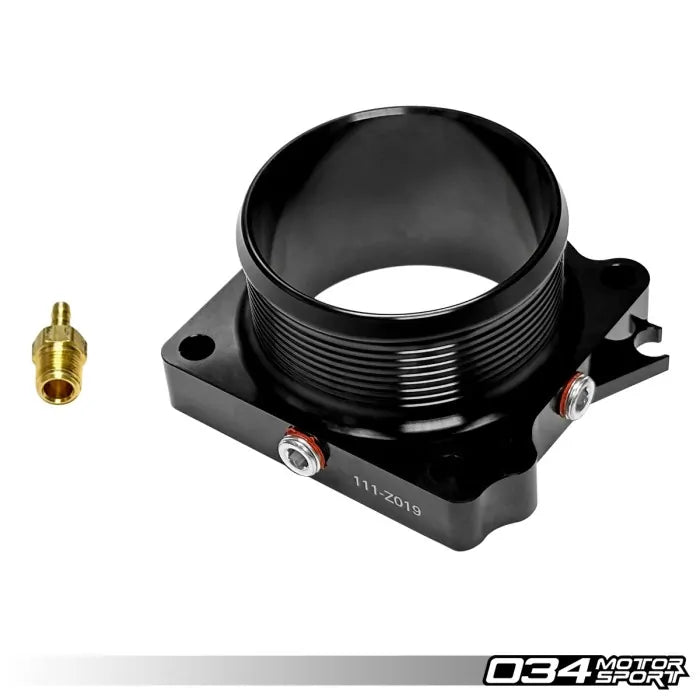

This boost tap kit replaces the factory spacer between the throttle body and charge pipe on Audi's 3.0 TFSI and 2.9 TFSI models, including the EA839-powered B9 and B9.5 S4, S5 and SQ5, giving easy access for monitoring boost and vacuum. It is machined from 6061-T6 billet aluminium with a black anodised finish, and 034Motorsport notes that it will never warp or crack. Two ports allow for a boost gauge, temperature sensor, water-methanol injection or nitrous injection, and a 1/8 barb fitting is supplied for the boost gauge hose. The tap drops in without modifying the charge pipes and takes around 30 minutes to install.
Features
- 6061-T6 billet aluminium construction
- Black anodised finish
- Two ports for gauges, sensors or injection systems
- Barb fitting supplied for a boost gauge hose
- Direct drop-in, no charge pipe modification
- Around 30 minutes to install
Specifications
- Brand: 034Motorsport
- Product Type: Boost Tap
- Material: 6061-T6 billet aluminium
- Finish: Black anodised
- Ports: 2
- Includes: Billet aluminium boost tap, 1/8 NPT plugs (2), 1/8 NPT to 1/8 barb fitting (1)
- Installation Time: Approx. 30 minutes
- Part Number: 034-111-Z019
Vehicle Compatibility: 6 applications across 1 make. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B9 | 3.0 TFSI | 2018-on |
| S5 | B9/B9.5 | 3.0 TFSI | 2018-on |
| SQ5 | B9/B9.5 | 3.0 TFSI | 2018-on |
| RS5 | B9/B9.5 | 2.9 TFSI | 2018-on |
| A6 | C8 | 3.0 TFSI | 2019-on |
| A7 | C8 | 3.0 TFSI | 2019-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
