034Motorsport Bullet Nose Stud & Cone Seat Nuts (20 Pack) 55 MM - 034-604-6004-20

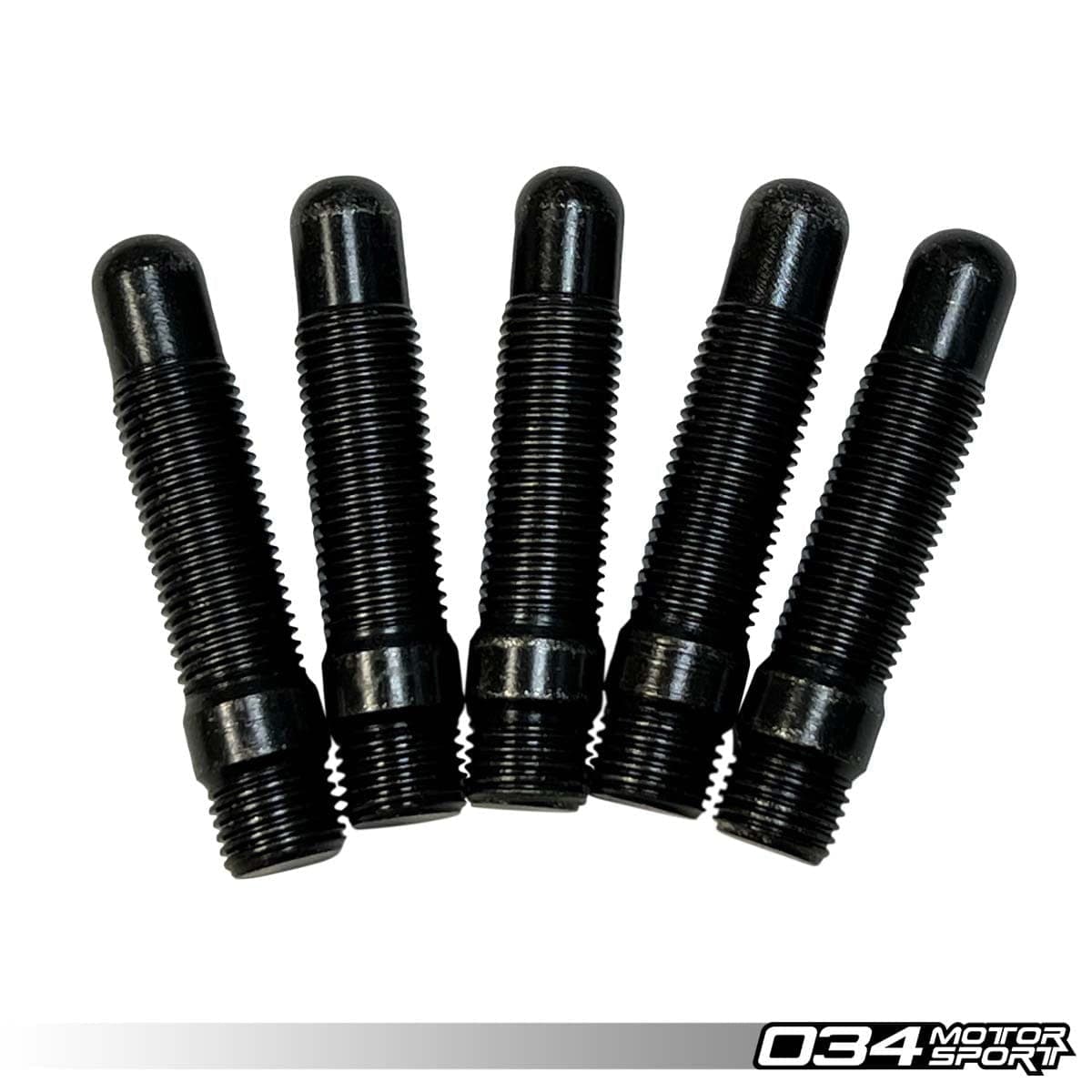

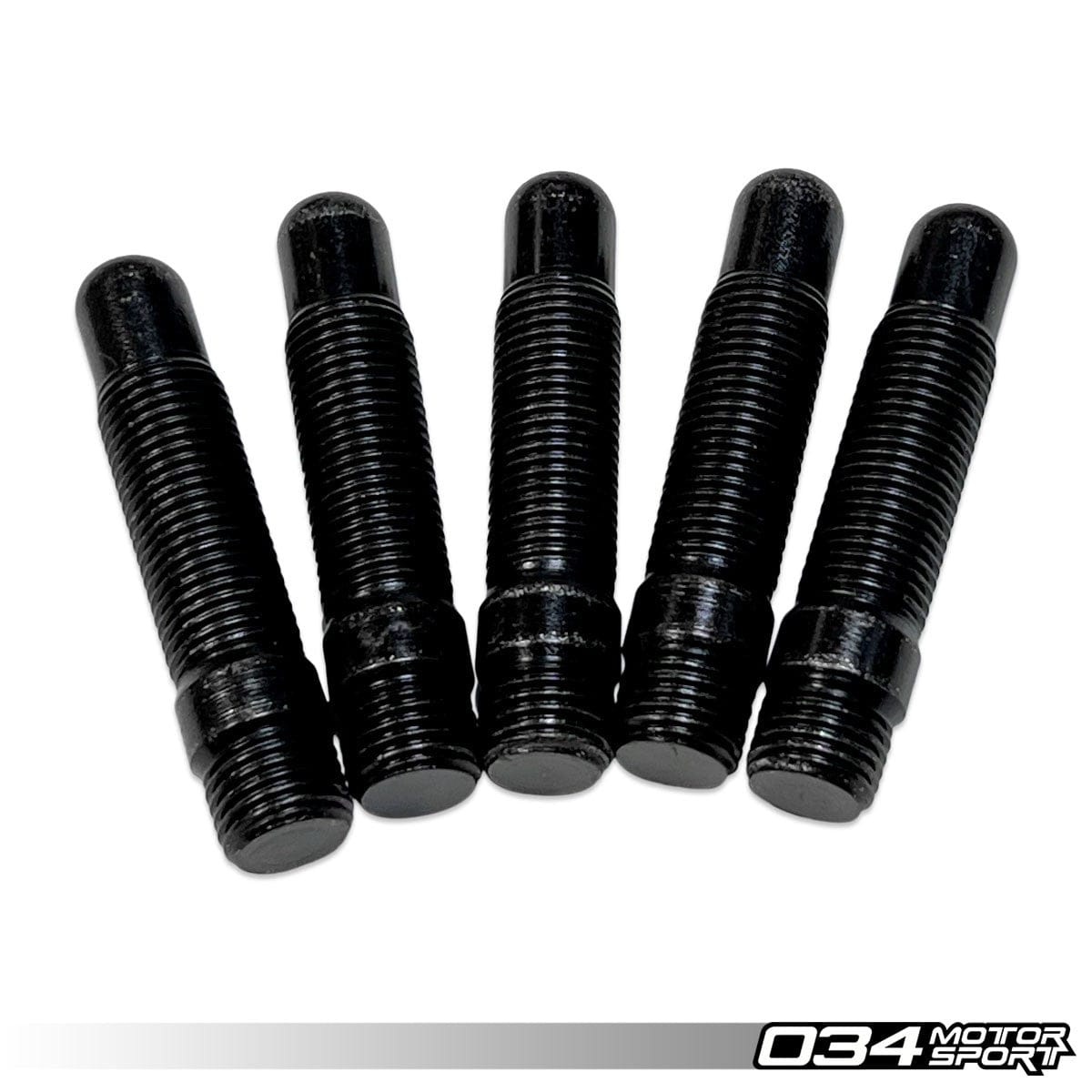

This set converts a whole car to 034Motorsport bullet nose wheel studs, with 20 studs of 55mm length and 20 cone seat wheel nuts. The tapered bullet nose lets the wheel and nuts self-align on the studs, making wheel changes quicker and easier. Studs and nuts are high-tensile, heat-treated Grade 10.9 chromoly steel, and the brand says they resist corrosion and cope with the heat of track braking. The studs use M14x1.5 threads, which suits virtually all Volkswagen and Audi models, and the 55mm length works with spacers up to 10mm thick.

Features

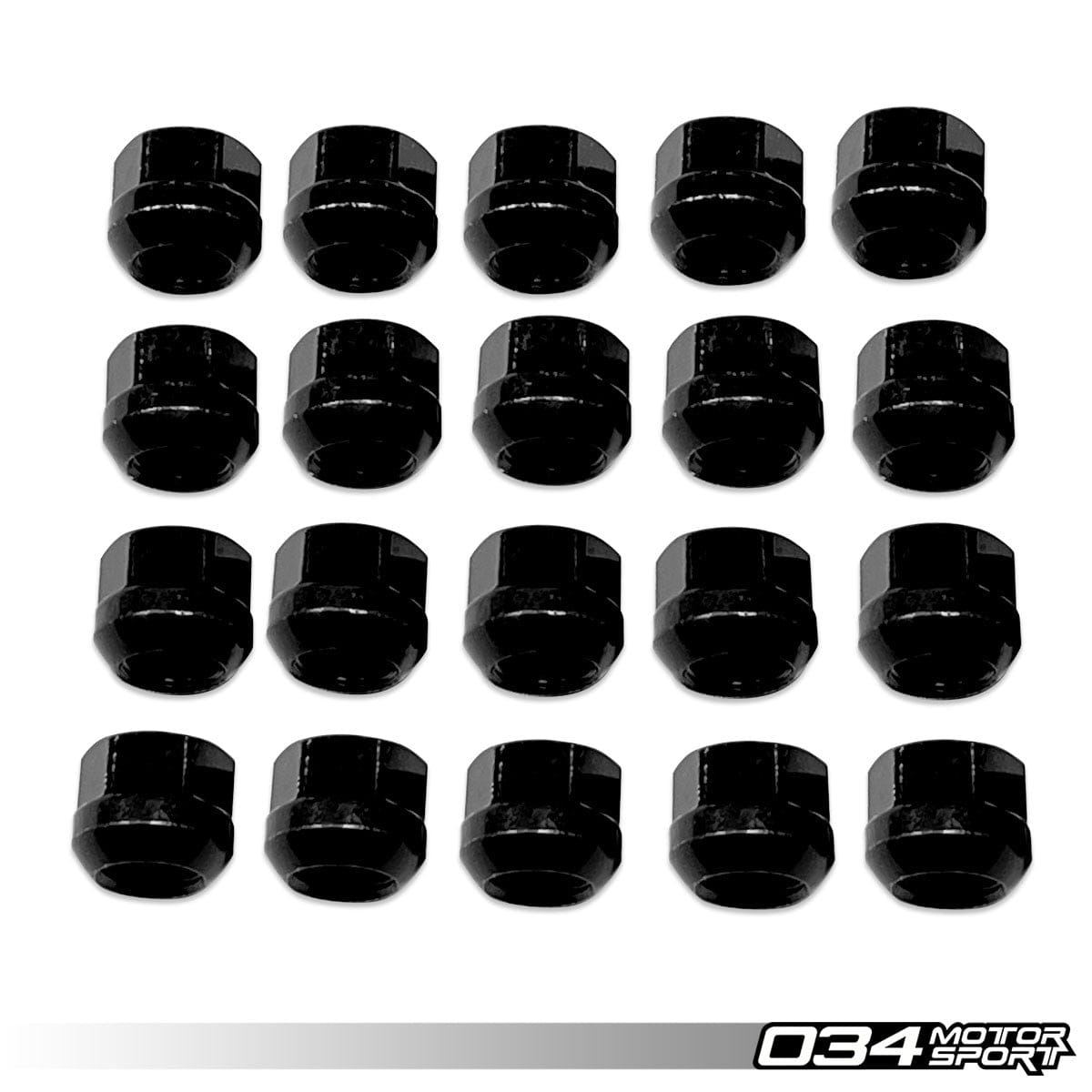

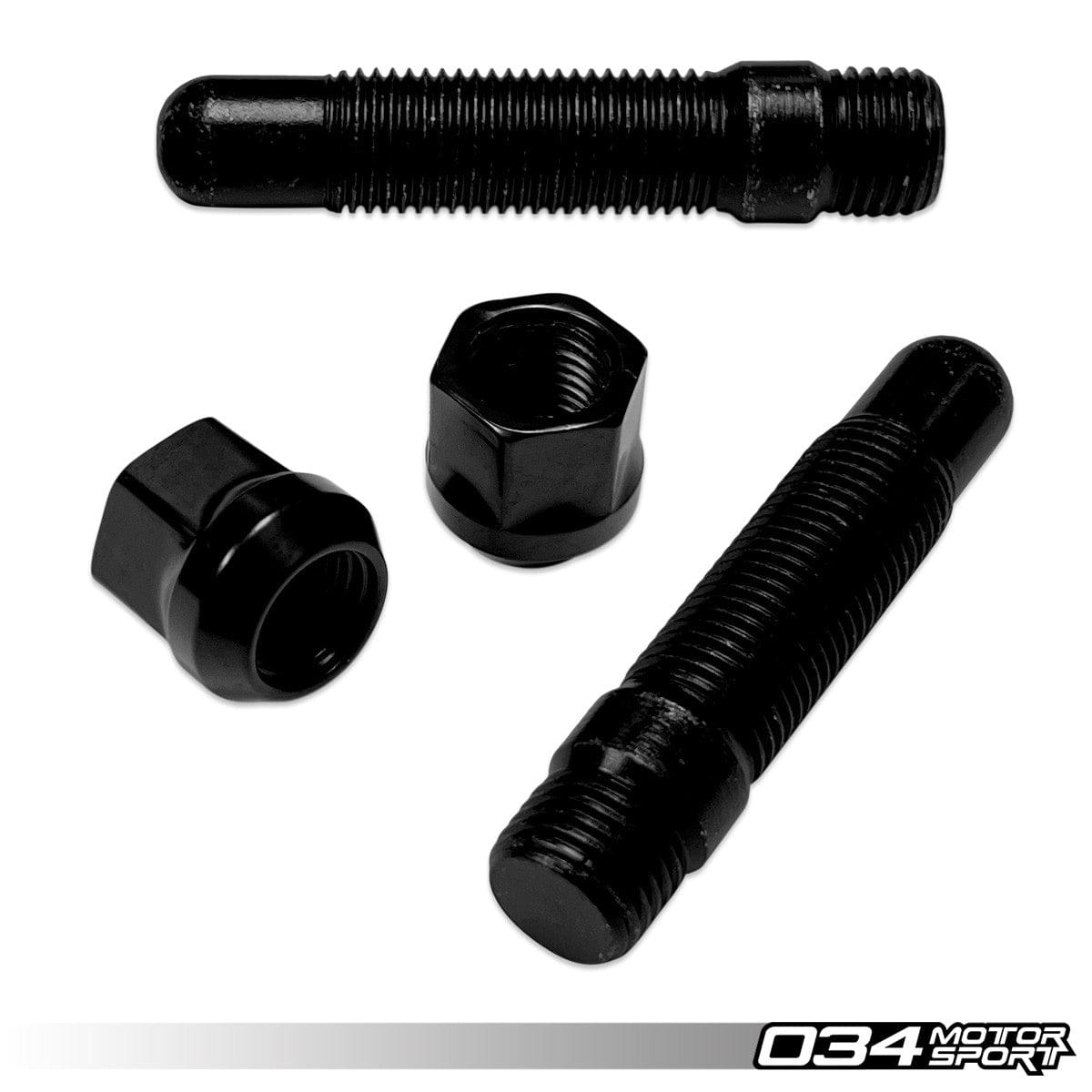

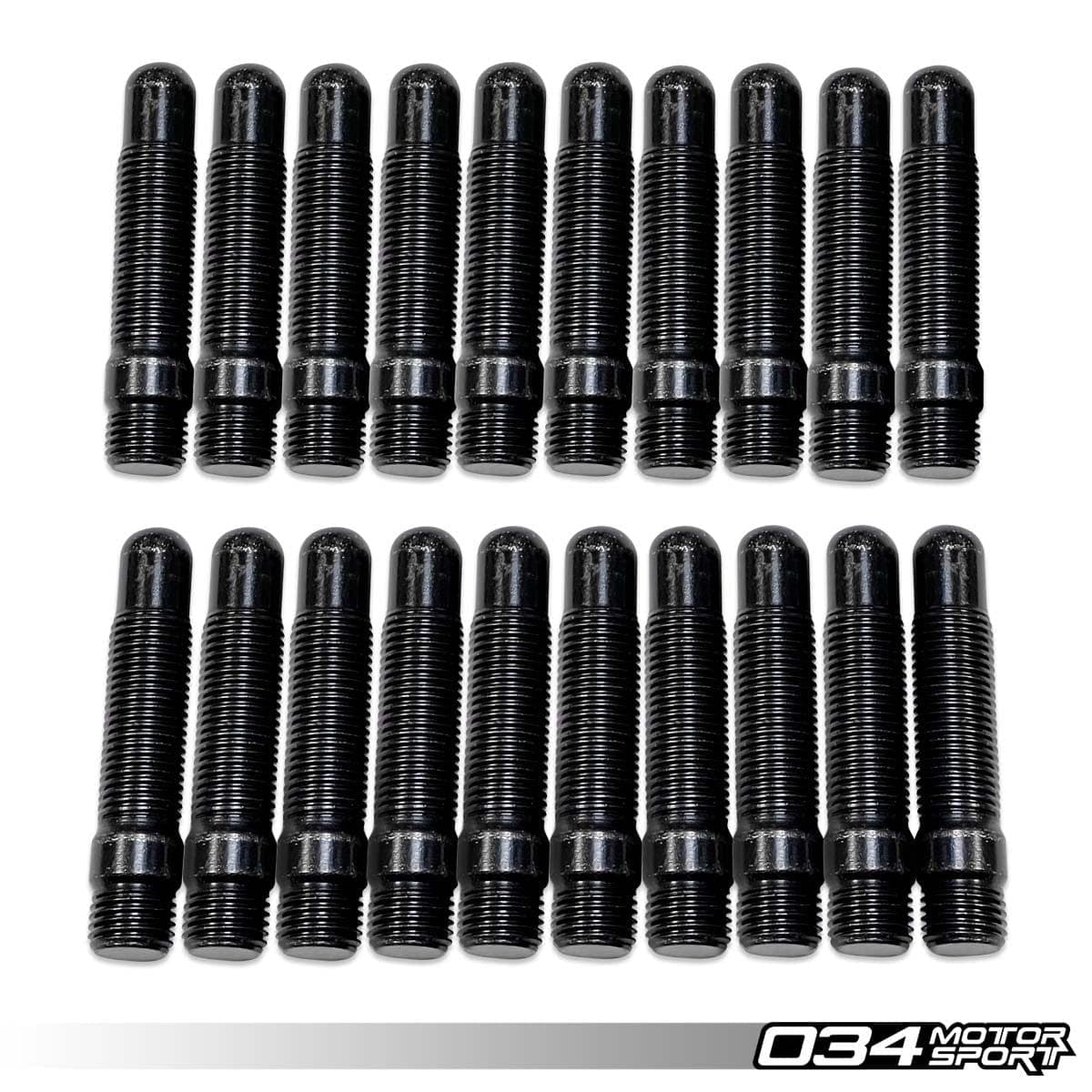

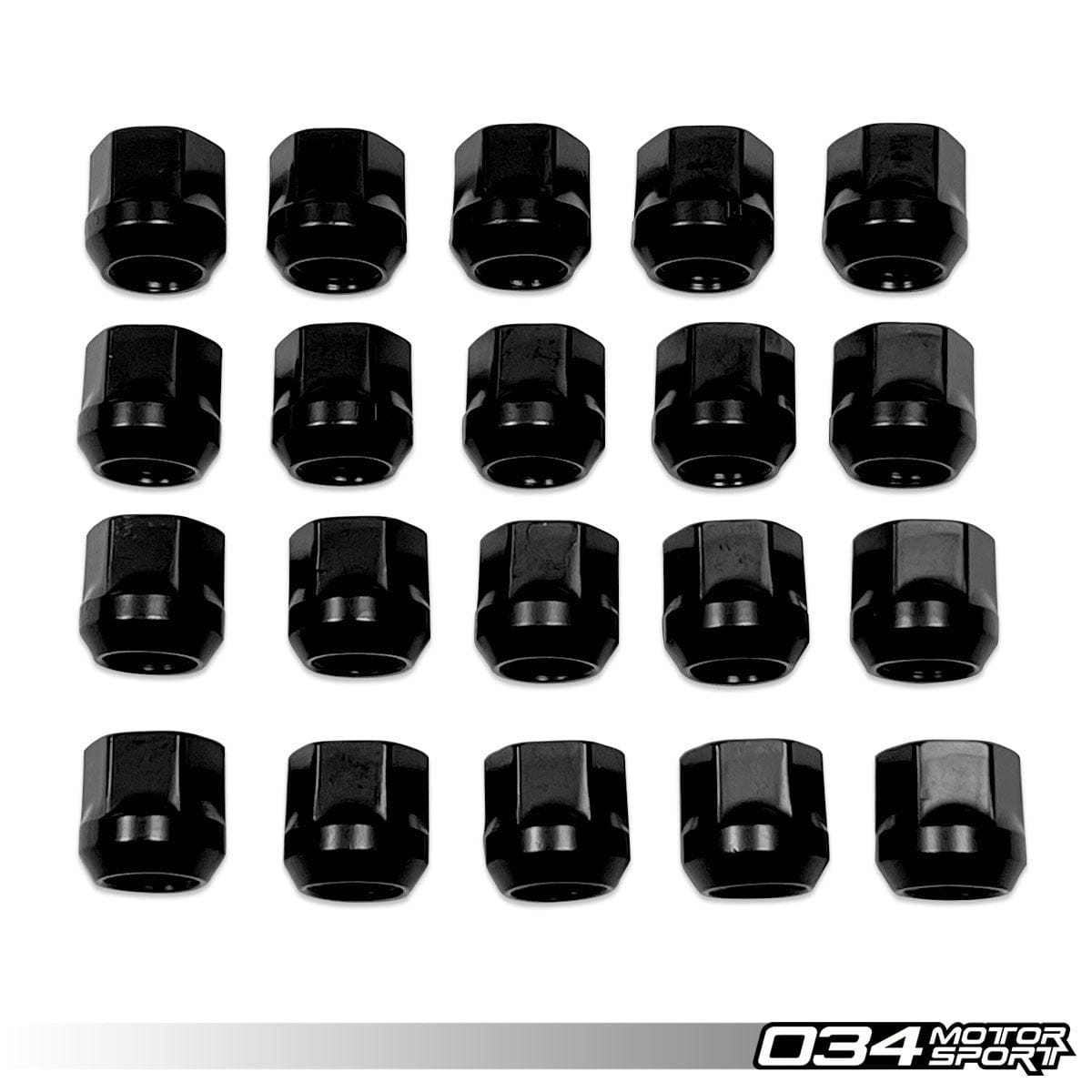

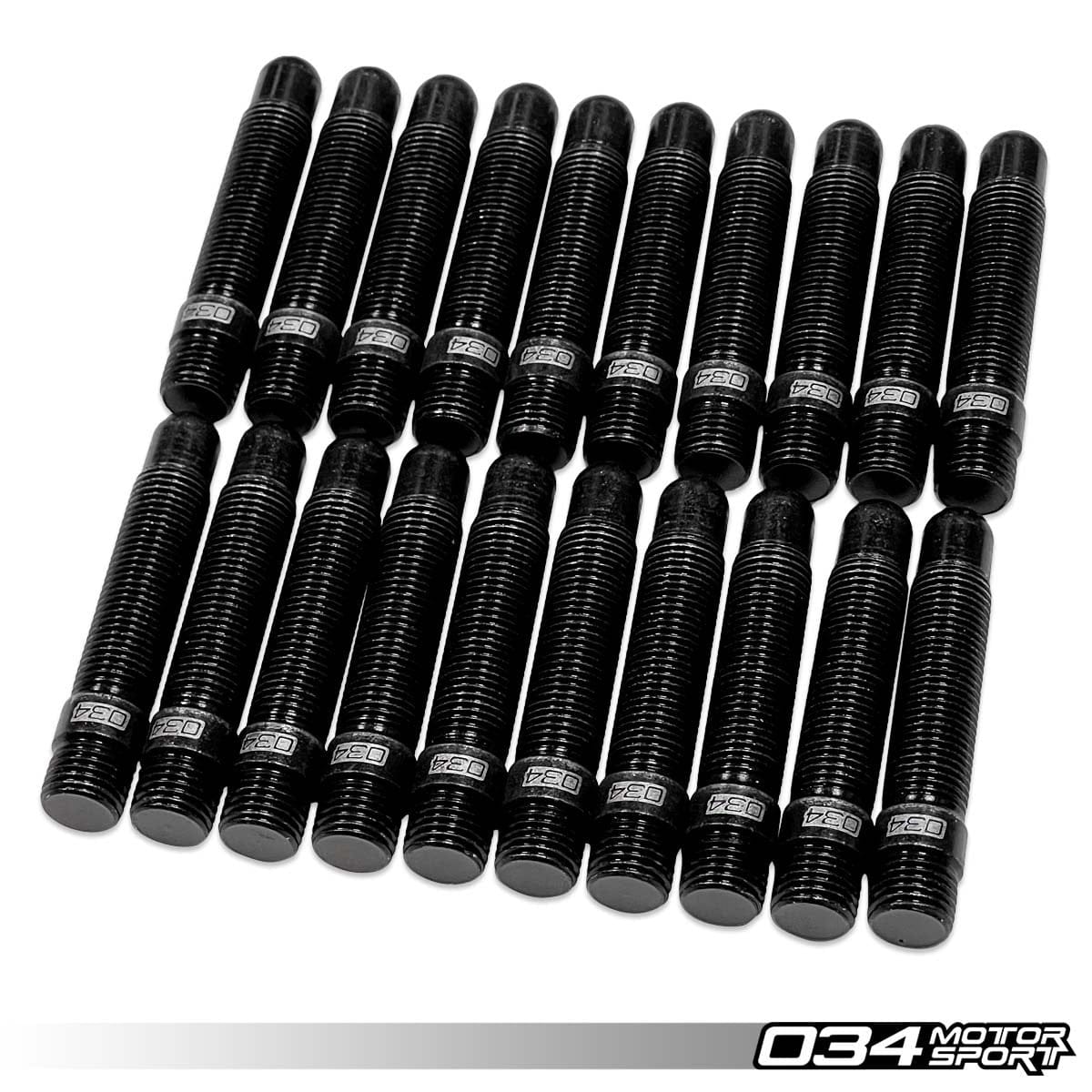

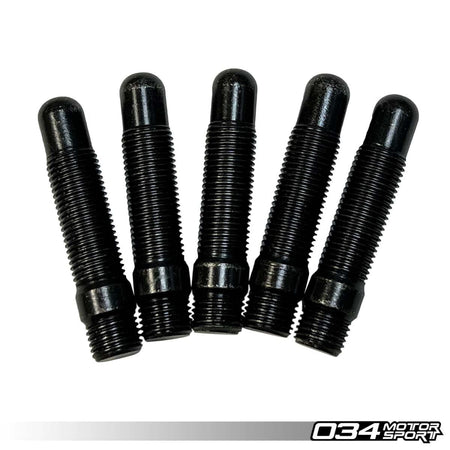

• 20 x 55mm bullet nose studs and 20 x cone seat nuts
• Bullet nose lets wheels and nuts self-align
• Grade 10.9 heat-treated chromoly steel
• Black zinc-plated nuts with 19mm hex
• M14x1.5 thread suits most Volkswagen and Audi models
• Suits spacers up to 10mm
• Around 1 hour to install, per 034Motorsport

Specifications

• Brand: 034Motorsport
• Product Type: Wheel Stud and Nut Kit
• Quantity: 20 studs and 20 nuts (full car)
• Stud Length: 55mm
• Thread: M14x1.5
• Unthreaded Shoulder: 8mm (for brake rotor)
• Maximum Spacer: 10mm
• Nut Thread Length (to Hub Face): 45mm
• Hub Face to Stud Nose: 60mm

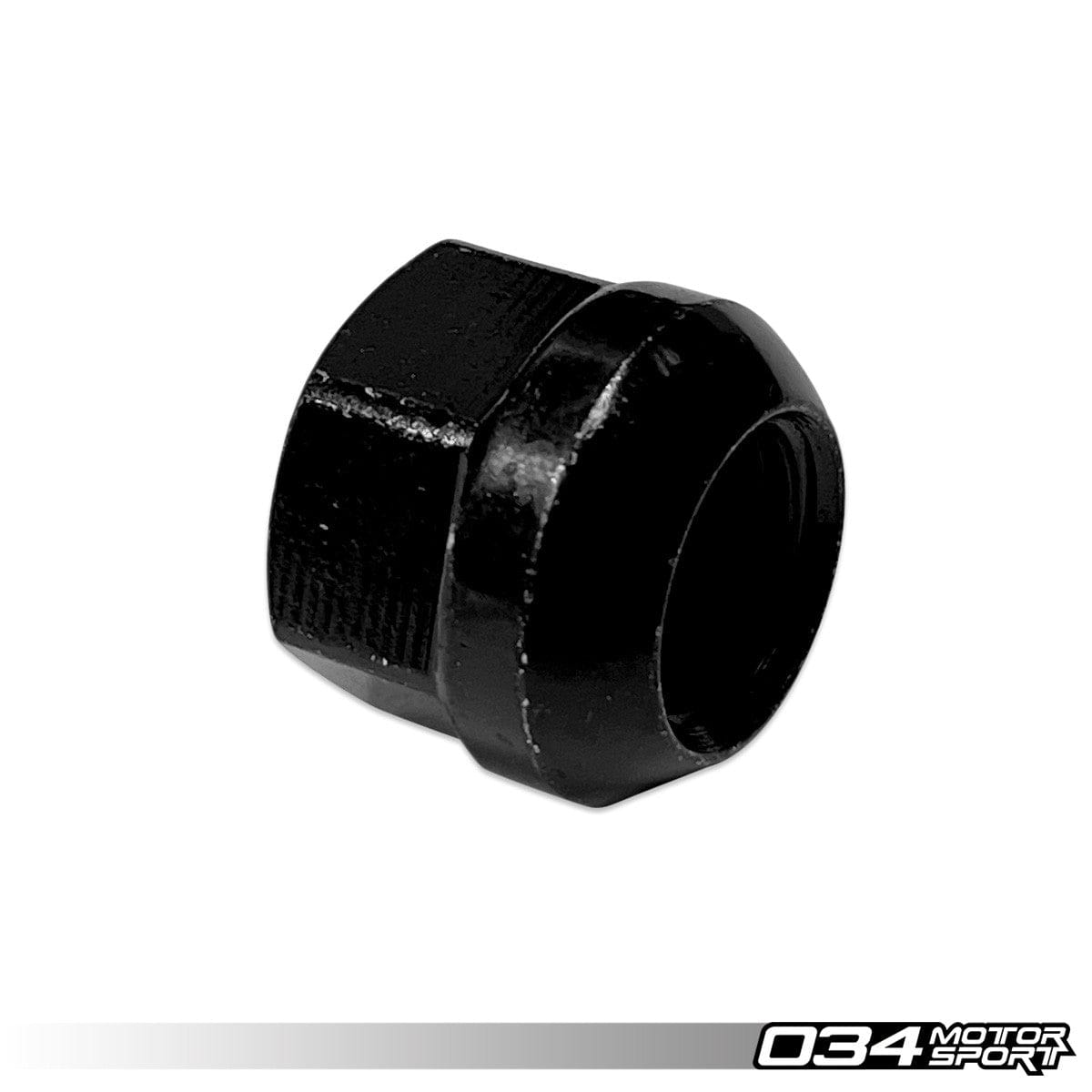

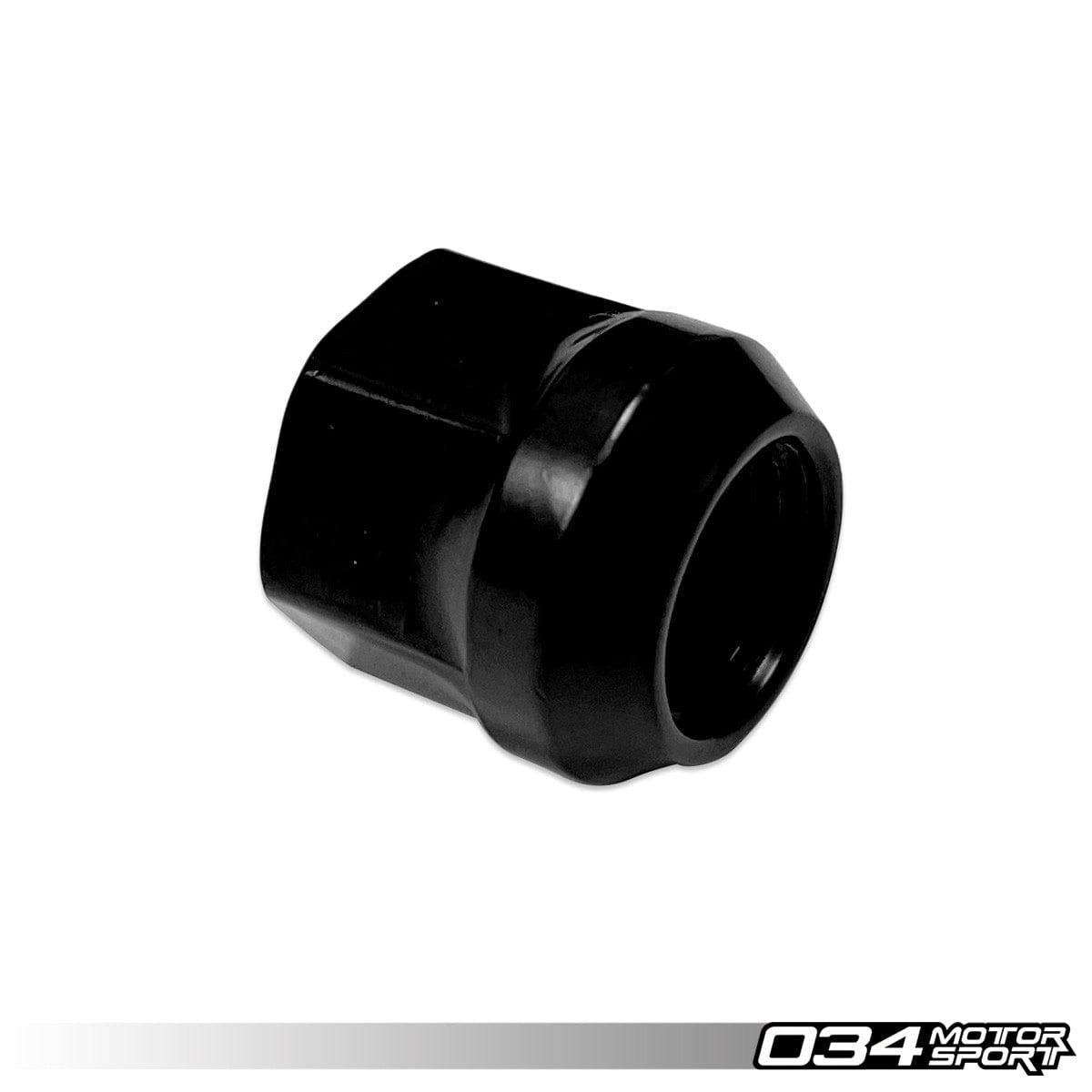

• Nuts: Cone seat, Grade 10.9 chromoly steel, 19mm hex, black zinc plated
• Part Number: 034-604-6004-20

Vehicle Compatibility: Suits vehicles with an M14x1.5 wheel thread, which covers virtually all Volkswagen and Audi models, using wheels that take cone seat nuts. Maximum spacer thickness 10mm.

Images shown are generic and for illustration only. The part supplied may differ in appearance.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
