034Motorsport Camber Correcting Control Arm Kit - Audi B9/B9.5 A4/S4/RS4/A5/S5/RS5 - 034-401-1071

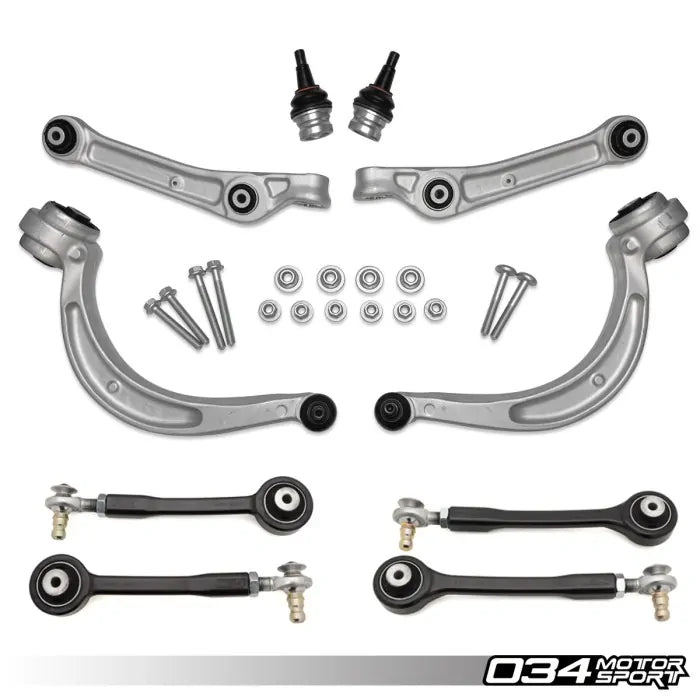

This Camber Correcting Control Arm Kit replaces all eight front upper and lower control arms on B9 and B9.5 Audi A4, S4, RS4, A5, S5, RS5 and A4 Allroad models with 034Motorsport Density Line parts. Its CNC-machined billet adjustable upper arms add positive camber, giving +1.0 to +2.0 degrees of adjustment over factory arms without modification, or -0.2 to +2.0 degrees with minor clearancing of the upright, so lowered cars can return to factory alignment specifications with less tyre wear. High-durometer rubber bushings, quality ball joints and Aurora or FK spherical bearings with self-lubricating Teflon race lining limit deflection for tighter handling and steering than new factory arms. 034Motorsport notes that factory arms can start wearing from around 40,000 miles, and this drop-in kit takes about 4 hours to install.

Features

• Replaces all eight front upper and lower control arms
• Billet adjustable upper arms, black anodised
• +1.0 to +2.0 degrees camber with no modification
• Aurora or FK spherical bearings with Teflon race lining

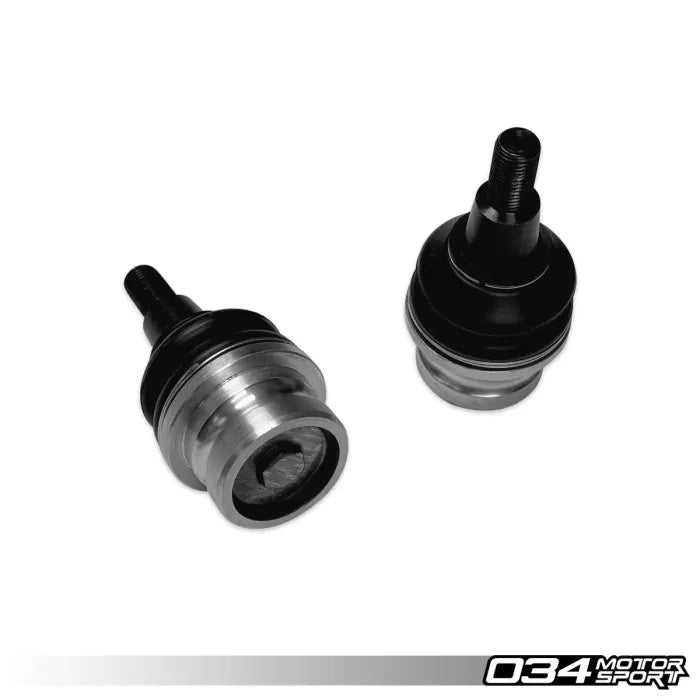

• High-durometer rubber bushings and quality ball joints
• Spherical bearing dust boots included
• Complete drop-in replacement

Specifications

• Brand: 034Motorsport
• Product Type: Control Arm Kit
• Specification: Camber Correcting (adds positive camber)
• Camber Adjustment: +1.0 to +2.0 degrees vs factory (no modification); -0.2 to +2.0 degrees with minor upright clearancing
• Upper Arms: CNC-machined billet, adjustable, black anodised
• Bearings: Aurora or FK spherical, self-lubricating Teflon race lining

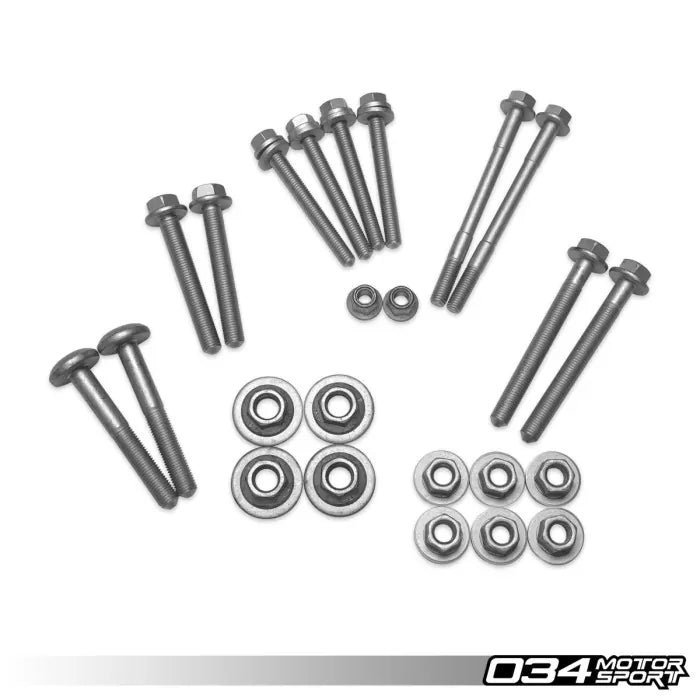

• Includes: Front lower control arms front and rear (left and right), adjustable upper control arms front and rear (left and right), spherical bearing dust boots, installation hardware kit
• OE Interchange: Upper 8W0407505C, 8W0407506C, 8W0407509B, 8W0407510B; lower 8W0 407 151 A/B/C/D, 8W0 407 152 A/B/C/D, 8W0 407 693 B, 8W0 407 694 B; ball joint 8W0 407 689 B
• Installation Time: Approx. 4 hours
• Part Number: 034-401-1071

Vehicle Compatibility: 7 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
