034Motorsport Camshaft Kit for Supercharged Audi 3.0 TFSI - B8.5 S4/S5/Q5/SQ5 & C7 A6/A7 - 034-201-1007

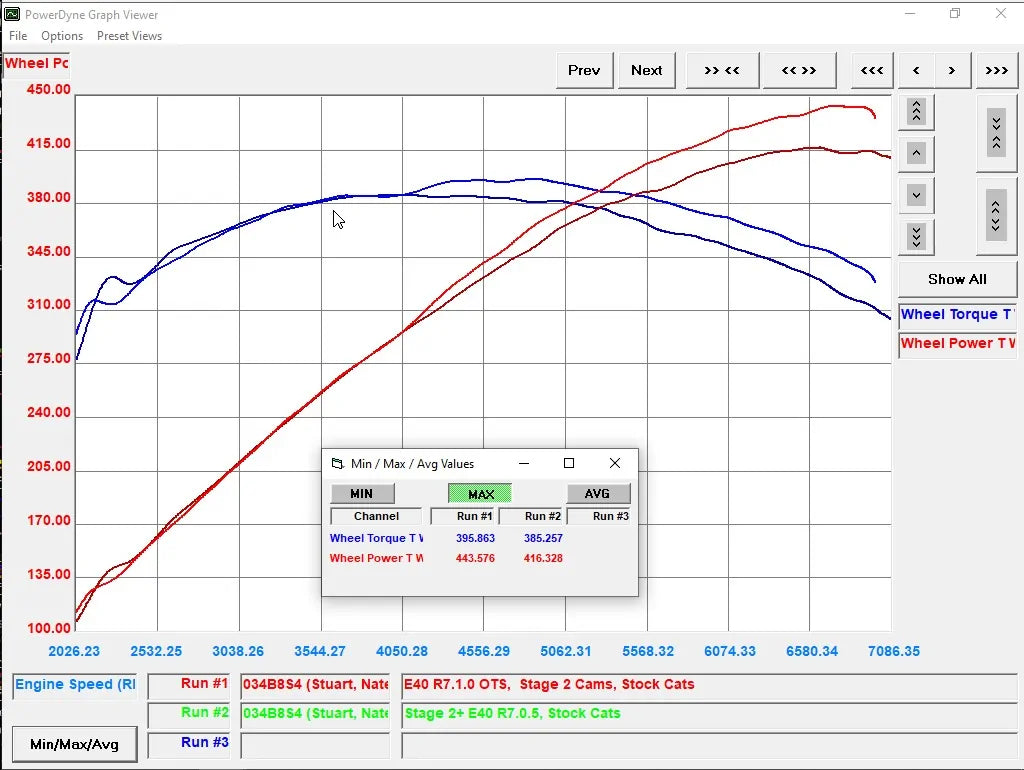

This camshaft kit is a direct drop-in replacement for the factory camshafts, valve springs and retainers in Audi's supercharged 3.0 TFSI V6, and part 034-201-1007 is the version for B8.5 models from 2013-2017, plus the C7 A6 and A7, D4 A8 and 4L Q7. Made for 034Motorsport by Cat Cams from single-piece steel billets, the cams add lift and duration so the intake valves stay open longer, stretching the powerband to redline while keeping bottom-end torque. 034Motorsport measured around 30 peak wheel horsepower and 10-15 peak wheel torque on a Stage 2+ E40 tune with the stock throttle body, supercharger and cats, with stock-like driveability. The kit includes all four camshafts with new valve springs and retainers, and the brand recommends it only for cars on a dual pulley ratio with its Dynamic+ Stage 2+ ECU tuning, with no custom tune required.
Features
- Direct drop-in replacement for factory cams, springs and retainers

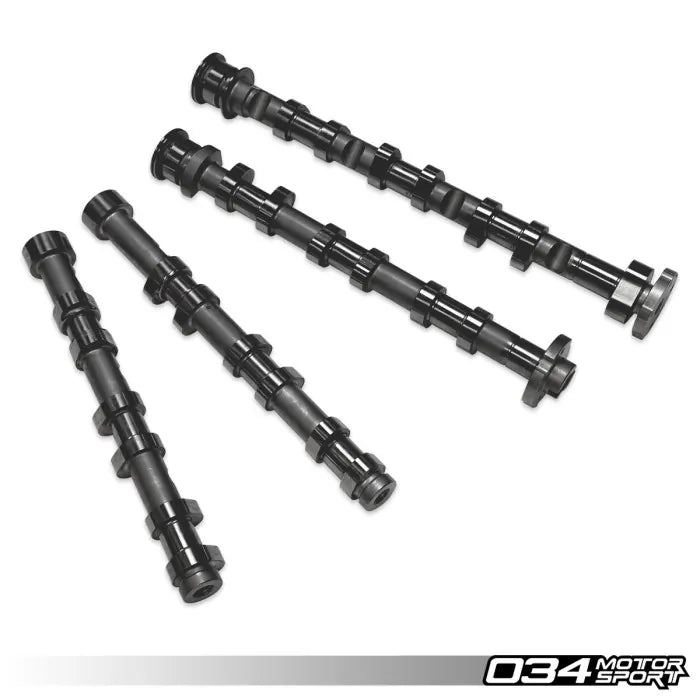

- Made by Cat Cams from single-piece steel billets
- More lift and duration for power to redline

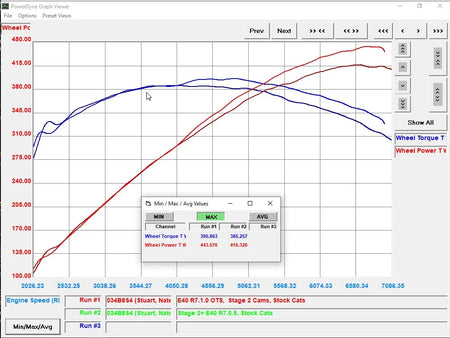

- Around 30 peak WHP and 10-15 peak WTQ, per 034Motorsport

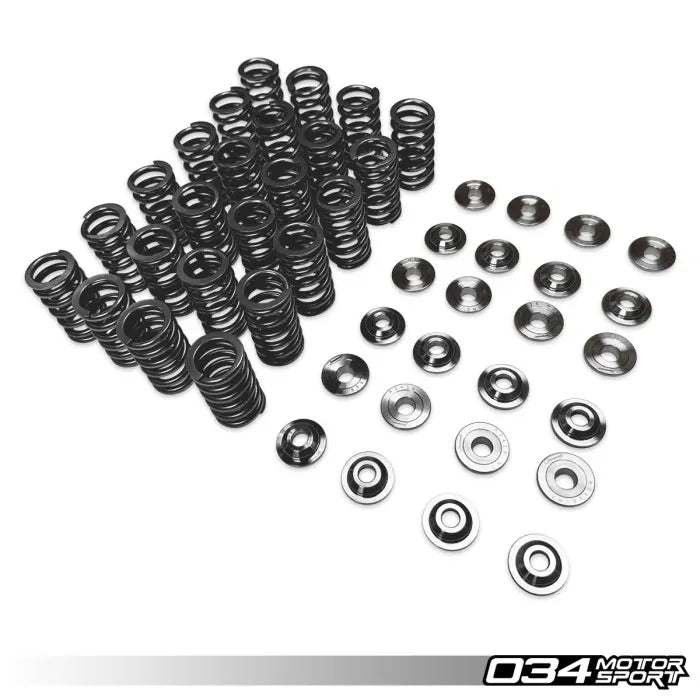

- New valve springs and retainers reduce valve train mass
- Stock-like driveability; no custom tune required
- For dual pulley cars on 034Motorsport Stage 2+ tuning
Specifications
- Brand: 034Motorsport
- Product Type: Camshaft Kit
- Manufacturer: Cat Cams, for 034Motorsport
- Construction: Single-piece steel billet
- Duration @ 1.0mm: 215° intake / 225° exhaust (OE 201° / 210°)
- Duration @ 0.1mm: 262° intake / 271° exhaust (OE 252° / 257°)
- Valve Lift: 11.25mm intake / 11.00mm exhaust (OE 10.05mm / 10.00mm)
- Cam Lift: 6.65mm intake / 6.55mm exhaust (OE 6.00mm / 5.95mm)

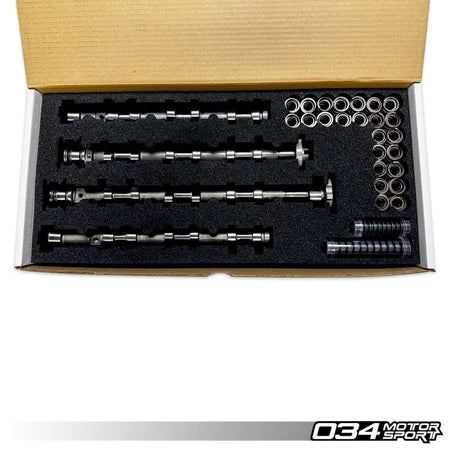

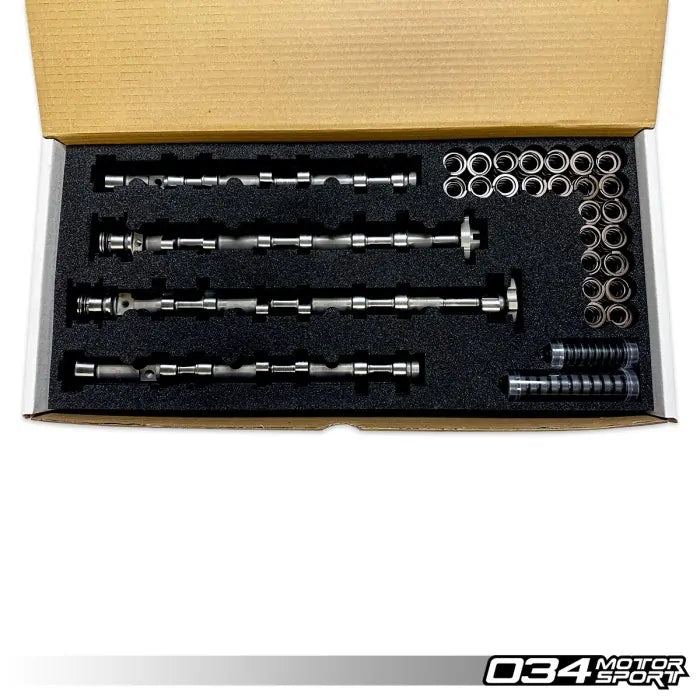

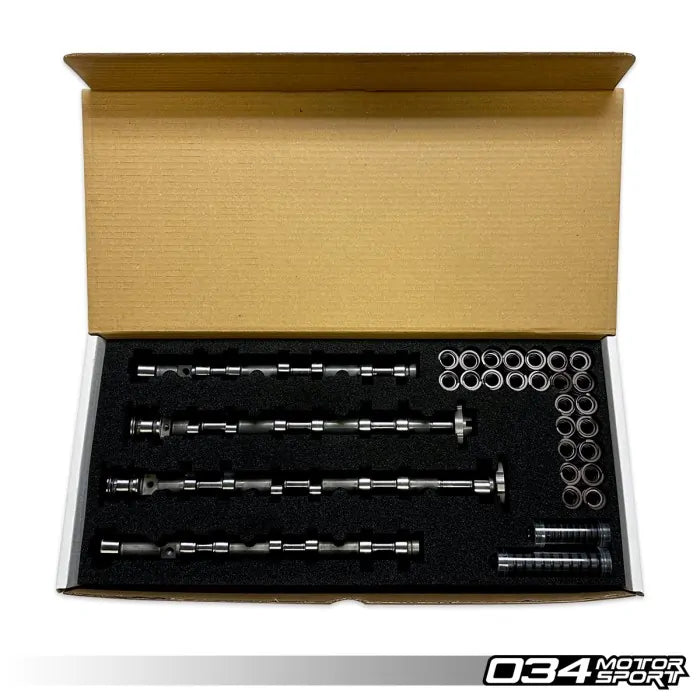

- Includes: 2x intake cams, 2x exhaust cams, 24x valve springs, 24x top and 24x bottom valve spring retainers
- Part Number: 034-201-1007
Vehicle Compatibility: 8 applications across 1 make. Select a make to view.
Audi (8)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B8.5 | 3.0 TFSI | 2013-2017 |
| S5 | B8.5 | 3.0 TFSI | 2013-2017 |
| Q5 | B8.5 | 3.0 TFSI | 2013-2017 |
| SQ5 | B8.5 | 3.0 TFSI | 2013-2017 |
| A6 | C7 | 3.0 TFSI | 2012-2014 |
| A7 | C7 | 3.0 TFSI | 2012-2014 |
| A8 | D4 | 3.0 TFSI | 2011-2013 |
| Q7 | 4L | 3.0 TFSI | 2011-2015 |
