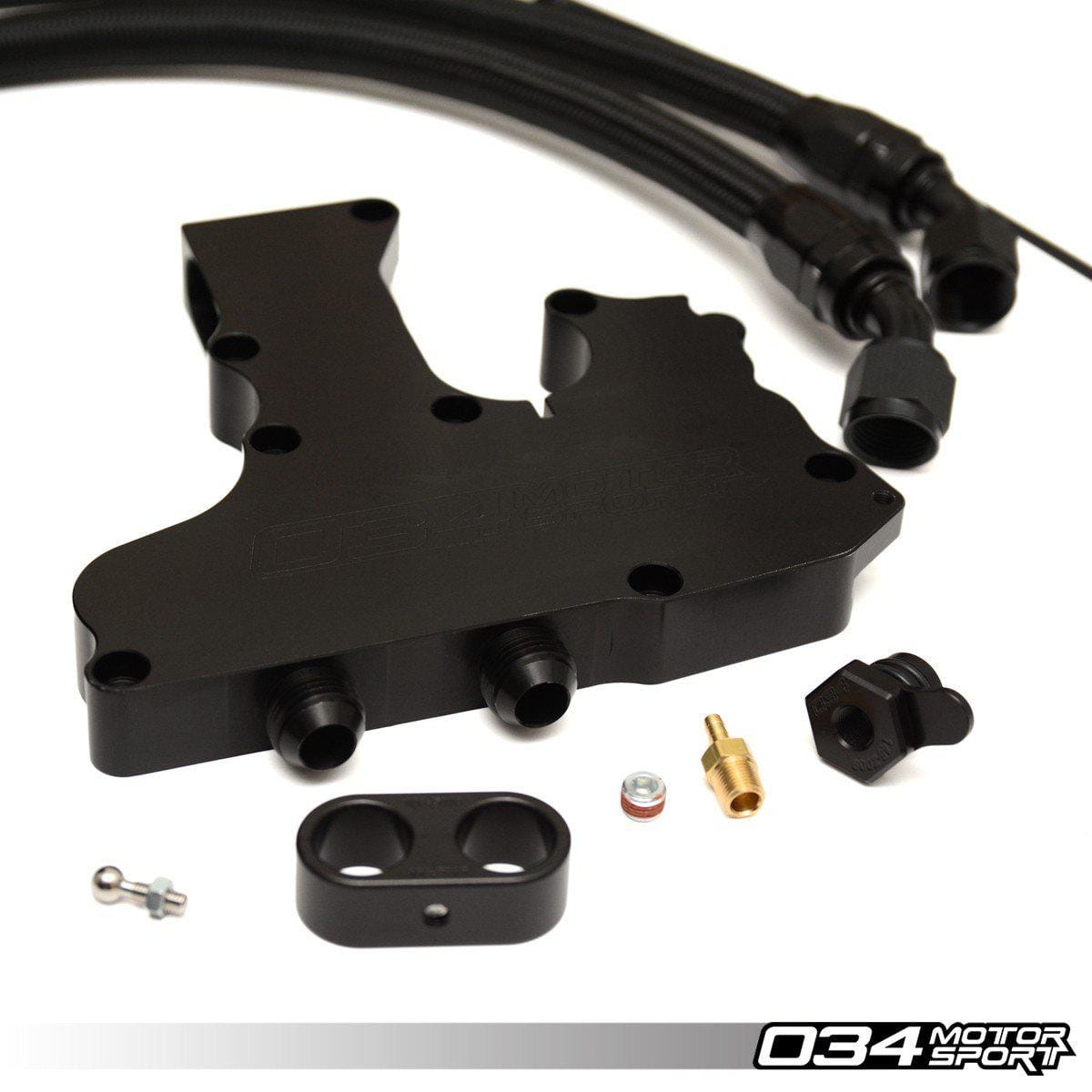

034Motorsport's catch can kit replaces the complete PCV system on the B8 Audi A4, A5 and Q5 2.0 TFSI, pairing a proprietary catch can with an internally channelled billet valve cover breather. It keeps oil and water vapour out of the intake tract to prevent deposits in the intake manifold and on the intake valves, which the brand says sharply reduces carbon build-up and extends the life of the intake manifold flap assembly. The kit removes a potential boost leak at the factory PCV, retains the factory engine cover and installs fully bolt-in with a no-drill bracket and -10 AN hoses. It does not fit the EA888 Gen 3 B8.5 or flex fuel vehicles.
Features
- Complete PCV system replacement

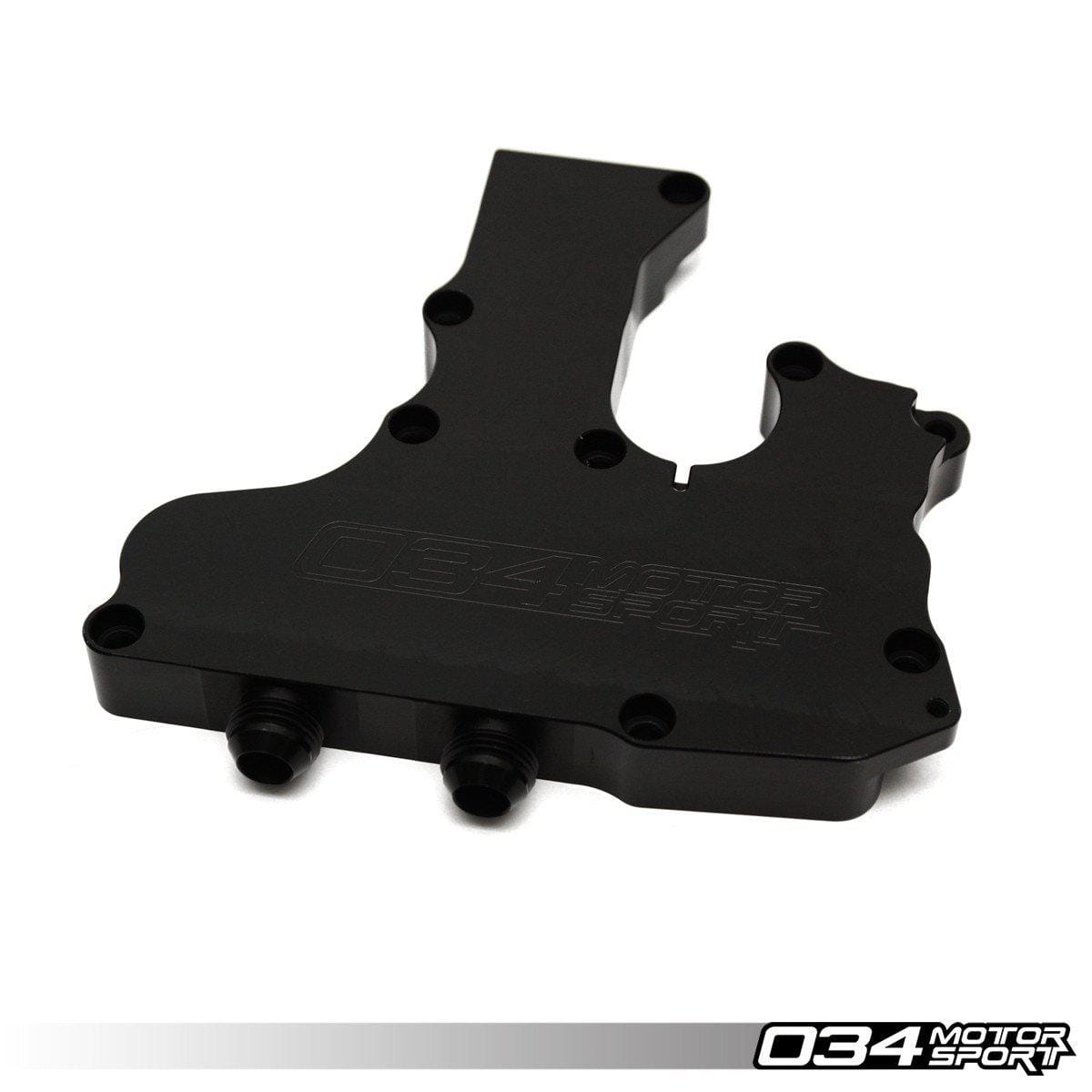

- Billet aluminium valve cover breather, black anodised

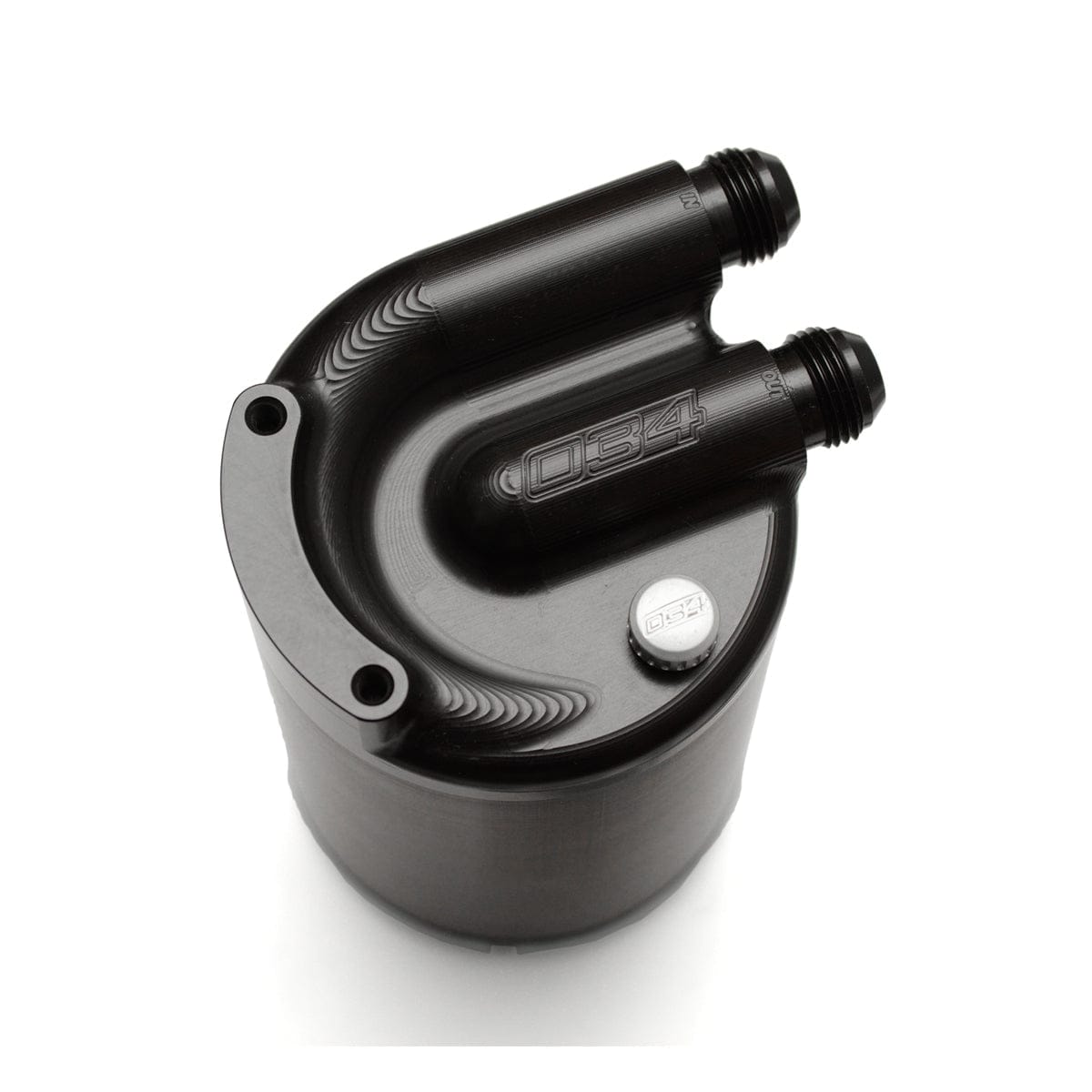

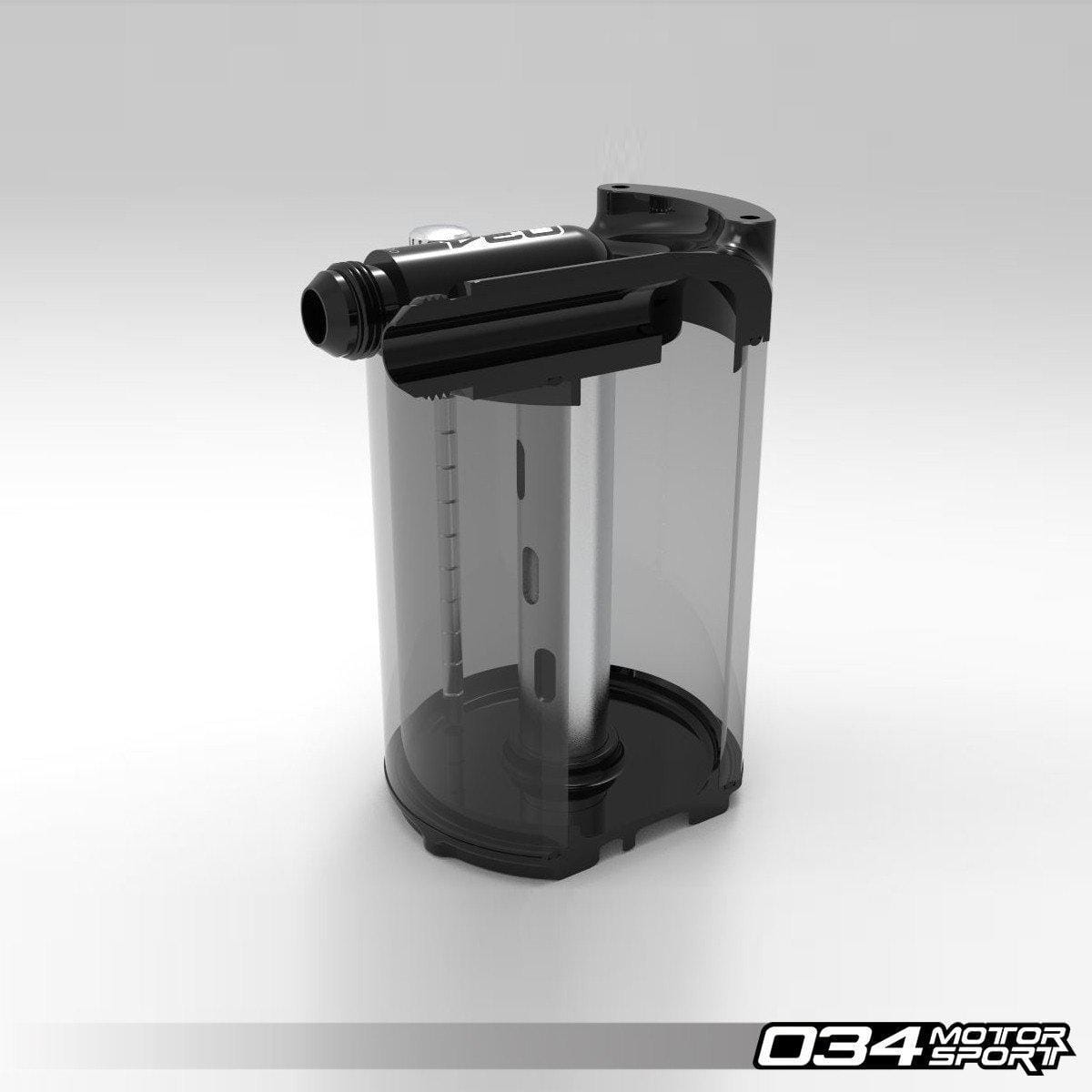

- Modular catch can with -10 AN hoses
- Reduces intake valve carbon build-up
- Eliminates a potential PCV boost leak
- Retains the factory engine cover
- 100% bolt-in with no-drill bracket
Specifications
- Brand: 034Motorsport
- Product Type: Catch Can Kit
- Material: CNC machined billet aluminium breather, modular catch can
- Finish: Black anodised
- Hose Size: -10 AN

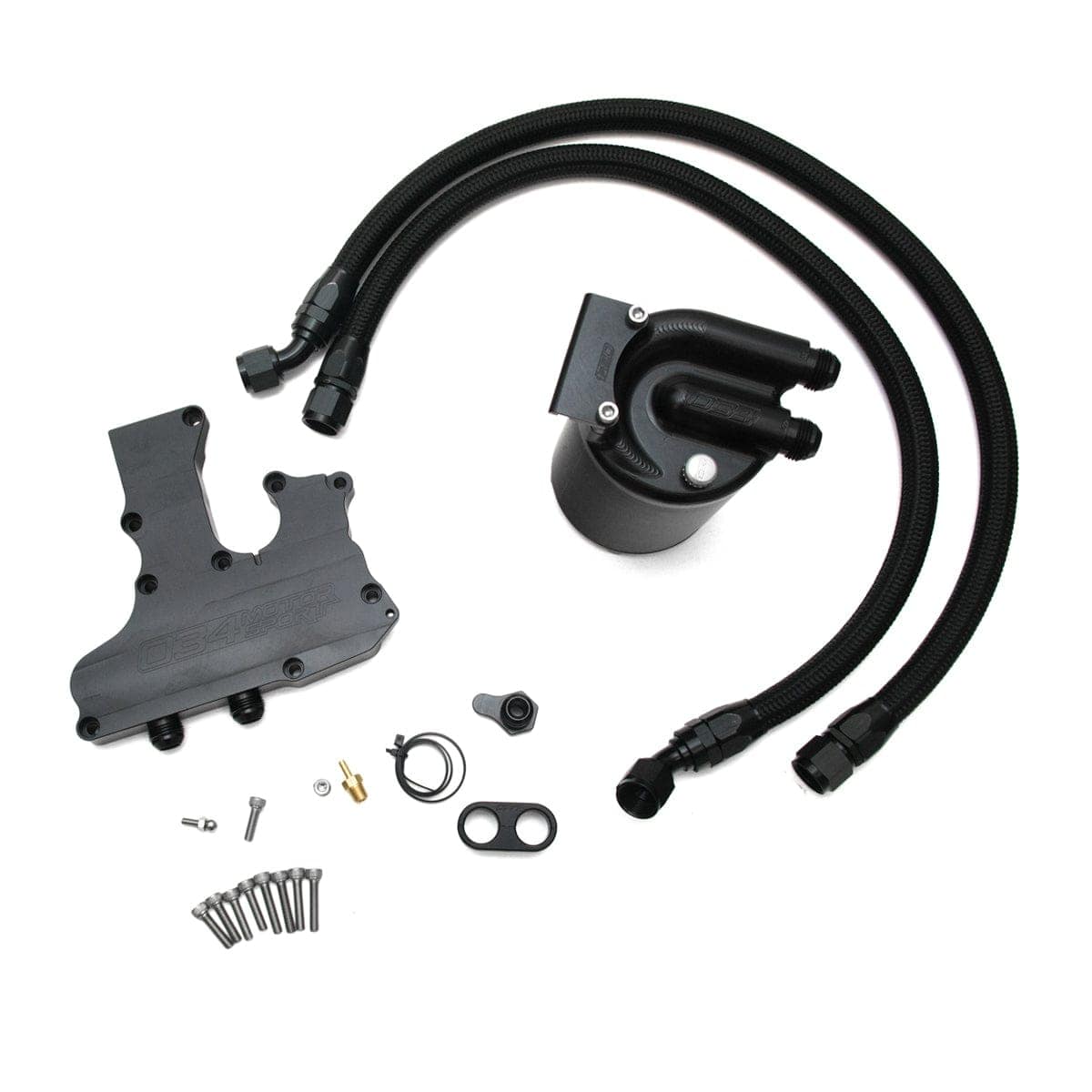

- Includes: Valve cover breather assembly, modular catch can assembly, -10 AN inlet/outlet hoses, no-drill mounting bracket, intake manifold plug and boost tap, installation hardware
- Engine: 2.0 TFSI (not EA888 Gen 3)
- Part Number: 034-101-1010
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A4 | B8/B8.5 | 2.0 TFSI | 2009-2013 | Not EA888 Gen 3 or flex fuel |
| A5 | B8/B8.5 | 2.0 TFSI | 2008-2013 | Not EA888 Gen 3 or flex fuel |
| Q5 | B8/B8.5 | 2.0 TFSI | 2008-2013 | Not EA888 Gen 3 or flex fuel |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
