034Motorsport Catch Can Kit, EA113, MK5 GTI/MK6R/Scirocco/S3/TT 2.0T FSI - 034-101-1011

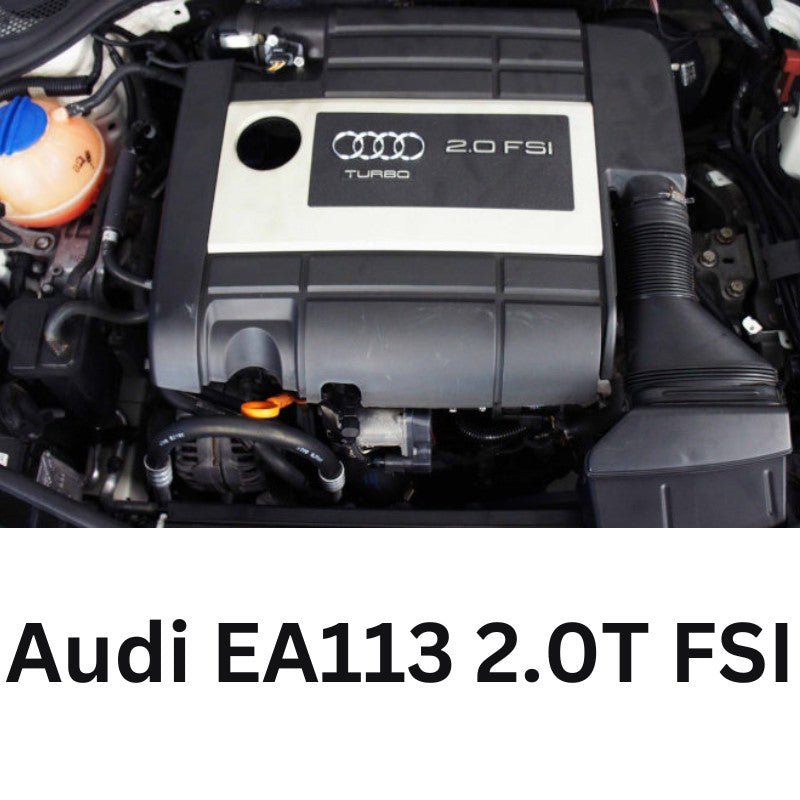

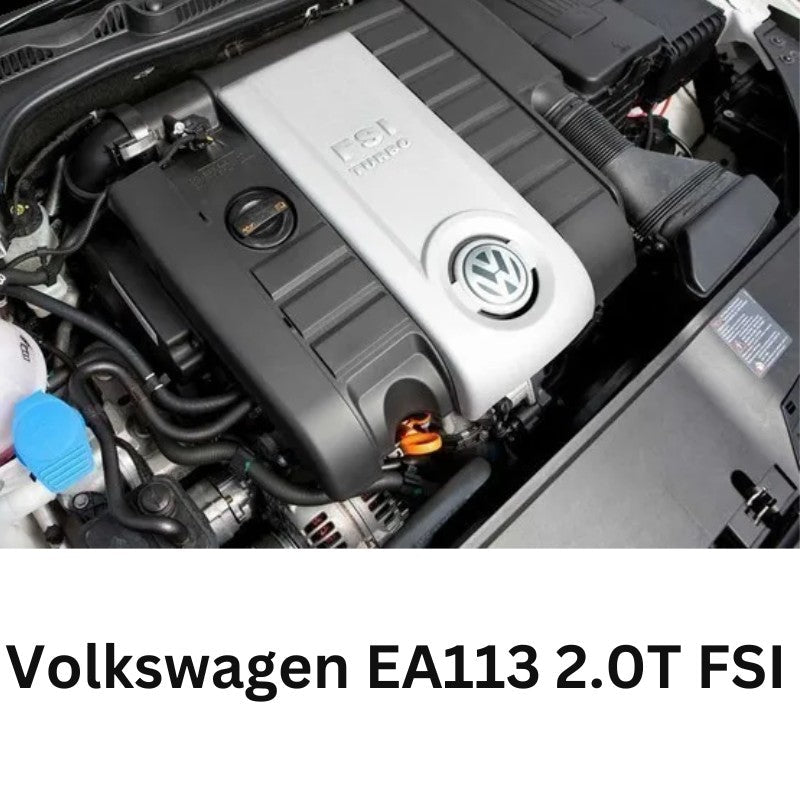

This catch can kit replaces the PCV system on transverse EA113 2.0T FSI engines, including the Mk5 Volkswagen GTI, Mk6 Golf R, 8P Audi A3 and S3 and 8J Audi TT and TTS. It pairs 034Motorsport's own modular catch can with a CNC-machined billet valve cover breather adapter to keep crankcase ventilation working properly while stopping oil and water vapour from reaching the intake tract. Keeping oil off the intake manifold and intake valves, 034Motorsport says, drastically reduces carbon build-up and extends the life of the intake manifold flapper assembly. The kit bolts in without drilling, keeps the factory engine cover and removes a potential boost leak at the factory PCV assembly.

Features

• Complete PCV replacement for EA113 2.0T FSI engines
• Billet valve cover breather adapter and modular catch can
• Keeps oil off the intake manifold and valves
• Integrated dipstick for easy inspection
• Bolt-in with no-drill bracket; keeps factory engine cover
• Not for later 2.0 TSI chain-drive engines
• Some RHD cars need the charcoal canister relocated

Specifications

• Brand: 034Motorsport
• Product Type: Catch Can Kit
• Finish: Black anodised
• Hoses: -10 AN inlet and outlet

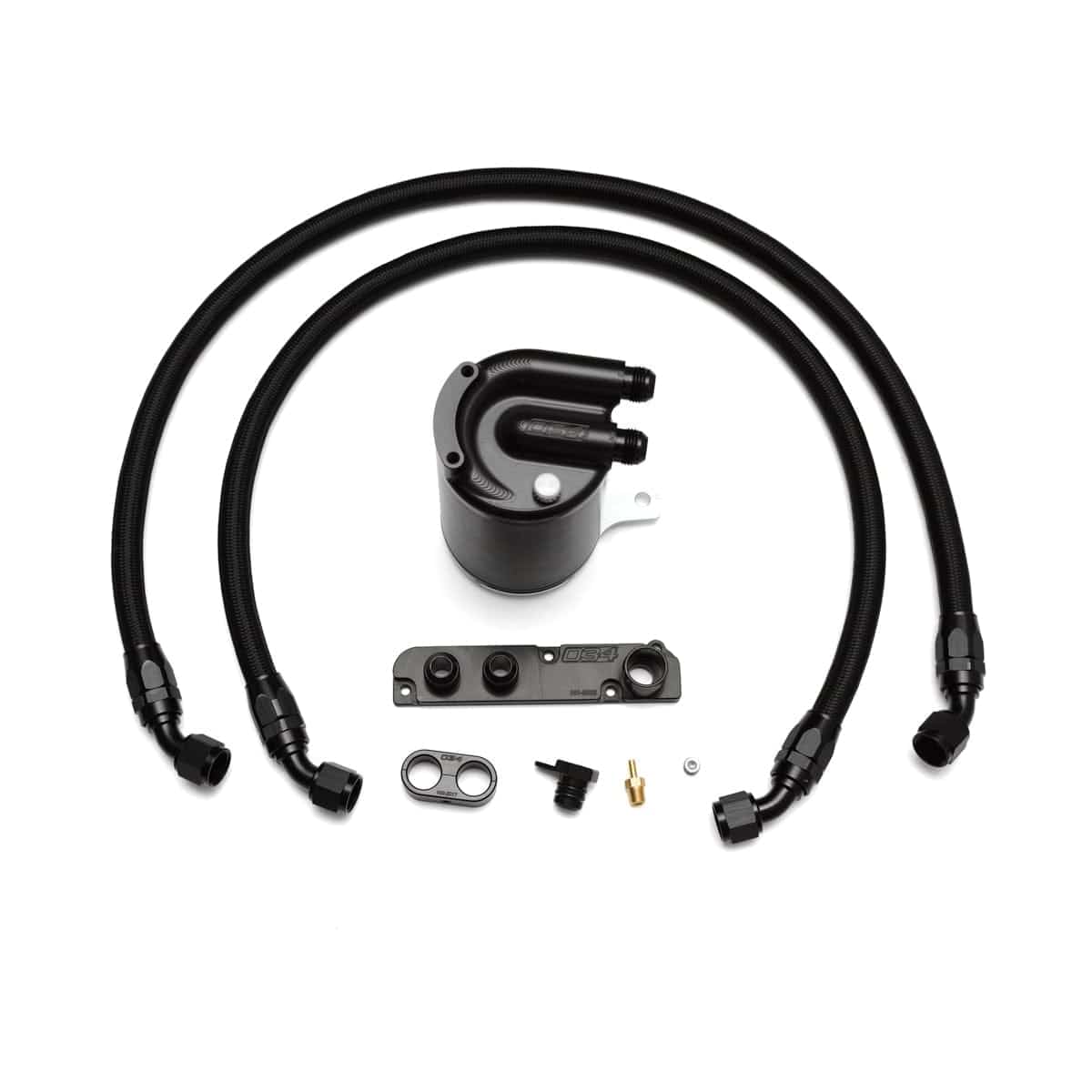

• Includes: Billet valve cover breather adapter, modular catch can assembly, -10 AN hoses, no-drill mounting bracket, intake manifold plug and boost tap, installation hardware
• Engine: EA113 2.0T FSI (not 2.0 TSI chain-drive)
• Part Number: 034-101-1011

Vehicle Compatibility: 9 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
