034Motorsport Catch Can Oil Drain Kit, Volkswagen & Audi MQB 2.0T - 034-101-Z056

This drain kit lets 034Motorsport's Billet Catch Can Kit on MQB 2.0T EA888 Gen 3 engines empty itself, so the can no longer has to be removed to tip out the collected oil. A CNC-machined billet adapter and -4AN stainless steel braided line return the oil to the turbocharger's oil drain line, with no cutting or drilling and a fully reversible install. It suits 034Motorsport's standard and Stage 2 billet catch can kits on the 8V Audi A3 and S3 and the Mk7 Volkswagen Golf GTI and Golf R. The kit needs the 06K 145 735 T revision turbo oil drain line, and cars still running the earlier F or G revision line will need to fit the T revision first.

Features

• Drains catch can oil back to the turbo drain line
• No need to remove the catch can to empty it

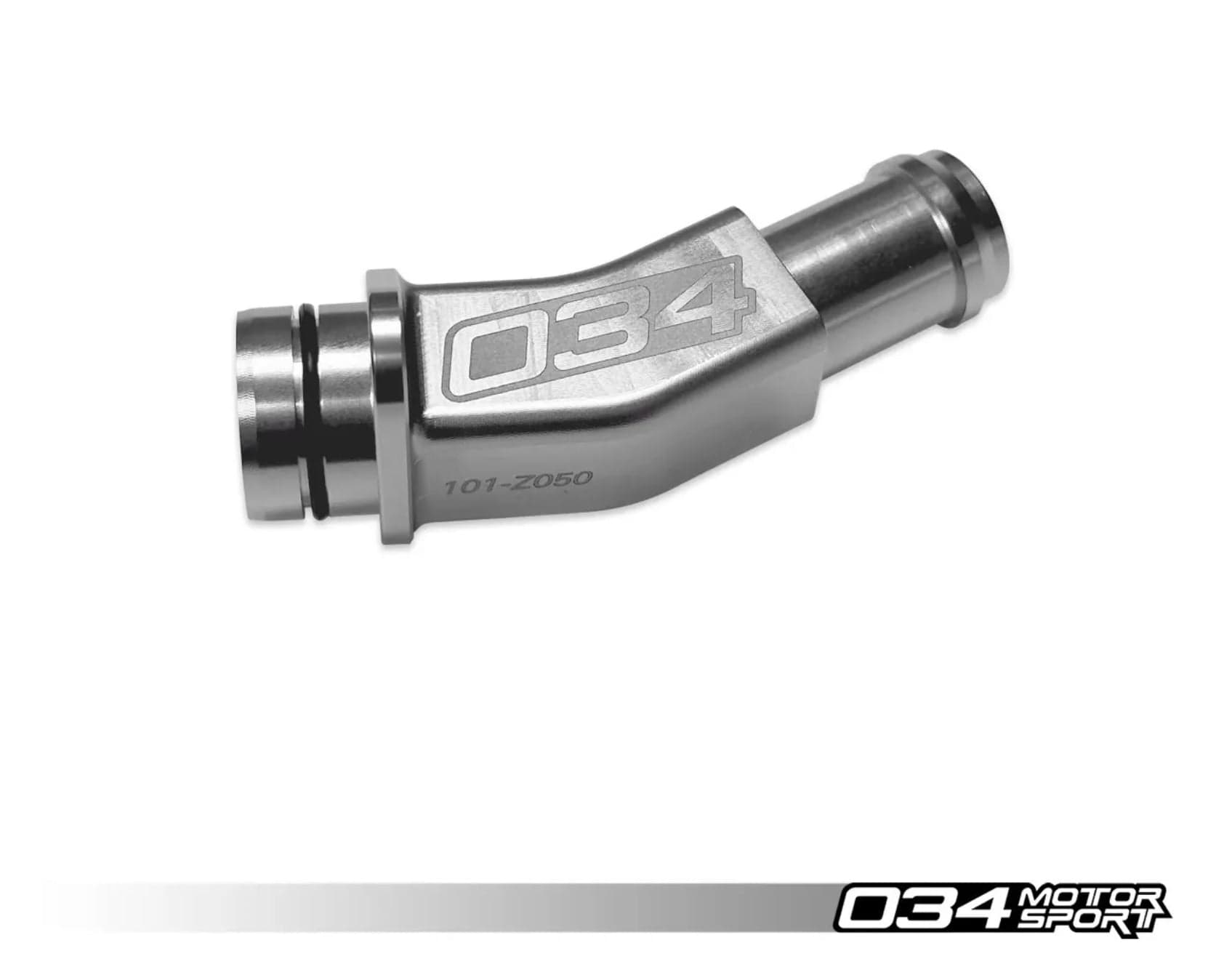

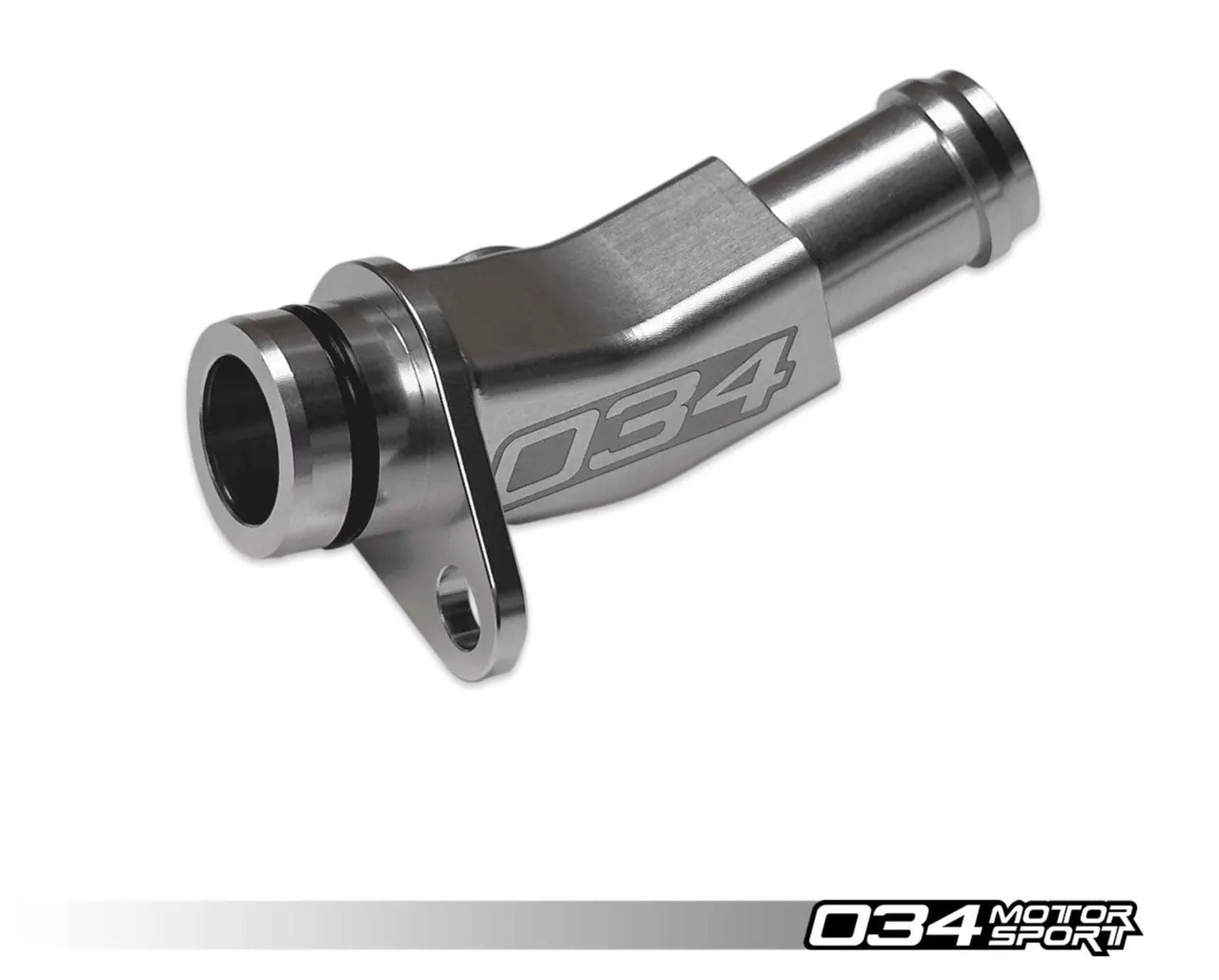

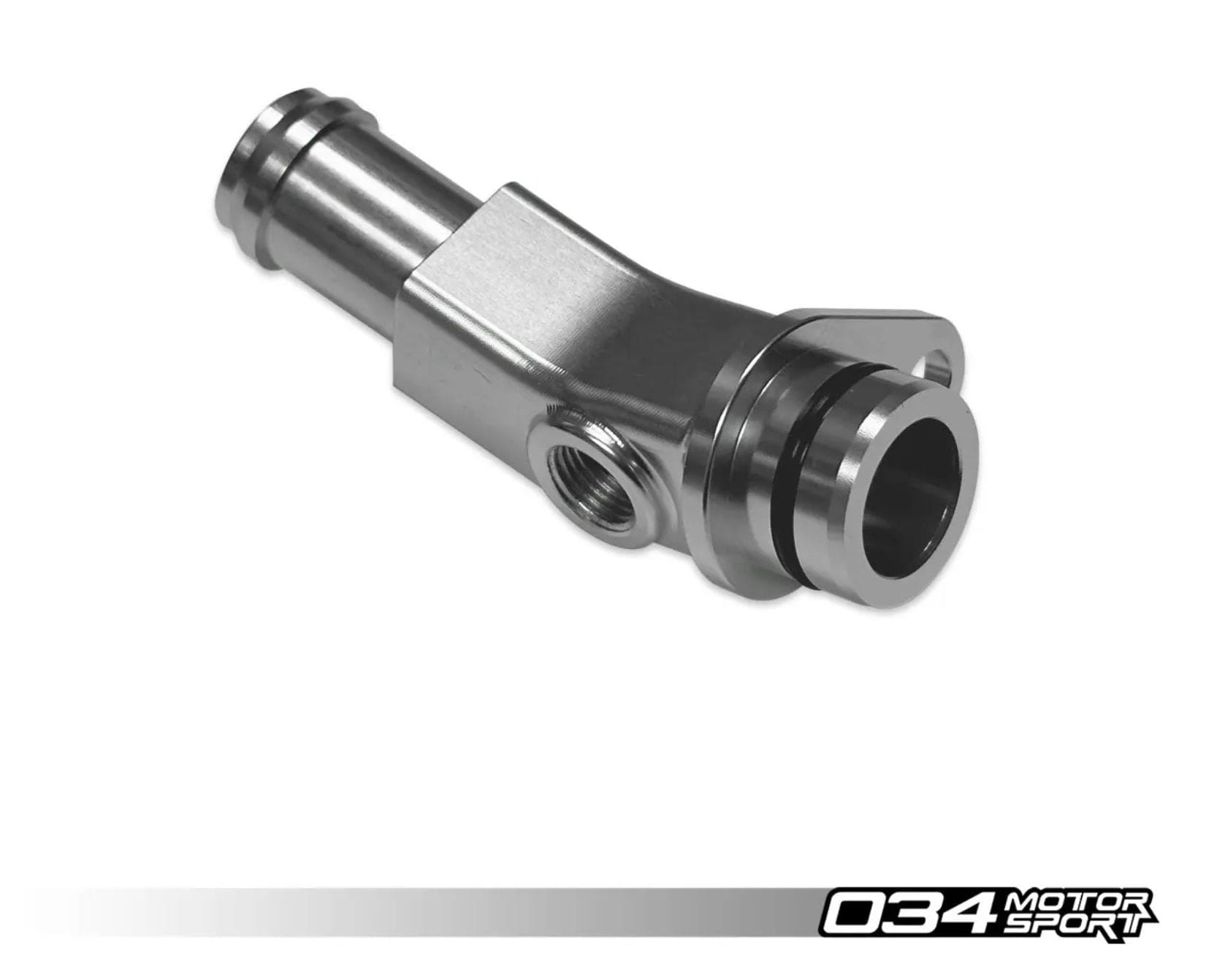

• CNC-machined billet adapter
• -4AN stainless steel braided line
• No cutting or drilling, fully reversible
• Requires 06K 145 735 T turbo oil drain line

Specifications

• Brand: 034Motorsport
• Product Type: Catch Can Oil Drain Kit
• Engine: 2.0T EA888 Gen 3 (MQB)

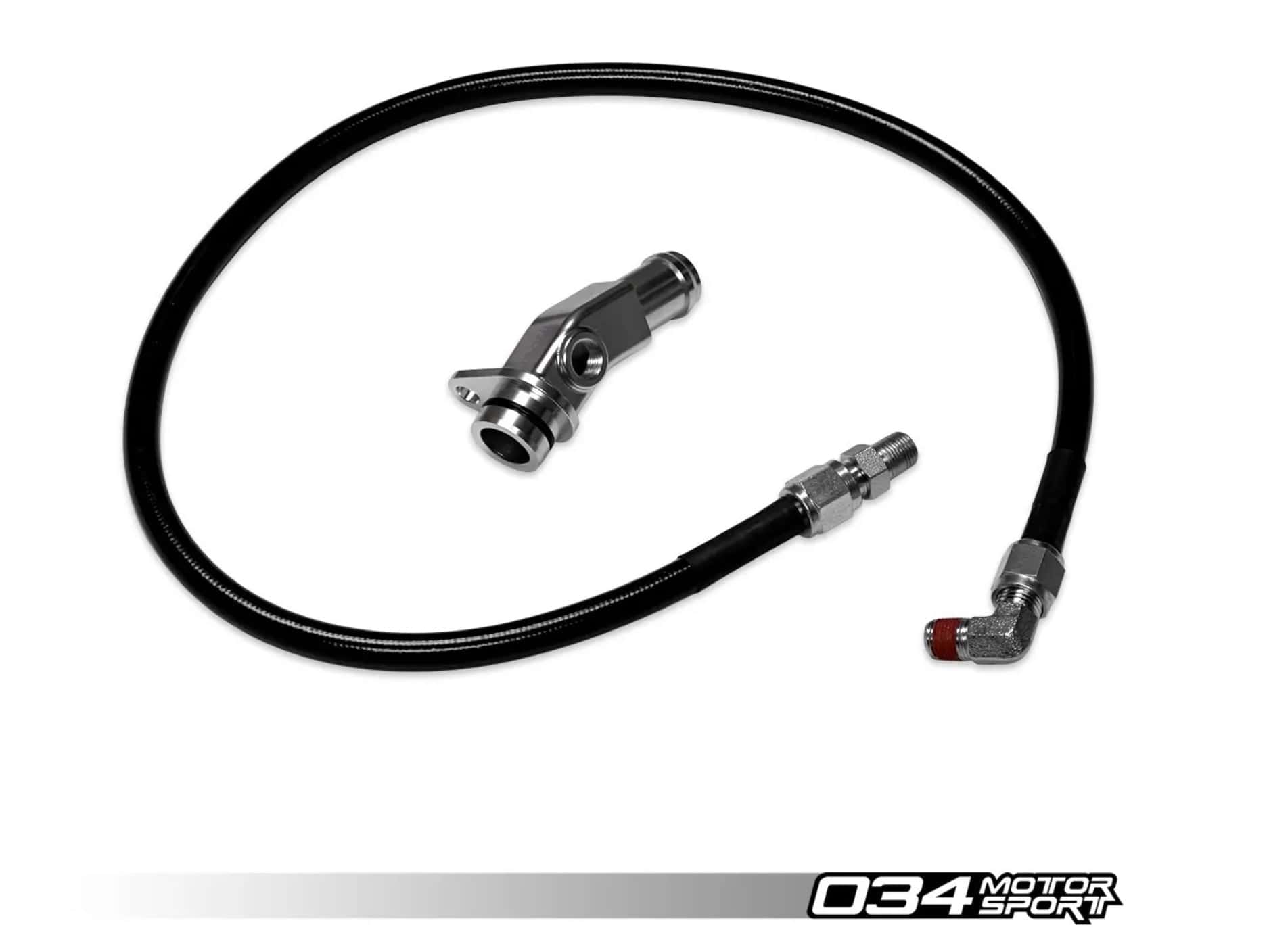

• Includes: Stainless steel braided line with -4AN fittings, CNC-machined billet adapter, 90-degree 1/8" NPT to -4AN fitting, straight 1/8" NPT to -4AN fitting
• Requires: 034Motorsport Billet Catch Can Kit (standard or Stage 2) and turbo oil drain line revision 06K 145 735 T
• Part Number: 034-101-Z056

Vehicle Compatibility: 5 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
