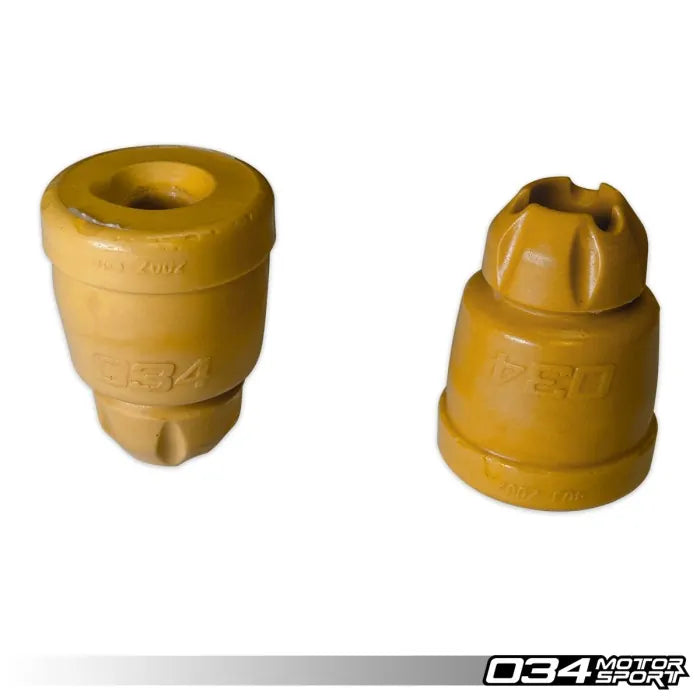

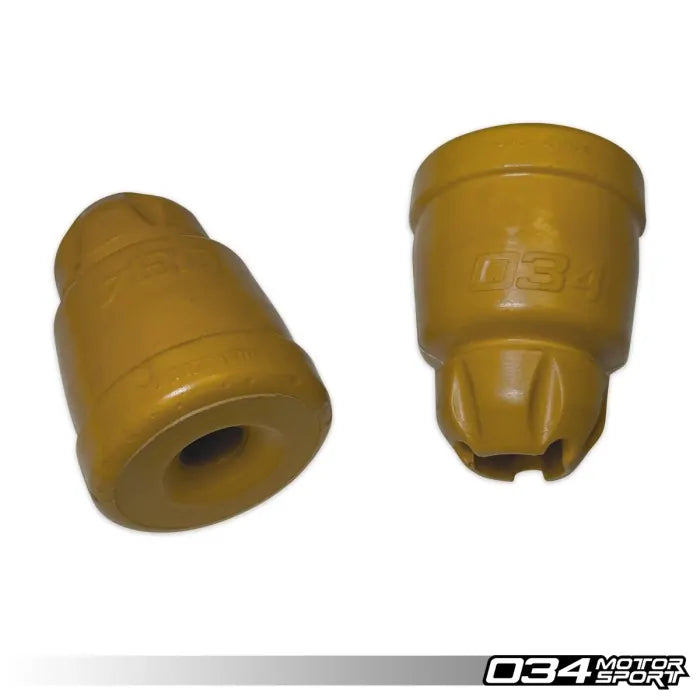

These Density Line bump stops are 81mm rear bump stops made for lowered Audi B9 and C8 chassis cars. 034Motorsport says lowering uses up suspension travel, so the factory bump stop engages too early and acts as an unintended secondary spring, which hurts ride quality, grip and handling precision. The brand designed these bump stops to restore usable shock travel, with a progressive compression rate that is soft early in the stroke and firmer toward full compression, tuned to suit its Dynamic+ Lowering Springs. It positions them as a better option than cutting the factory bump stops, saying trimming ruins the last phase of the suspension travel and leads to harsh bottom-outs.
Features
- Rear bump stops, 81mm
- Restores usable shock travel on lowered cars
- Progressive compression, soft early and firmer near full compression
- Tuned to suit 034Motorsport Dynamic+ Lowering Springs
- Vehicle-specific shapes and lengths for each chassis
- Better than cutting the factory bump stops, per the brand
Specifications
- Brand: 034Motorsport
- Product Type: Bump Stops
- Series: Density Line
- Position: Rear
- Size: 81mm
- Tuned For: Lowered cars, particularly with Dynamic+ Lowering Springs
- Part Number: 034-403-Z002
Vehicle Compatibility: 12 applications across 1 make. Select a make to view.
Audi (12)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A4 | B9 | ||
| S4 | B9 | ||
| RS4 | B9 | ||
| A5 | B9 | ||
| S5 | B9 | ||
| RS5 | B9 | ||
| A6 | C8 | ||
| S6 | C8 | ||
| RS6 | C8 | ||
| A7 | C8 | ||
| S7 | C8 | ||
| RS7 | C8 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
