034Motorsport Dynamic+ Adjustable Sway Bar Package, Gen 1 & Gen 1.5 Audi R8 (4.2 V8 & 5.2 V10) - 034-402-1017

This package pairs 034Motorsport's Dynamic+ adjustable front and rear sway bars with its Motorsport billet adjustable end links for the Gen 1 and Gen 1.5 Audi R8 with the 4.2 V8 or 5.2 V10. The brand says the combination reduces body roll and understeer while sharpening turn-in and steering feel, and it settled on the bar sizes after street and track testing on its own Gen 1.5 R8 V8. Both bars are hollow, heat-treated 1020 high-tensile spring steel with thicker walls than the factory parts and two settings each, giving 10 or 20 percent more rate at the front and 65 or 82 percent more at the rear. The length-adjustable end links use Aurora spherical rod ends in black anodised 6061-T6 aluminium bodies, so sway bar preload can be removed for even handling in left and right turns.

Features

• Front bar: 30.0mm, 6.4mm wall, +10% or +20% rate
• Rear bar: 28.6mm, 4.8mm wall, +65% or +82% rate
• Heat-treated 1020 spring steel, black powder coat
• Billet aluminium brackets with integrated zerk fittings

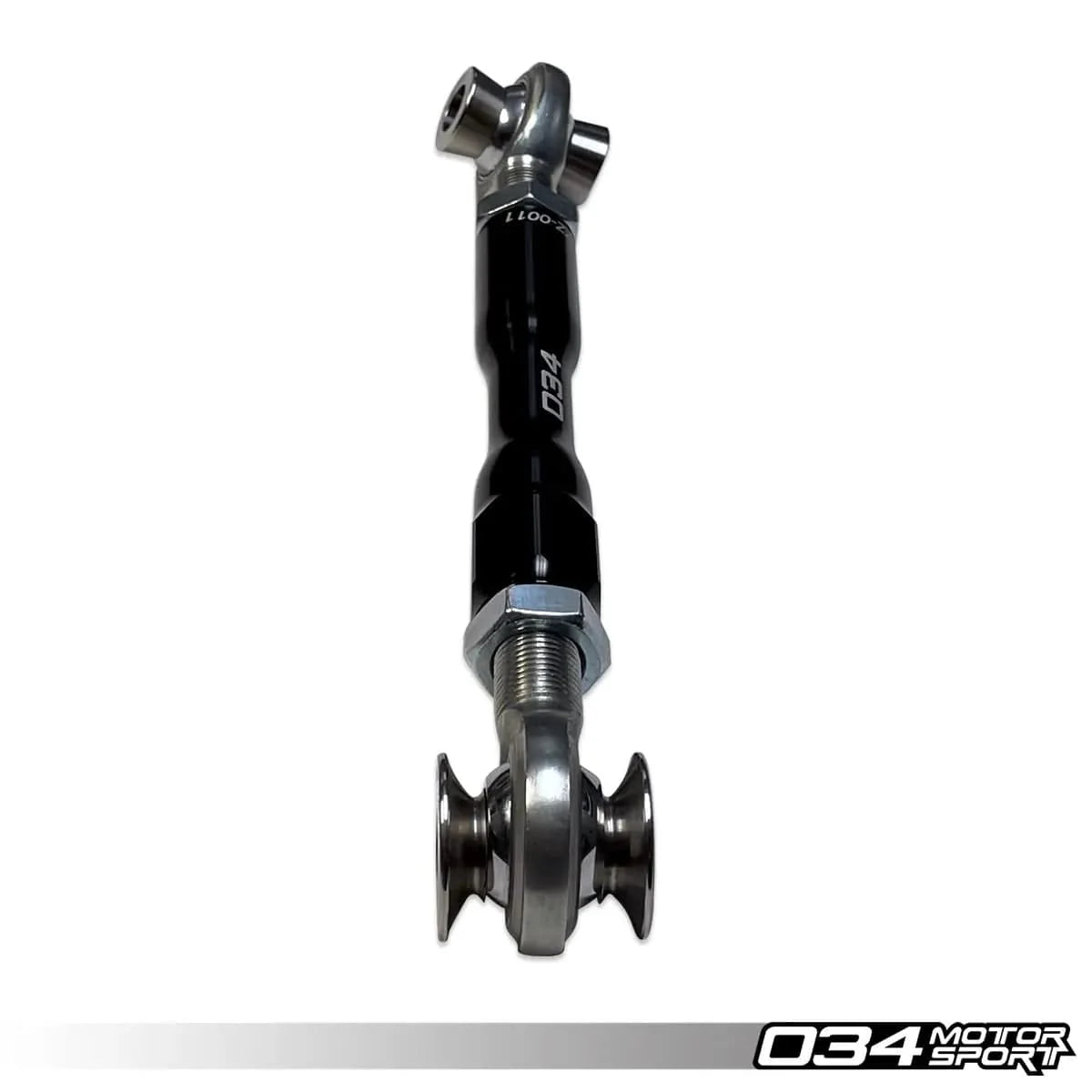

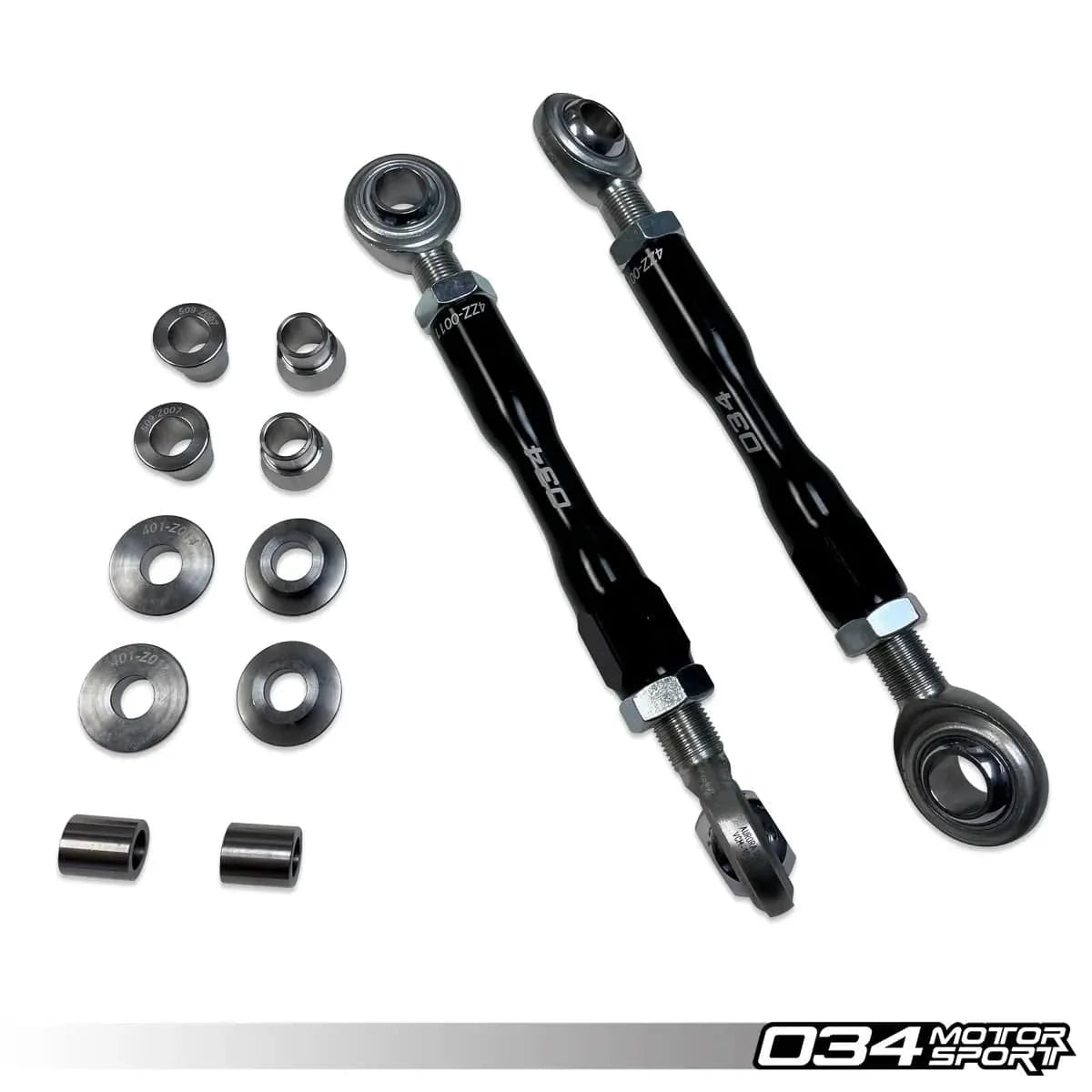

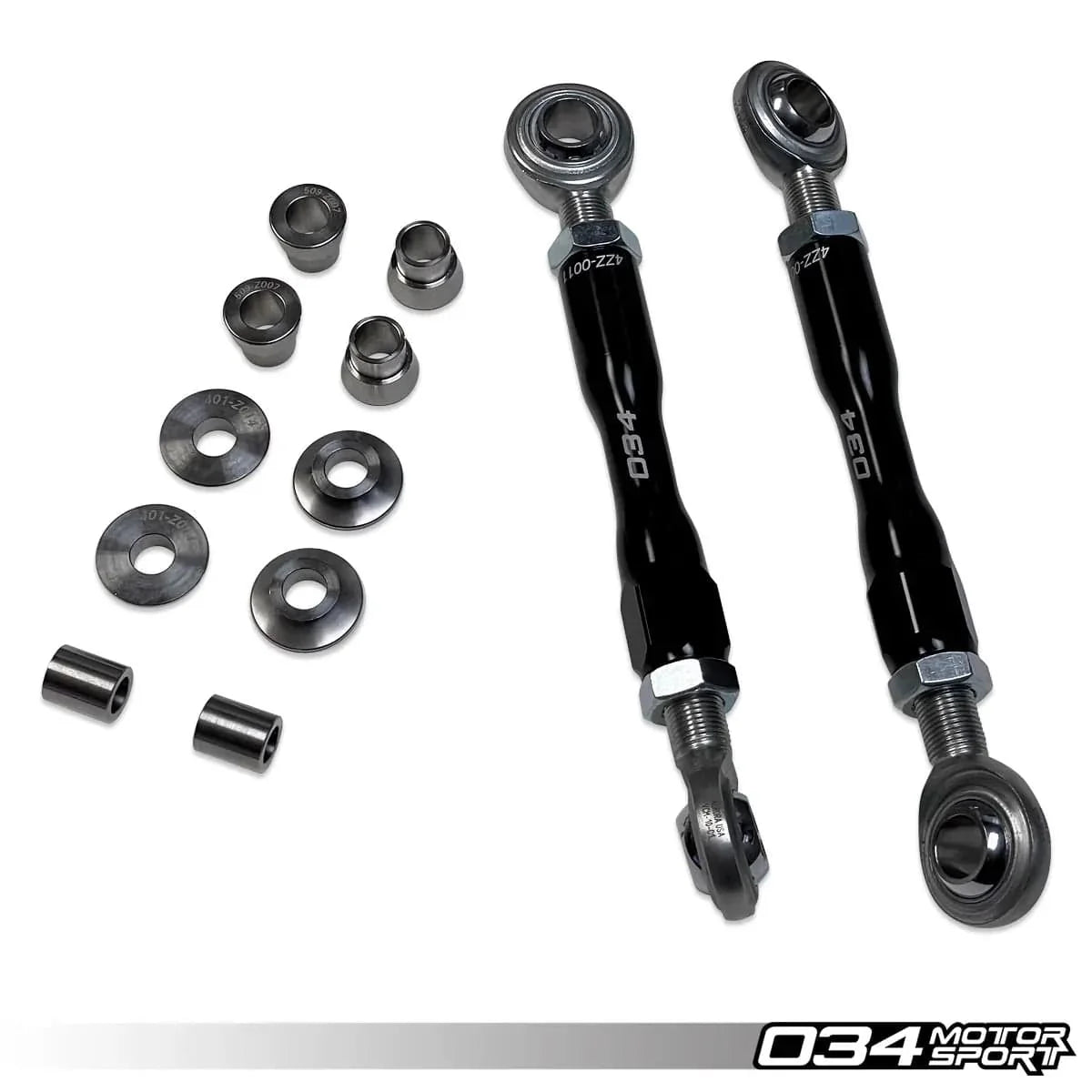

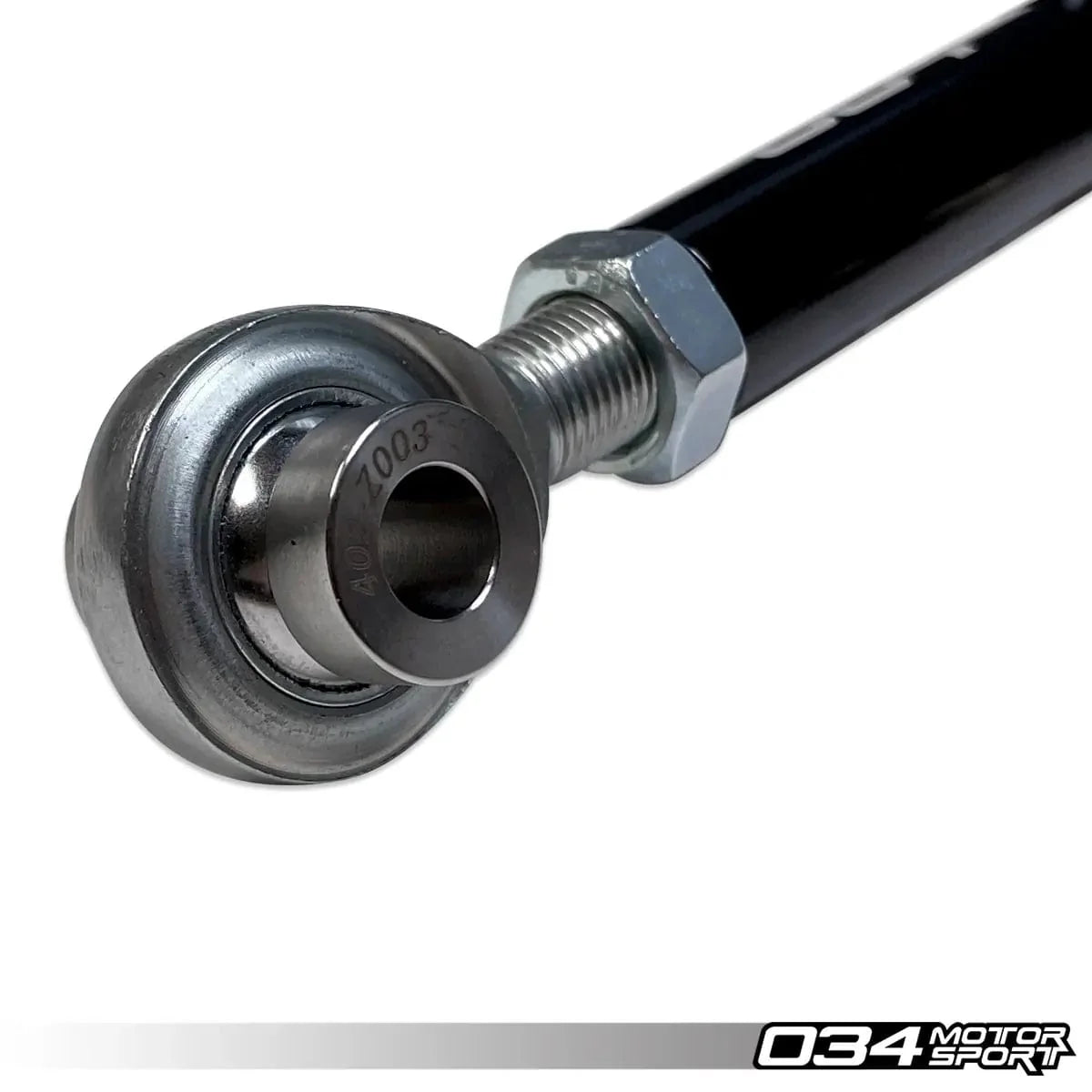

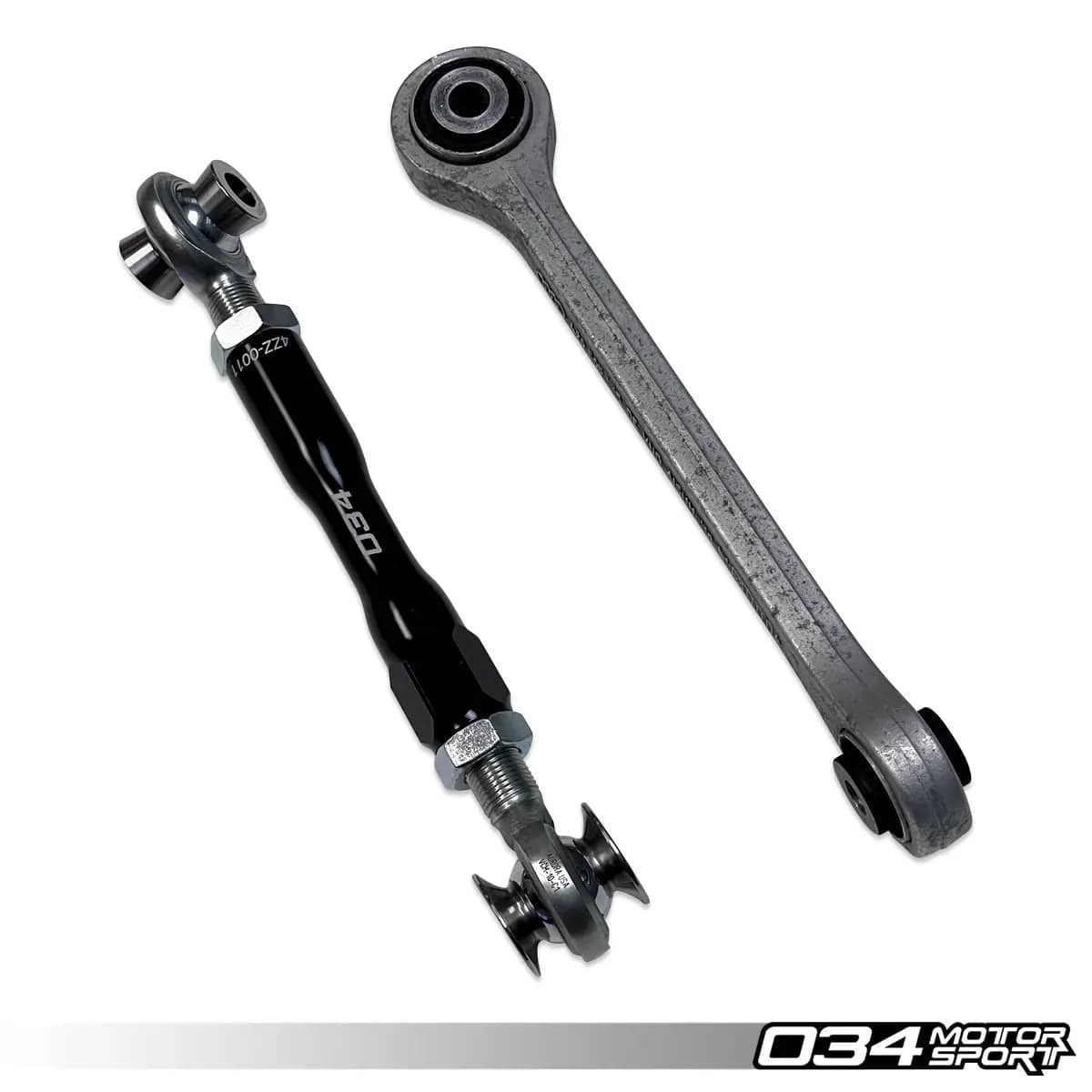

• Adjustable end links with Aurora spherical rod ends
• 1.5" total end link adjustment to remove preload
• Polyurethane bushings and hardware included

Specifications

• Brand: 034Motorsport
• Product Type: Sway Bar Package
• Front Sway Bar: 30.0mm diameter, 6.4mm wall, hollow, 2-way adjustable (+10% / +20% rate)
• Rear Sway Bar: 28.6mm diameter, 4.8mm wall, hollow, 2-way adjustable (+65% / +82% rate)
• Bar Material: Heat-treated 1020 high-tensile spring steel, black powder coated

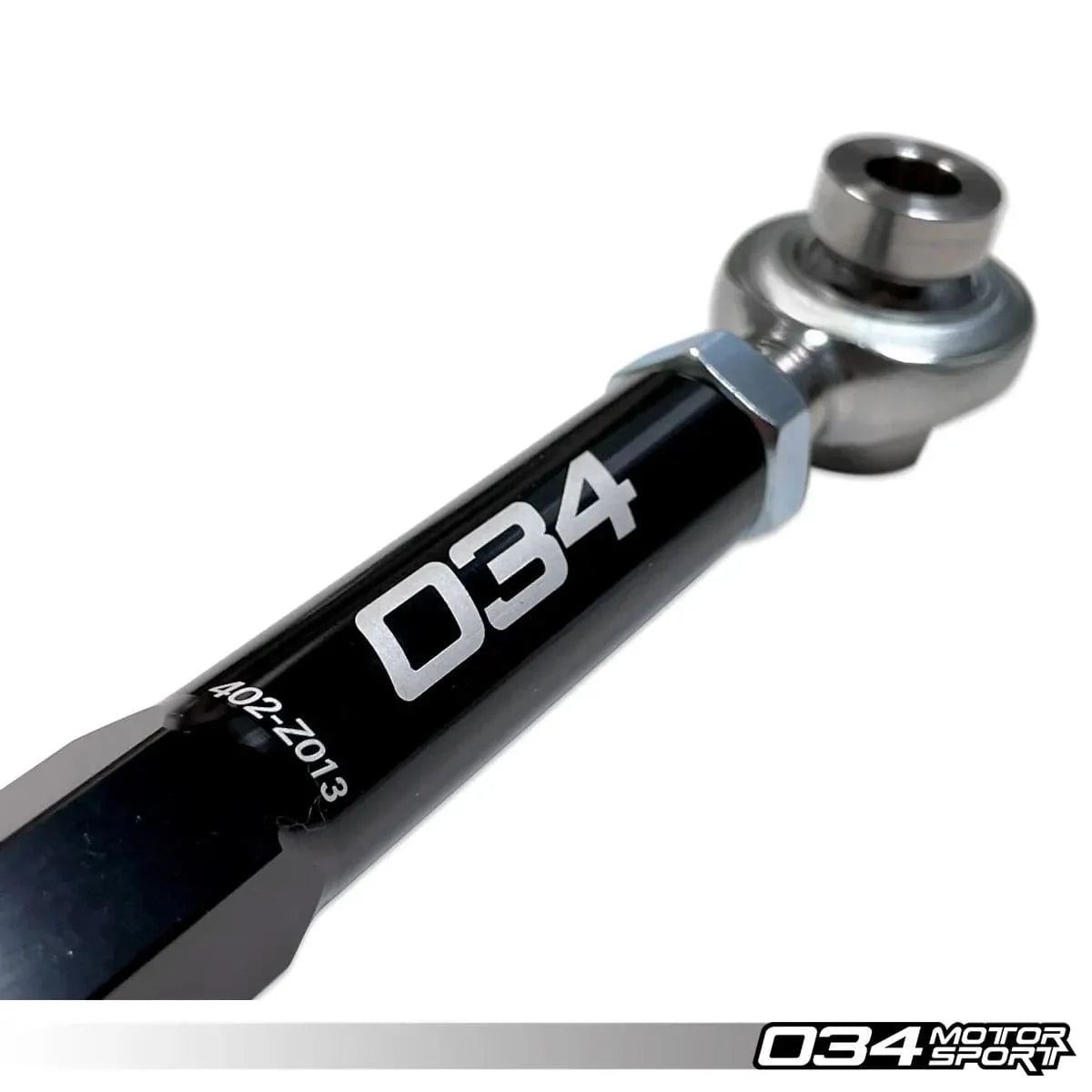

• End Links: CNC-machined 6061-T6 aluminium, black anodised, Aurora spherical rod ends
• End Link Adjustment: +/- 0.75" (1.5" total)

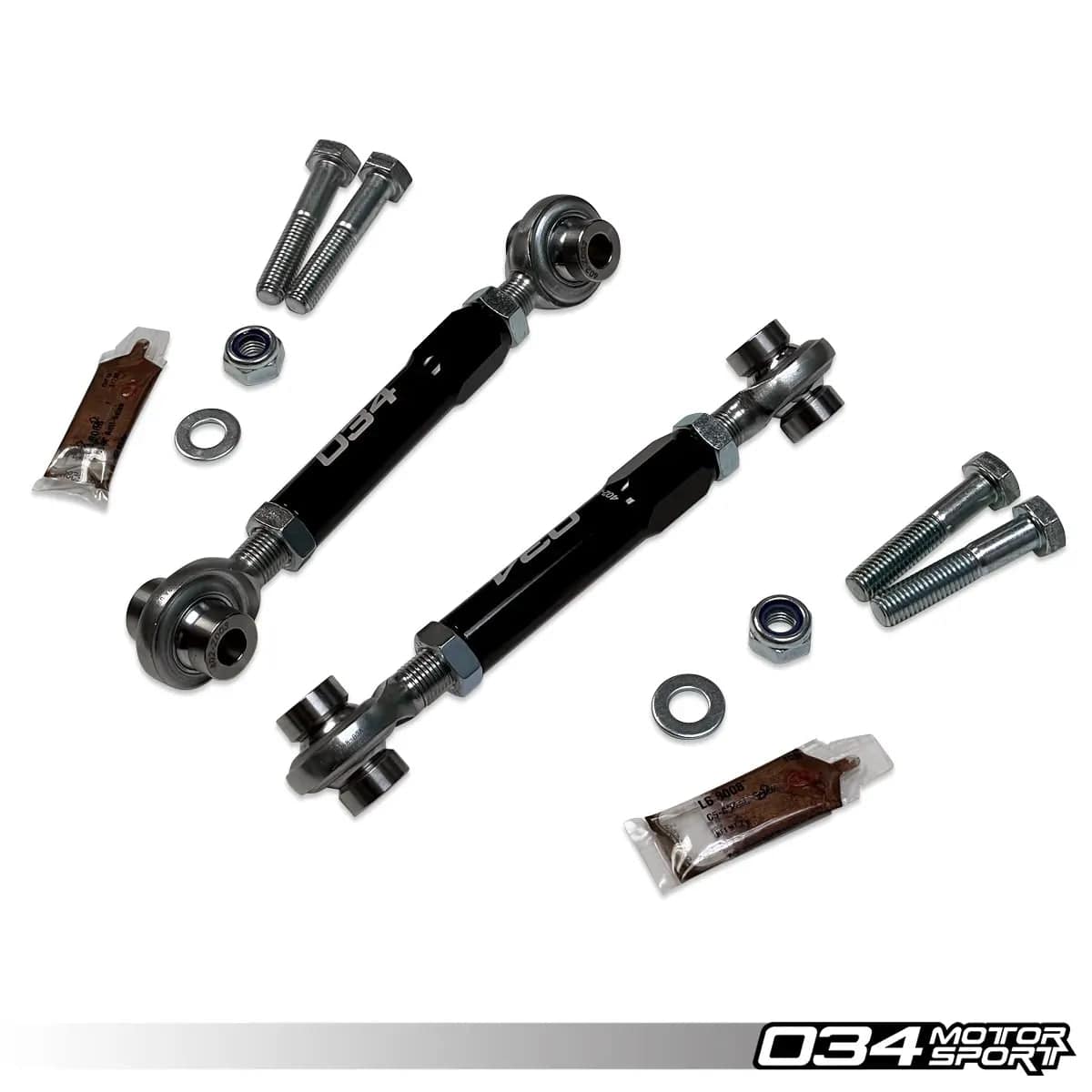

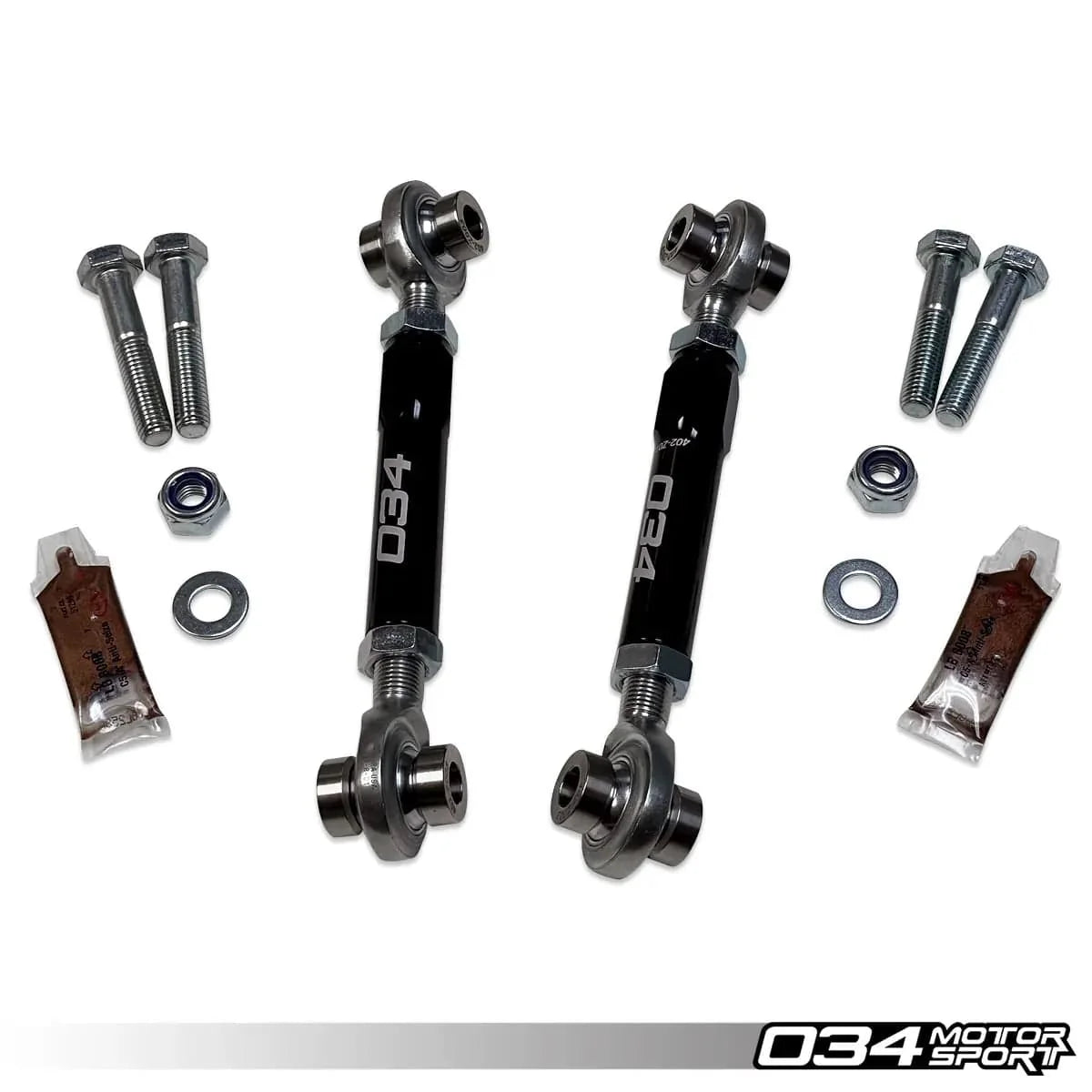

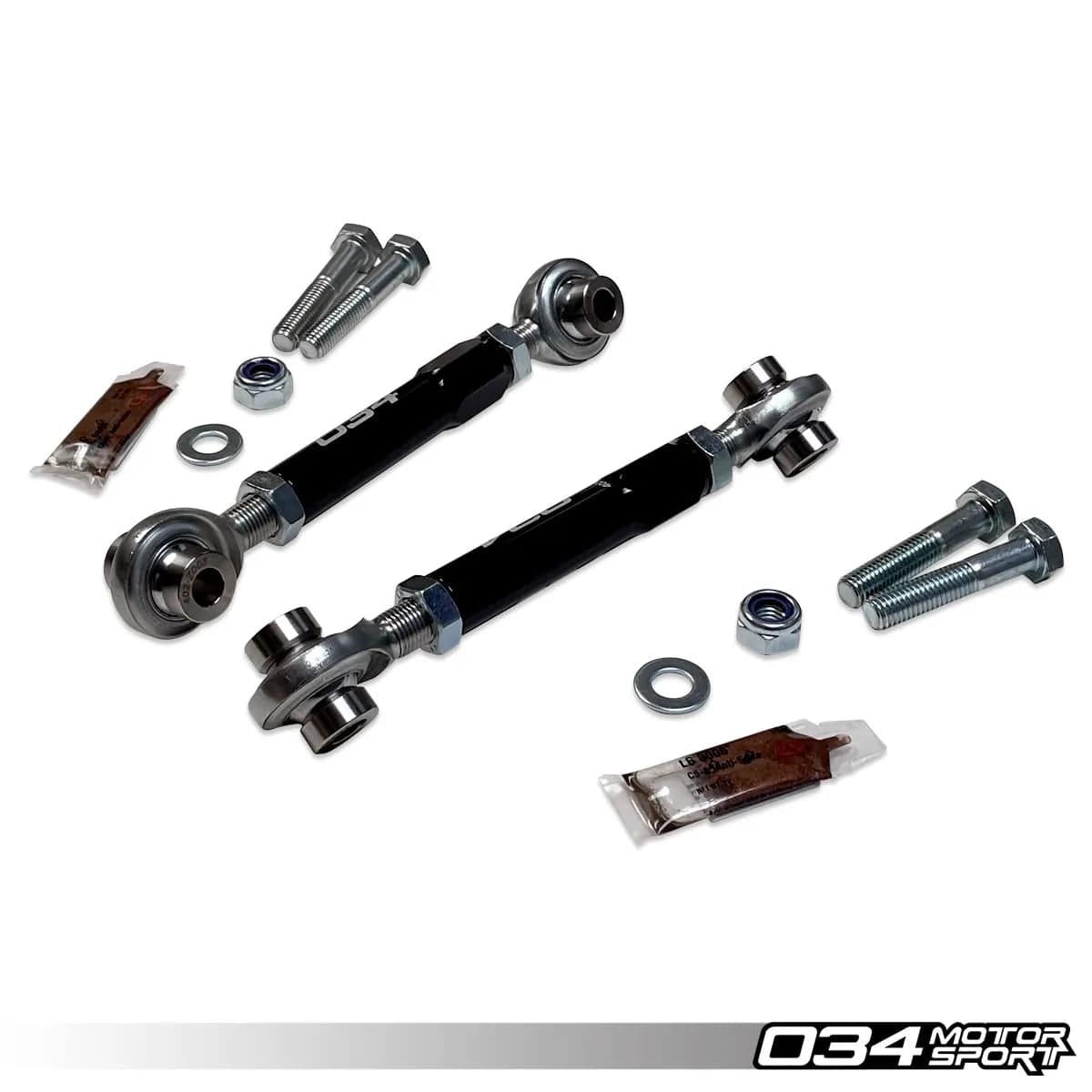

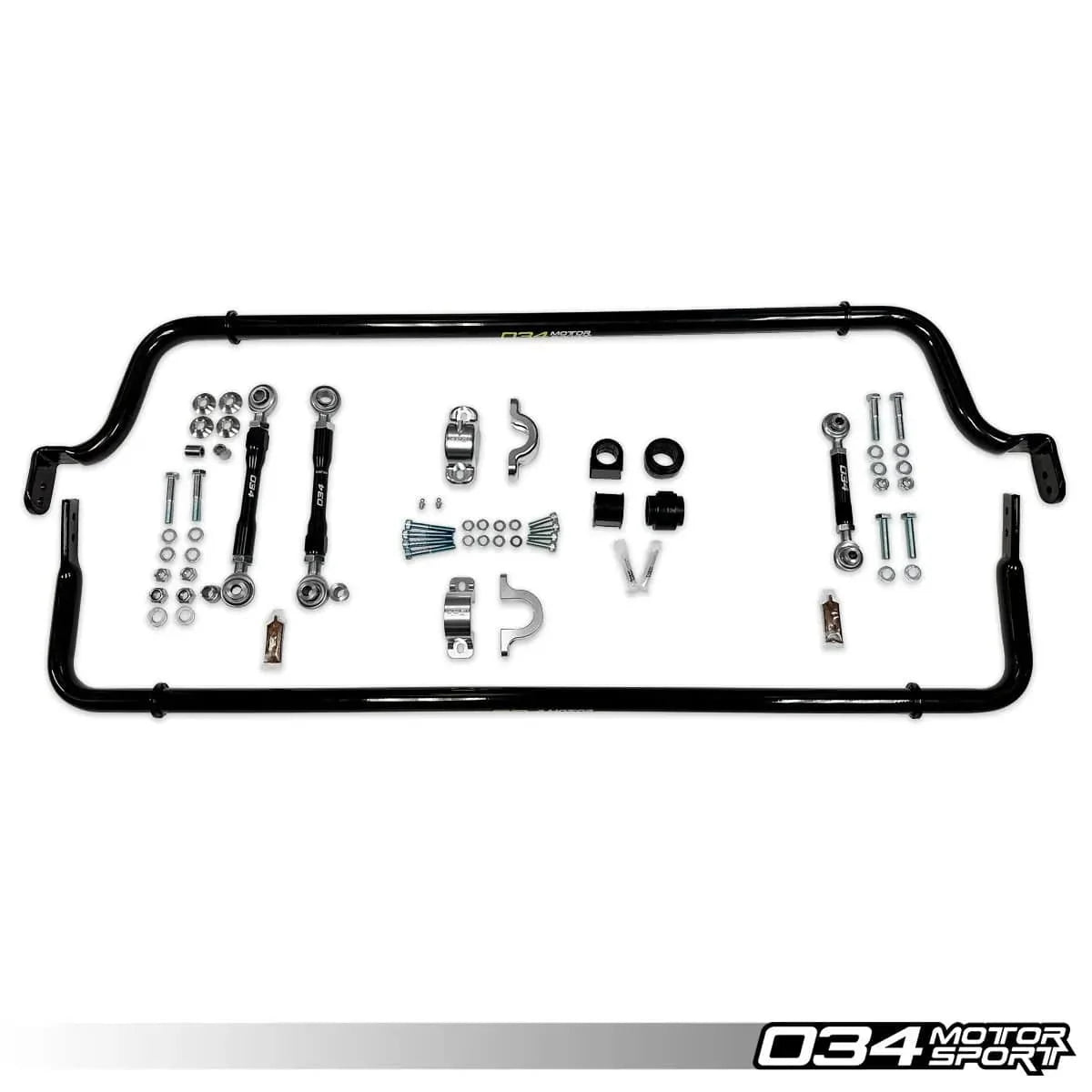

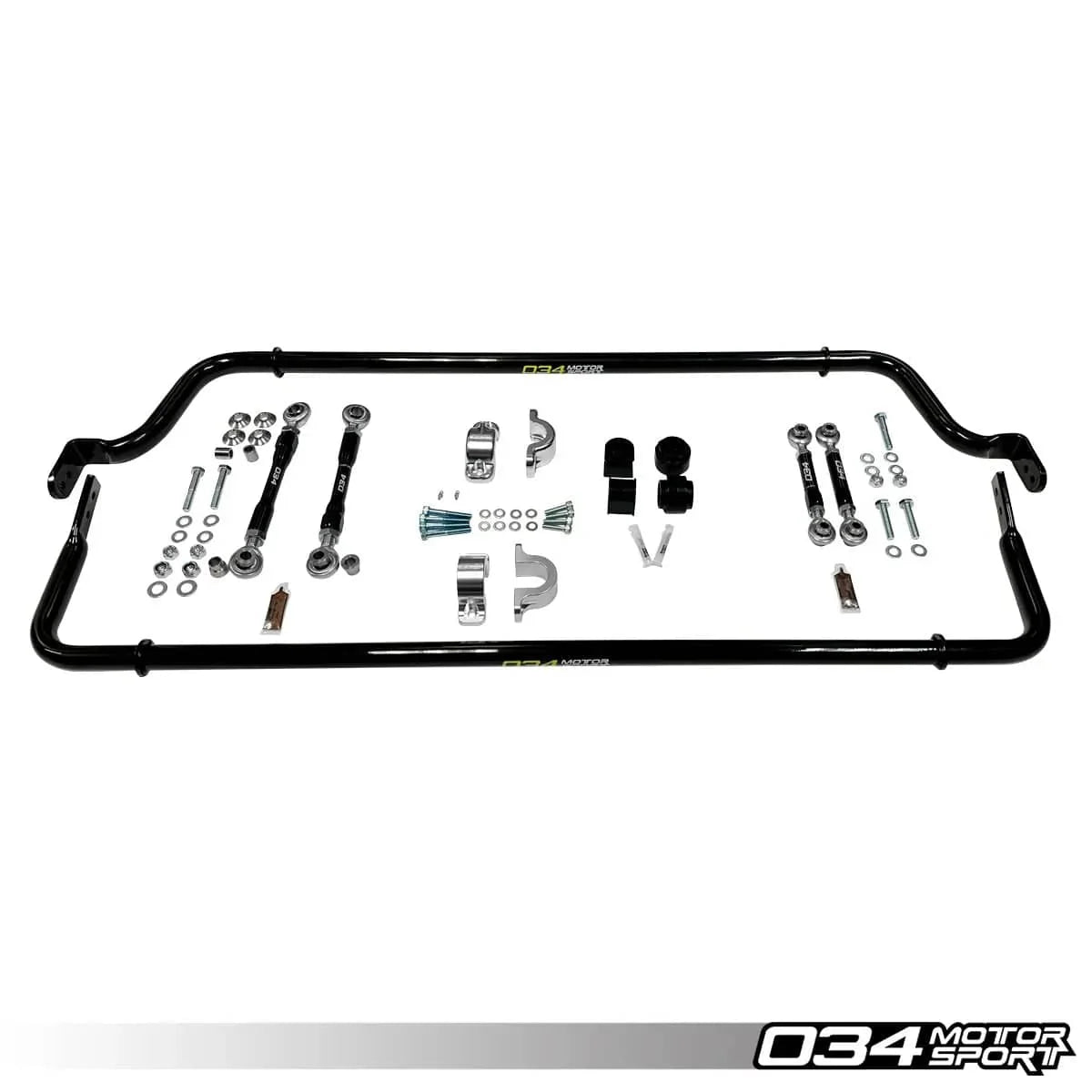

• Includes: Front and rear sway bars, polyurethane bushings, billet aluminium brackets with zerk fittings, front and rear adjustable end link pairs, installation hardware

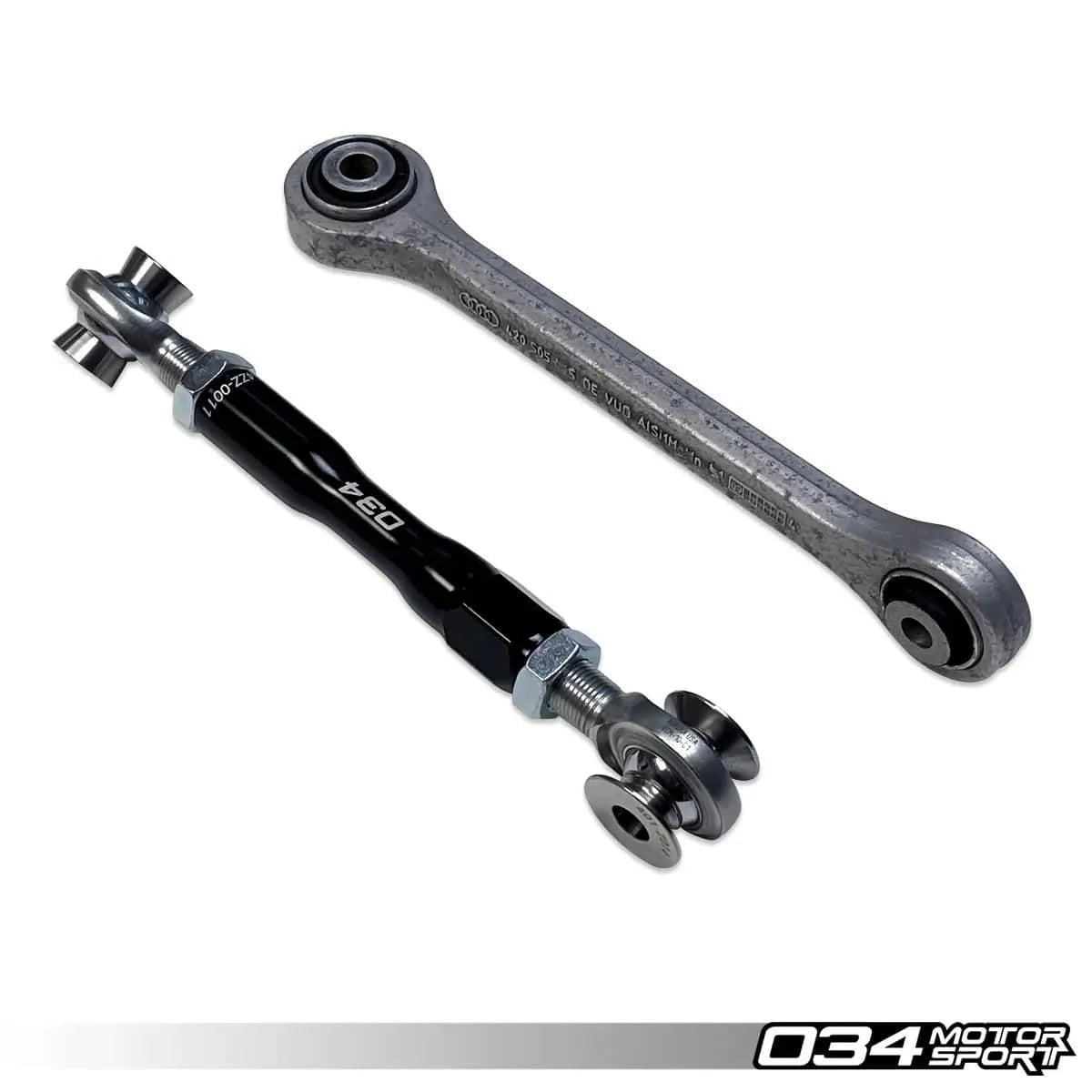

• OE Interchange: Front bar 420 411 309, rear bar 420 511 409 C, front end link 420 407 465, rear end link 420 505 465
• Part Number: 034-402-1017

Vehicle Compatibility: 2 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
