034Motorsport Dynamic+ Audi B9 Q5/SQ5 Sway Bar Kit (Front & Rear) - 034-402-1026
034 Motorsport - Dynamic+ Audi B9 Q5/SQ5 Sway Bar Kit (Front & Rear) - 034-402-1026.
For Audi B9 SQ5 & Q5. This product is transformative!
The 034Motorsport Dynamic+ Sway Bar Kit is available for B9/B9.5 Audi Q5/SQ5. The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.
Designed to reduce body roll, improve turn in, reduce understeer and enhance steering feel, 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track. The 034Motorsport Sway Bar Bundle Package is available with perfectly-matched front and rear sway bars. During 034Motorsport's extensive testing, we found the B9 Q5/SQ5 Audi Platform benefitted heavily from the increased roll stiffness of the front suspension. With significant improvements to the paired rear sway bar, a rearward-balance-focused handling characteristic with this sway bar package.
034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track.
The 034Motorsport Dynamic+ Sway Bar Kit is available for B9/B9.5 Audi Q5/SQ5 with OEM Air Suspension. The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.
Designed to reduce body roll, improve turn in, reduce understeer and enhance steering feel, 034 Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track.
TRACK-PROVEN HANDLING PERFORMANCE:
The Dynamic+ Sway Bar Kit was thoroughly evaluated on the street and track with the 034Motorsport B9 Audi SQ5 before release.

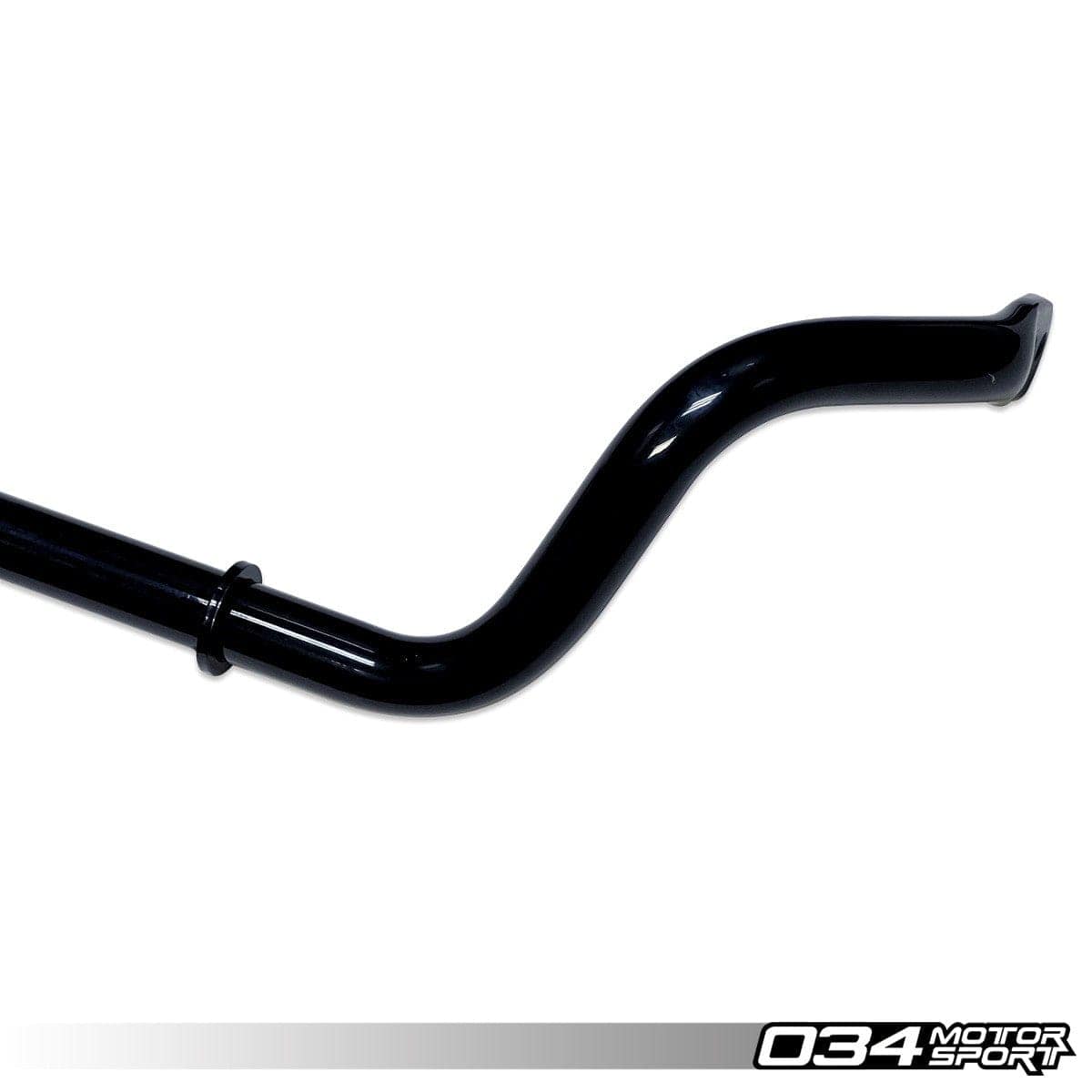

Front Sway Bar Features:

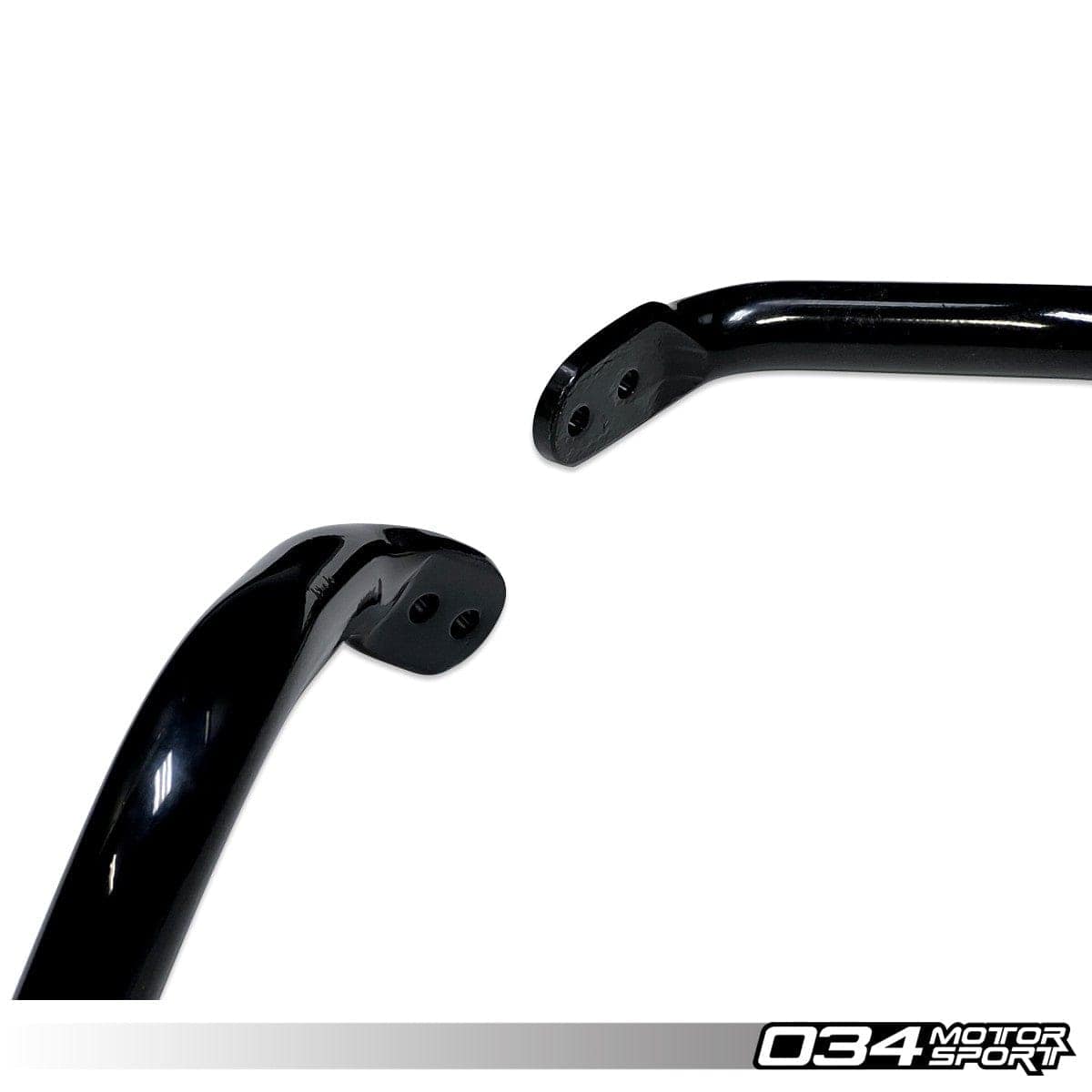

- 2-Way Adjustable
- Soft Setting - 21.3% Increased Sway Bar Rate
- Firm Setting - 39% Increased Sway Bar Rate
- (Rate Comparisons to Factory SQ5 32mm Hollow Front Sway Bar, 3.7mm Wall Thickness)
- 32mm Diameter
- Hollow Design with Thicker Walls Compared to Factory Bar
- Black Powder Coating for Durability and Stealthy Appearance
Rear Sway Bar Features:
- 2-Way Adjustable
- Soft Setting - 130% Increased Sway Bar Rate
- Firm Setting - 158% Increased Sway Bar Rate
- (Rate Comparisons to Factory SQ5 24.6mm Hollow Rear Sway Bar, 3.8mm Wall Thickness)
- 30mm Diameter
- One-Piece Design with Solid Spring Steel Construction
- Black Powder Coating for Durability and Stealthy Appearance

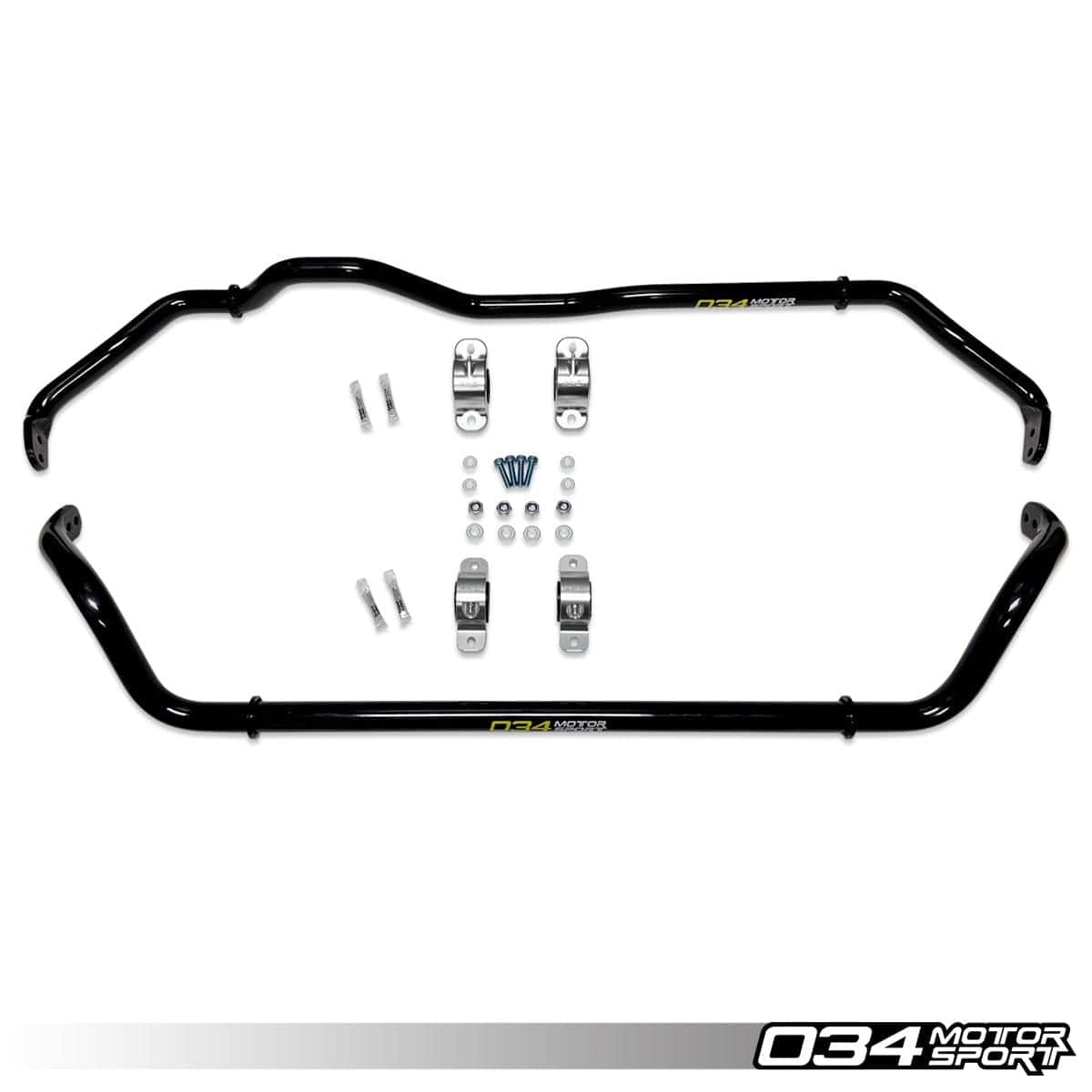

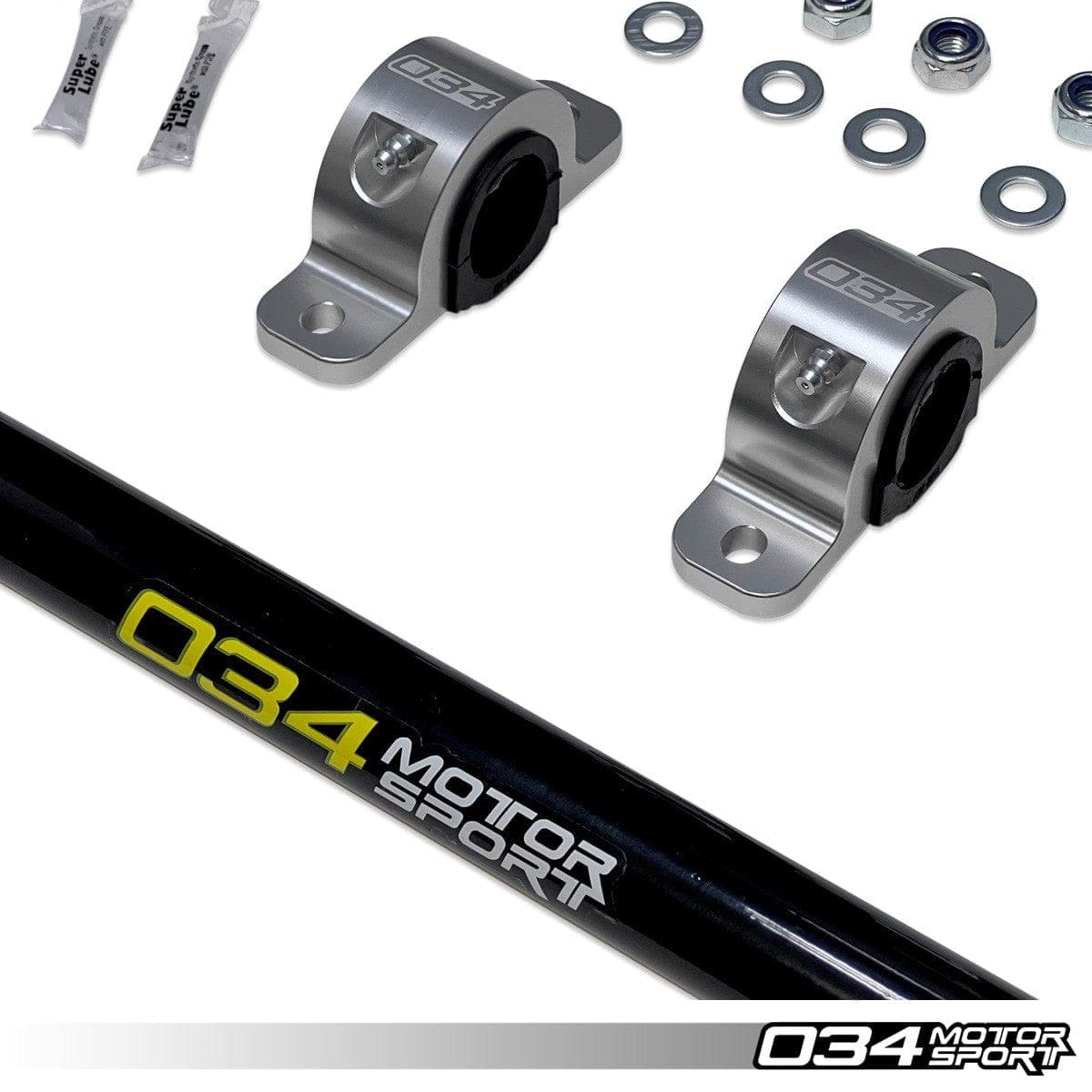

WHAT'S INCLUDED:
- 034Motorsport 32mm Adjustable Front Sway Bar Upgrade
- 034Motorsport 30mm Solid Adjustable Rear Sway Bar Upgrade
- Polyurethane Sway Bar Bushings

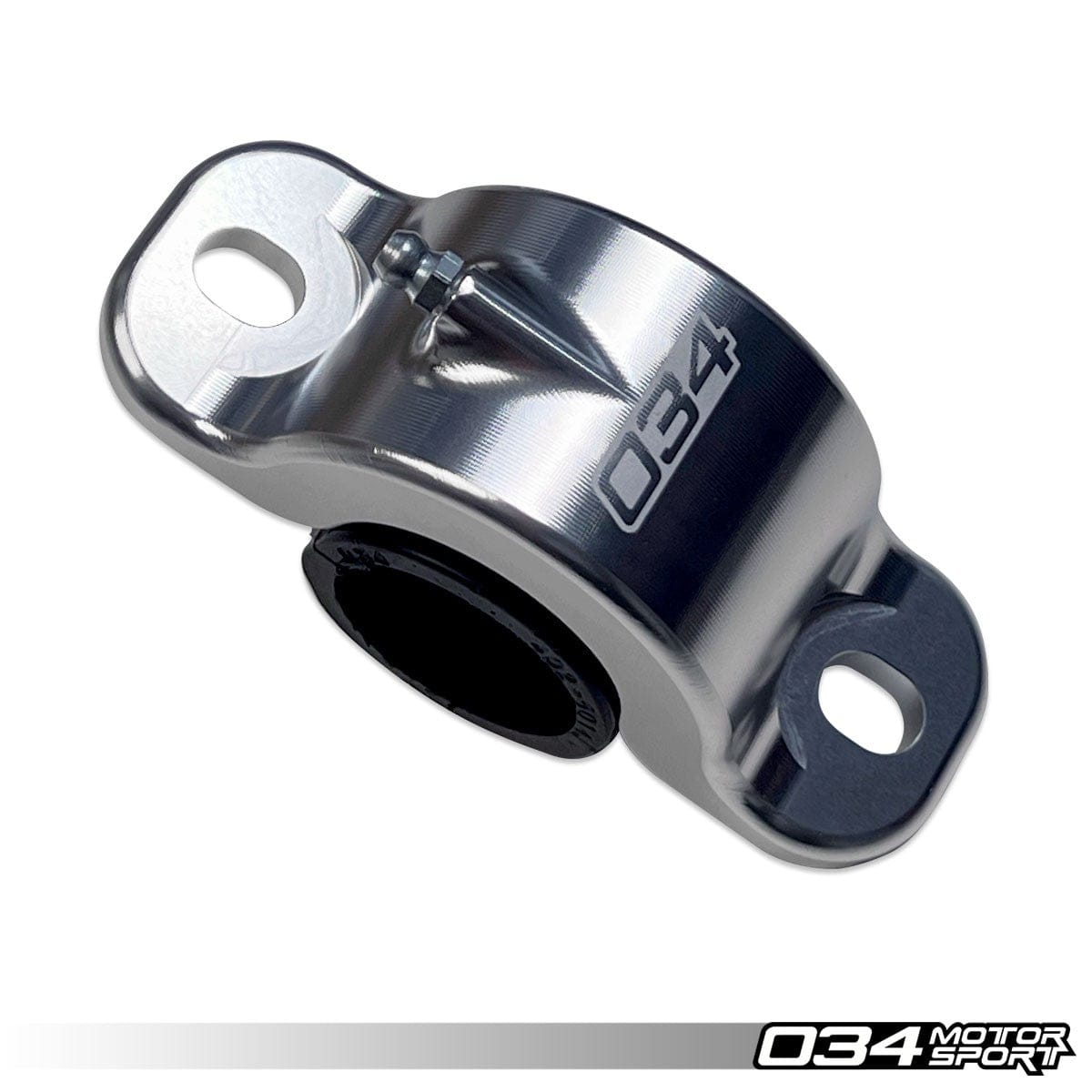

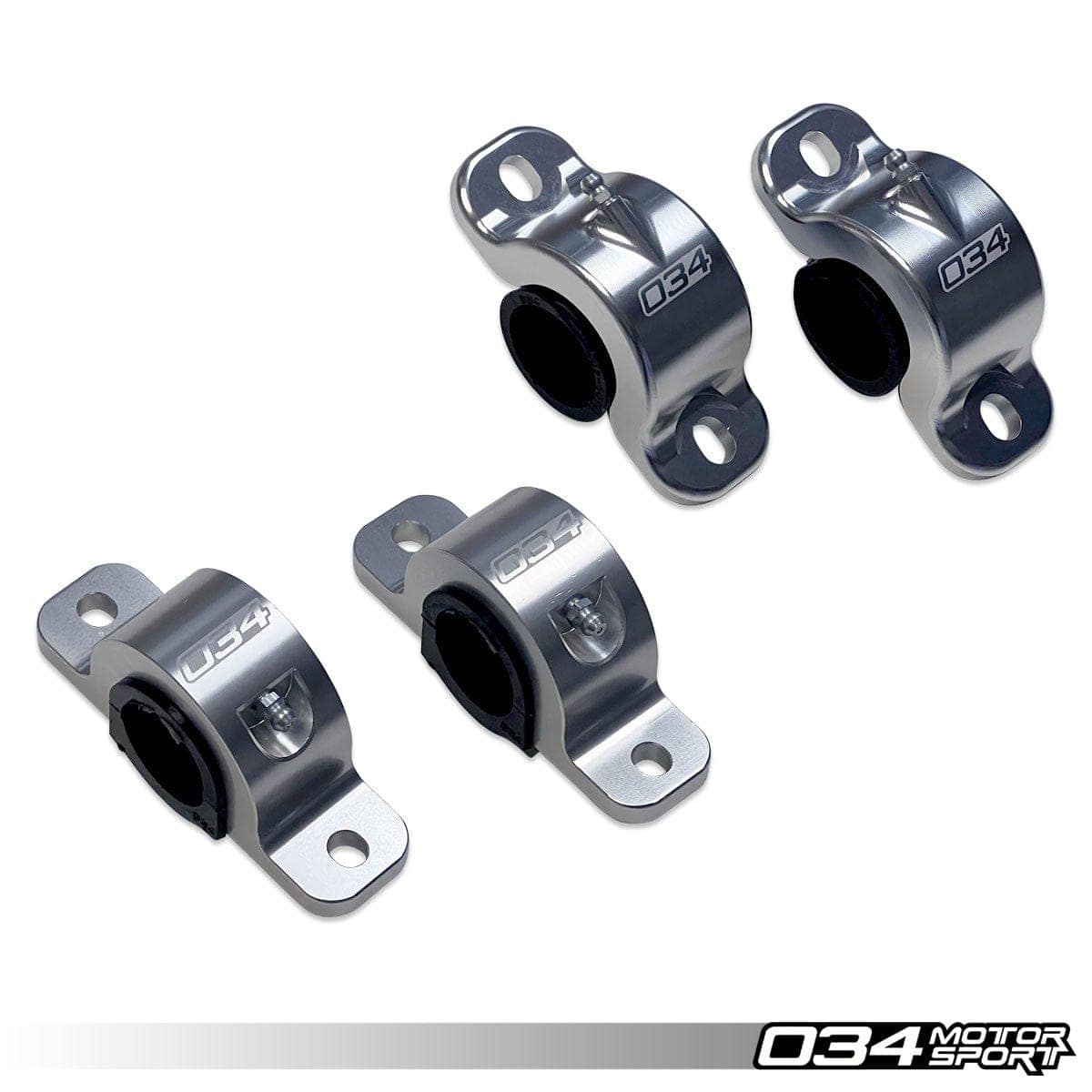

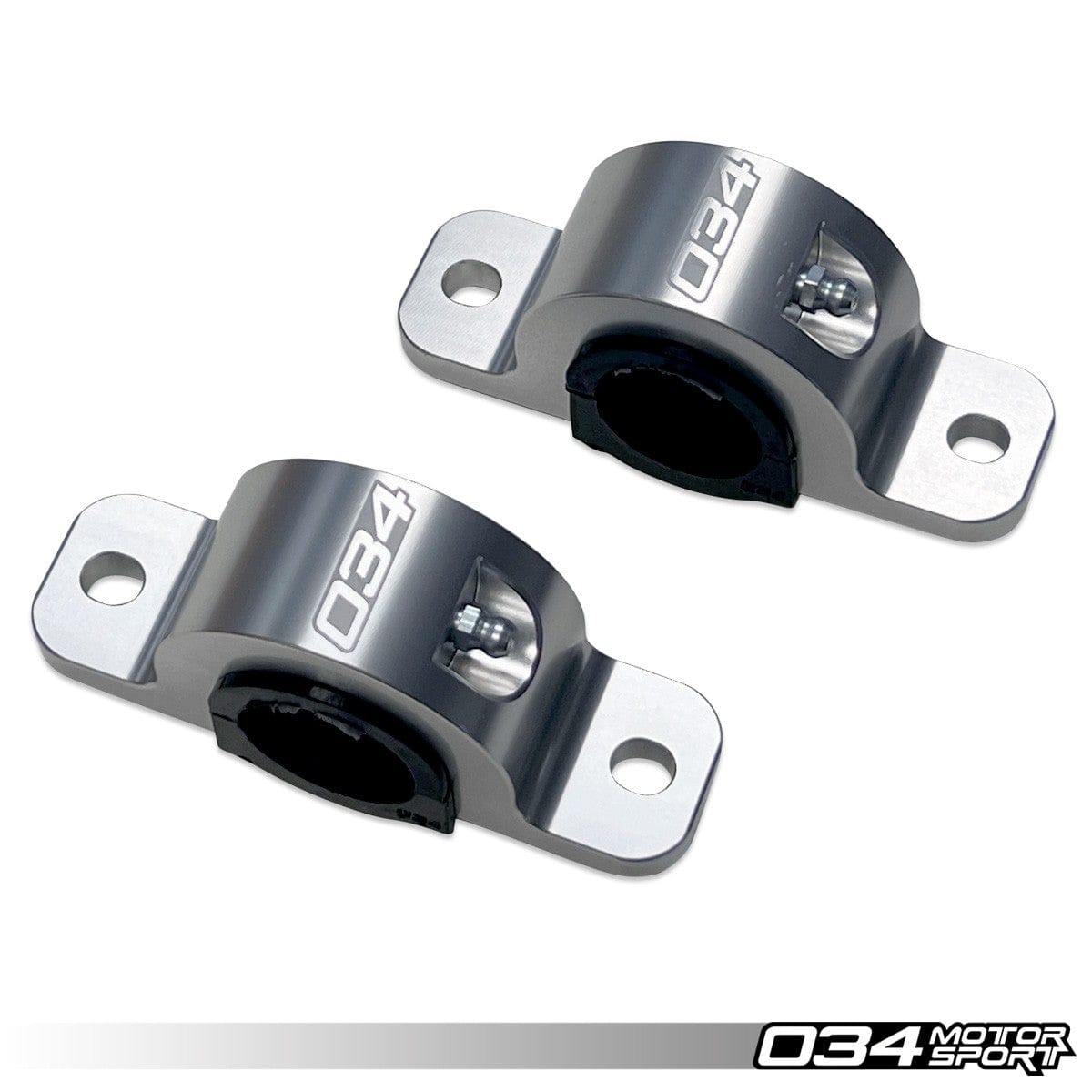

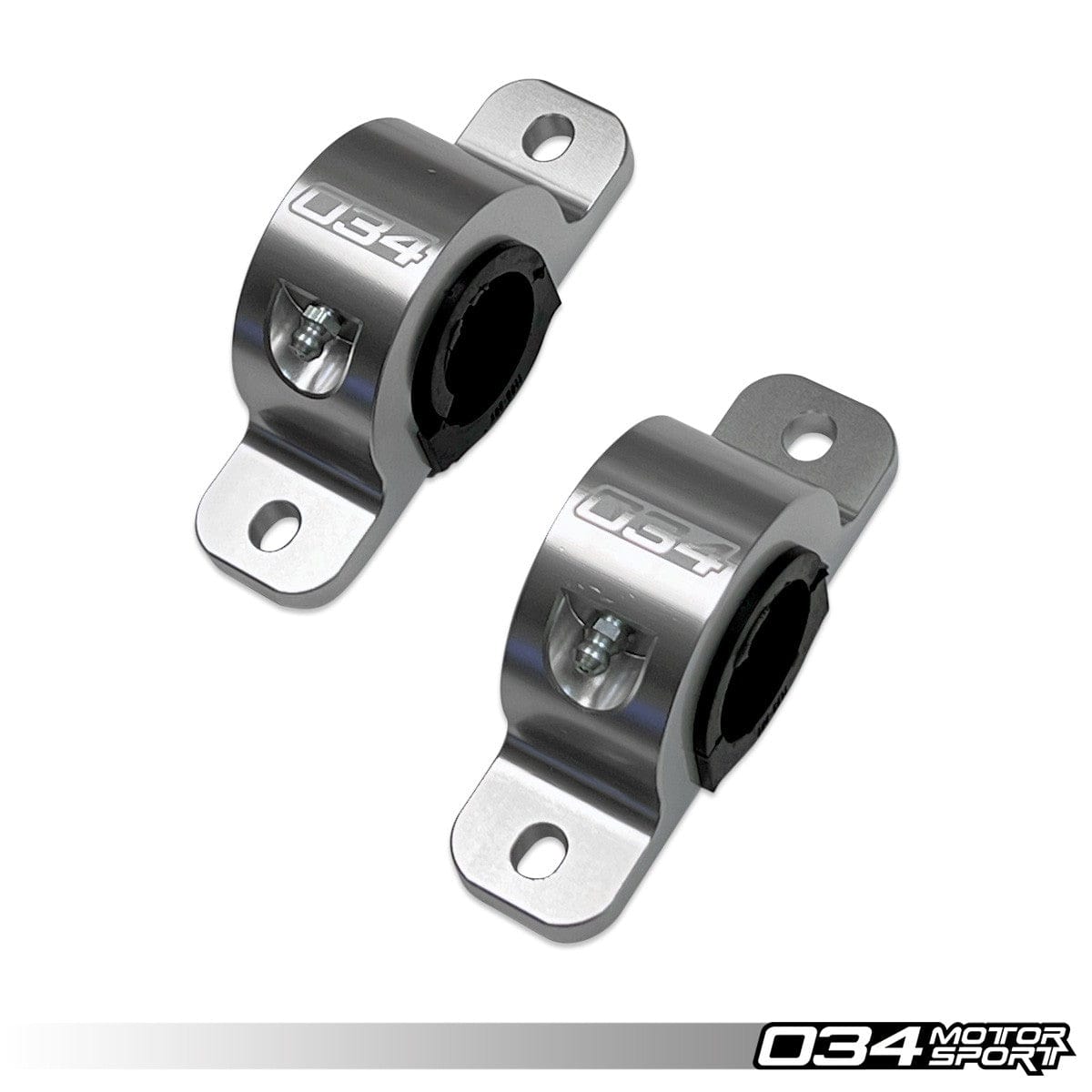

- Billet Aluminium Sway Bar Brackets with Integrated Zerk Fittings

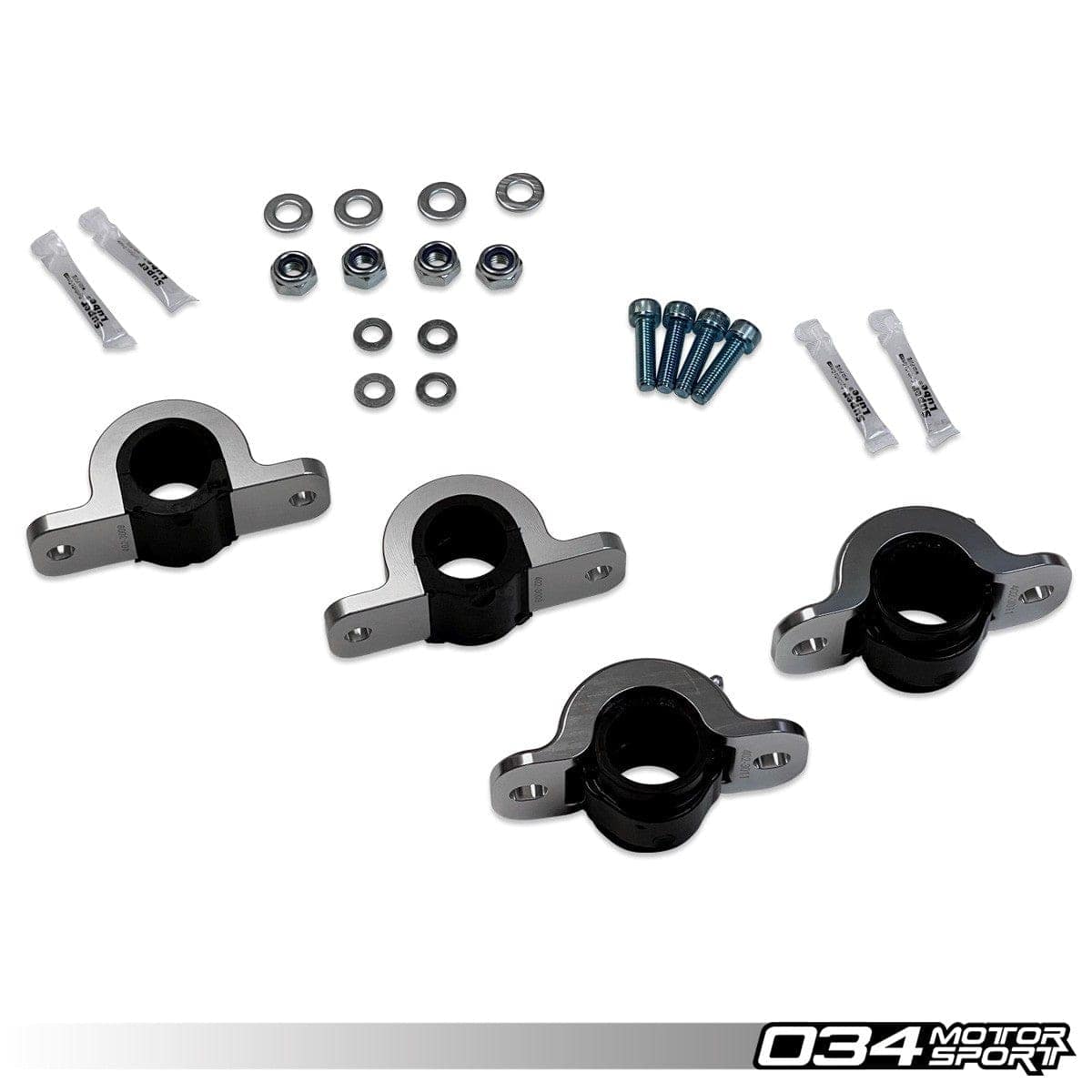

- Installation Hardware Kit
What's Included:
- 034Motorsport 32mm Adjustable Front Sway Bar Upgrade
- 034Motorsport 30mm Solid Adjustable Rear Sway Bar Upgrade
- Polyurethane Sway Bar Bushings
- Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
- Installation Hardware Kit
Fitment:
- 2018+ Audi SQ5 3.0T
- 2018+ Audi Q5 2.0T
OE Part Interchange:
- OE front bar: 80A 411 305 B (32mm)
- OE rear bar: 80A 511 305 S
| Make | Model | Years | Chassis | Engine |
|---|---|---|---|---|
| Audi | Q5 | 2018-Present | B9/B9.5 | 2.0 TFSI |
| Audi | SQ5 | 2018-Present | B9/B9.5 | 3.0 TFSI |
The installation of your 034Motorsport Dynamic+ Sway Bar Kit, B9/B9.5 Audi Q5/SQ5 is a straightforward process that will take approximately 1 hour to complete per bar. You can access our detailed installation guides by clicking the links below.
Download FRONT swaybar Install Guide
Download REAR swaybar Install Guide
