034Motorsport Dynamic+ Billet Adjustable Front Sway Bar End Links For Audi B8/B9, C7/C8, 4M.5, 4M8 & Porsche 95B Chassis
This item needs to be ordered in
Heads up, this product isn't in stock for immediate dispatch. It will need to be ordered in (estimated 1–4 weeks) before it ships. Would you like to continue?
- Type Suspension
- Vendor 034Motorsport
- SKU 034-402-4033
- Barcode A2-1-4

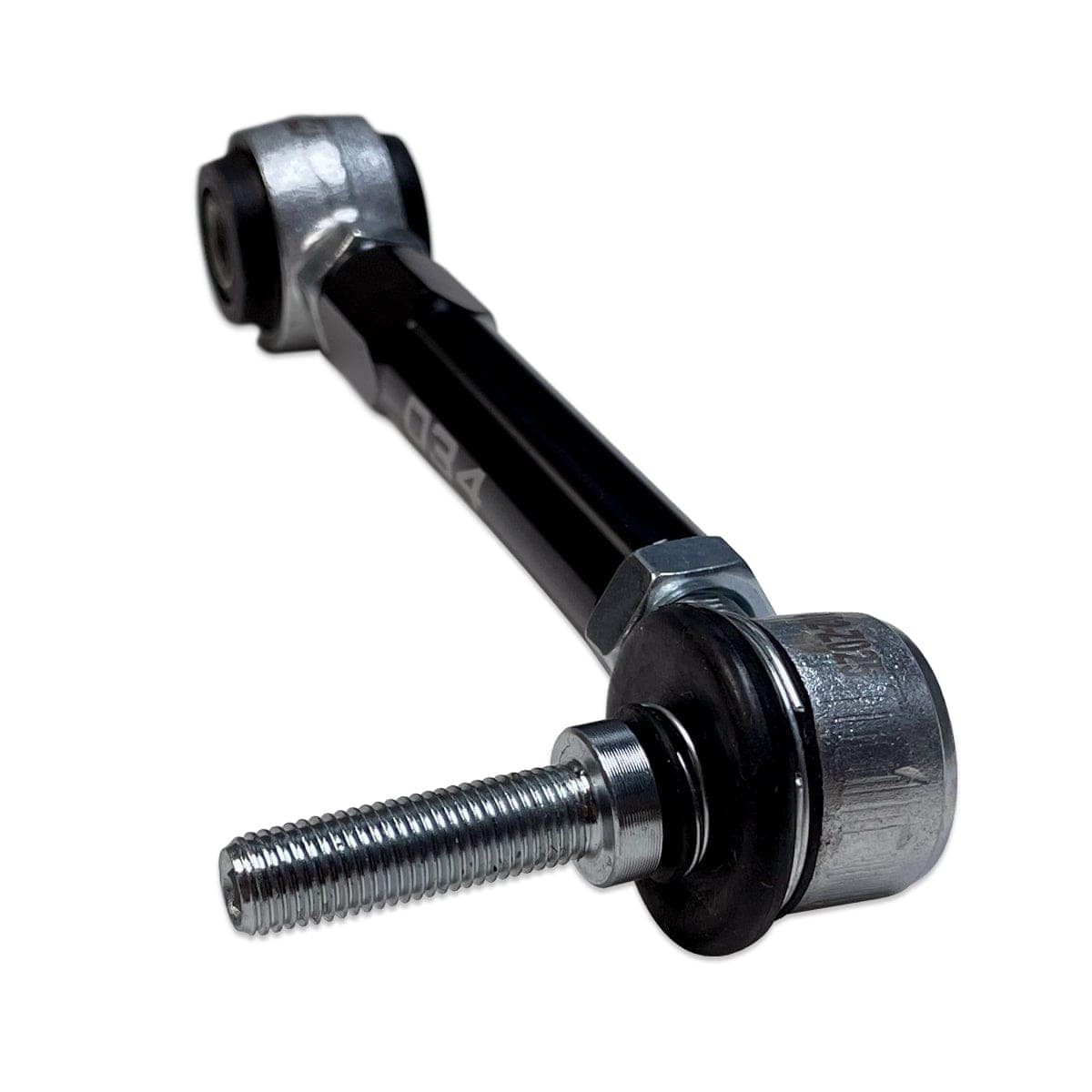

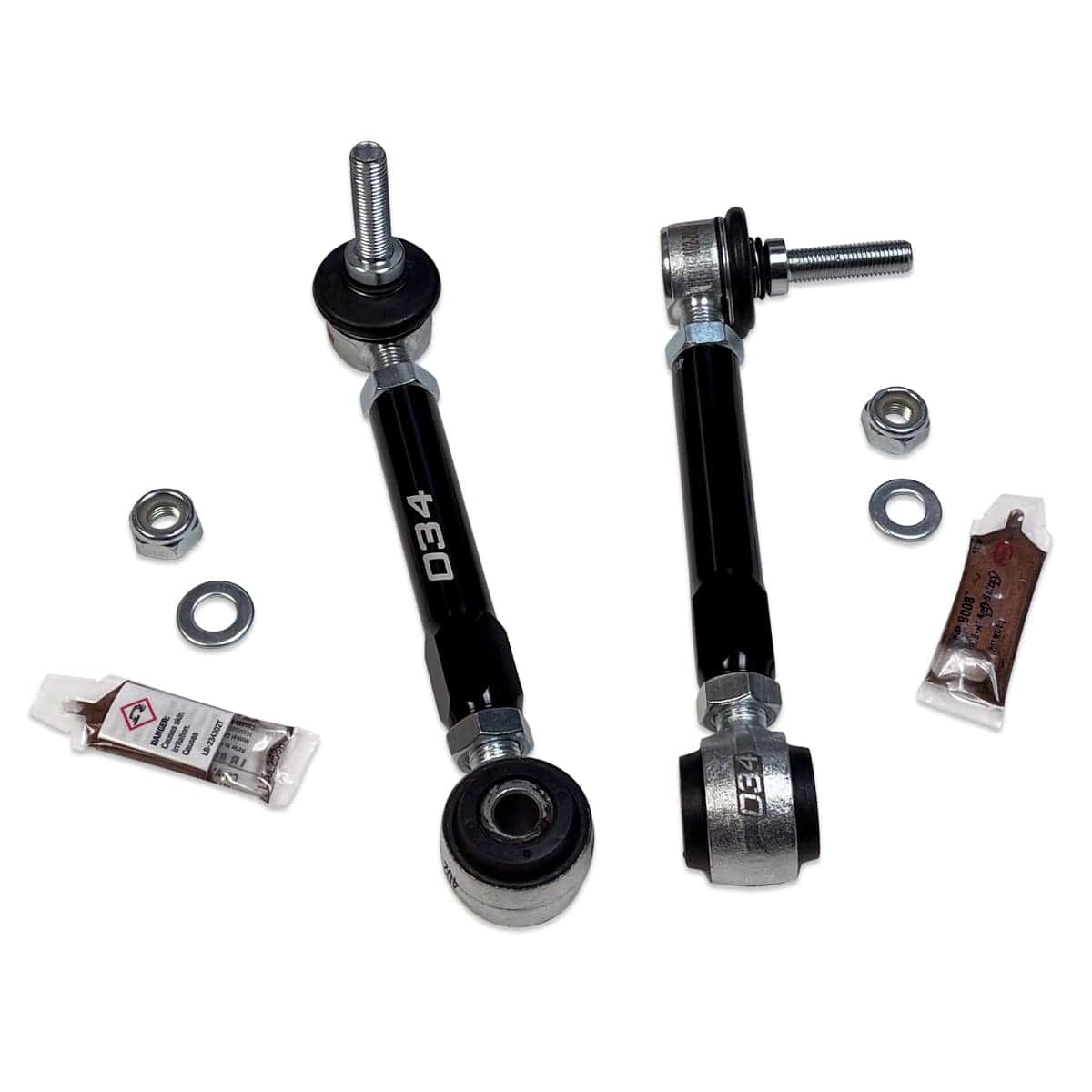

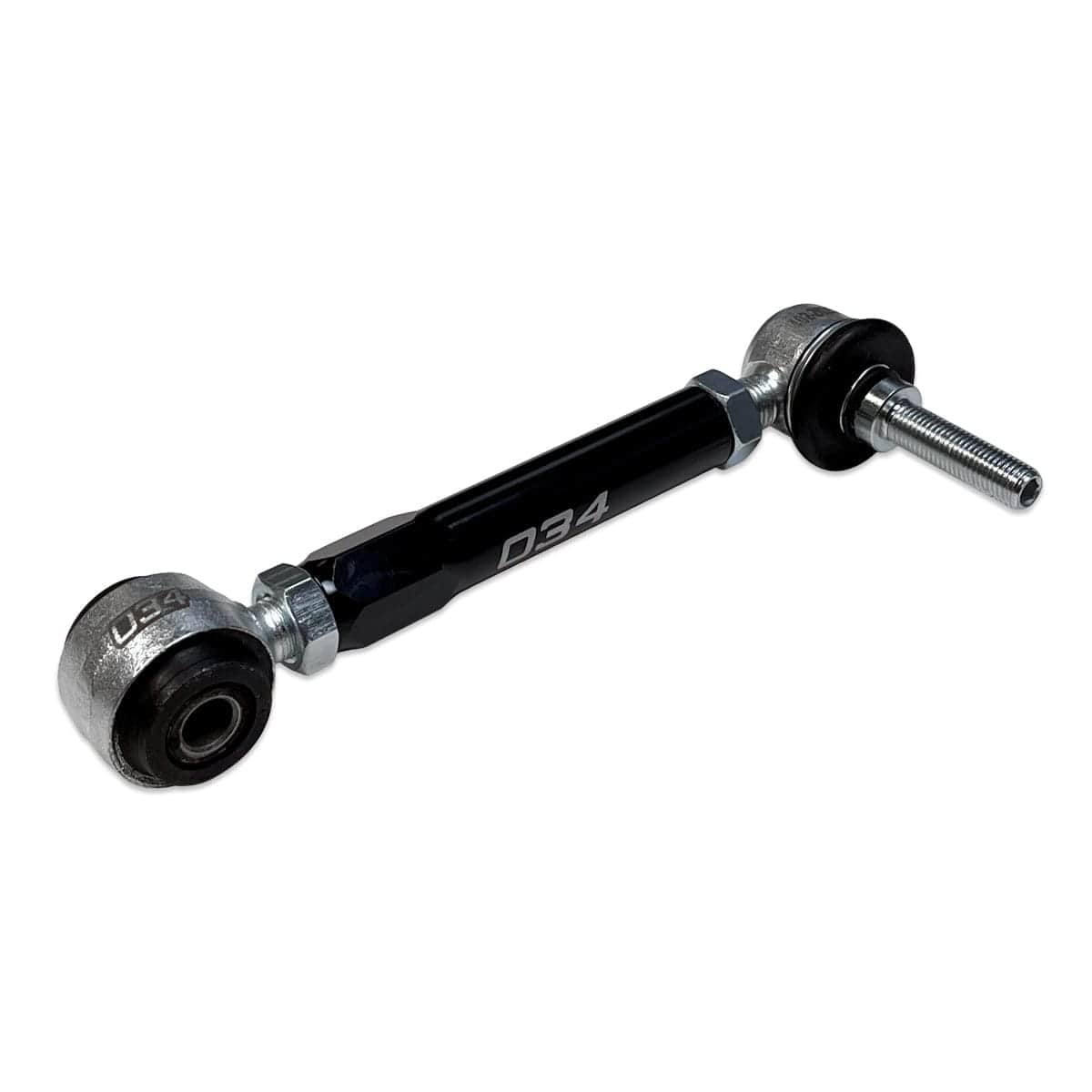

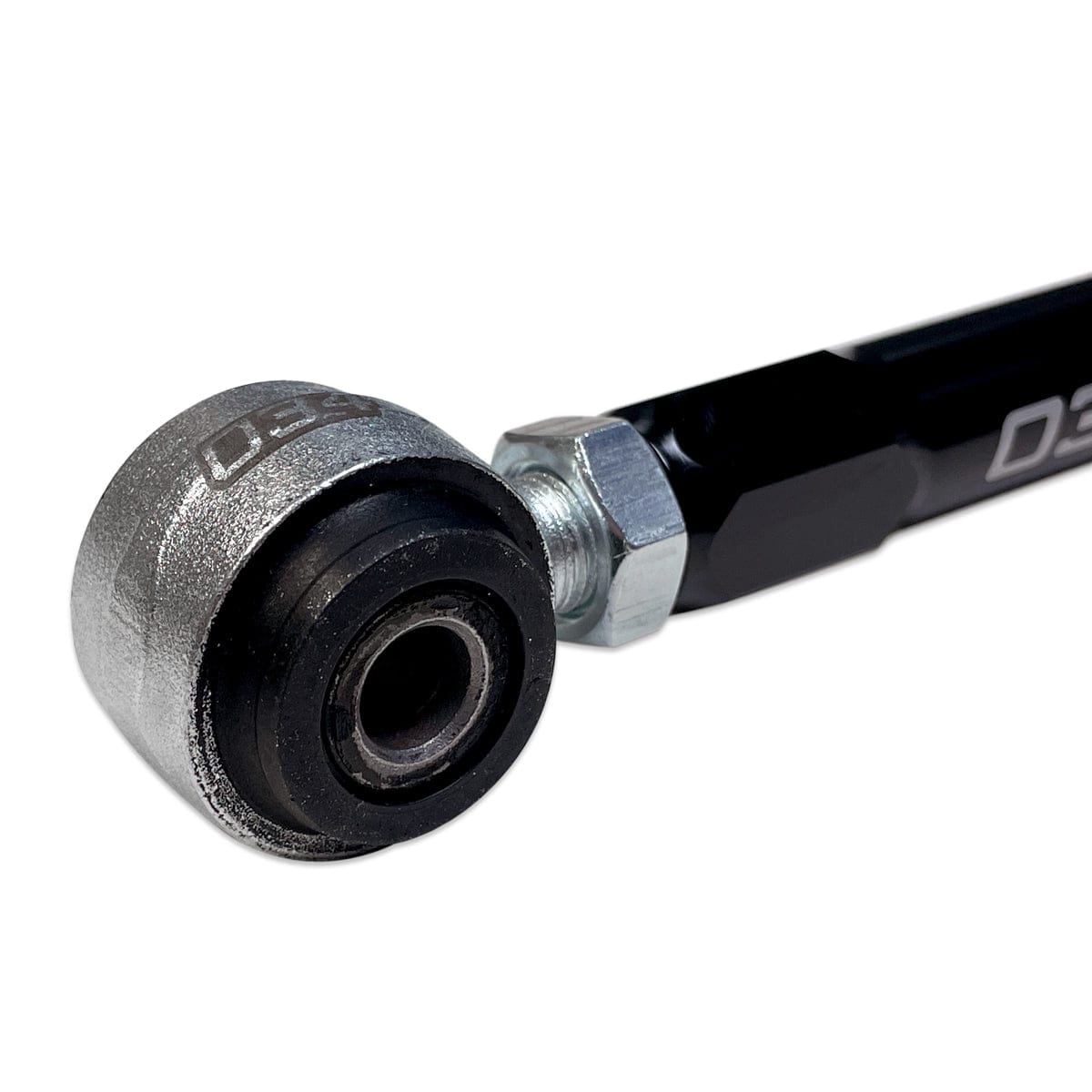

These Dynamic+ billet adjustable front sway bar end links replace the factory front end links on a wide range of Audi chassis, including B8 and B9 A4, A5 and Q5 models, C7 and C8 A6 and A7, the D4 A8 and the 4L and 4M Q7, along with the 95B Porsche Macan. Each link has a CNC-machined 6061-T6 aluminium body with a black anodised finish, zinc plated steel ball joints, and rubber vulcanised to the steel for strength and durability. They are length adjustable so installers can remove sway bar preload, which suits corner balancing lowered cars, and the high-misalignment ball joints keep the links from binding as the suspension articulates. 034Motorsport says they improve handling, road feel and steering response by passing suspension movement to the sway bar instantly.
Features
- CNC-machined 6061-T6 aluminium bodies, black anodised
- Zinc plated steel ball joints
- Rubber vulcanised to the steel for durability
- Length adjustable to remove sway bar preload
- High-misalignment ball joints avoid binding
- Quieter than spherical motorsport end links
- Direct drop-in replacement, sold in pairs
Specifications
- Brand: 034Motorsport
- Product Type: Adjustable Front Sway Bar End Links
- Series: Dynamic+
- Material: CNC-machined 6061-T6 aluminium bodies, black anodised; zinc plated steel ball joints
- Adjustment Range: +/- 0.75 in (1.5 in total) or +/- 10 mm (20 mm total), as quoted in the listing
- Quantity: Pair
- Replaces OE Part: 4M0-411-317
- Part Number: 034-402-4033
Vehicle Compatibility: 24 applications across 2 makes. Select a make to view.
Audi (23)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A4 | B8/B8.5 | 2.0 TFSI, 3.2 FSI | 2009-2016 |
| A4 | B9/B9.5 | 2.0 TFSI | 2017-on |
| S4 | B8/B9 | ||
| A5 | B8/B8.5 | 2.0 TFSI, 3.2 FSI | 2008-2017 |
| A5 | B9/B9.5 | 2.0 TFSI | 2018-on |
| S5 | B8/B9 | ||
| RS5 | B8/B9 | ||
| A6 | C7/C7.5 | 2.0 TFSI, 3.0 TDI, 3.0 TFSI | 2012-2018 |
| A6 | C8 | 3.0 TFSI | 2019-on |
| S6 | C7/C8 | ||
| A7 | C7/C7.5 | 3.0 TDI, 3.0 TFSI | 2012-2018 |
| A7 | C8 | 3.0 TFSI | 2019-on |
| S7 | C7/C8 | ||
| A8 | D4 | 3.0 TDI, 3.0 TFSI, 4.0 TFSI, 4.2 FSI, 6.3 W12 FSI | 2011-2018 |
| S8 | D4 | ||
| allroad | B8/B8.5 | 2.0 TFSI | 2010-2016 |
| allroad | B9/B9.5 | 2.0 TFSI | 2017-on |
| Q5 | B8/B8.5 | 2.0 TFSI, 3.0 TDI, 3.0 TFSI, 3.2 FSI | 2009-2017 |
| Q5 | B9 | 2018-on | |
| SQ5 | B8/B9 | ||
| Q7 | 4L | ||
| Q7 | 4M/4M.5 | ||
| Q8 | 4M8 |
Porsche (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Macan | 95B |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
