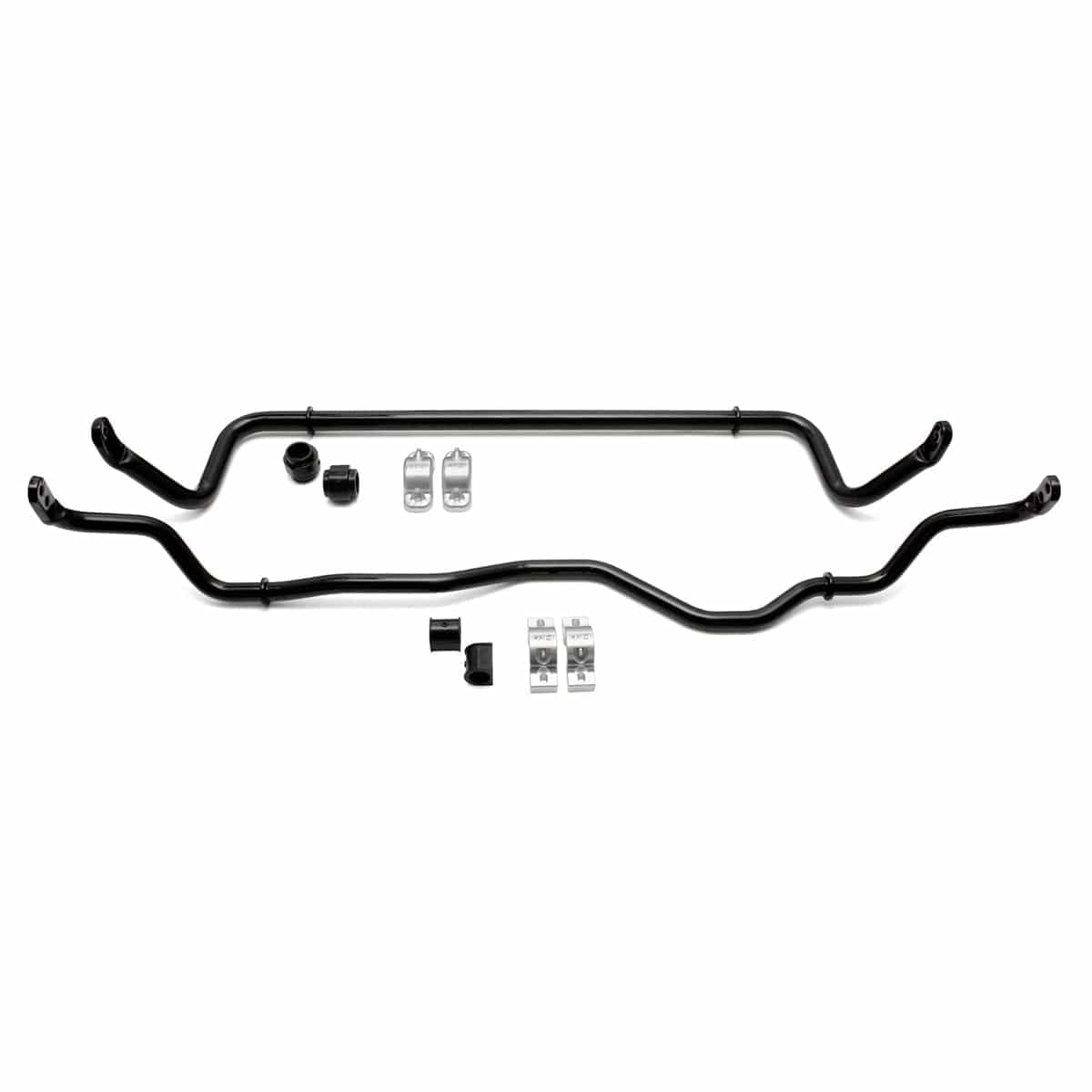

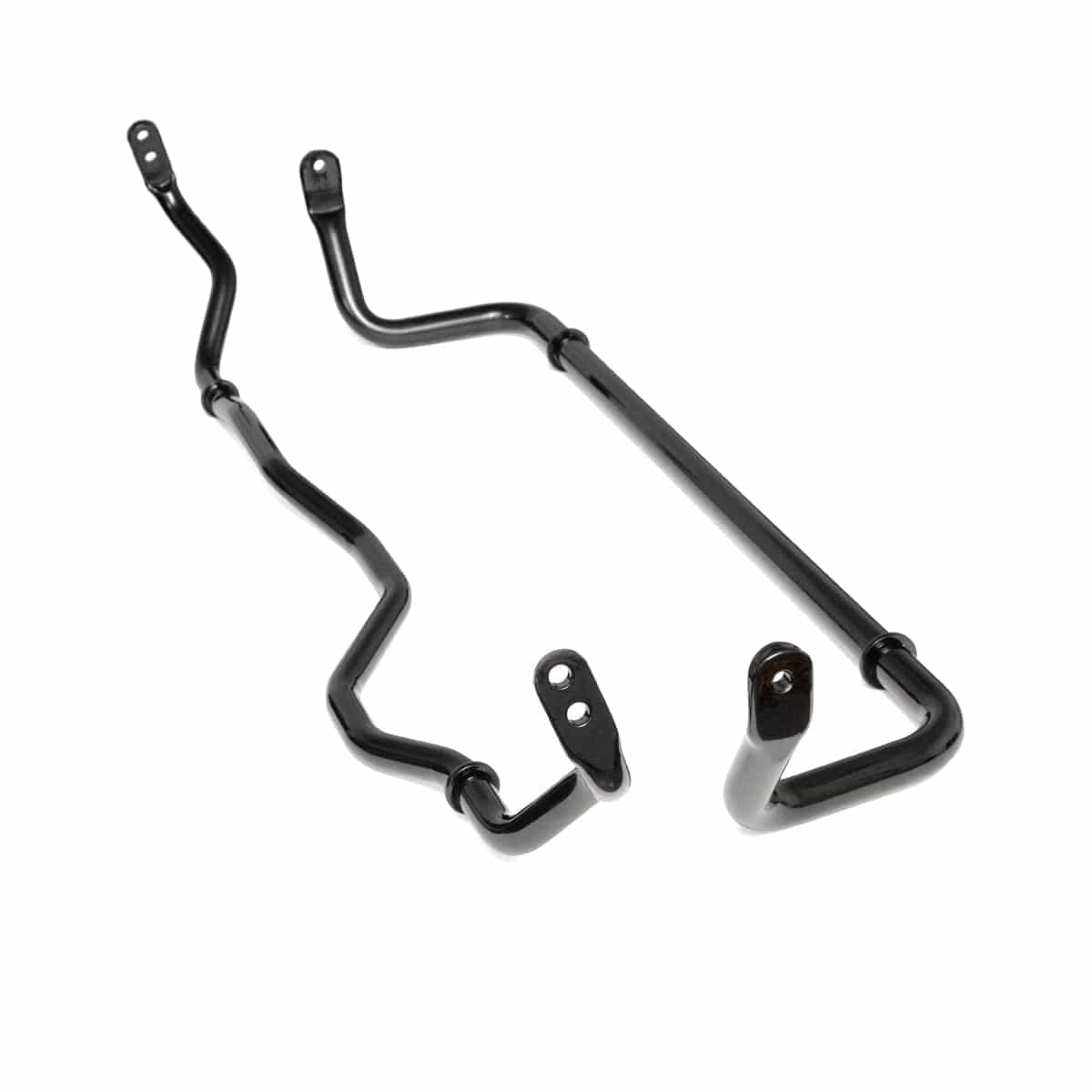

The Dynamic+ Sway Bar Kit pairs matched front and rear spring steel sway bars for the B9 and B9.5 Audi A4, S4, A5, S5, RS5 and A4 allroad. The hollow front bar is 28.6mm with thicker walls than the factory bar, while the solid one-piece rear bar is 23.8mm with two adjustment settings. 034Motorsport says the kit reduces body roll and sharpens steering feel more than a rear bar upgrade alone, and it was tested on the brand's own B9 A4 and S4 on street and track. The brand notes the ride is noticeably firmer than with its 22.2mm Dynamic+ rear bar, so the kit suits owners wanting a clear shift from comfort towards performance.
Features
- Matched front and rear sway bars in spring steel
- Front bar rate up 49.2% over the factory A4 bar, per 034Motorsport
- 2-way adjustable 23.8mm solid rear bar

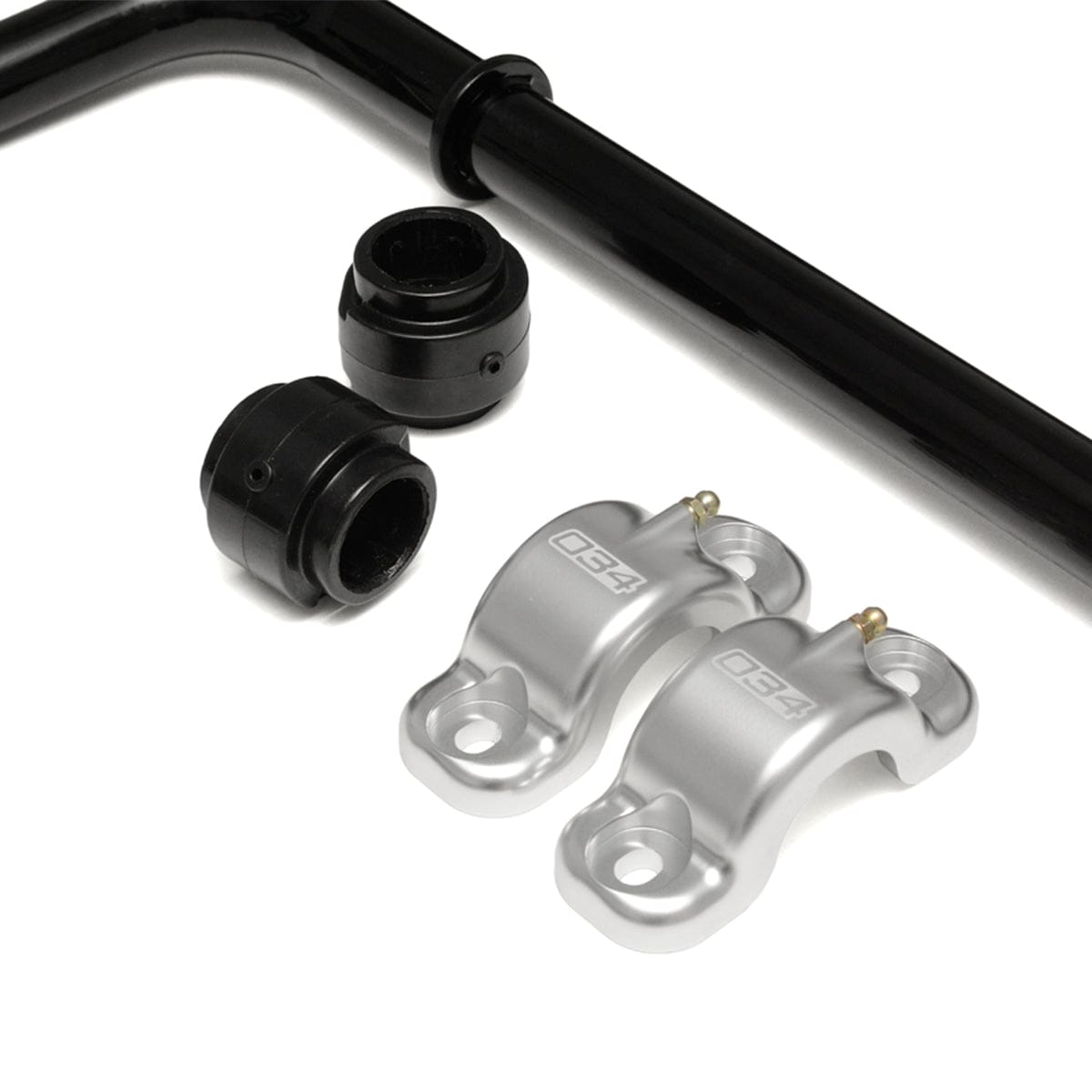

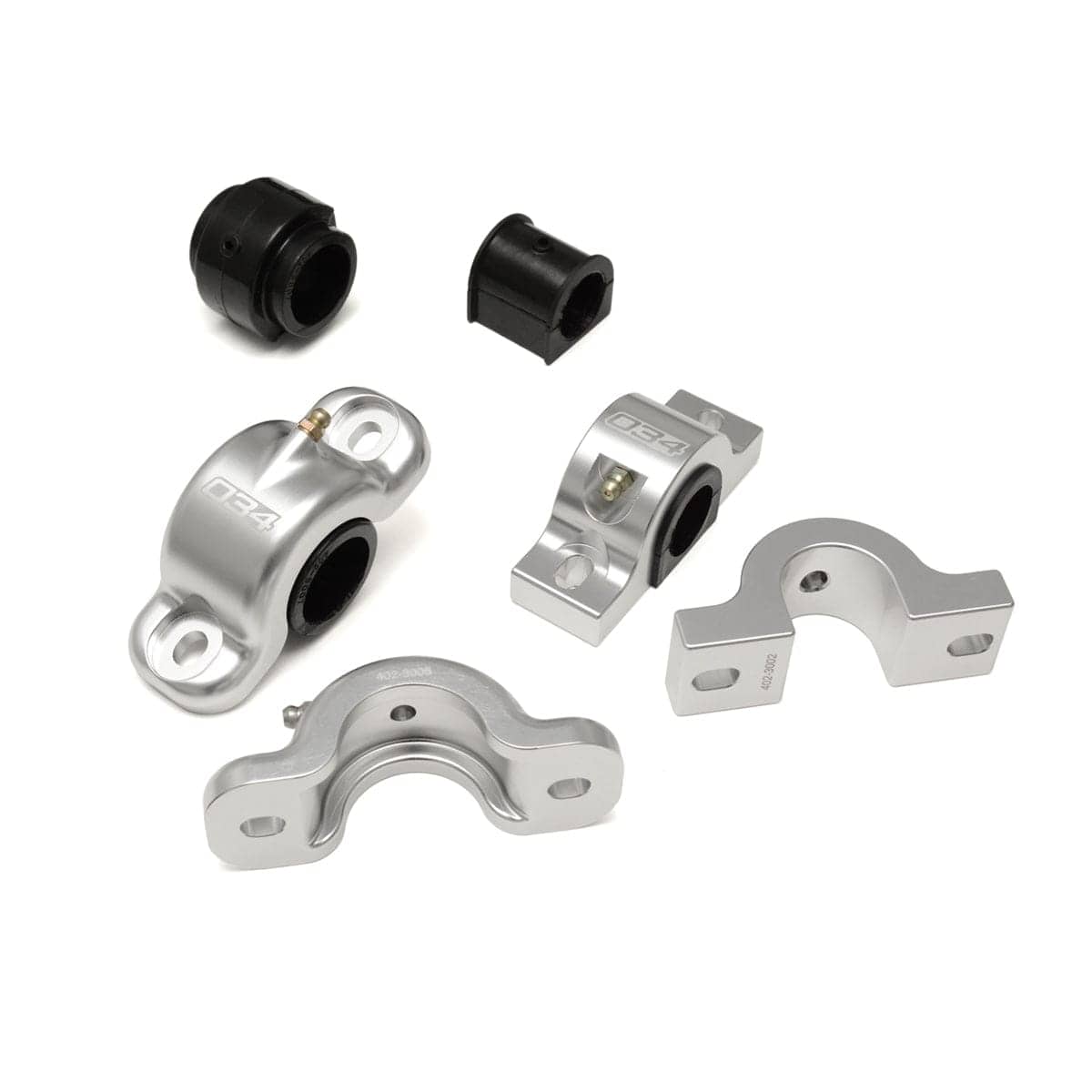

- Polyurethane bushings and billet aluminium brackets with zerk fittings

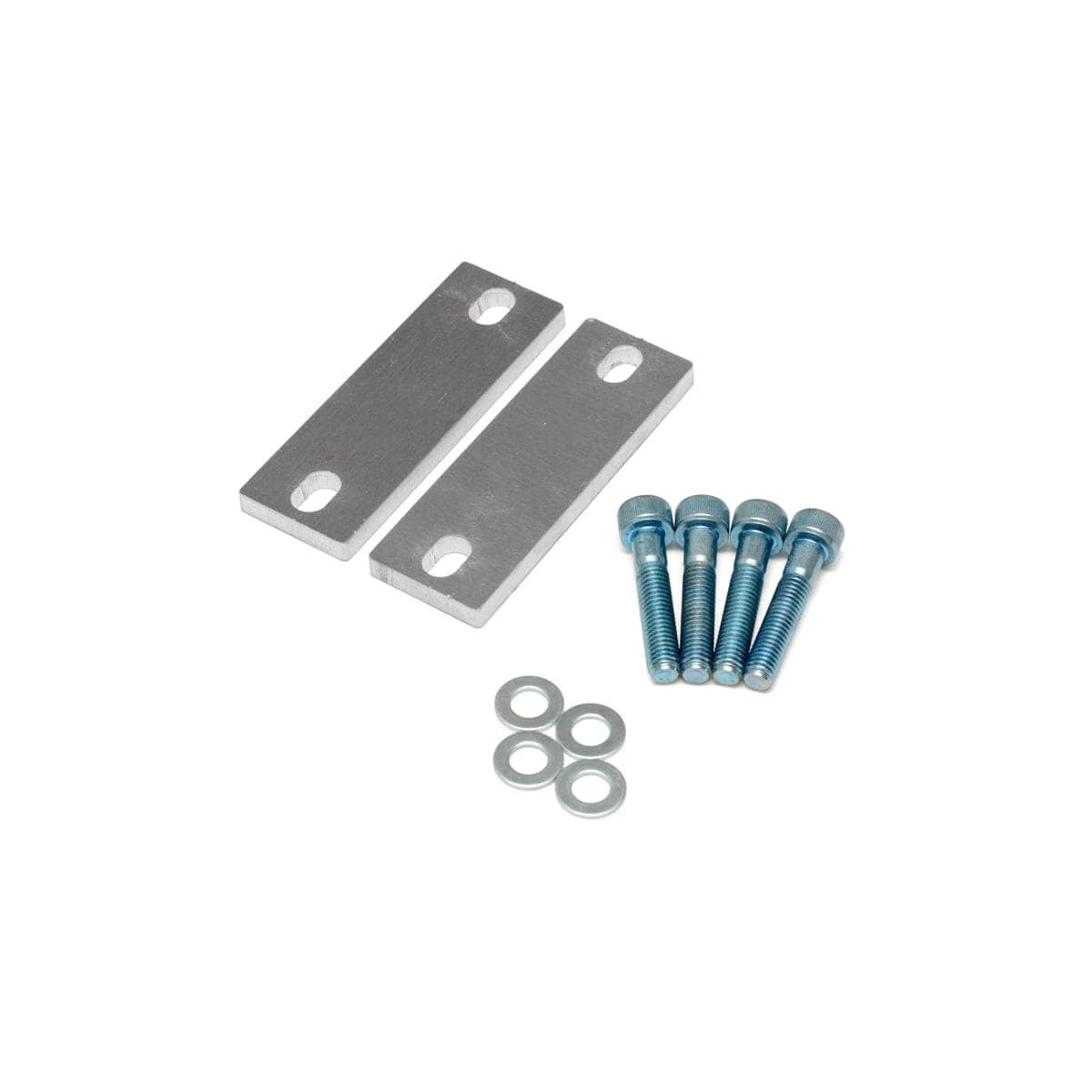

- Installation hardware included
- Best paired with spherical end links front and rear, per the brand
Specifications
- Brand: 034Motorsport
- Product Type: Sway Bar Kit
- Material: Spring steel
- Front Bar: 28.6mm hollow, 0.250 wall thickness
- Front Rate Increase: 49.2% over factory A4 28.19mm hollow bar
- Rear Bar: 23.8mm solid, one-piece, 2-way adjustable
- Rear Rate Increase: 259.3% (soft) or 305.8% (firm) over factory A4 Sport 18.5mm hollow bar
- Included: Front sway bar, adjustable rear sway bar, polyurethane bushings, billet aluminium brackets with zerk fittings, installation hardware
- Part Number: 034-402-1012
Vehicle Compatibility: 6 applications across 1 make. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A4 | B9/B9.5 | 2017-on | |
| S4 | B9/B9.5 | 2018-on | |
| A5 | B9/B9.5 | 2018-on | |
| S5 | B9/B9.5 | 2018-on | |
| RS5 | B9/B9.5 | 2018-on | |
| A4 allroad | B9/B9.5 | 2017-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
