034Motorsport Ethanol Content Gauge Kit - Audi 8V.5 RS3 and 8S TTRS - 034-605-1017

This plug-and-play kit from 034Motorsport shows the ethanol content of the fuel in the tank on the 8V.5 Audi RS3 and 8S TT RS with the 2.5 TFSI EVO (DAZA) engine. Because pump ethanol content can vary between stations and even at the same station over time, the gauge lets owners check each fill-up before driving hard. It is built around the Innovate 3904 MTX-D ethanol content and fuel temperature gauge and flex-fuel sensor, with OEM-style push-lock fuel fittings and harnesses sized to mount the gauge discreetly in the glove box, drawing power through an intercept on the air conditioning pressure sensor harness. Two bezels and two gauge faces give four looks, and a programming cable allows settings changes and firmware updates.

Features

• Shows ethanol content percentage and fuel temperature
• Innovate 3904 MTX-D gauge and flex-fuel sensor

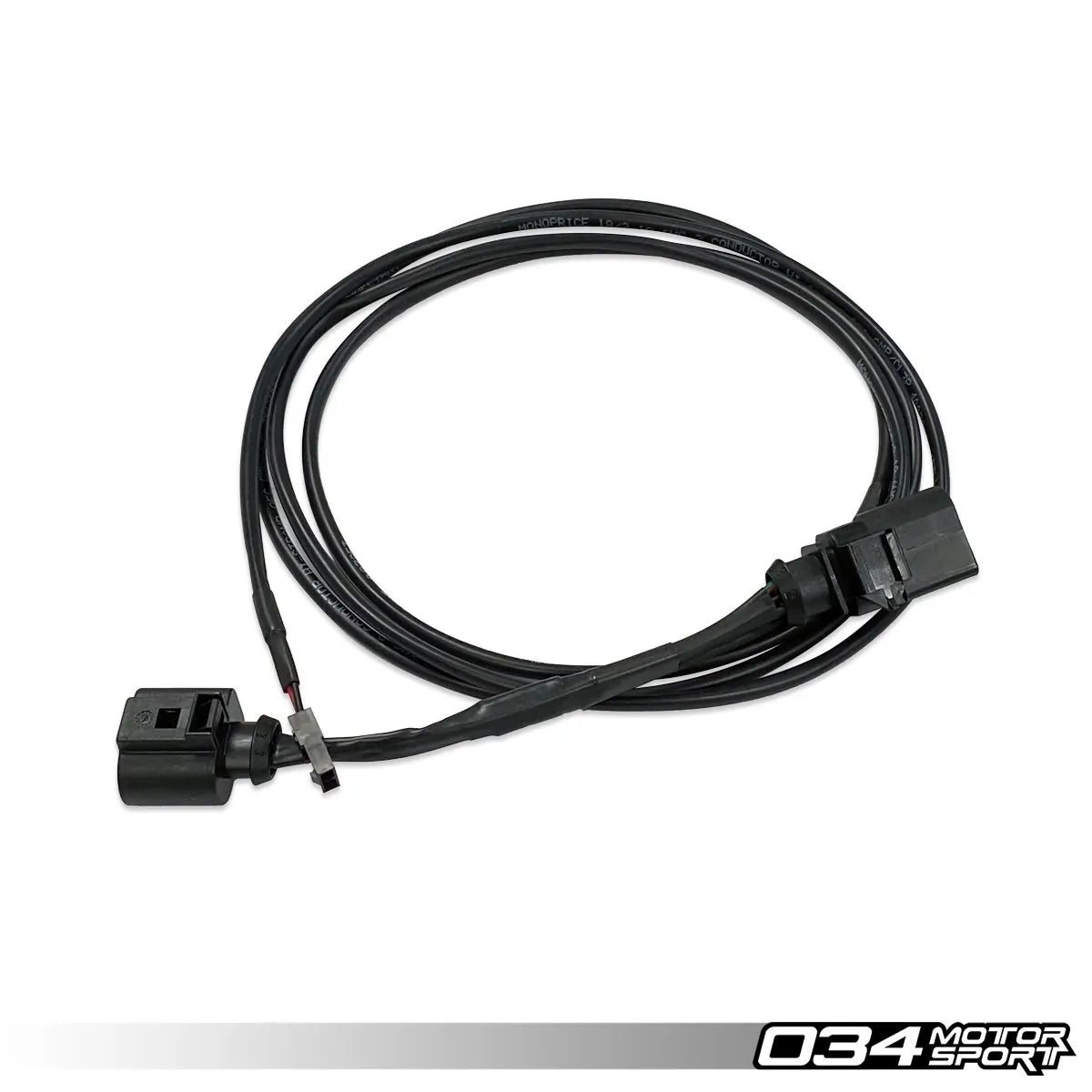

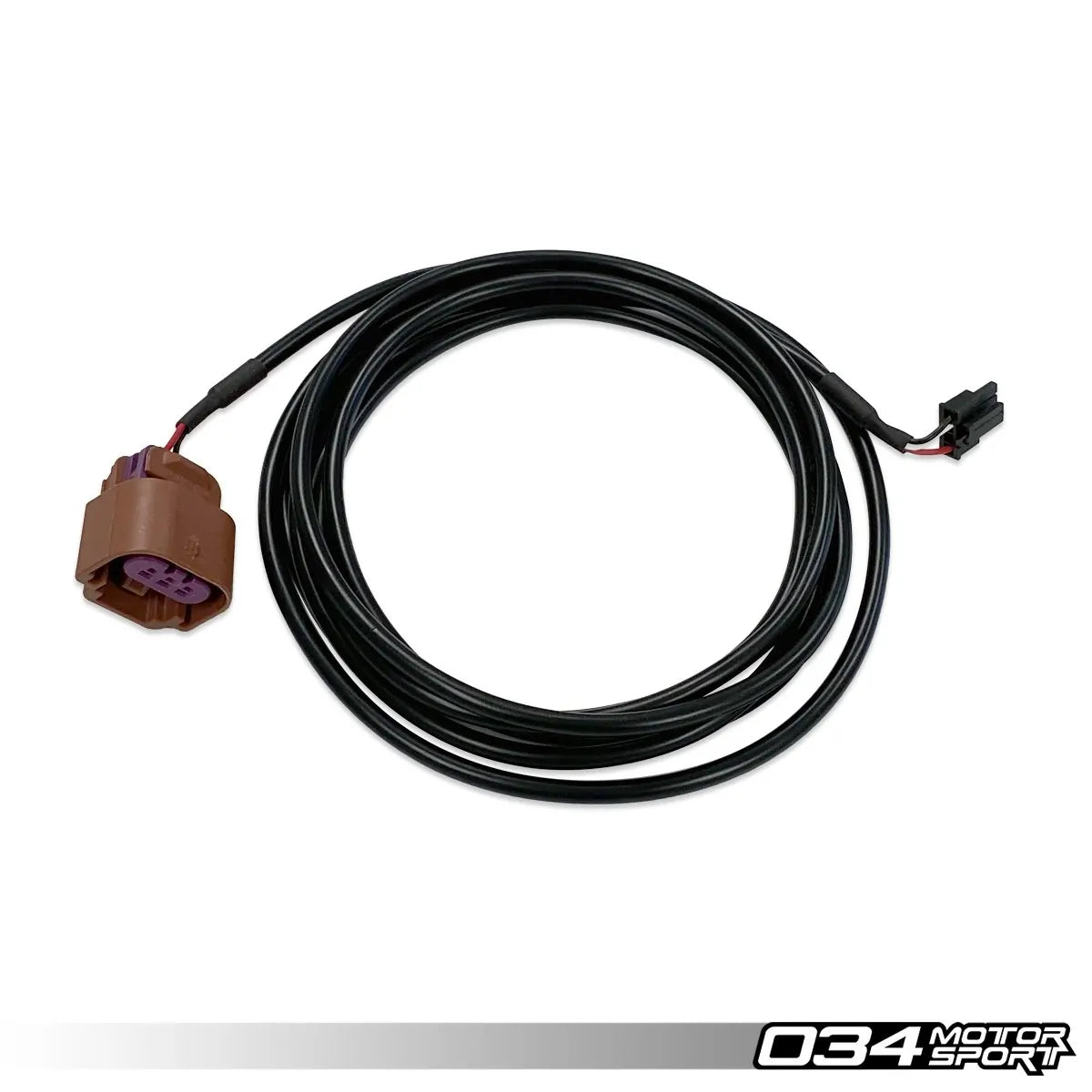

• Plug-and-play harnesses for power and sensor
• Gauge mounts discreetly in the glove box
• OEM-style push-lock fuel fittings

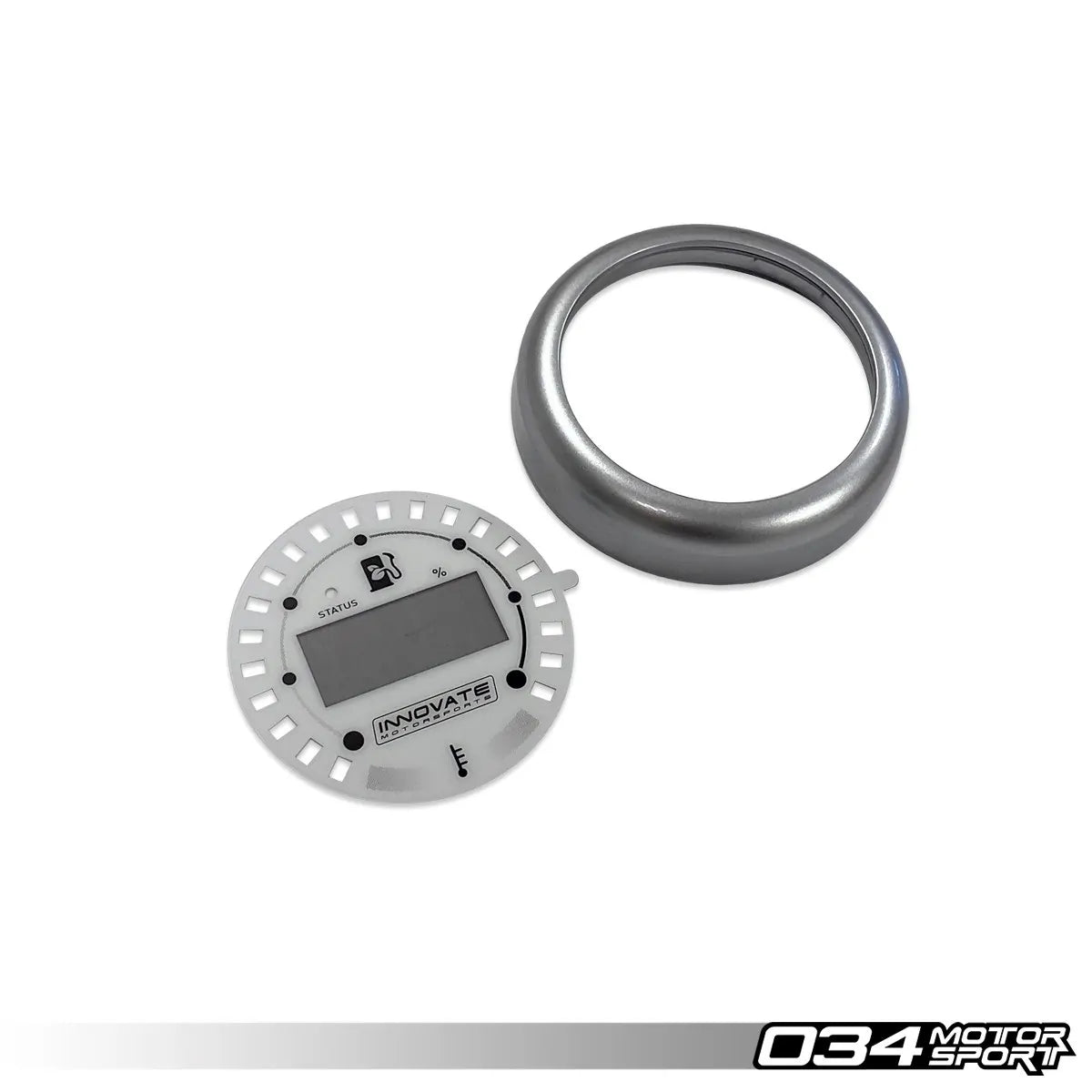

• Gloss black or silver bezel, black or white face
• Programming cable for settings and firmware updates

Specifications

• Brand: 034Motorsport
• Product Type: Ethanol Content Gauge Kit

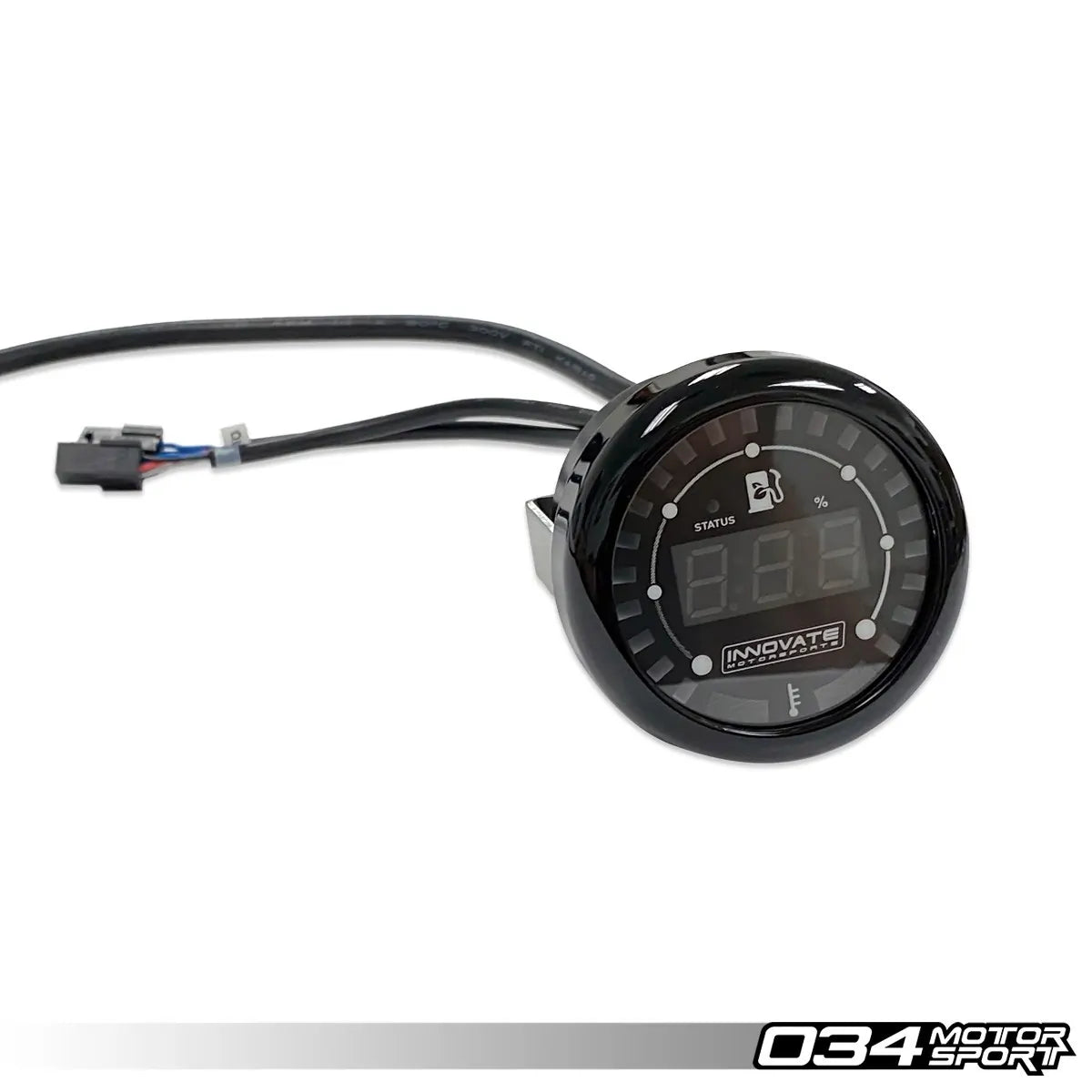

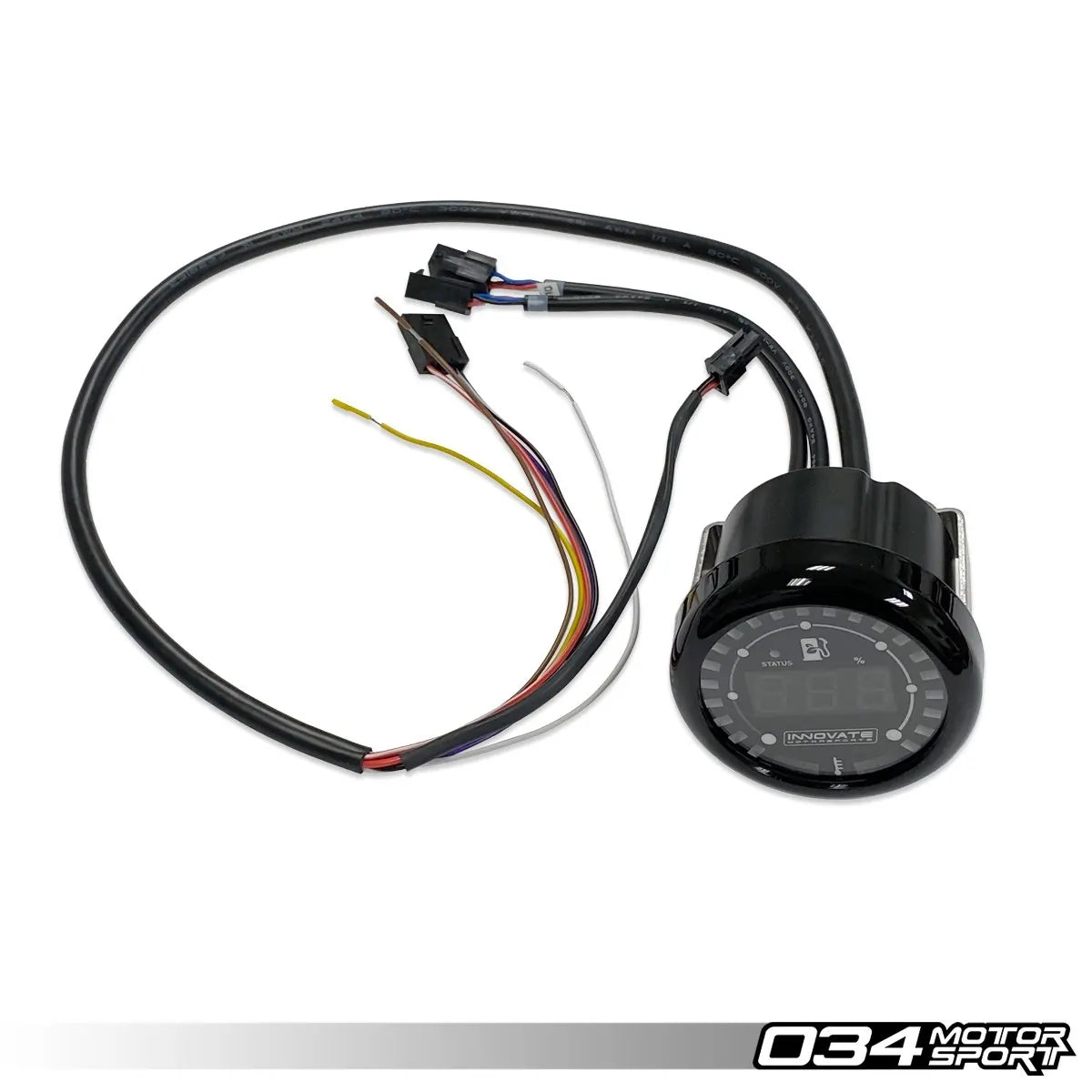

• Gauge: Innovate 3904 MTX-D ethanol content and fuel temperature gauge

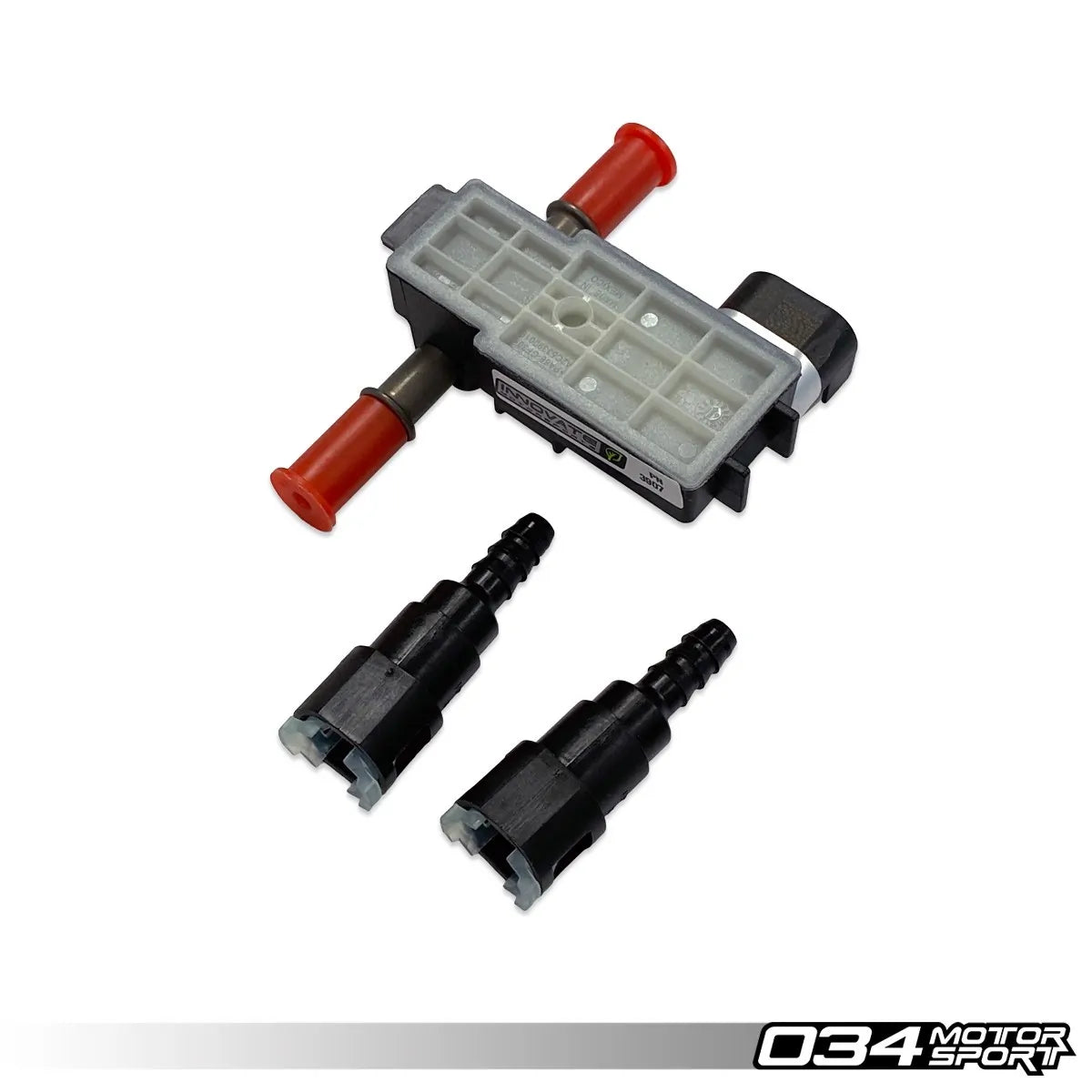

• Sensor: Innovate flex fuel sensor
• Mounting: Glove box

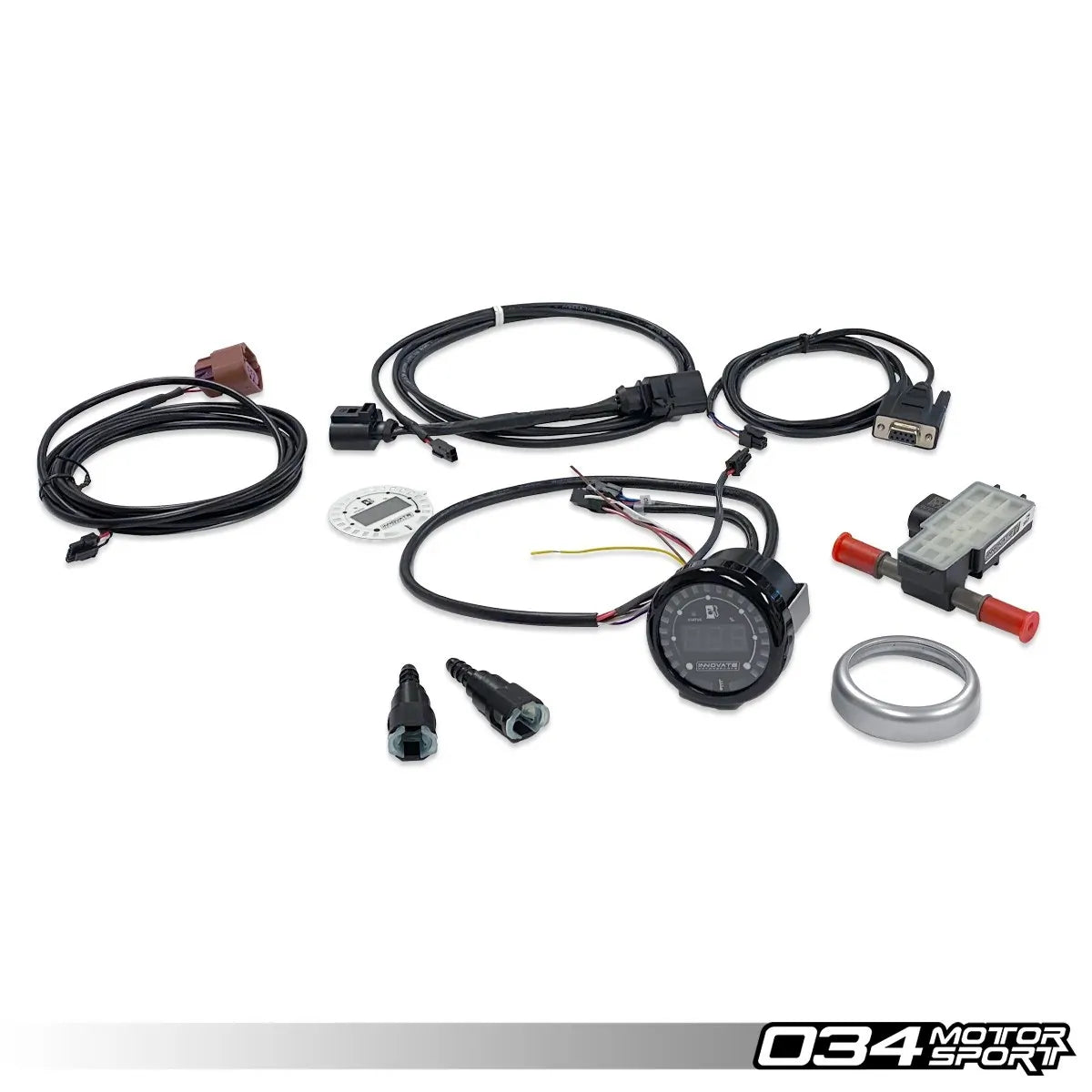

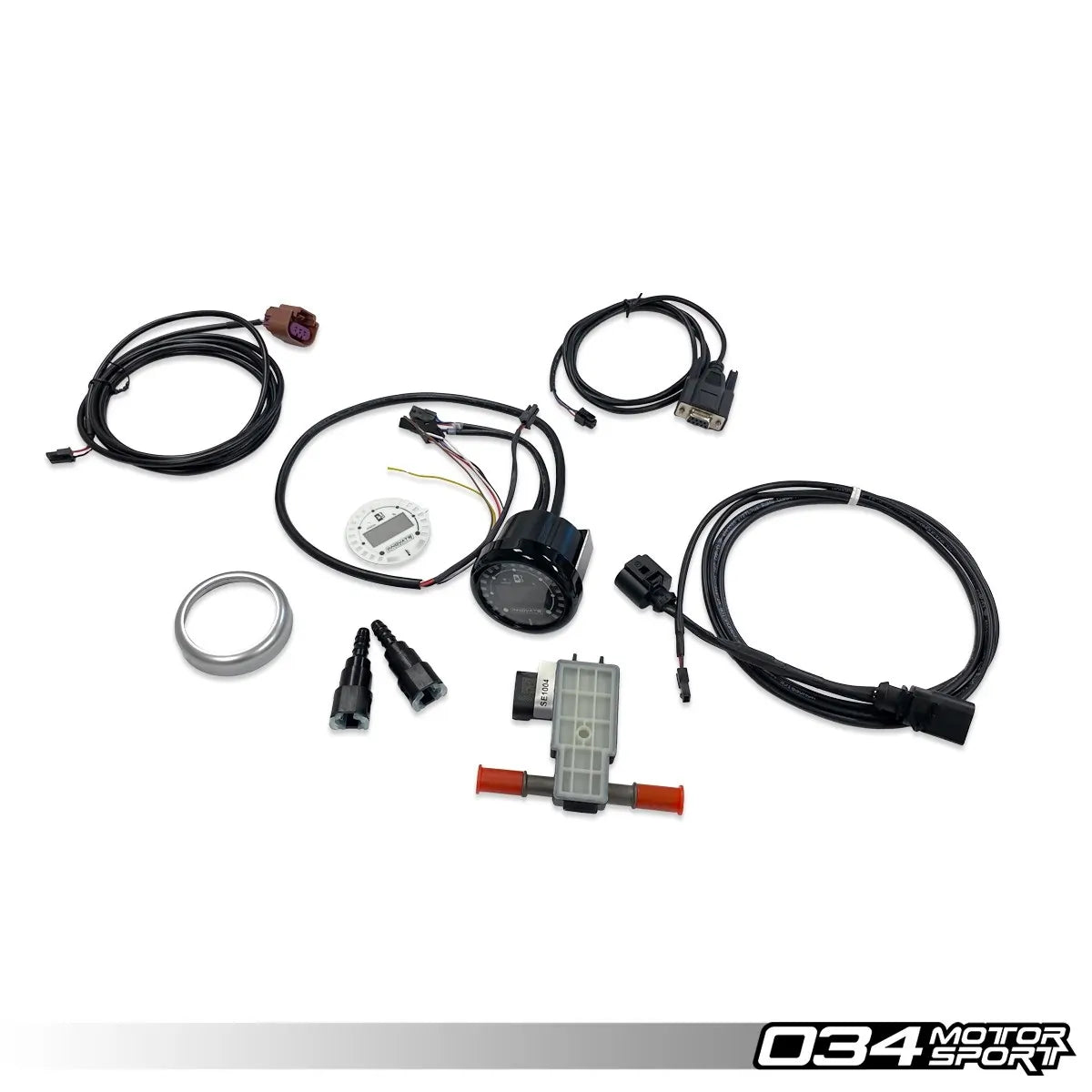

• Includes: Innovate MTX-D gauge with gloss black and silver bezels and black and white faces, Innovate flex fuel sensor, plug-and-play fuel sensor harness, plug-and-play gauge power harness, programming cable, 2 push-lock fuel line fittings
• Part Number: 034-605-1017

Vehicle Compatibility: 2 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
