034-101-Z003 Flange, Catch Can Drain Flange Adapter, 1.8T & 2.0T FSI
Order In
034Motorsport

034Motorsport Flange for Catch Can Oil Drain Flange Adapter, 1.8T & 2.0T FSI - 034-101-Z003

$74.99

Seen this item cheaper somewhere else? Send us the link and we'll do our best to match or beat the price. We'll reply by email.

Product details
  • Type Engine Components
  • Vendor 034Motorsport
  • SKU 034-101-Z003
  • Barcode A2-1-1
Description Reviews

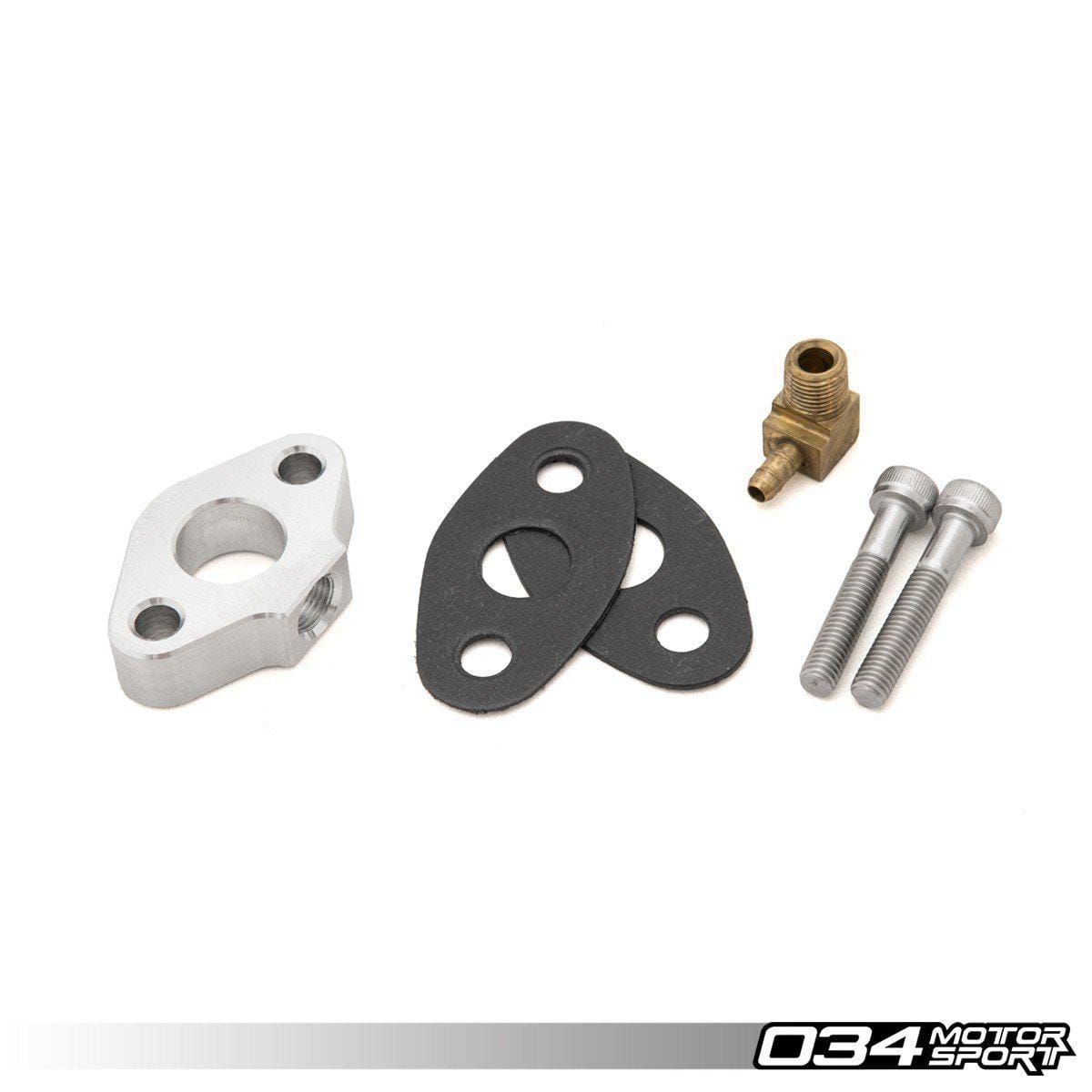

This oil drain adapter flange gives a clean way to return oil from a catch can to the oil pan on 1.8T and 2.0T FSI engines. It sandwiches between the oil pan and the oil drain line, creating a side port for a 1/8" NPT fitting. The full kit includes longer hardware, gaskets and a brass fitting with a 5mm (3/16") nipple. It suits all transverse and longitudinal 1.8T and 2.0T FSI engines, but not the later 2.0 TSI or 2.0 TFSI.

Features

  • Sandwich flange between the oil pan and oil drain line
  • Side port for a 1/8" NPT fitting
  • Brass fitting with 5mm (3/16") nipple included
  • Longer hardware and gaskets included
  • Suits transverse and longitudinal 1.8T and 2.0T FSI engines

Specifications

  • Brand: 034Motorsport
  • Product Type: Oil Drain Adapter Flange
  • Port: 1/8" NPT
  • Includes: Adapter flange, longer hardware, gaskets, brass fitting with 5mm (3/16") nipple
  • Engine: 1.8T and 2.0T FSI (transverse and longitudinal)
  • Not Compatible: Later 2.0 TSI and 2.0 TFSI engines
  • Part Number: 034-101-Z003

Vehicle Compatibility: 18 applications across 2 makes. Select a make to view.

Audi (9)
Model Variant Engine Years Notes
A3 8L 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
A3 8P 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
A4 B5 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
A4 B6 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
A4 B7 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
A6 C5 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
A6 C6 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
TT Mk1 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
TT Mk2 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Volkswagen (9)
Model Variant Engine Years Notes
Beetle 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Bora 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Eos 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Golf Mk4 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Golf Mk5 GTI 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Golf R Mk6 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Jetta Mk5 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Passat B5 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI
Passat B6 1.8T or 2.0T FSI Not later 2.0 TSI/2.0 TFSI

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
