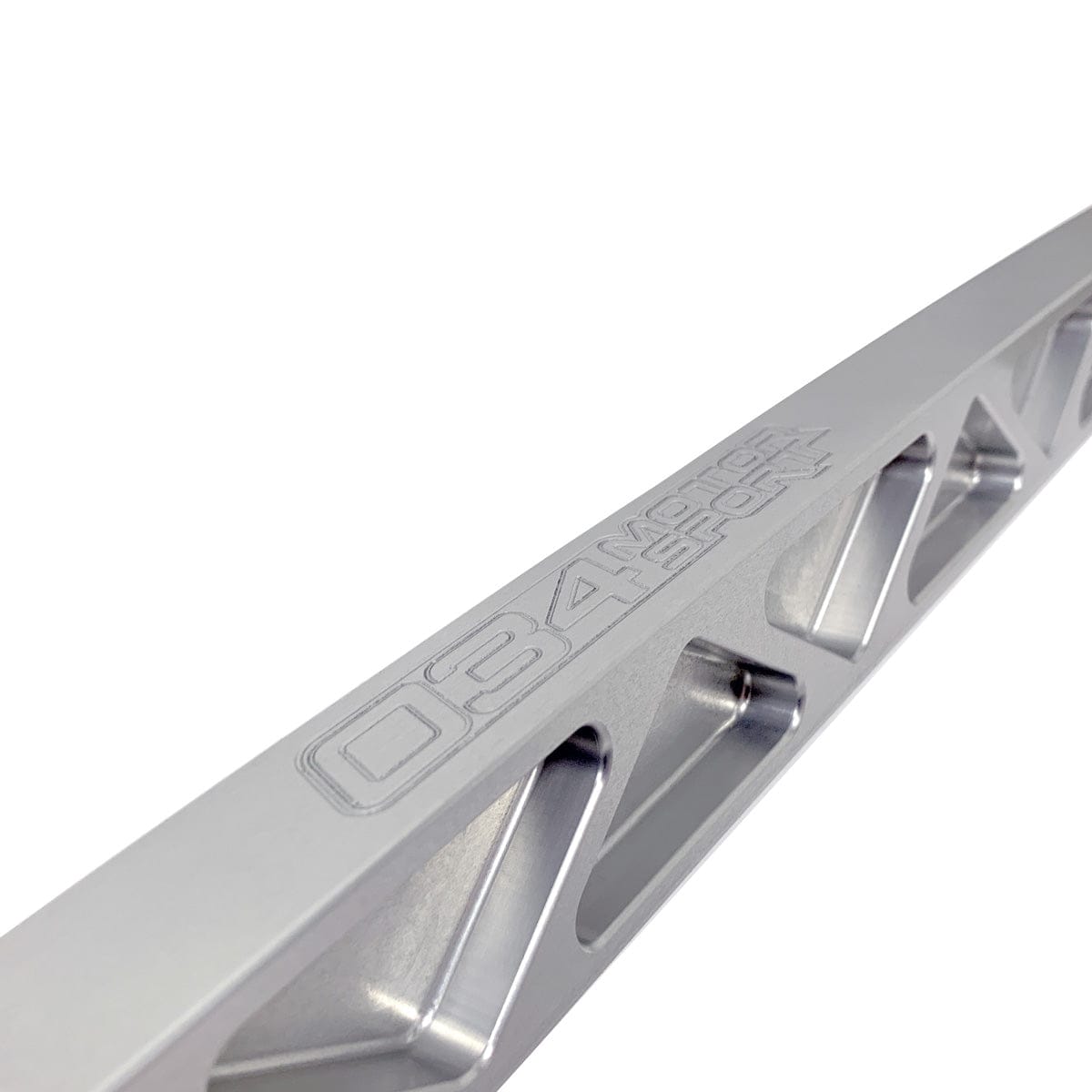

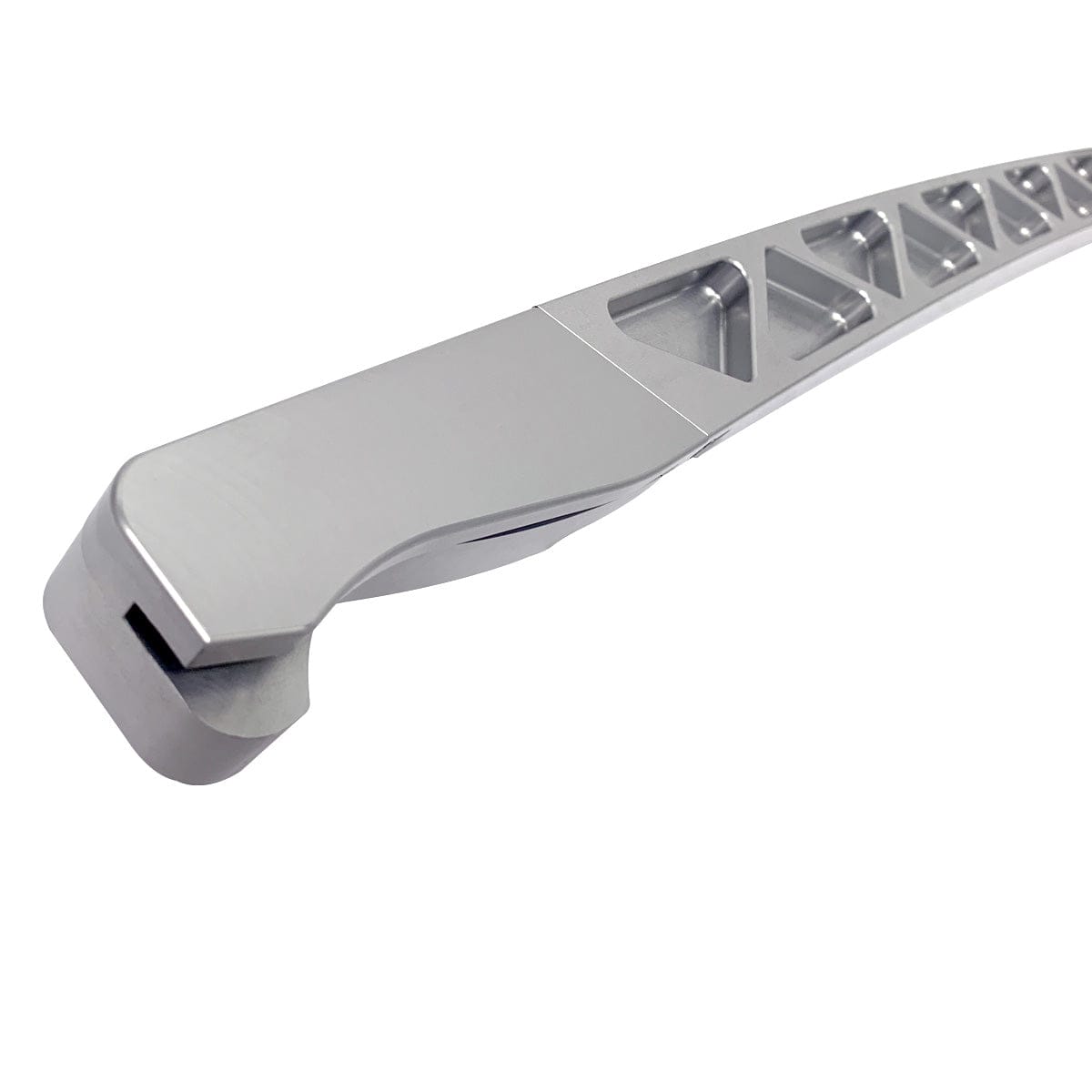

034Motorsport's billet aluminium front strut brace adds the strut tower bracing that B8 and B8.5 Audi A4, S4, A5, S5 and Allroad models lack from the factory. The brand explains that the factory support bar behind the firewall is not significantly structural, so the strut towers can deflect laterally under hard cornering, which shows up as imprecise steering and a vague front end. The truss-design brace is machined from 6061-T6 billet aluminium with a clear anodised finish and bolts to both strut towers and to the firewall in two places to hold suspension geometry under load. It was tested on 034Motorsport's B8 and B8.5 S4 development cars, and it does not fit the S5 4.2, RS4, RS5, Q5 or SQ5.
Features
- Lightweight, rigid truss design
- 6061-T6 billet aluminium, clear anodised
- Mounts to both strut towers and the firewall in two places
- Limits lateral strut tower deflection
- Sharper, more consistent steering feel
- Transfer punch and guides included for installation
Specifications
- Brand: 034Motorsport
- Product Type: Front Strut Brace
- Material: 6061-T6 billet aluminium
- Finish: Clear anodised
- Mounting: Both strut towers plus two firewall points

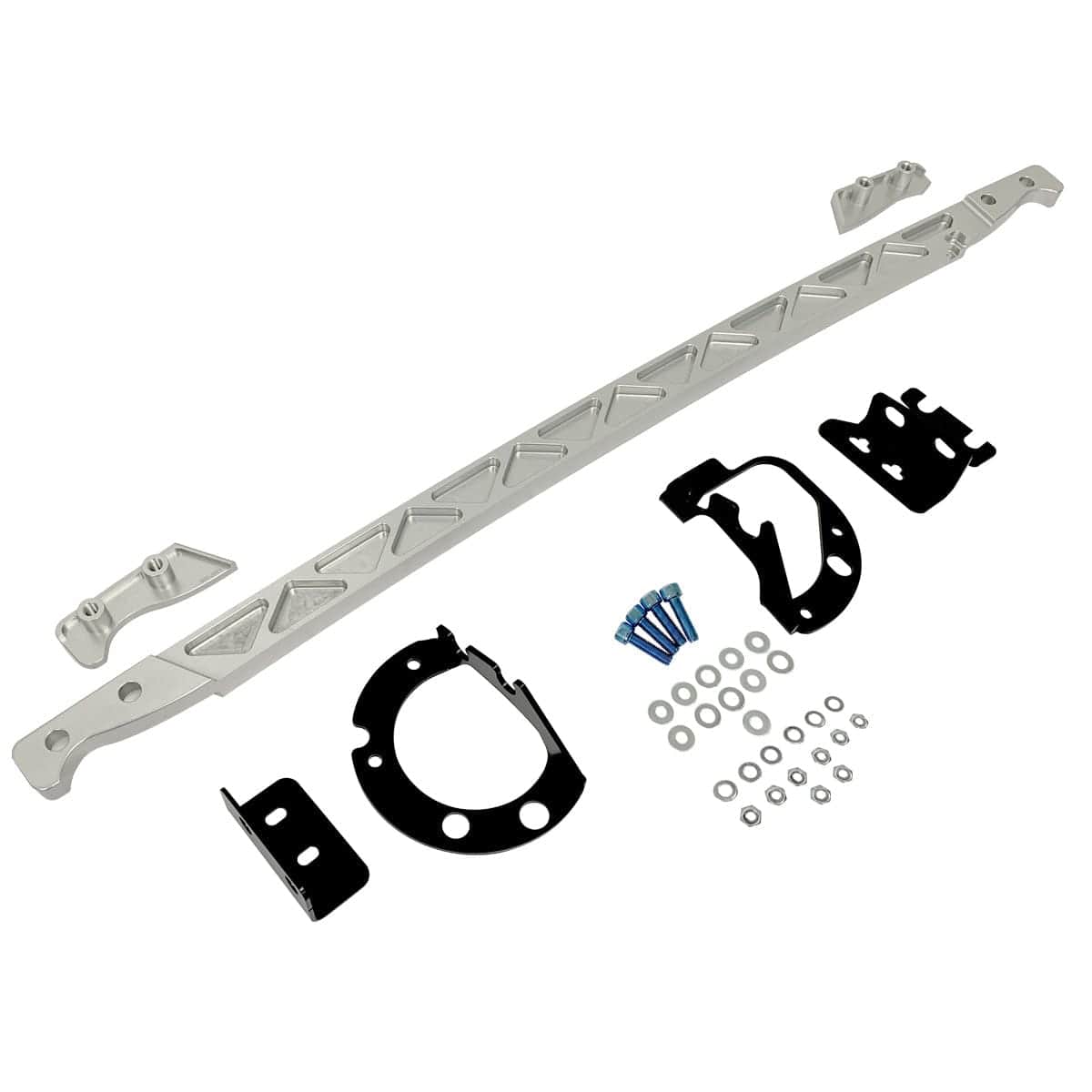

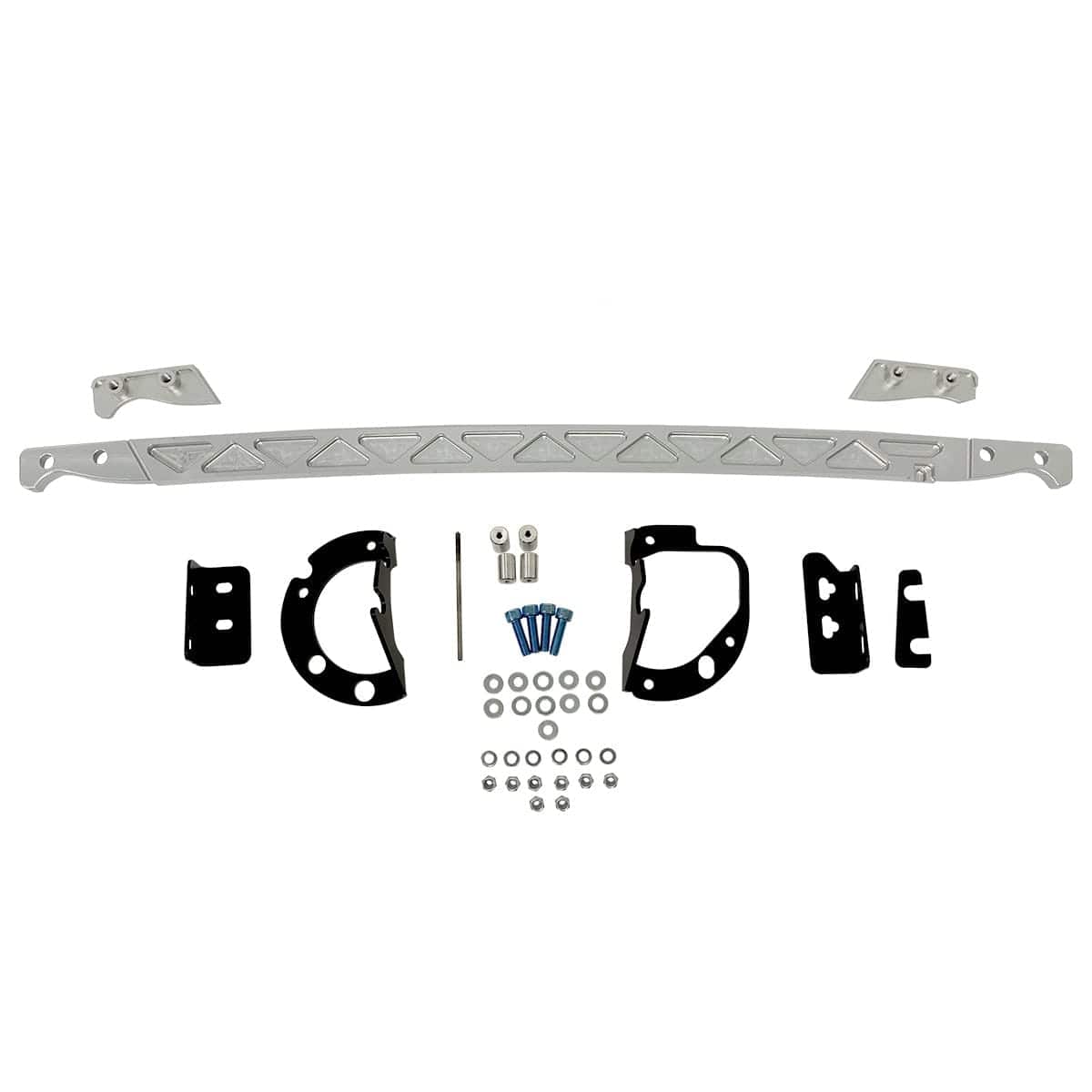

- Includes: Strut brace, strut tower brackets, strut bar brackets, transfer punch, transfer punch guides (4), mounting hardware
- Not Compatible With: B8/B8.5 S5 4.2, RS4, RS5, Q5, SQ5
- Part Number: 034-603-0010
Vehicle Compatibility: 7 applications across 1 make. Select a make to view.
Audi (7)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A4 | B8/B8.5 | 2.0 TFSI | 2009-2016 | |
| A4 | B8/B8.5 | 3.2L FSI | 2009-2016 | |
| A5 | B8/B8.5 | 2.0 TFSI | 2008-2017 | |
| A5 | B8/B8.5 | 3.2L FSI | 2008-2017 | |
| A4 Allroad | B8/B8.5 | 2.0 TFSI | 2010-2016 | |
| S4 | B8/B8.5 | 3.0 TFSI | 2010-2017 | |
| S5 | B8.5 | 3.0 TFSI | 2008-2017 | Not S5 4.2 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
