034Motorsport Fuel Rail, Audi/Volkswagen 1.8T, Billet Aluminum - 034-106-7008

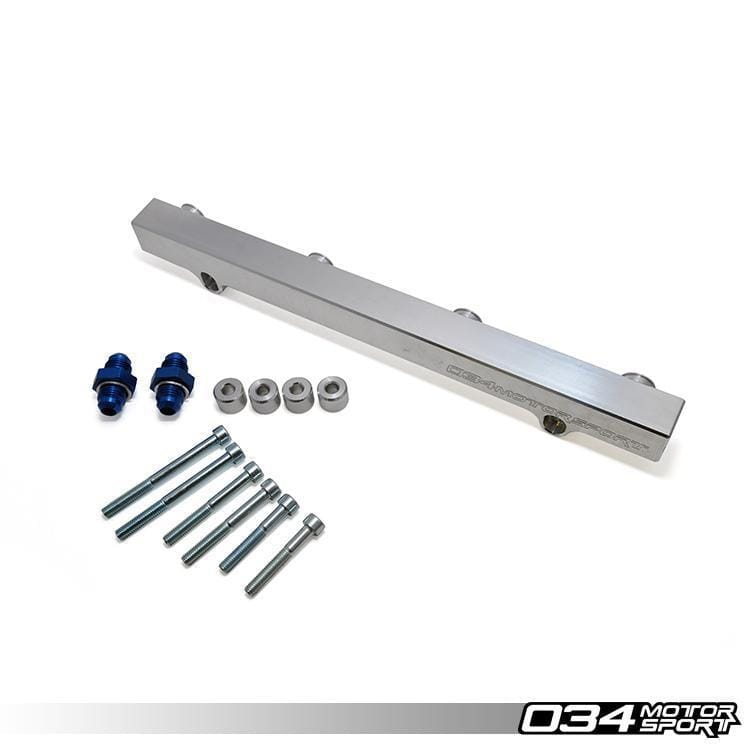

This high-capacity fuel rail is CNC machined in-house by 034Motorsport from billet aluminium for Audi and Volkswagen 1.8T engines. It includes -6 AN fittings and mounting hardware, and it keeps the factory injector clips so the injectors stay securely sealed. The supplied brackets accommodate stock height or standard height injectors on both small port and large port manifolds, with spacers used to suit each combination. The stock fuel pressure regulator can be retained by using the 034Motorsport FPR Housing Adapter, which is sold separately.
Features
- CNC machined 6061 billet aluminium
- Includes -6 AN fittings and mounting hardware
- Keeps factory injector clips for a secure seal
- Suits small port and large port manifolds
- Accommodates 48.8mm and 60.3mm injectors with spacers
- Stock regulator usable with the FPR Housing Adapter
Specifications
- Brand: 034Motorsport
- Product Type: Fuel Rail
- Material: CNC machined 6061 billet aluminium
- Fittings: -6 AN, included
- Includes: Mounting hardware
- Regulator: Compatible with the stock fuel pressure regulator using the 034Motorsport FPR Housing Adapter (sold separately)
- Spacers Required: Small port with 48.8mm injectors: 1; small port with 60.3mm injectors: 2; large port with 48.8mm injectors: none; large port with 60.3mm injectors: 1
- Part Number: 034-106-7008
Vehicle Compatibility: 9 applications across 2 makes. Select a make to view.
Audi (5)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8L | 1.8T | |
| A4 | B5 | 1.8T | |
| A4 | B6 | 1.8T | |
| A6 | C5 | 1.8T | |
| TT | Mk1 | 1.8T |
Volkswagen (4)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Beetle | 1.8T | ||
| Bora | 1.8T | ||
| Golf | Mk4 | 1.8T | |
| Passat | B5 | 1.8T |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
