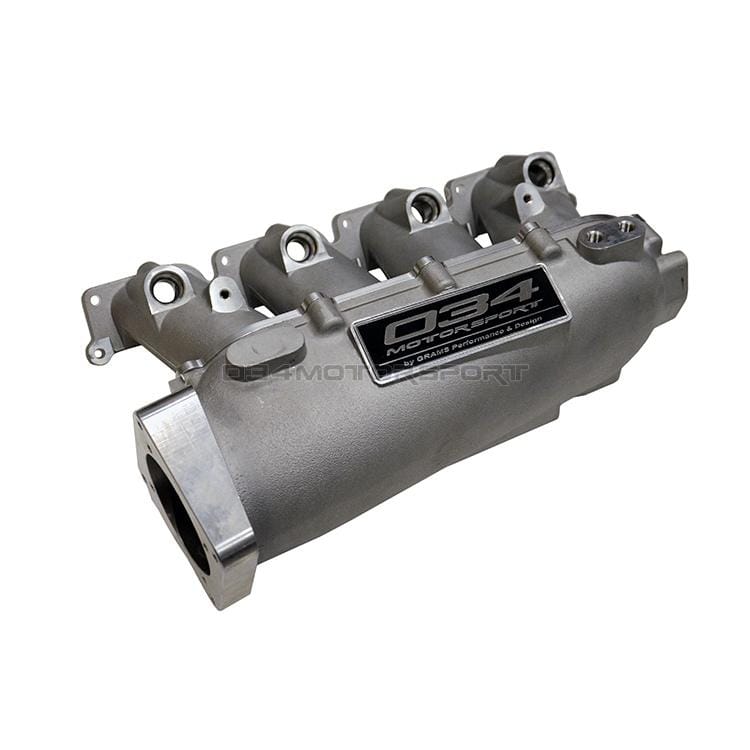

034Motorsport High Flow Intake Manifold, Transverse 1.8T, Large Port - 034-108-7000

This transverse 1.8T high flow intake manifold is a direct bolt-in replacement for the stock manifold on the 8L Audi A3 and S3, the 8N Audi TT and the Mk4 Volkswagen Golf, GTI, GLI, Jetta and New Beetle. Its modular design has a rotatable plenum that allows driver side or passenger side throttle body locations, and the 1.85L plenum is fed by tapered runners with large low-profile airhorns. 034Motorsport, which developed it with GRAMS Performance, says it suits high-horsepower big turbo builds and also improves low-end and midrange power on stock turbos. It is low-pressure die cast from A356, with provisions for stock or 80mm throttle bodies, and this listing is the large port version.

Features

• Direct bolt-in replacement for the stock manifold
• Rotatable plenum for driver or passenger side throttle body
• 1.85L plenum with high flow tapered runners
• Low-pressure die cast A356 construction
• Stealth mounting bosses for nitrous or methanol injection
• Provisions for stock or 80mm throttle bodies
• Complete vacuum provisions, no extra vacuum manifold needed

Specifications

• Brand: 034Motorsport
• Product Type: Intake Manifold
• Port Size: Large port (a small port version is also offered)
• Material: A356, low-pressure die cast
• Plenum: 1.85L, rotatable
• Throttle Body: Provisions for stock or 80mm throttle bodies
• Runner Flow: Runners 1 to 4: 290.42, 289.22, 288.90 and 289.17 CFM
• Includes: Intake manifold, vacuum port fittings and plugs, copper sealing washers, plenum-to-runner gasket and hardware
• Torque: Plenum-to-runner bolts 7Nm (62in lbs)
• Part Number: 034-108-7000

Vehicle Compatibility: 6 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
