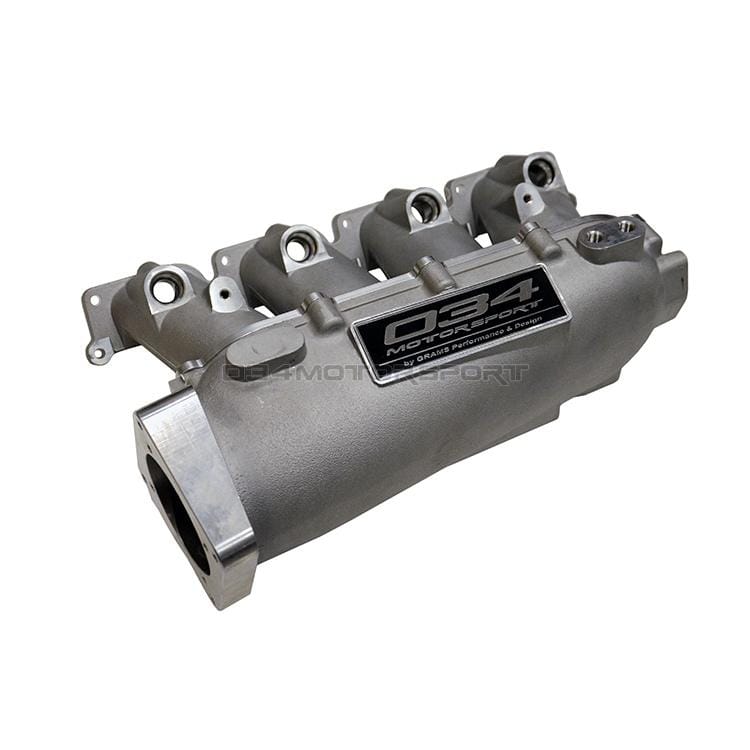

034Motorsport High Flow Intake Manifold, Transverse 1.8T, Small Port Audi 8L/8N & Volkswagen MK4 - 034-108-7001

This transverse 1.8T high flow intake manifold is a direct bolt-in replacement for the stock manifold on the Audi 8L A3 and S3, the Audi 8N TT and the Volkswagen Mk4 Golf, GTI, GLI, Jetta and New Beetle. It has a 1.85L plenum with tapered high flow, high velocity runners and large low-profile airhorns, and 034Motorsport says it suits high-horsepower big turbo builds while also improving low-end and midrange power on stock turbo setups. The modular design has a rotatable plenum that places the throttle body on the driver side or passenger side, with provisions for stock or 80mm throttle bodies. This is the small port version, which the brand says is the same manifold as the large port version and can be bored out for large port applications.

Features

• Direct bolt-in replacement for the stock intake manifold
• Rotatable plenum for driver side or passenger side throttle body
• 1.85L plenum with tapered high flow, high velocity runners
• Manufactured from A356 using low-pressure die casting
• Provisions for stock or 80mm throttle bodies
• Stealth mounting bosses for nitrous or methanol injection
• Vacuum provisions included, no extra vacuum manifold needed

Specifications

• Brand: 034Motorsport
• Product Type: Intake Manifold
• Configuration: Transverse 1.8T, small port
• Plenum Volume: 1.85L
• Material and Process: A356, low-pressure die cast
• Throttle Body: Rotatable plenum for driver side or passenger side; provisions for stock or 80mm throttle bodies
• Runner Flow Balance: Runner 1 290.42 CFM, Runner 2 289.22 CFM, Runner 3 288.90 CFM, Runner 4 289.17 CFM
• Includes: Intake manifold, vacuum port fittings, vacuum port plugs, copper sealing washers, plenum-to-runner gasket, plenum-to-runner hardware
• Plenum-to-Runner Bolt Torque: 7nm or 62in lbs
• Part Number: 034-108-7001

Vehicle Compatibility: 8 applications across 2 makes. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
