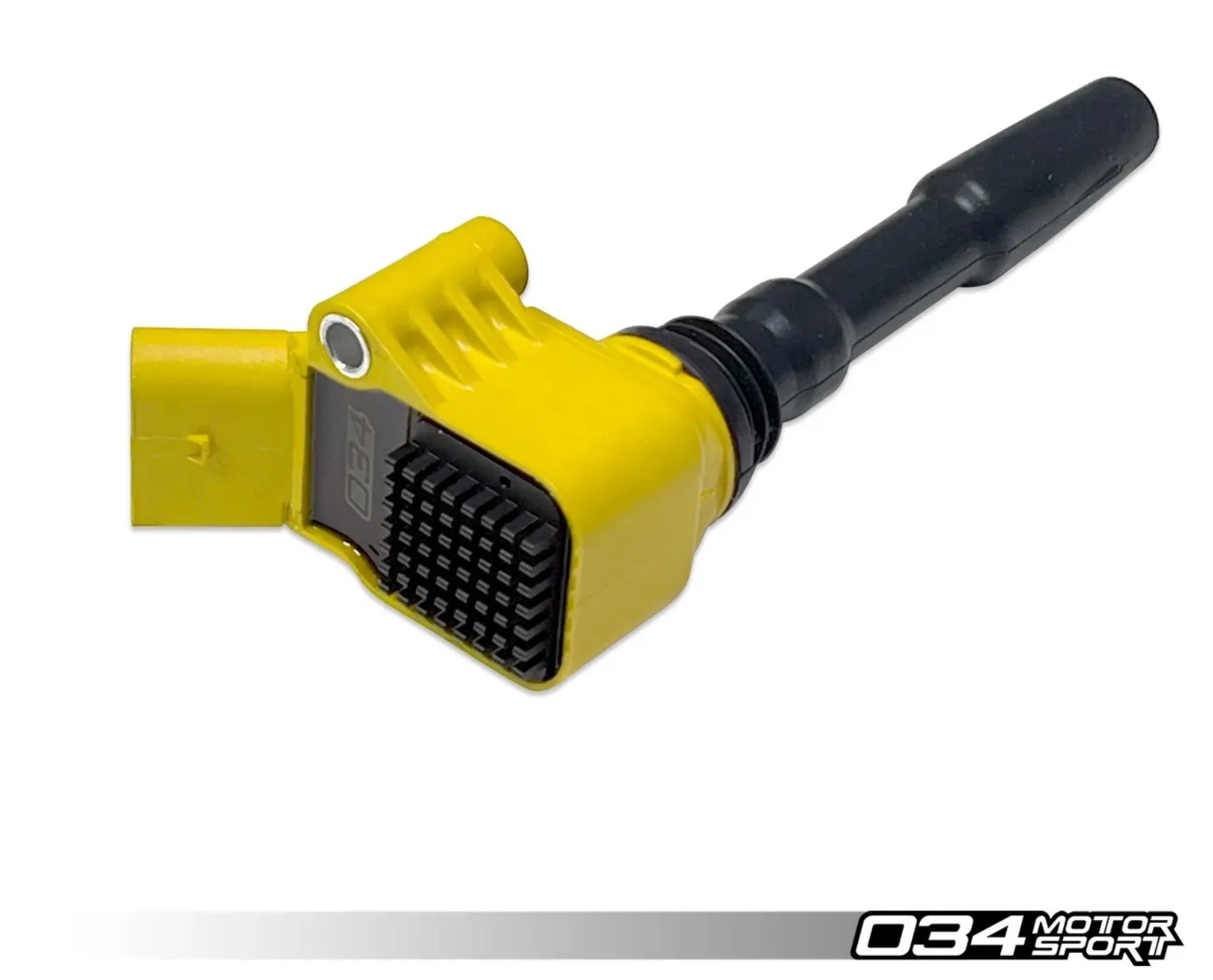

034Motorsport's High Output Ignition Coils are a direct plug-and-play replacement for the factory coils on a wide range of Audi and Volkswagen EA8XX-family engines, including the 1.8T and 2.0T four-cylinders, the 2.5 TFSI five-cylinder and the 2.9, 3.0 and 4.0 TFSI engines. 034Motorsport quotes a 10 percent increase in energy output over the stock coils, and an integrated CNC-machined heat sink draws excess heat away from each coil. This version has a yellow housing with the 034 logo. On EA839 V6 engines the factory wiring harness sits on top of the coils and restricts airflow, so 034Motorsport supplies billet aluminium harness spacers with its pack of six, which it says are required for all EA839 V6 applications.
Features
- 10 percent more energy output than stock, per 034Motorsport
- CNC-machined heat sink for better heat dissipation
- Yellow housing with 034 logo
- Direct plug-and-play replacement
- Harness spacers supplied with the pack of six for V6 engines
Specifications
- Brand: 034Motorsport
- Product Type: Ignition Coil
- Output: 10% more energy than stock (034Motorsport figure)
- Cooling: Integrated CNC-machined heat sink
- Colour: Yellow
- OE Interchange: 06J905110D, 06J905110E, 06K905110D, 06J905110F, 06J905110G, 06H905110G, 06J905110K, 06H905110H, 06H905110L, 06H905110P, 06J905110N
- V6 Note: Billet aluminium harness spacers included with the pack of six; required for EA839 V6 engines
- Part Number: 034-107-2012-YEL
Vehicle Compatibility: 39 applications across 2 makes. Select a make to view.
Audi (27)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A3 | 8V | 1.8 TFSI | 2015-2016 | |
| A3 | 8V/8V.5 | 2.0 TFSI | 2015-2020 | |
| A3 | 8Y | 2.0 TFSI | 2022-on | |
| S3 | 8V/8V.5 | 2.0 TFSI | 2015-2020 | |
| S3 | 8Y | 2.0 TFSI | 2022-on | |
| RS3 | 8V | 2.5 TFSI | 2015-2017 | |
| RS3 | 8V.5 | 2.5 TFSI EVO | 2017-on | |
| RS3 | 8Y | 2.5 TFSI EVO | 2022-on | |
| TT | 8S | 2.0T Gen 3 | 2016-2020 | |
| TTS | 8S | 2.0T Gen 3 | 2016-2020 | |
| TT RS | 8S | 2.5 TFSI EVO | 2018-2020 | |
| A4 | B9/B9.5 | 2.0 TFSI | 2017-on | |
| A4 Allroad | B9/B9.5 | 2.0 TFSI | 2017-on | |
| A5 | B9/B9.5 | 2.0 TFSI | 2018-on | |
| Q5 | B9/B9.5 | 2.0 TFSI | 2018-on | |
| S4 | B9 | 3.0 TFSI | 2018-on | Pack of six with harness spacers required |
| S5 | B9/B9.5 | 3.0 TFSI | 2018-on | Pack of six with harness spacers required |
| SQ5 | B9/B9.5 | 3.0 TFSI | 2018-on | Pack of six with harness spacers required |
| RS5 | B9/B9.5 | 2.9 TFSI | 2018-on | Pack of six with harness spacers required |
| A6 | C8 | 3.0 TFSI | 2019-on | |
| A7 | C8 | 3.0 TFSI | 2019-on | |
| S6 | C8 | 2.9 TFSI | 2019-on | |
| S7 | C8 | 2.9 TFSI | 2019-on | |
| RS6 | C8 | 4.0 TFSI | 2020-on | |
| RS7 | C8 | 4.0 TFSI | 2019-on | |
| Q7 | 4M/4M.5 | 3.0 TFSI | 2015-on | |
| SQ8 | 4M8 | 3.0 TFSI | 2019-on |
Volkswagen (12)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Golf | Mk7/Mk7.5 | 1.8T Gen3 | 2015-2020 |
| Golf SportWagen | Mk7/Mk7.5 | 1.8T Gen3 | 2015-2020 |
| Golf Alltrack | Mk7/Mk7.5 | 1.8T Gen3 | 2015-2020 |
| Golf | Mk7 GTI | 2.0T Gen3 | 2015-2020 |
| Golf | Mk8 GTI | 2.0T Gen4 | 2021-on |
| Golf R | Mk7/Mk7.5 | 2.0 TSI Gen 3 | 2015-2019 |
| Golf R | Mk8 | 2.0T Gen4 | 2021-on |
| Beetle | Mk6 | 1.8T Gen3 | 2012-2019 |
| Beetle | Mk6 | 2.0T Gen3 | 2012-2019 |
| Passat | B7 | 1.8T Gen3 | 2012-2019 |
| Tiguan | Mk2 | 2.0T Gen3 | 2018-on |
| Atlas | 2.0 TSI | 2018-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
