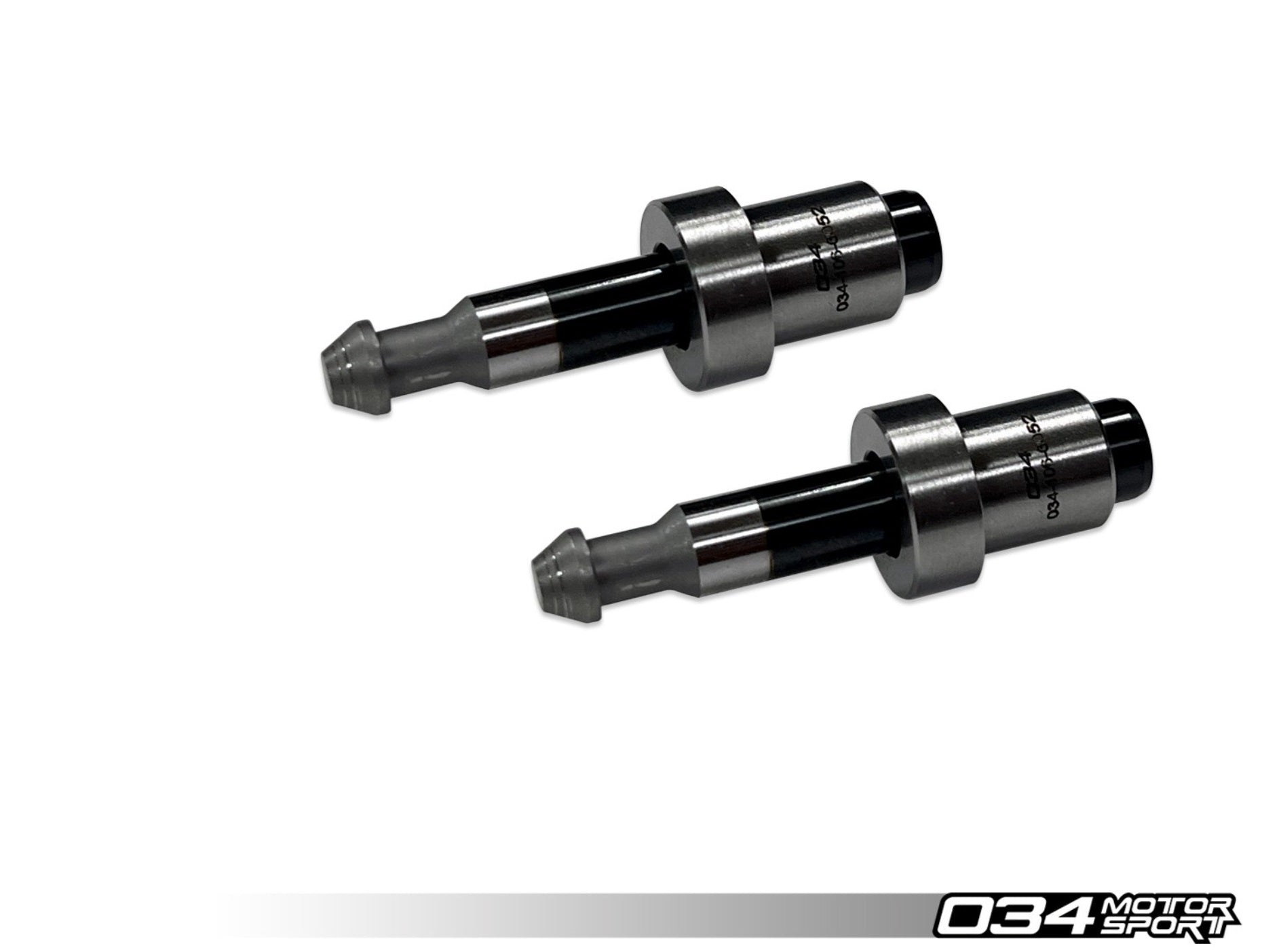

This kit replaces the pistons in the factory high pressure fuel pumps on the Audi 4.0T engine, as fitted to the C7 S6, S7, RS6 and RS7 and the D4 A8 and S8. 034Motorsport says the larger piston, up from 9.98mm to 11.48mm in diameter, raises the factory fuelling limit by up to 50%, giving the flow needed for E85, race fuel and more aggressive pump fuel tunes. The pump internals are precision-machined to aerospace tolerances, with a matched, DLC-coated piston and cylinder to reduce friction. The kit contains two piston and cylinder sets.
Features
- Up to 50% more flow than the factory pump, per 034Motorsport
- Piston diameter increased from 9.98mm to 11.48mm
- Supports E85-optimised tunes
- Internals precision-machined to aerospace tolerances
- Matched, DLC-coated piston and cylinder
- Drop-in replacement for the factory pump piston
Specifications
- Brand: 034Motorsport
- Product Type: High Pressure Fuel Pump Piston Upgrade Kit
- Piston Diameter: 11.48mm (area 103.51mm2) vs stock 9.98mm (area 78.23mm2)
- Coating: DLC-coated piston and cylinder
- Flow Increase: Up to 50% over factory, per 034Motorsport
- Includes: 2 x pump piston and cylinder set
- Part Number: 034-106-6052-2
Vehicle Compatibility: 7 applications across 1 make. Select a make to view.
Audi (7)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A8 | D4 | 4.0 TFSI | 2011-2018 | |
| S8 | D4 | 4.0 TFSI | 2011-2018 | |
| S6 | C7/C7.5 | 4.0 TFSI | 2012-2018 | |
| S7 | C7/C7.5 | 4.0 TFSI | 2012-2018 | |
| RS6 | C7/C7.5 | 4.0 TFSI | 2012-2018 | |
| RS7 | C7/C7.5 | 4.0 TFSI | 2012-2018 | |
| R8 | 42 (Mk1) | V10 5.2L FSI | 2006-2015 | Listed in brand fitment table; confirm before ordering |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
