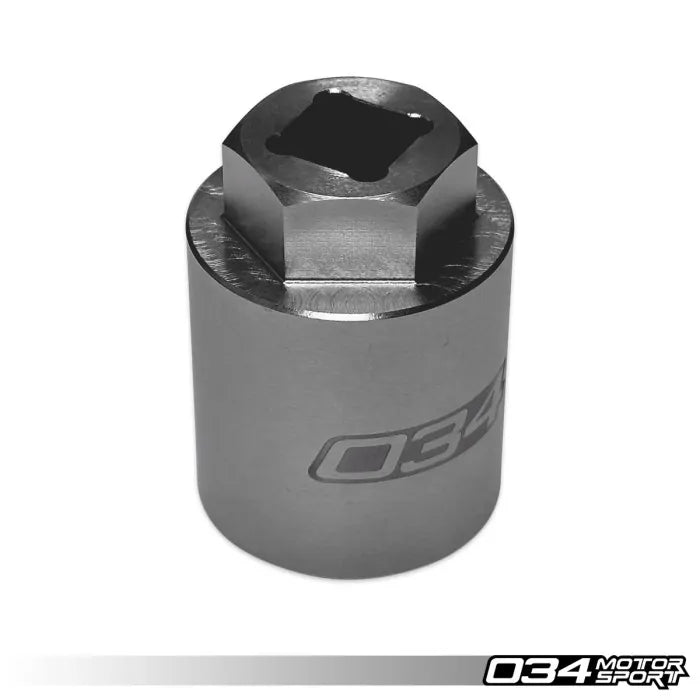

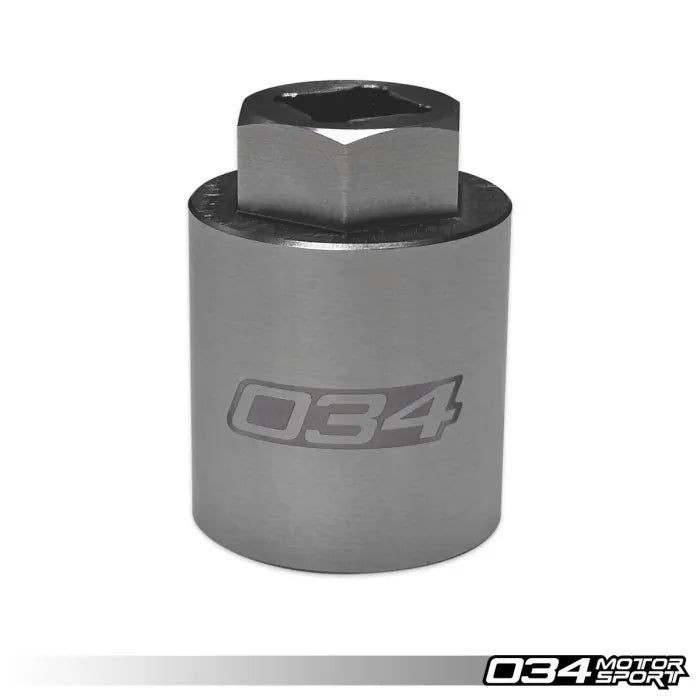

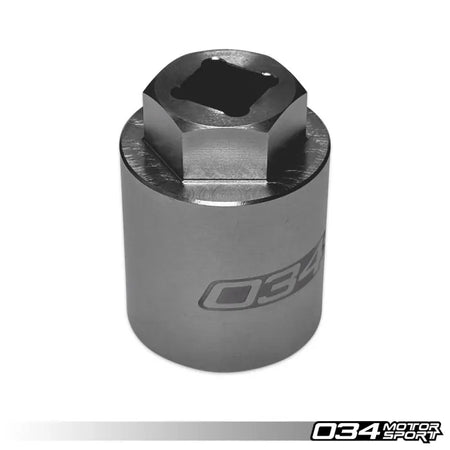

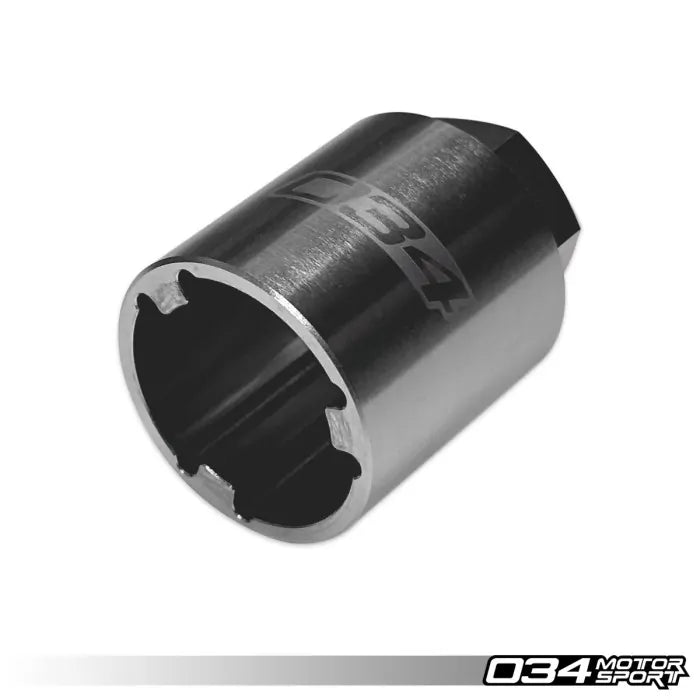

This is 034Motorsport's high pressure fuel pump (HPFP) tool for the EA839 3.0T and 2.9TT engines in the B9 Audi S4, S5 and RS5, the C8 S6 and S7, and the SQ8. It slots over the pump so the housing can be taken apart and reassembled without marring or damaging it, which is needed when upgrading the pump internals with 034Motorsport's HPFP piston upgrade kit. The tool is machined from billet 1040 steel, zinc plated, and can be driven with either a 1/2" ratchet or a 24mm socket. 034Motorsport says the redesign makes it easier to use than other tools available.
Features
- Slots over the pump for disassembly and reassembly
- Protects the pump housing from marring and damage
- For use with the 034Motorsport HPFP piston upgrade kit
- Machined from billet 1040 steel
- Zinc plated for durability
- Dual drive: 1/2" ratchet drive or 24mm hex
Specifications
- Brand: 034Motorsport
- Product Type: High Pressure Fuel Pump Tool
- Material: Billet 1040 steel
- Finish: Zinc plated
- Drive: 1/2" ratchet drive and 24mm hex
- Engine: Audi EA839 3.0T and 2.9TT
- Part Number: 034-106-Z068
Vehicle Compatibility: 6 applications across 1 make. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B9 | 3.0 TFSI (EA839) | 2018-on |
| S5 | B9/B9.5 | 3.0 TFSI (EA839) | 2018-on |
| RS5 | B9/B9.5 | 2.9 TFSI (EA839) | 2018-on |
| S6 | C8 | 2.9 TFSI (EA839) | 2019-on |
| S7 | C8 | 2.9 TFSI (EA839) | 2019-on |
| SQ8 | 4M8 | 3.0 TFSI (EA839) | 2019-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
