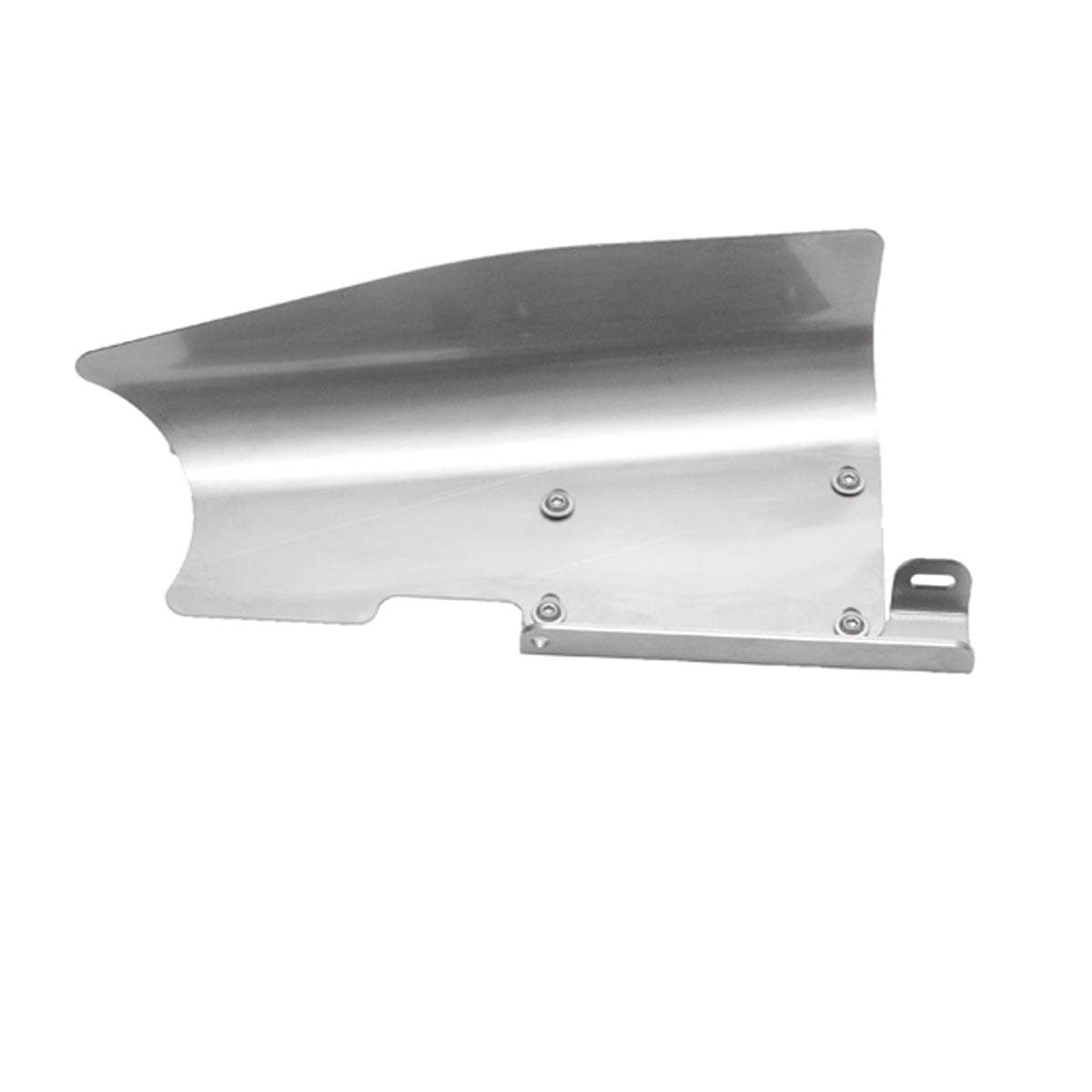

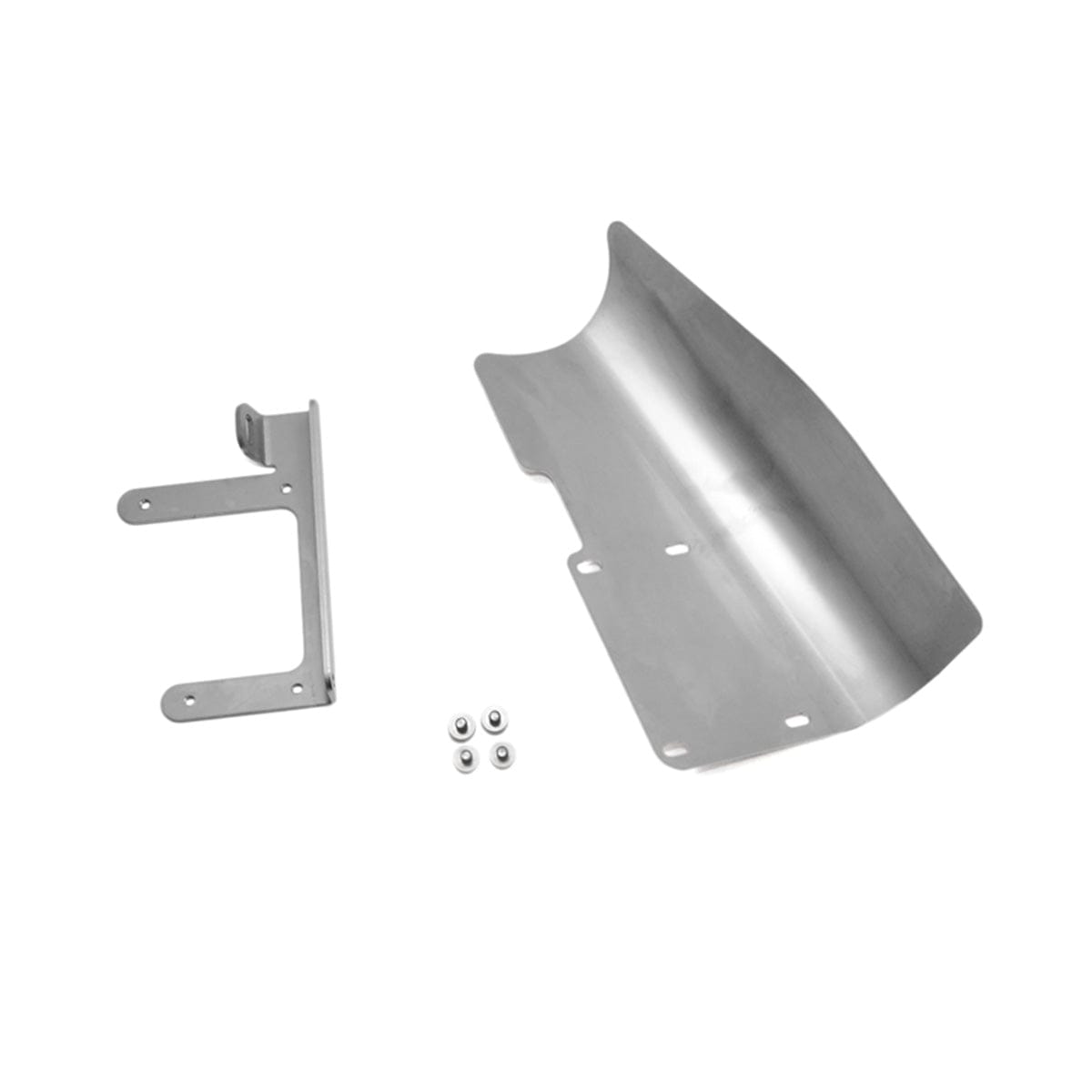

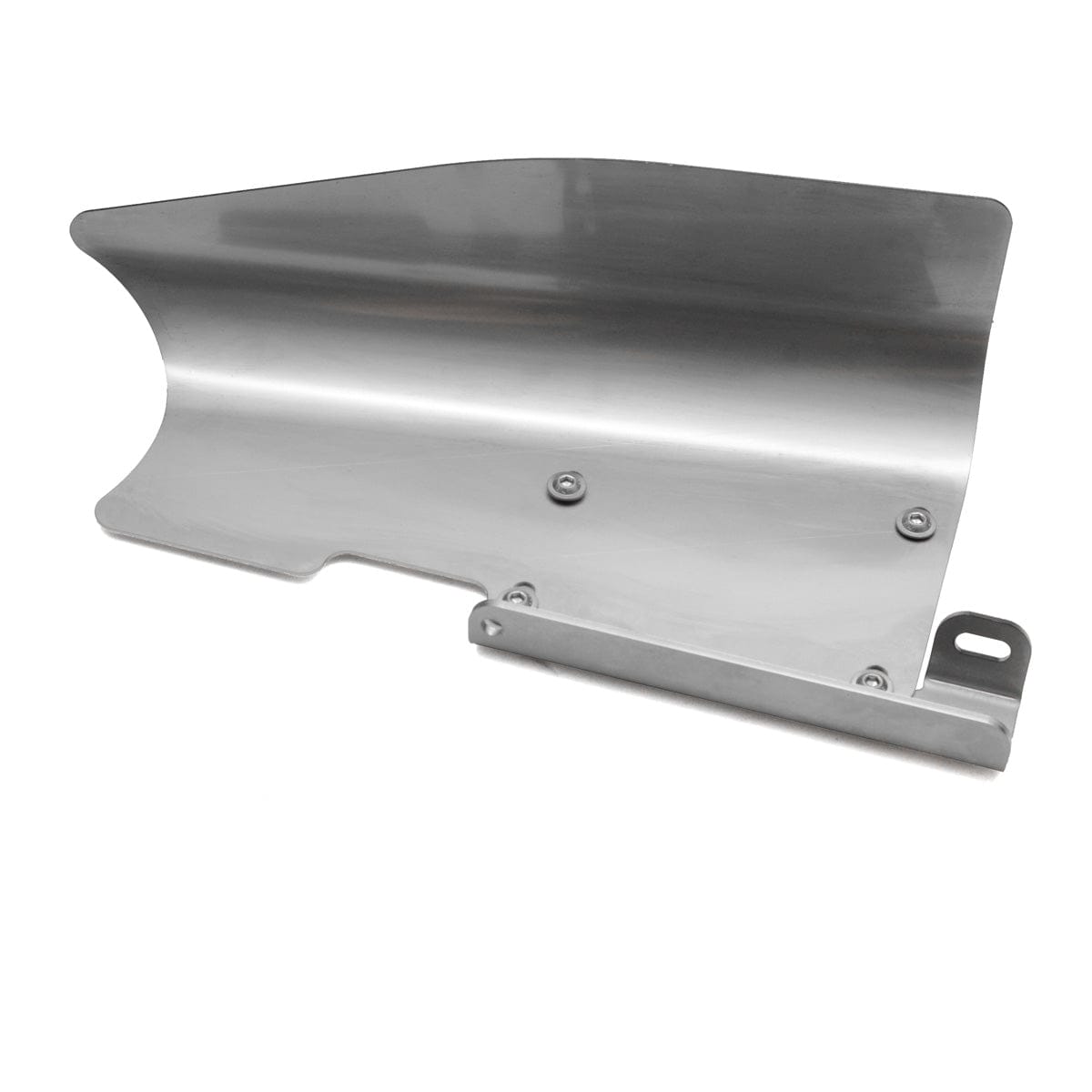

034Motorsport Intake Inlet Pipe Heat Shield Audi TTRS & RS3 2.5 TFSI - 034-108-Z055
This 304 stainless steel heat shield protects the intake inlet pipe on the 2.5 TFSI EVO (DAZA) five-cylinder in the 8V.5 Audi RS3 and 8S Audi TT RS. It guards carbon fibre and plastic intake tubes against heat damage and works with the stock intake and most aftermarket intakes, including the Integrated Engineering carbon fibre intake, which 034Motorsport has confirmed. Very early non-US 8V.5 RS3 models have a factory heat shield that is not compatible, so the newer OE shield (07K 129 597 G) must be fitted first. It does not fit 2020-on RS3 models with the DNWA engine, and installation takes about an hour.
Features
- 304 stainless steel for heat and corrosion resistance
- Protects carbon fibre and plastic intake tubes
- Works with stock and most aftermarket intakes

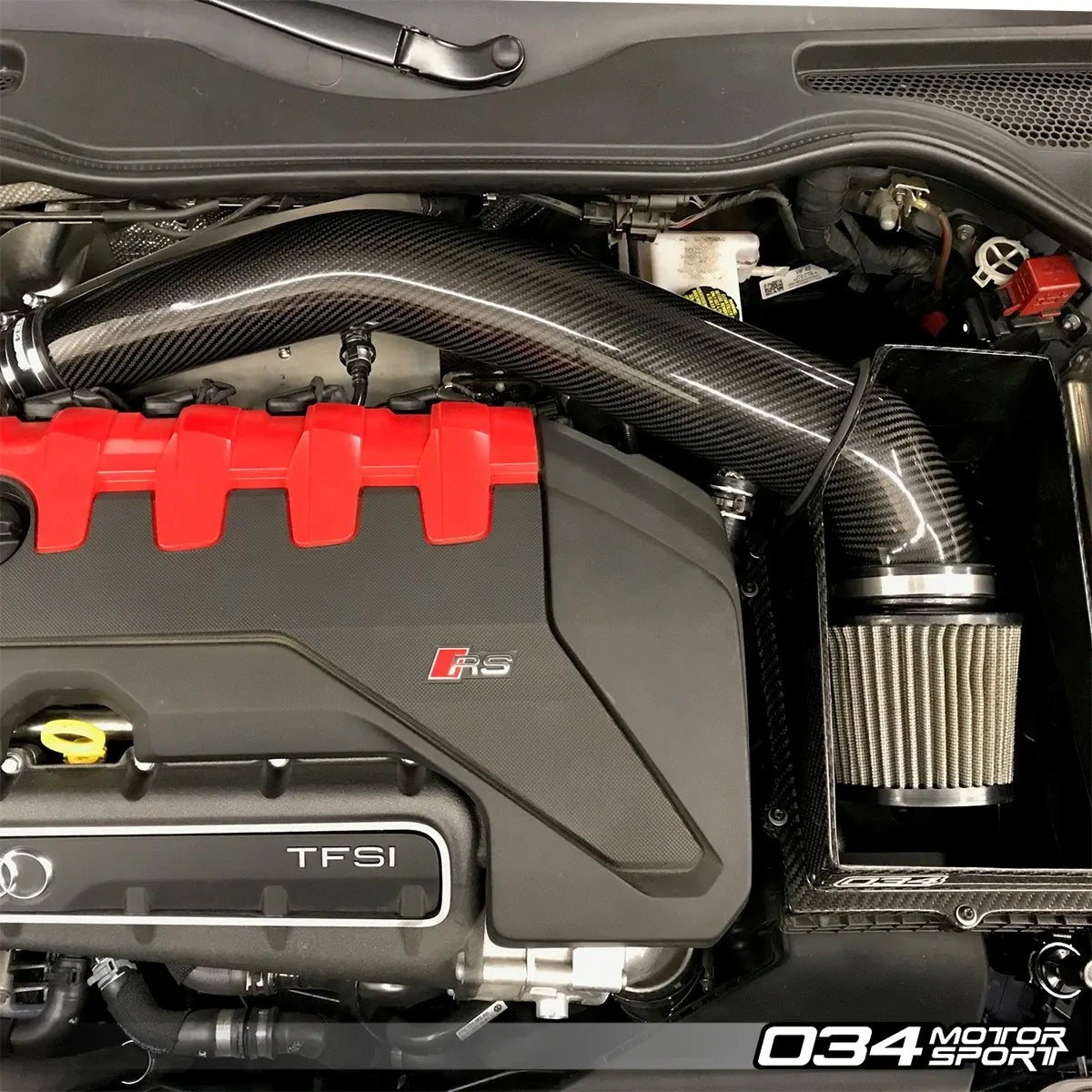

- Confirmed with the Integrated Engineering carbon fibre intake
- Early non-US 8V.5 RS3 needs OE shield 07K 129 597 G first
- Not for 2020-on RS3 with the DNWA engine
- About one hour to install
Specifications
- Brand: 034Motorsport
- Product Type: Intake Heat Shield
- Material: 304 stainless steel
- Engine: 2.5 TFSI EVO (DAZA)
- Compatibility: Stock intake and most aftermarket intakes
- Install Time: Approx. 1 hour
- Part Number: 034-108-Z055
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| RS3 | 8V.5 (MQB) | 2.5 TFSI EVO (DAZA) | 2017-on | Not 2020-on DNWA; early non-US cars need OE shield 07K 129 597 G |
| TT RS | 8S (MQB) | 2.5 TFSI EVO (DAZA) | 2018-on |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
