034Motorsport Intake Manifold Spacer, Phenolic, Audi B5 A4/S4/RS4 C5 A6/Allroad 2.7T & 2.8L 30V V6 - 034-108-9003-TP

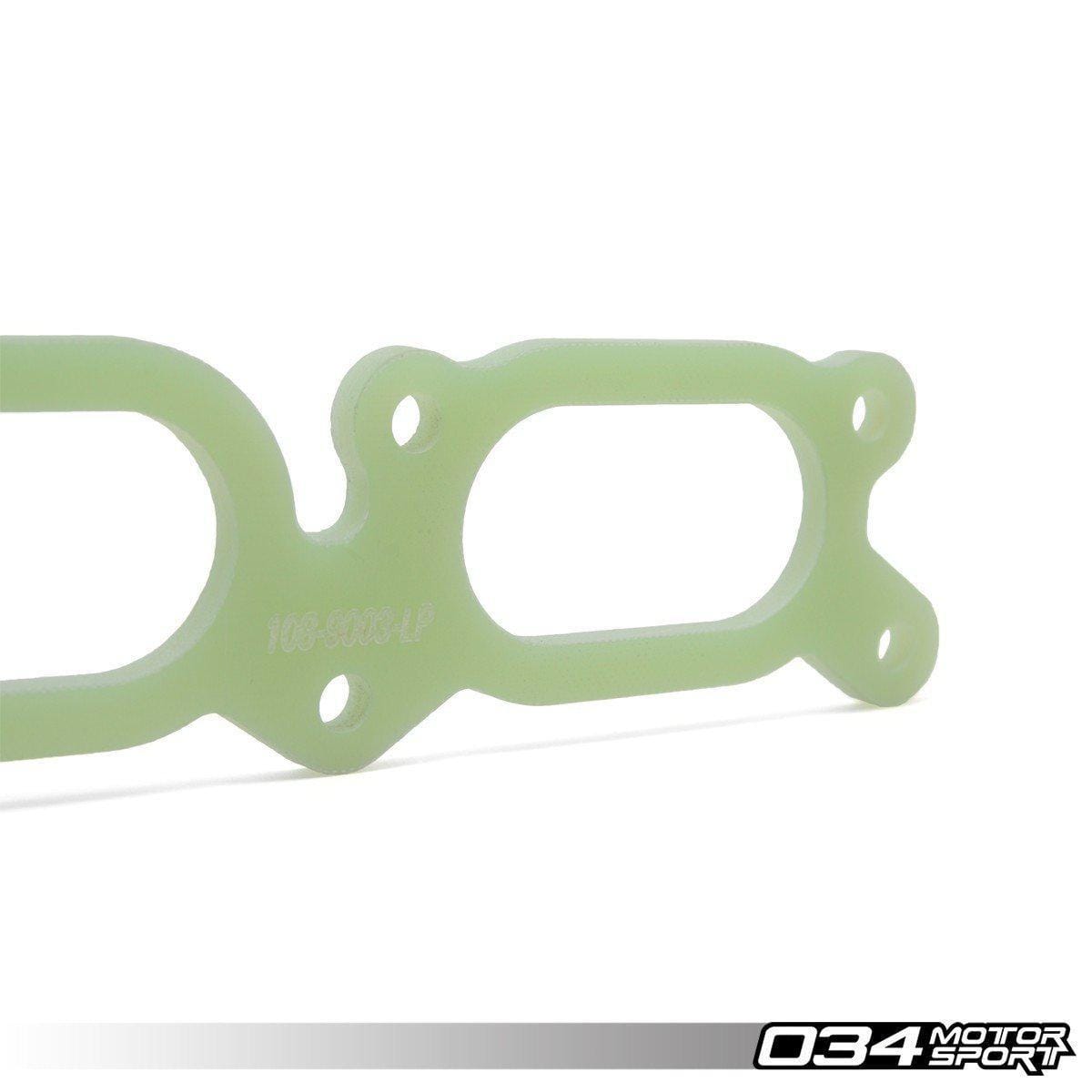

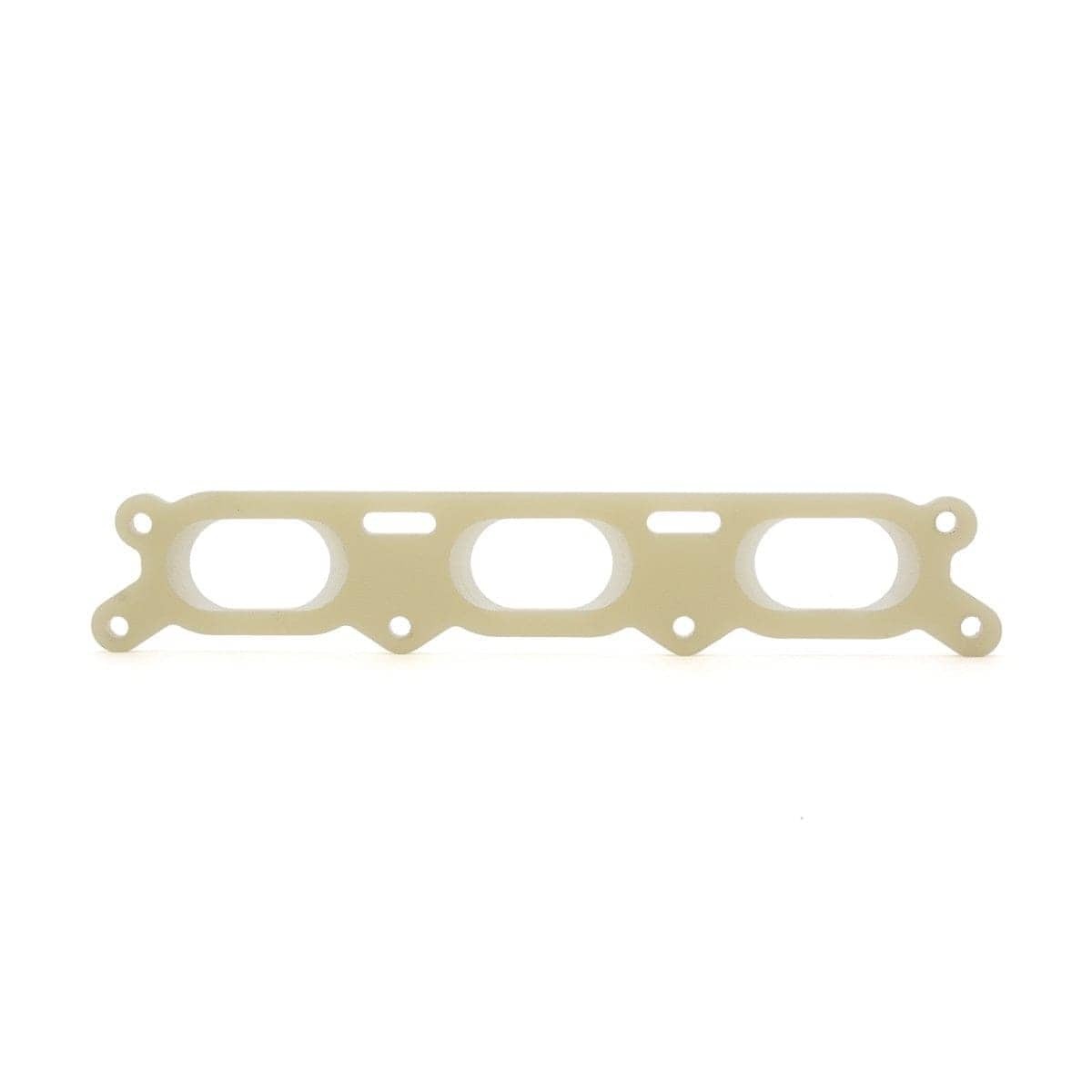

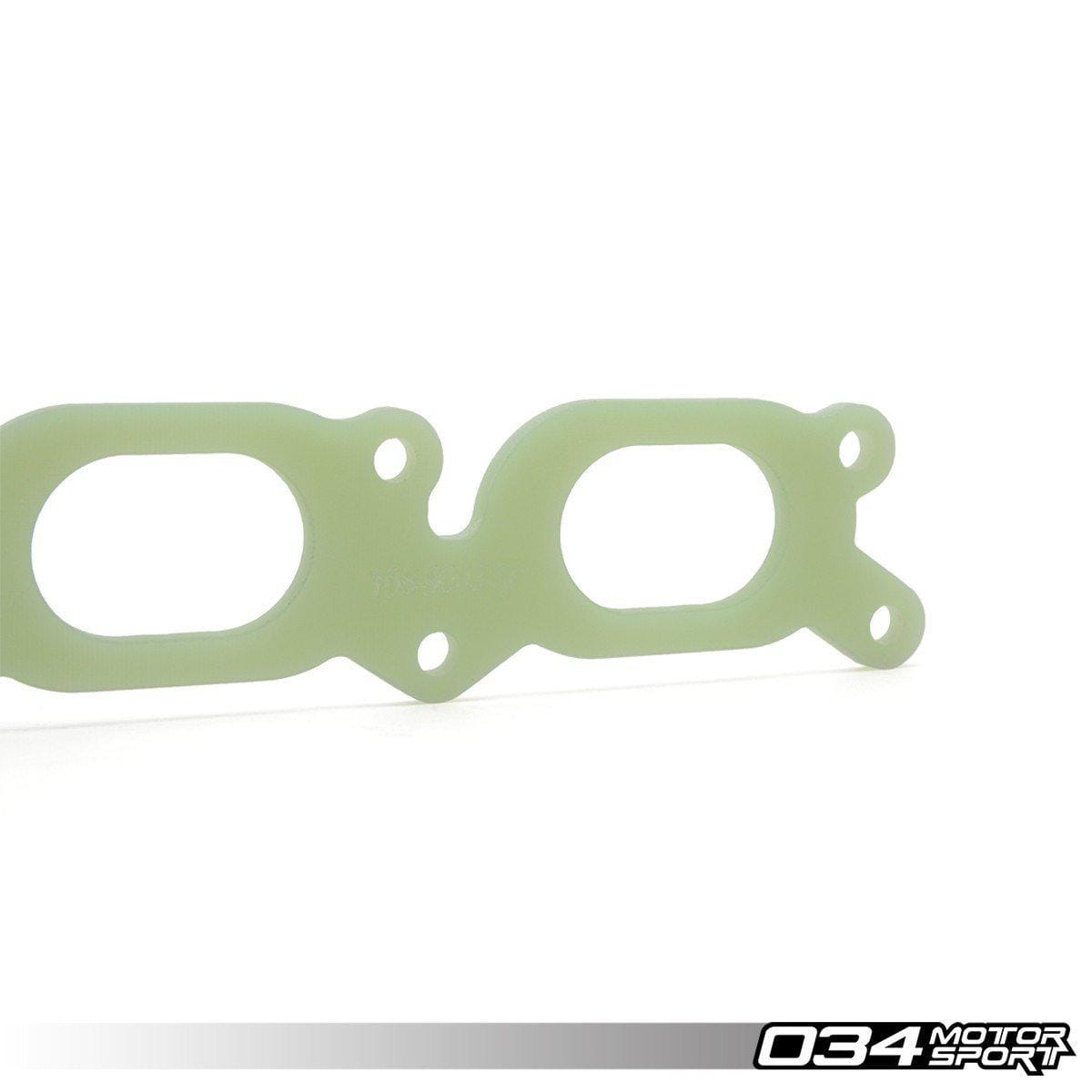

This 5mm phenolic spacer fits between the cylinder head and intake manifold on Audi 30V V6 engines, the 2.7T and 2.8L, to cut heat transfer from the head into the manifold. This is the Transition Port version, made for fitting an RS4 intake manifold to 2.7T heads or an S4 intake manifold to 2.8L 30V heads. The spacers are precision CNC machined. The kit includes 16 longer high-grade bolts and 4 gaskets, so everything needed for the conversion is supplied.
Features
- 5mm phenolic spacer reduces heat transfer into the manifold
- Transition port design for mixed manifold and head combinations
- Precision CNC machined
- 16 longer high-grade bolts included
- 4 gaskets included
Specifications
- Brand: 034Motorsport
- Product Type: Intake Manifold Spacer
- Material: Phenolic
- Thickness: 5mm
- Port Style: Transition Port
- Application: RS4 intake manifold on 2.7T heads, or S4 intake manifold on 2.8L 30V heads
- Included: Phenolic spacer set, 16 longer high-grade bolts, 4 gaskets
- Part Number: 034-108-9003-TP
Vehicle Compatibility: 7 applications across 2 makes. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A4 | B5 | 2.8L 30V | 1998-2001 | For S4 intake manifold on 2.8L 30V heads |
| S4 | B5 | 2.7T | 2000-2002 | For RS4 intake manifold on 2.7T heads |
| RS4 | B5 | 2.7T | 2000-2002 | For RS4 intake manifold on 2.7T heads |
| A6 | C5 | 2.7T | 1998-2004 | For RS4 intake manifold on 2.7T heads |
| A6 | C5 | 2.8L 30V | 1998-2004 | For S4 intake manifold on 2.8L 30V heads |
| Allroad | C5 | 2.7T | 2001-2003 | For RS4 intake manifold on 2.7T heads |
Volkswagen (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Passat | B5/B5.5 | 2.8L 30V | 1998-2005 | For S4 intake manifold on 2.8L 30V heads |
Images shown are generic and for illustration only. The part supplied may differ in appearance.
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
