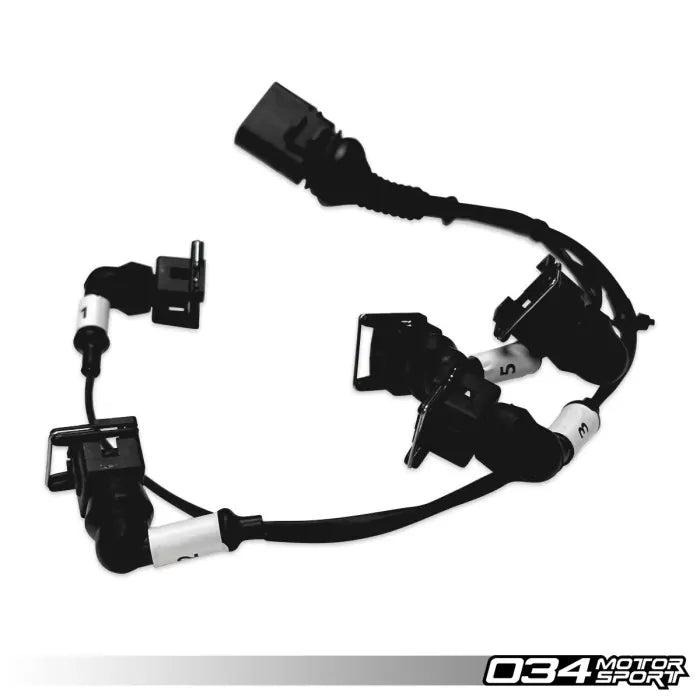

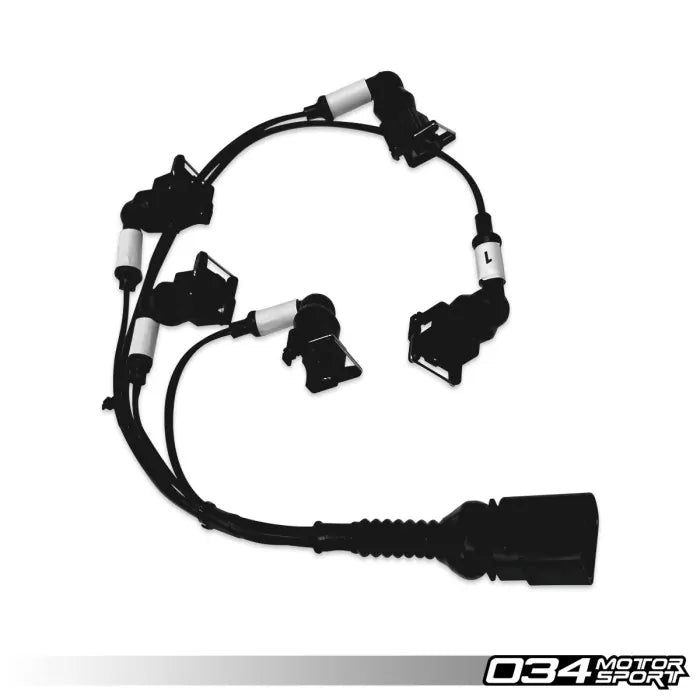

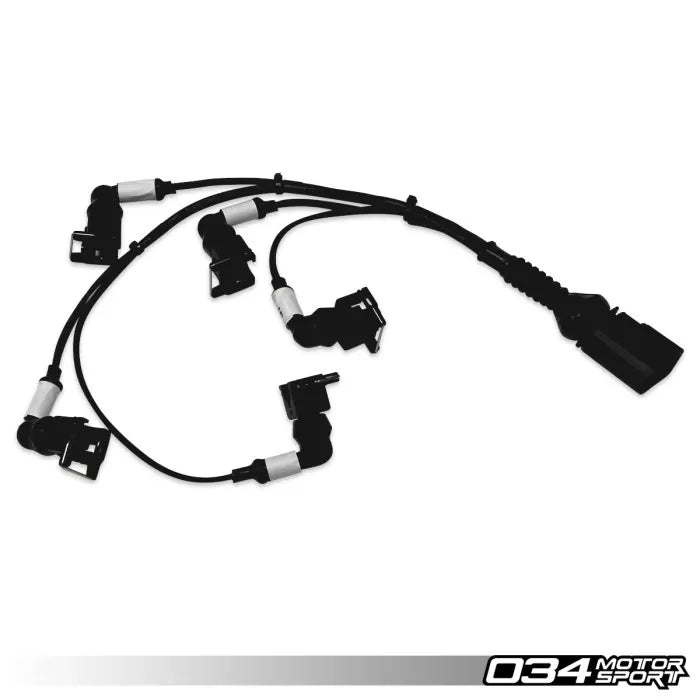

034Motorsport LPI EV1 Fuel Injector Adapter Harness - Audi 8V.5 RS3 & Audi 8S TTRS - 034-701-0036
This adapter harness is a drop-in replacement for the factory port injector sub-harness on the 2.5 TFSI EVO engine in the 8V.5 and 8Y Audi RS3 and the 8S TT RS, for cars upgraded to EV14 low pressure injectors with the EV1 connector. Paired with the genuine Bosch EV14 injectors in 034Motorsport's LPI Fuel Injector Upgrade Kit, it allows the car to run full E85 with matching software tuning, according to the brand. Because it plugs straight into the EV1 injectors, no separate injector wiring adapters are needed. OEM-style boots and heat shrink keep the installation looking factory.
Features
- Replaces the OE port injector sub-harness (07K 971 082 F)
- Plugs straight into EV1-connector injectors
- No injector wiring adapters needed
- OEM-style boots and heat shrink
- Supports 034Motorsport's EV14 LPI upgrade for full E85
- Only for cars with an EV1 injector upgrade
Specifications
- Brand: 034Motorsport
- Product Type: Fuel Injector Adapter Harness
- Connector: EV1
- Engine: 2.5 TFSI EVO
- OE Interchange: 07K 971 082 F
- Includes: 1 EV1 fuel injector adapter harness
- Requires: EV1 connector injector upgrade, such as the 034Motorsport LPI Fuel Injector Upgrade Kit
- Part Number: 034-701-0036
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| RS3 | 8V.5 | 2.5 TFSI EVO | 2017-2020 | EV1 injector upgrade only |
| RS3 | 8Y | 2.5 TFSI EVO | 2022-on | EV1 injector upgrade only |
| TT RS | 8S | 2.5 TFSI EVO | 2018-2020 | EV1 injector upgrade only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
