- Type Engine Components
- Vendor 034Motorsport
- SKU 034-509-0005-SD

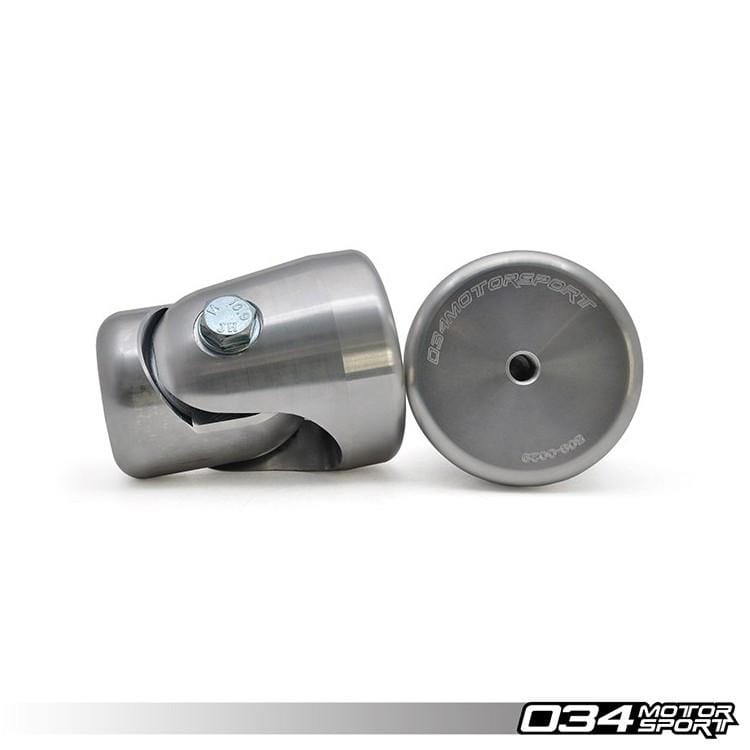

This Motorsport engine mount pair replaces the factory mounts on B5, B6 and B7 Audi A4 models, the B5 S4 and RS4, the C5 A6 and Allroad, and the B5 and B5.5 Volkswagen Passat. Built from billet aluminium with high-durometer rubber, this Street Density version uses 65 durometer rubber and suits street-driven cars where excessive noise and vibration are unwanted. 034Motorsport says the mounts lock down the drivetrain for solid shifting, more direct power transfer and minimal wheel hop, and the design is rebuildable with a limited lifetime replacement warranty for the original purchaser. Both 8mm and 10mm hardware are included, and the brand recommends 10mm studs for launching or drag racing, which requires drilling the factory engine mount brackets.
Features
- Billet aluminium with 65 durometer Street Density rubber
- Less drivetrain slop and engine movement under load
- More direct power transfer and improved shift feel
- Rebuildable design
- 8mm and 10mm mounting hardware included
- Limited lifetime replacement warranty
- Sold as a pair
Specifications
- Brand: 034Motorsport
- Product Type: Engine Mount Pair
- Material: Billet aluminium
- Rubber: 65 durometer (Street Density)
- Hardware: 8mm and 10mm included (10mm requires drilling the factory brackets)
- Quantity: Pair
- Warranty: Limited lifetime replacement warranty (original purchaser, manufacturing defects)
- Part Number: 034-509-0005-SD
Vehicle Compatibility: 8 applications across 2 makes. Select a make to view.
Audi (7)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A4 | B5 | 1.8T / 2.8L | 1996-2001 |
| S4 | B5 | 2.7T | 2000-2002 |
| RS4 | B5 | 2.7T | 2000-2002 |
| A4 | B6 | 1.8T / 3.0L | 2002-2005 |
| A4 | B7 | 2.0T FSI / 3.2L FSI | 2005-2008 |
| A6 | C5 | 2.7T / 2.8L / 3.0L | 1998-2004 |
| Allroad | C5 | 2.7T | 2001-2005 |
Volkswagen (1)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Passat | B5/B5.5 | 1.8T / 2.8L / 4.0L W8 | 1998-2005 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
