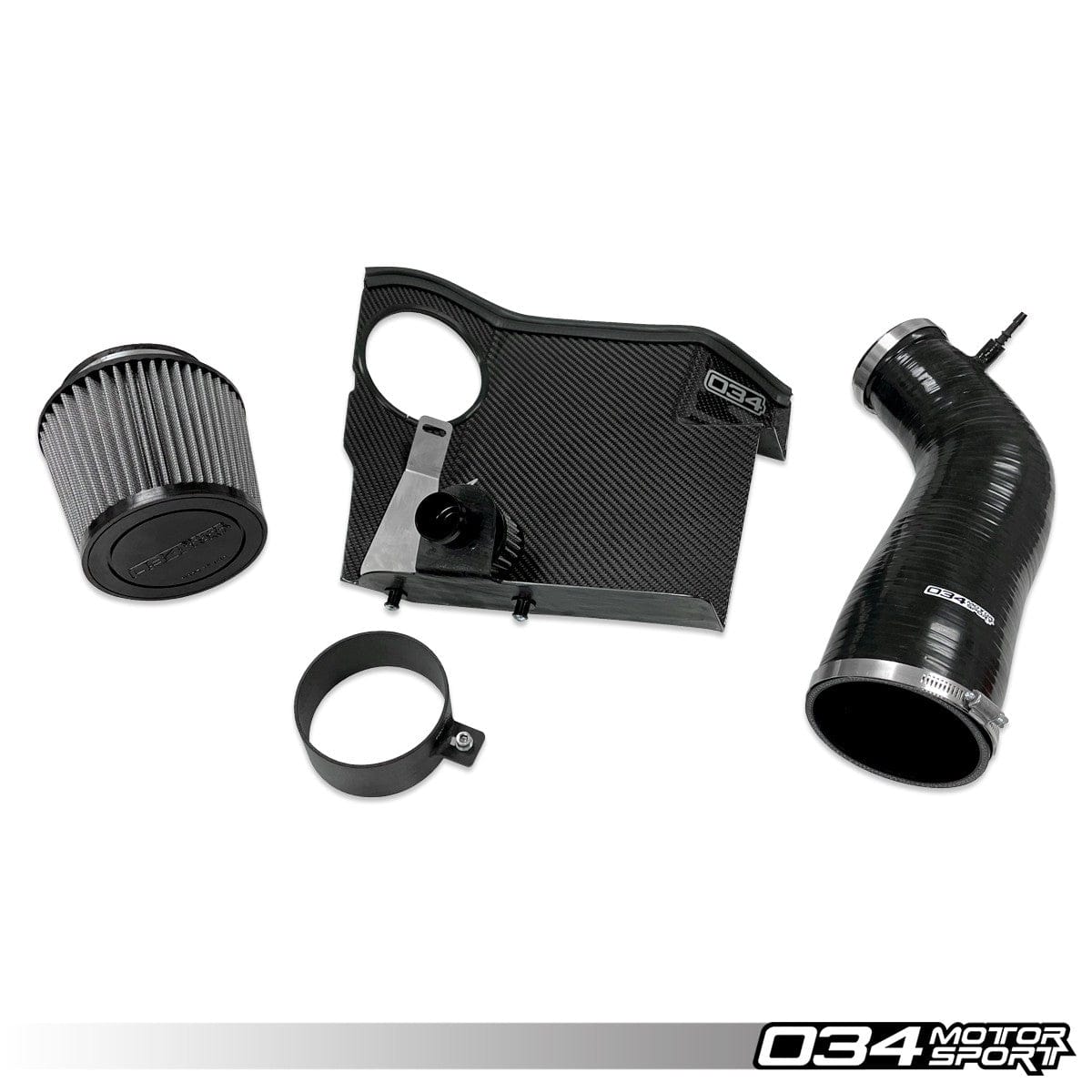

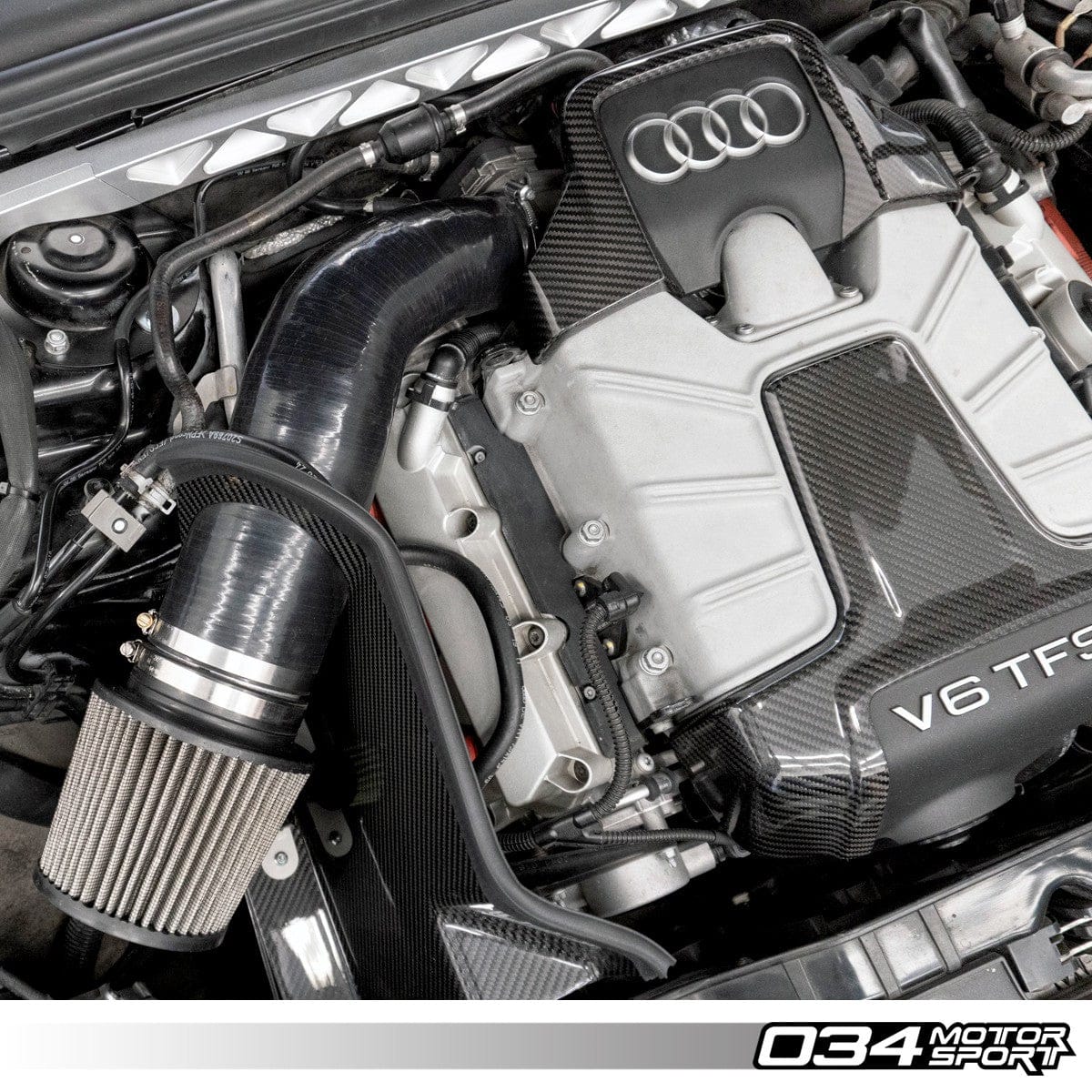

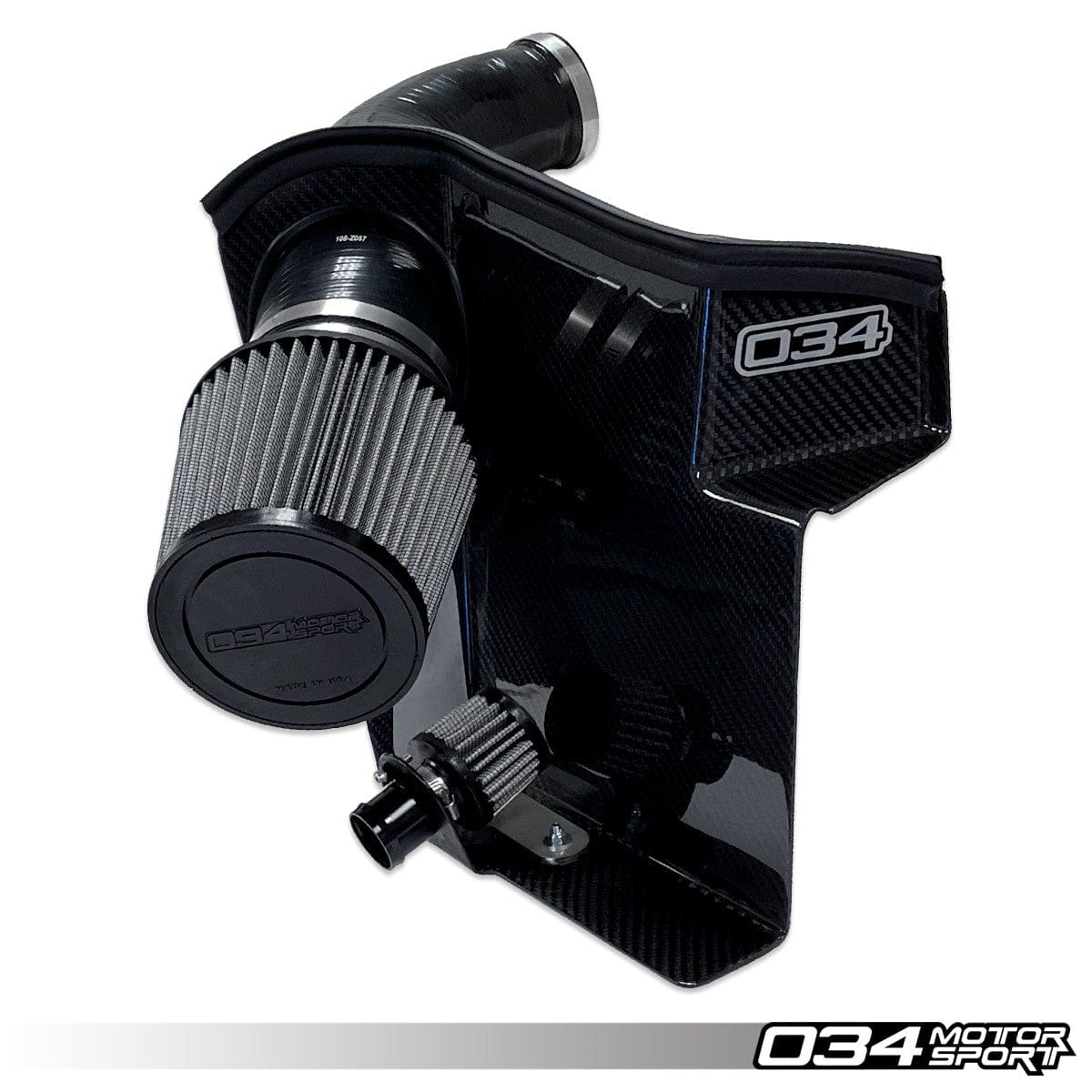

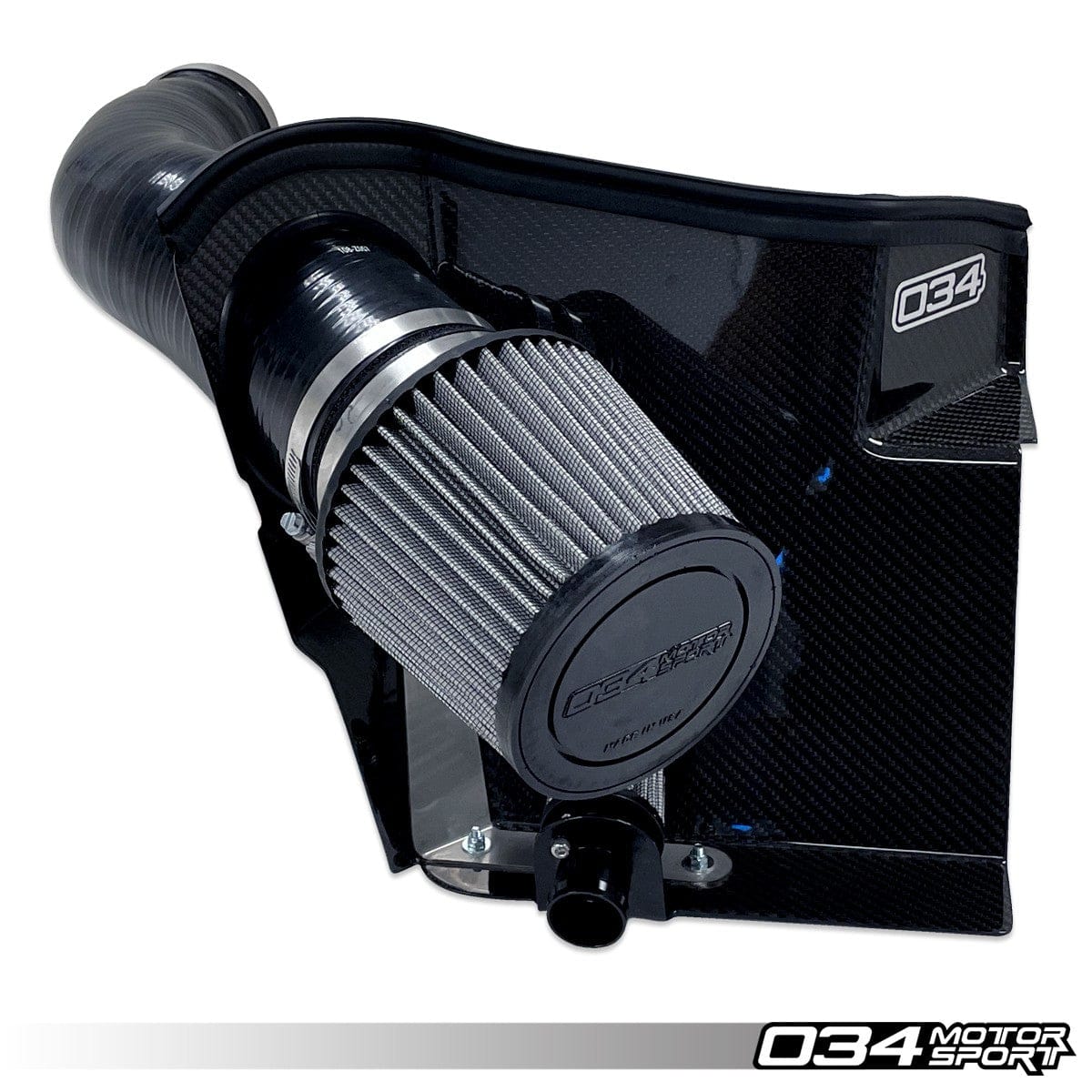

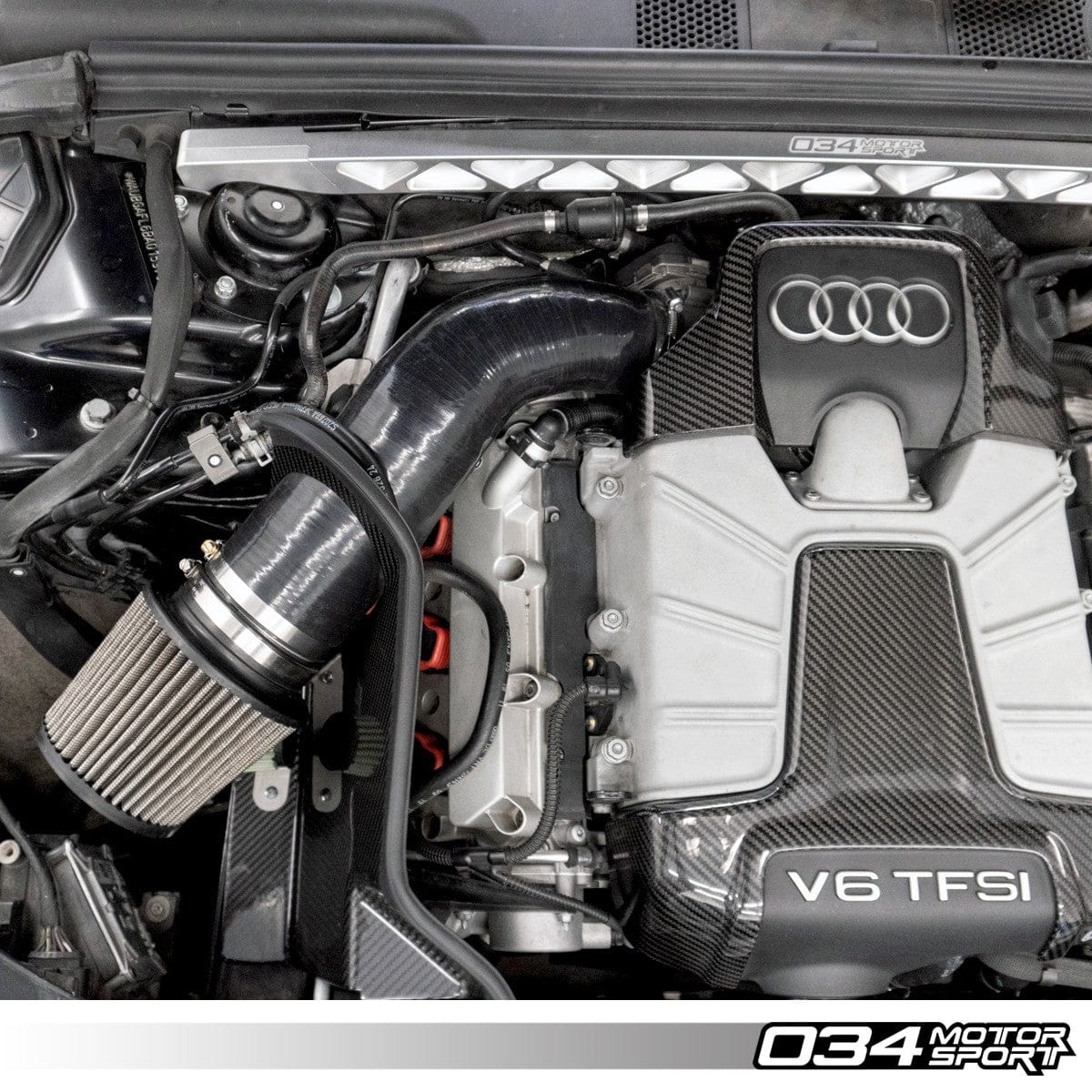

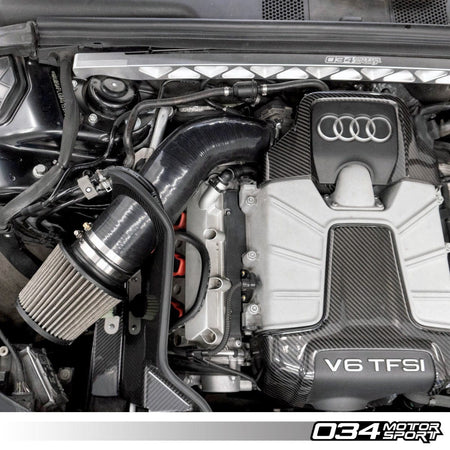

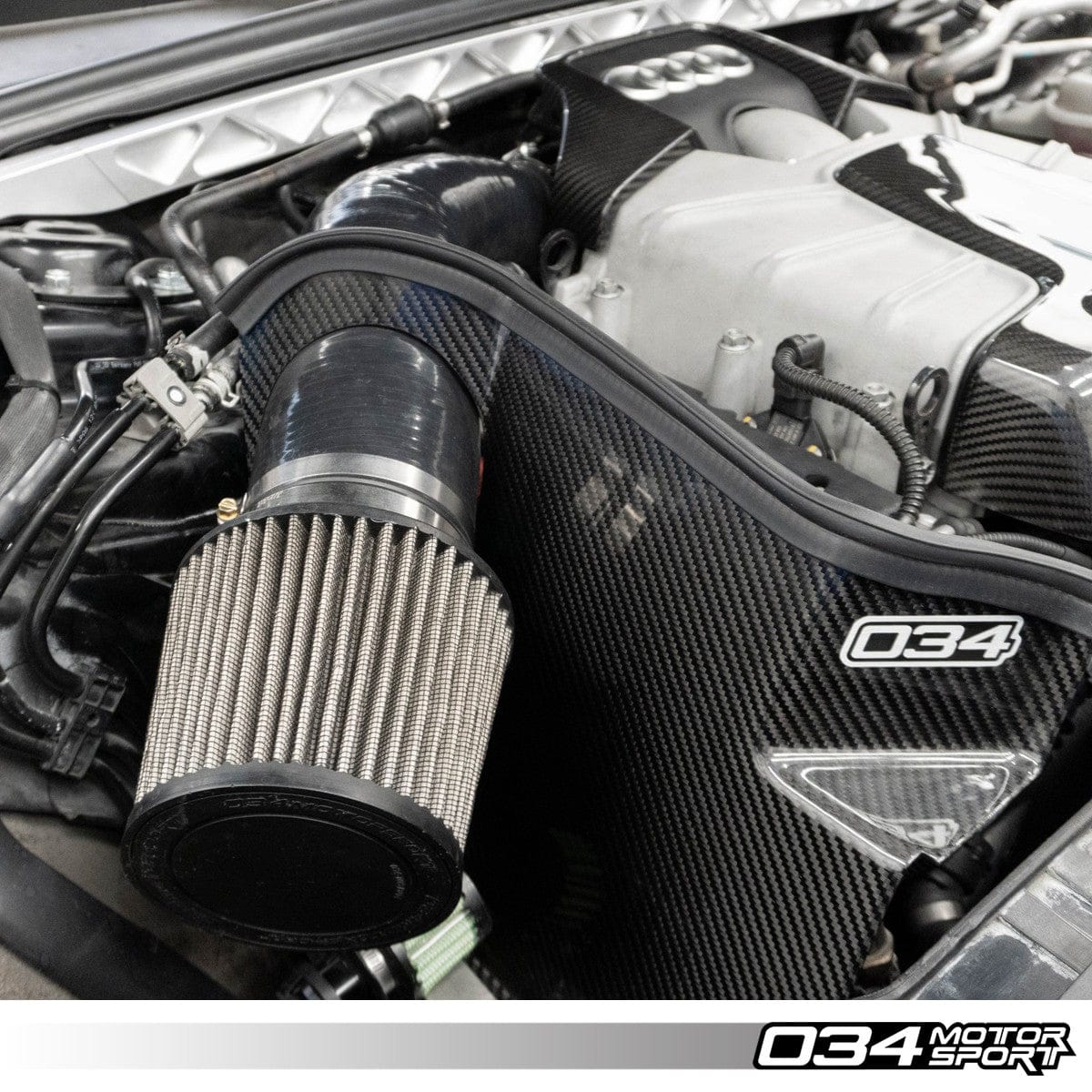

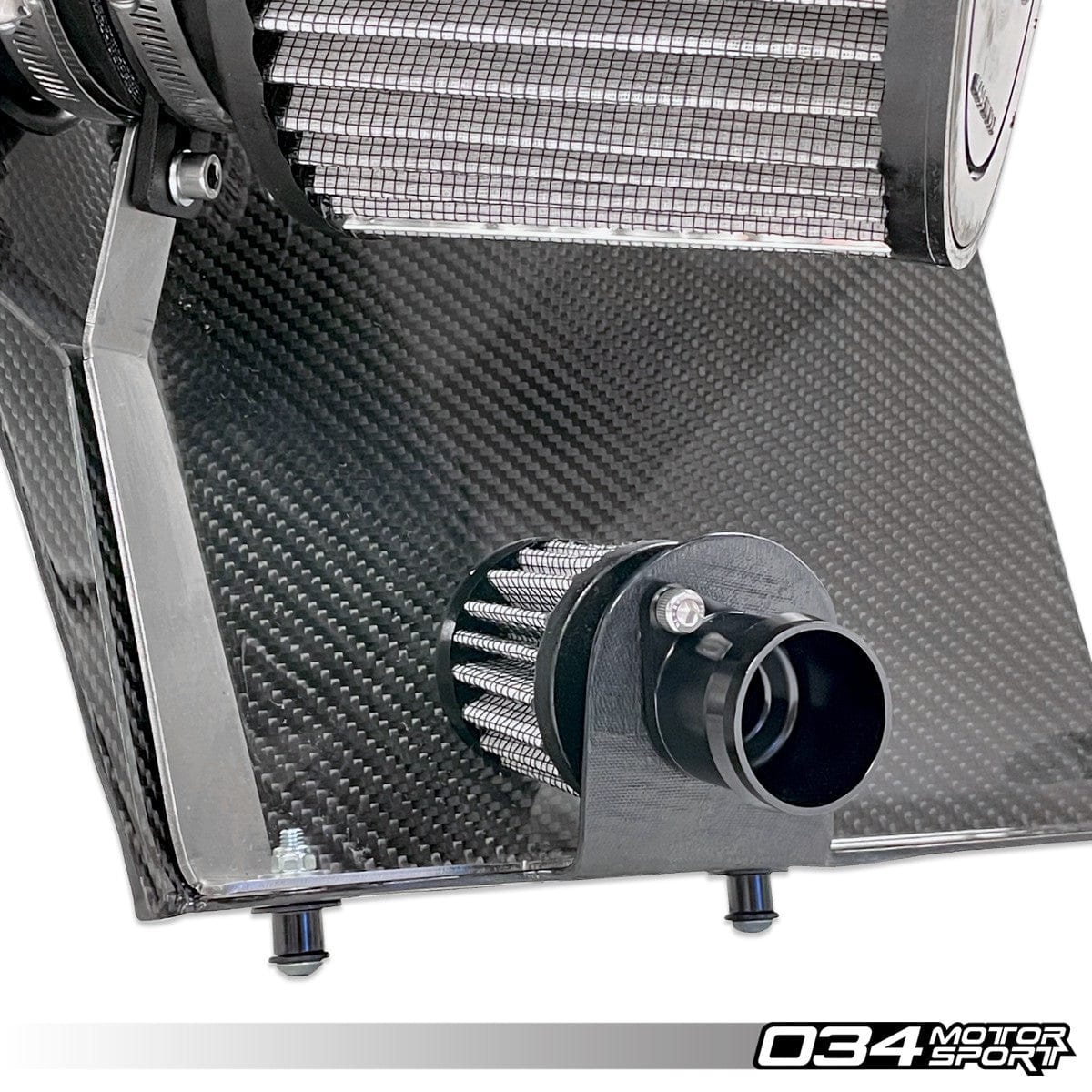

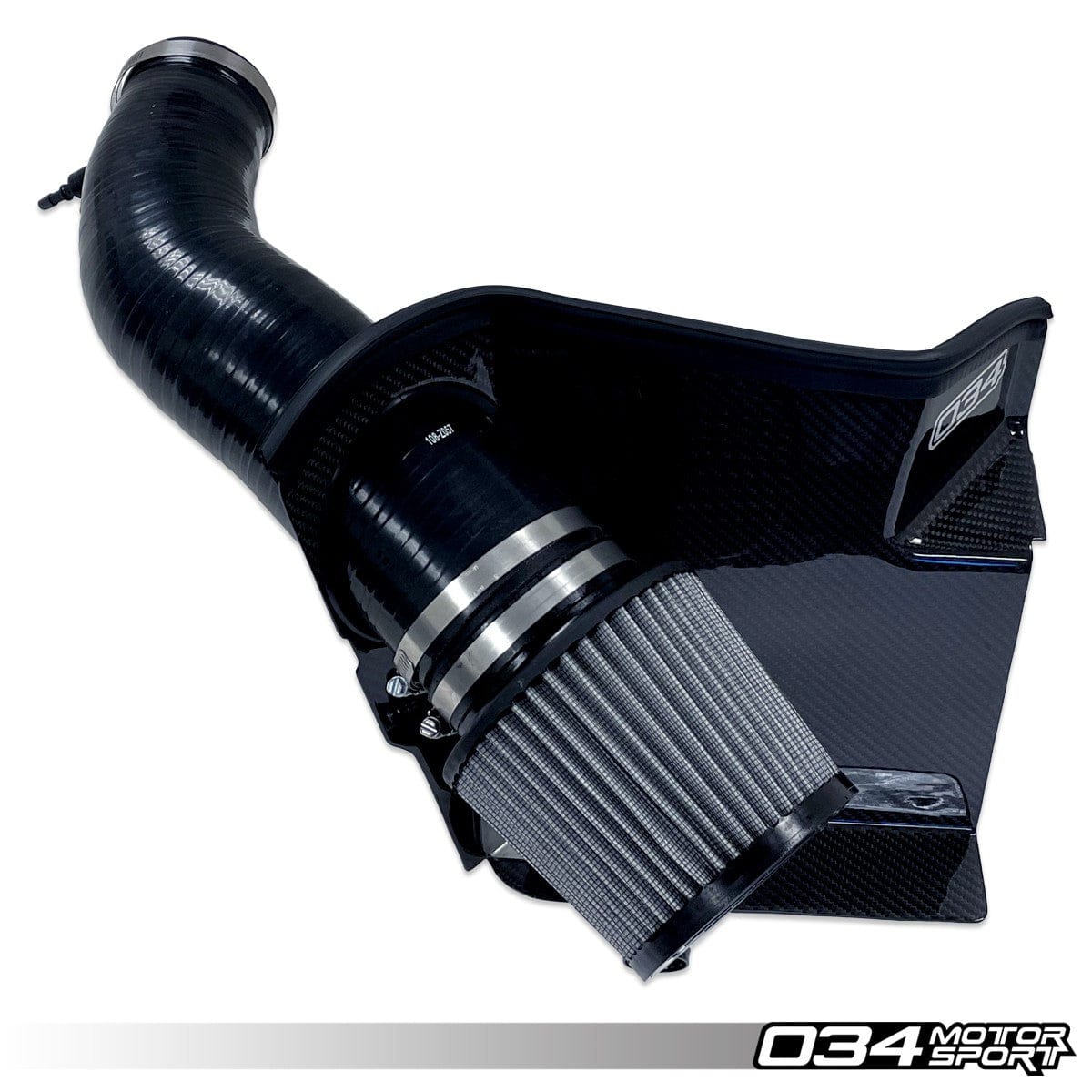

This is a carbon fibre cold air intake for the supercharged 3.0 TFSI in the B8 and B8.5 Audi S4 and S5. It uses an open-airbox design with a carbon fibre heat shield that draws cool air from the factory fresh air duct inlet, feeding a conical filter with a 4-inch inlet through a CFD-optimised 4-ply silicone inlet hose. 034Motorsport reports a pressure drop of -0.97 psi against -2.18 psi for the stock intake, and dyno results of 436 WHP and 416 WTQ against 416 WHP and 396 WTQ stock on a Stage 2+ E40 car with a 57.75/190mm pulley combo. The brand also says the intake gives a more aggressive induction sound and supercharger whine.
Features
- Open-airbox design with carbon fibre heat shield
- Conical filter with 4-inch inlet and no restrictive shrouding
- Double-layer pleated cotton media traps particles down to 5 microns
- CFD-optimised 4-ply silicone inlet hose

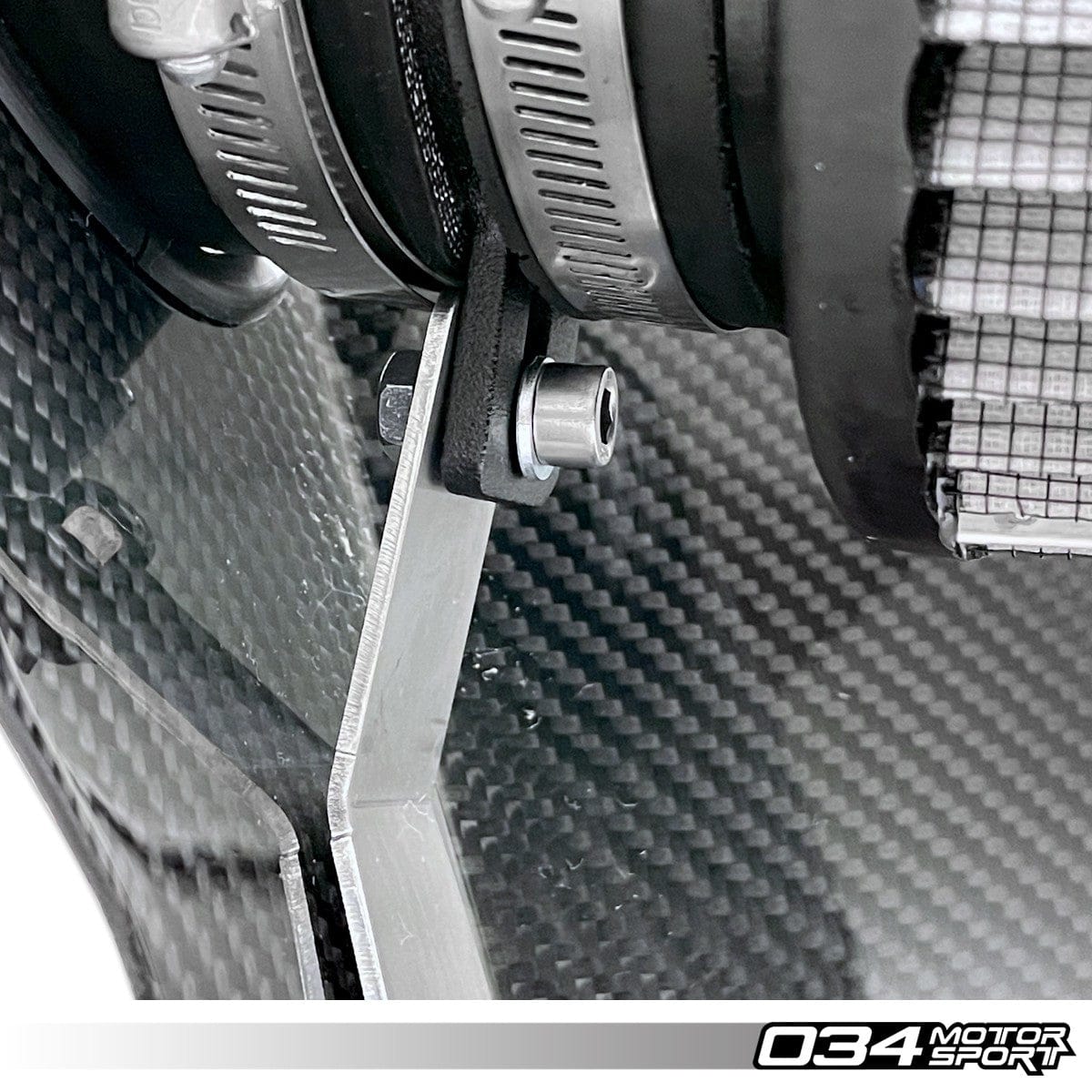

- Supported filter that does not flop or rub on engine parts
- Pressure drop of -0.97 psi versus -2.18 psi stock, per 034Motorsport
- Dyno-verified gains on stock and ported supercharger cars, per 034Motorsport
Specifications
- Brand: 034Motorsport
- Product Type: Cold Air Intake
- Material: Carbon fibre airbox heat shield, 4-ply silicone inlet hose
- Filter: High-flow conical, 4-inch inlet, double-layer pleated cotton
- Airbox: Open-airbox design using the factory fresh air duct inlet
- Engine: 3.0 TFSI (supercharged)
- Part Number: 034-108-1027
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| S4 | B8/B8.5 | 3.0 TFSI (supercharged) | |
| S5 | B8/B8.5 | 3.0 TFSI (supercharged) |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
