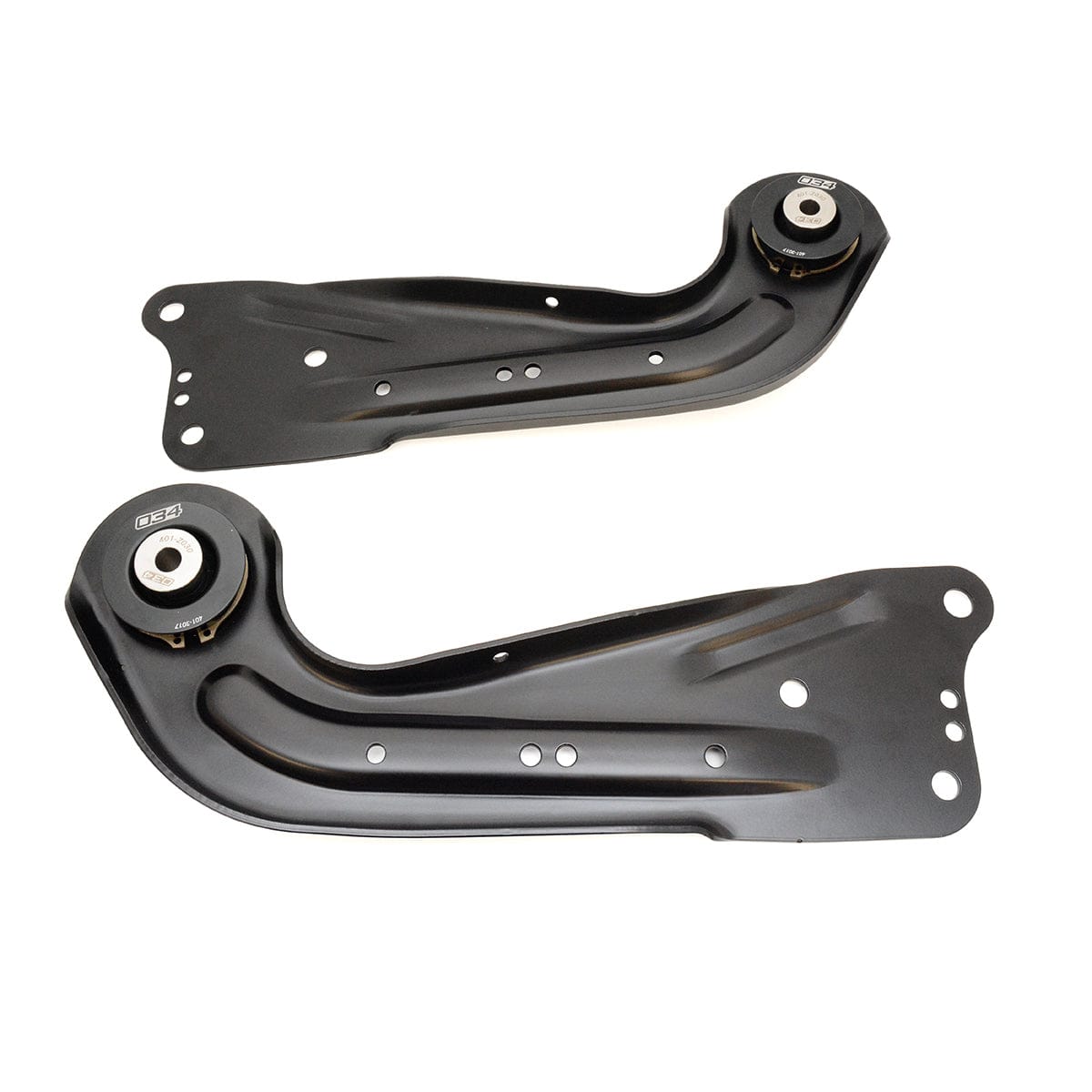

034Motorsport Spherical Rear Trailing Arm Kit, Volkswagen MK7 Golf GTI/R & Audi 8V/8S A3/S3/TT/TTS - 034-401-1033
This kit replaces the rubber bushings in the rear trailing arms of MQB and MQB EVO platform cars, including the Mk7 Volkswagen Golf GTI, Mk7 and Mk8 Golf R, and the Audi A3, S3, RS3, TT, TTS and TT RS. 034Motorsport explains that the factory bushings flex under load, making the rear feel vague, upsetting the suspension geometry and adding understeer, especially on bumpy corners. In their place the kit uses genuine Aurora spherical bearings with a Teflon race lining, held in black anodised billet aluminium housings, so the arm can articulate freely without binding or deflection. It comes fully assembled on new factory steel trailing arms for a bolt-in install, and the bearings can be rebuilt later.
Features
- Fully assembled on new factory steel trailing arms
- Genuine Aurora spherical bearings with Teflon race lining
- Black anodised billet aluminium bearing holders
- Stainless steel bearing spacers
- Removes bushing deflection for more precise handling
- Fully rebuildable
- Alignment to factory specification recommended after fitting
Specifications
- Brand: 034Motorsport
- Product Type: Rear Trailing Arm Kit
- Bearings: Aurora spherical bearings, Teflon race lining
- Bearing Holders: Billet aluminium, black anodised
- Spacers: Stainless steel
- Trailing Arms: New factory steel arms, supplied assembled
- Replaces OE: 5QM505223, 5QM505224, 5Q0505541A
- Installation Time: Approx. 2 hours
- Part Number: 034-401-1033
Vehicle Compatibility: 22 applications across 5 makes. Select a make to view.
Audi (10)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8V | 1.8 TFSI, 2.0 TFSI, 2.0 TDI | 2013-2020 |
| S3 | 8V | 2.0 TFSI | 2013-on |
| RS3 | 8V | 2.5 TFSI | 2015-2017 |
| RS3 | 8V.5 | 2.5 TFSI EVO | 2017-on |
| RS3 | 8Y | 2.5 TFSI EVO | 2022-on |
| Q2 | MQB | 2.0T | 2017-2021 |
| RS Q3 | F3 | 2.5T | 2019-on |
| TT | 8S | 2.0T Gen 3 | 2016-on |
| TTS | 8S | 2.0T Gen 3 | 2016-on |
| TT RS | 8S | 2.5 TFSI EVO | 2018-on |
Cupra (1)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Formentor | Mk1 | 2.0T, 2.5T | 2021-on | Independent rear suspension only |
SEAT (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Leon | MQB | 2.0T | 2012-2020 | Independent rear suspension only |
| Tarraco | Mk1 | 2.0T | 2019-2021 | Independent rear suspension only |
Skoda (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Kodiaq | Mk1 | 2.0T | 2016-on | Independent rear suspension only |
| Octavia | Mk3 | 1.8T, 2.0T | 2013-2020 | Independent rear suspension only |
| Superb | B8 | 1.8T, 2.0T | 2016-2020 | Independent rear suspension only |
Volkswagen (6)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf | Mk7 | 1.8T Gen 3, 2.0T Gen 3, 2.0 TDI | 2013-on | |
| Golf GTI | Mk7 | 1.8T Gen 3, 2.0T Gen 3, 2.0 TDI | 2013-on | |
| Golf R | Mk7 | 2.0 TSI | 2013-2020 | |
| Golf R | Mk8 | 2.0T Gen 4 | 2021-on | |
| e-Golf | Mk7/Mk7.5 | Electric | 2015-2020 | |
| Rabbit | Mk7 | 1.8T Gen 3, 2.0T Gen 3, 2.0 TDI | 2015-on | US market Golf |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
