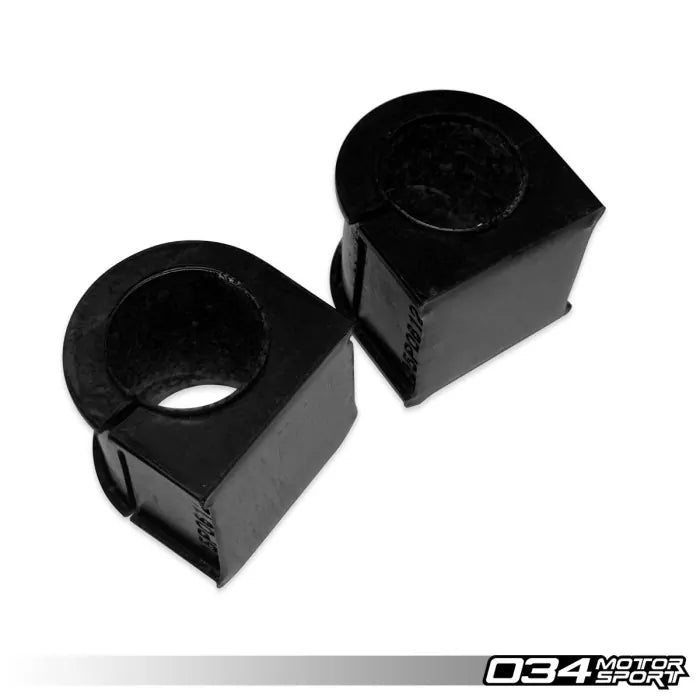

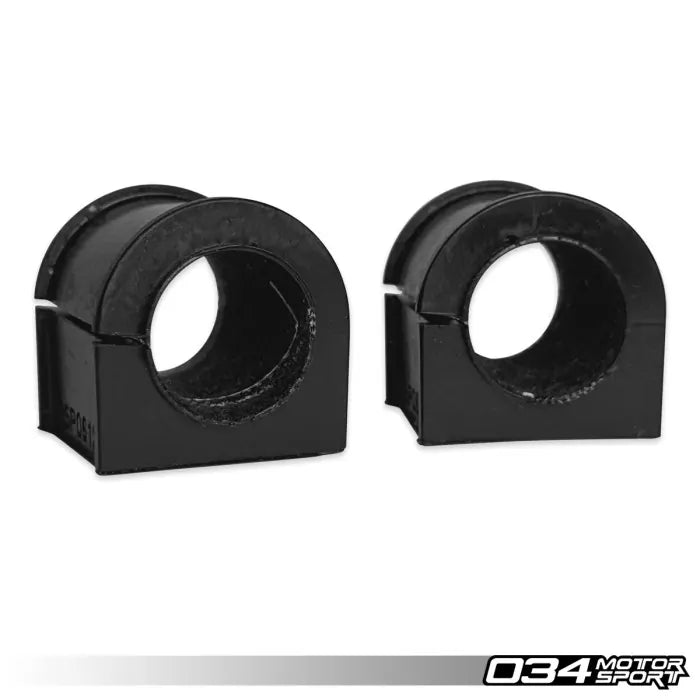

This kit swaps the polyurethane bushings supplied with a 034Motorsport sway bar for 25.4mm greaseless Teflon-lined bushings that need no maintenance. The polyurethane bushings carry a Teflon and polyester liner that 034Motorsport says sharpens sway bar response, virtually eliminates NVH and lasts long enough to outlive the car. They need no lubricant, resist water and common automotive chemicals and can run continuously at up to 500°F, and the brand covers them with a limited lifetime warranty against cracking, liner separation and squeaking. The kit includes two bushings and plugs to replace the Zerk fitting on the 034Motorsport sway bar bracket, and all old grease must be cleaned off the bar before fitting.
Features
- Greaseless, maintenance-free Teflon-lined polyurethane bushings
- Teflon and polyester liner virtually eliminates NVH
- Quicker sway bar response, per 034Motorsport
- No lubricant needed, and none should be added
- Hydrophobic and chemical resistant
- Heat resistant to 500°F continuous
- Limited lifetime warranty
Specifications
- Brand: 034Motorsport
- Product Type: Sway Bar Bushing Kit
- Bushing Size: 25.4mm
- Material: Polyurethane with Teflon and polyester liner
- Temperature Rating: Up to 500°F continuous

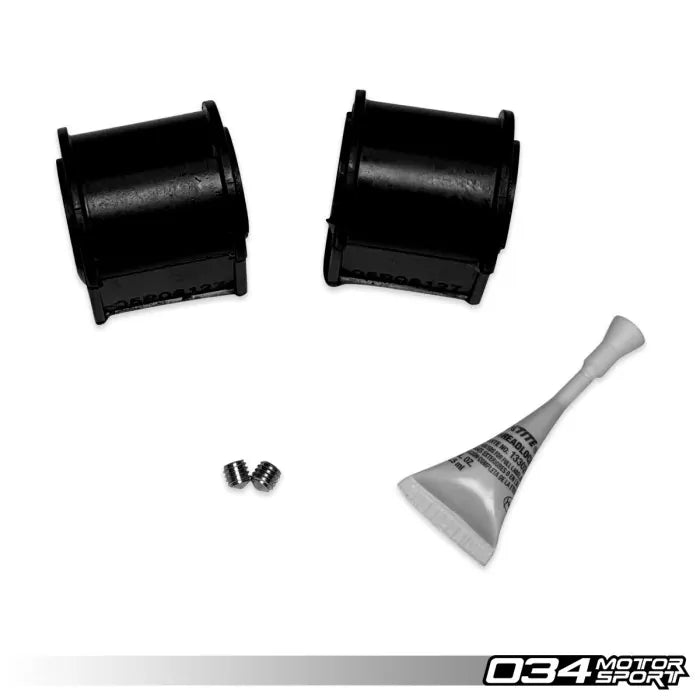

- Includes: 2 Teflon-lined bushings, Zerk fitting plugs
- Compatible With: 034Motorsport sway bars 034-402-1003, 034-402-1005, 034-402-1007, 034-402-1008, 034-402-1035
- Warranty: Limited lifetime (cracking, liner separation, squeaking)
- Part Number: 034-402-Z062
Vehicle Compatibility: 25 applications across 2 makes. Select a make to view.
Audi (22)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A3 | 8P | 2.0 TDI, 2.0 TSI, 2.0T FSI, 3.2 VR6 | 2006-2013 | With compatible 034Motorsport sway bar |
| A3 | 8V | 1.8 TFSI, 2.0 TDI | 2015-2016 | With compatible 034Motorsport sway bar |
| A3 | 8V/8V.5 | 2.0 TFSI | 2015-2020 | With compatible 034Motorsport sway bar |
| A3 | 8Y | 2.0 TFSI | 2022-on | With compatible 034Motorsport sway bar |
| Q2 | MQB | 1.8 TFSI, 2.0 TFSI | 2017-2021 | With compatible 034Motorsport sway bar |
| TT | 8J | 2.0 TFSI, 2.0 TSI, 2.0T FSI | 2008-2015 | With compatible 034Motorsport sway bar |
| A4 | B8/B8.5 | 2.0 TFSI, 3.2 FSI | 2009-2016 | With compatible 034Motorsport sway bar |
| A4 allroad | B8/B8.5 | 2.0 TFSI | 2010-2016 | With compatible 034Motorsport sway bar |
| S4 | B8/B8.5 | 3.0 TFSI | 2010-2017 | With compatible 034Motorsport sway bar |
| RS4 | B8/B8.5 | 4.2 FSI | 2010-2017 | With compatible 034Motorsport sway bar |
| A5 | B8/B8.5 | 2.0 TFSI, 3.2 FSI | 2008-2017 | With compatible 034Motorsport sway bar |
| S5 | B8 | 4.2 FSI | 2008-2012 | With compatible 034Motorsport sway bar |
| S5 | B8.5 | 3.0 TFSI | 2013-2017 | With compatible 034Motorsport sway bar |
| RS5 | B8/B8.5 | 4.2 FSI | 2010-2017 | With compatible 034Motorsport sway bar |
| Q5 | B8/B8.5 | 2.0 TFSI, 3.0 TDI, 3.0 TFSI, 3.2 FSI | 2009-2017 | With compatible 034Motorsport sway bar |
| SQ5 | B8/B8.5 | 3.0 TDI, 3.0 TFSI | 2012-2017 | With compatible 034Motorsport sway bar |
| A6 | C7/C7.5 | 2.0 TFSI, 3.0 TDI, 3.0 TFSI | 2012-2018 | With compatible 034Motorsport sway bar |
| S6 | C7/C7.5 | 4.0 TFSI | 2012-2018 | With compatible 034Motorsport sway bar |
| RS6 | C7/C7.5 | 4.0 TFSI | 2012-2018 | With compatible 034Motorsport sway bar |
| A7 | C7/C7.5 | 2.0 TFSI, 3.0 TDI, 3.0 TFSI | 2012-2018 | With compatible 034Motorsport sway bar |
| S7 | C7/C7.5 | 4.0 TFSI | 2012-2018 | With compatible 034Motorsport sway bar |
| RS7 | C7/C7.5 | 4.0 TFSI | 2012-2018 | With compatible 034Motorsport sway bar |
Volkswagen (3)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| Golf | Mk5/Mk6 (incl. GTI) | FWD; with 034-402-1003 sway bar | ||
| Jetta | Mk5/Mk6 (incl. GLI) | FWD; with 034-402-1003 sway bar | ||
| Beetle | Mk6 | 1.8T Gen 3 | 2012-2019 | With compatible 034Motorsport sway bar |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
