034Motorsport Track Spec Control Arm Kit - Audi B9/B9.5 A4/S4/RS4/A5/S5/RS5 - 034-401-1070

This Track Spec control arm kit replaces all eight front upper and lower control arms on B9 and B9.5 Audi A4, S4, RS4, A5, S5 and RS5 models. It pairs 65 durometer rubber bushings and replacement lower arms with CNC machined billet upper arms that give independent camber adjustment, from -0.7 to +0.3 degrees against factory with no modification, or -1.9 to +0.3 degrees with minor clearancing of the upright. 034Motorsport says the Track Spec setup adds negative camber for more cornering grip and better turn-in, with tighter handling and more precise steering than new factory arms. The upper arms use Aurora or FK spherical bearings with a self-lubricating Teflon race lining and have a clear anodised finish.

Features

• Replaces all eight front upper and lower control arms
• CNC machined billet upper arms with camber adjustment
• -0.7 to +0.3 degrees vs factory, no modification needed
• -1.9 to +0.3 degrees with minor upright clearancing
• 65 durometer high-durometer rubber bushings
• Aurora or FK spherical bearings with Teflon race lining
• Clear anodised upper arms, installation hardware included

Specifications

• Brand: 034Motorsport
• Product Type: Control Arm Kit
• Product Line: Density Line, Track Spec
• Camber Adjustment: -0.7 to +0.3 degrees vs factory (no modification); -1.9 to +0.3 degrees (with minor clearancing of upright)
• Bushings: 65 durometer rubber
• Bearings: Aurora or FK spherical, self-lubricating Teflon race lining
• Finish: Clear anodised

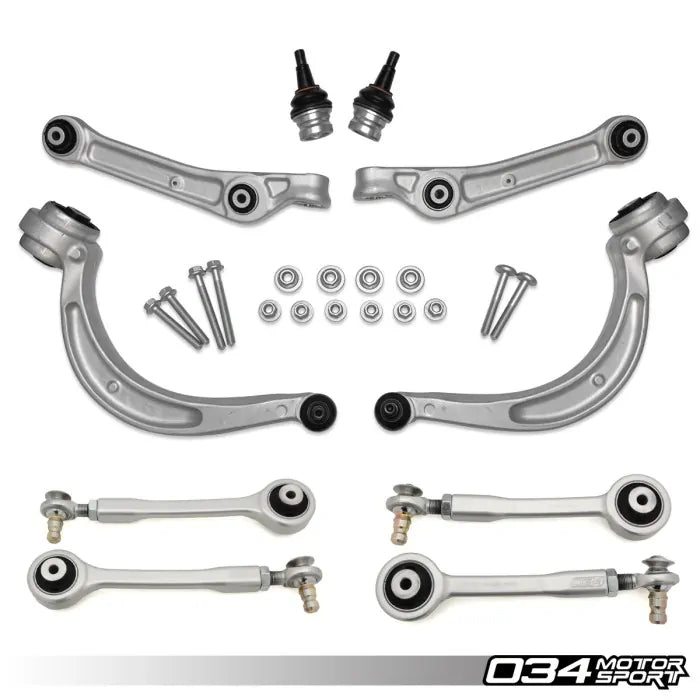

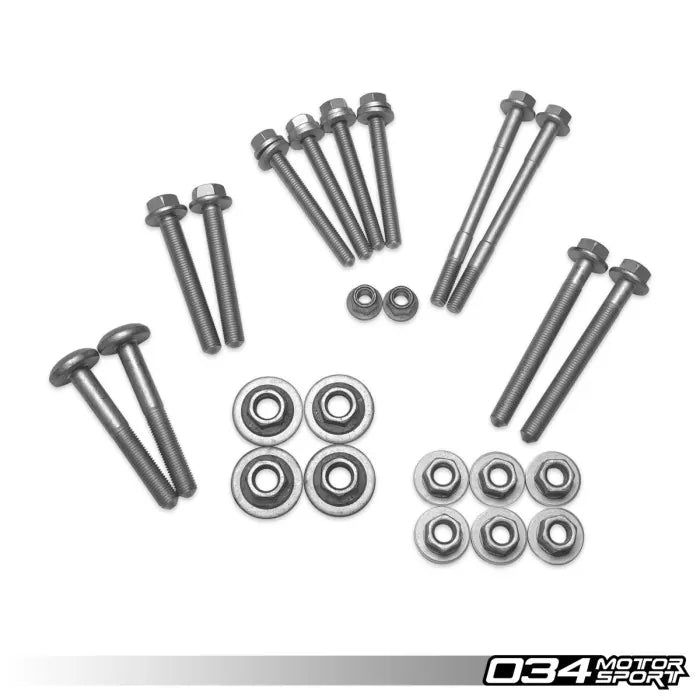

• Includes: Front lower arms (front and rear, left and right), CNC billet upper adjustable arms (front and rear, left and right), spherical bearing dust boots, installation hardware kit

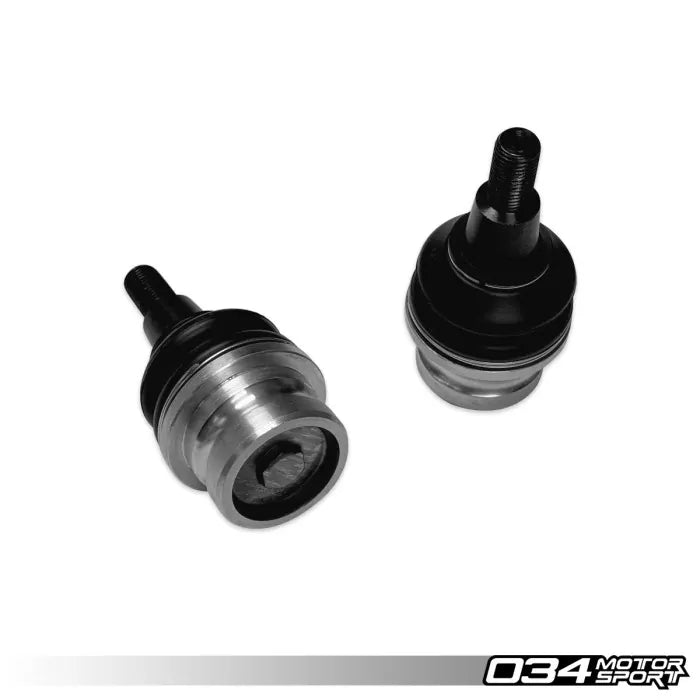

• OE Interchange: Upper: 8W0407505C, 8W0407506C, 8W0407509B, 8W0407510B. Lower: front left 8W0 407 151 A/B/C/D, front right 8W0 407 152 A/B/C/D, rear left 8W0 407 693 B, rear right 8W0 407 694 B, ball joint 8W0 407 689 B
• Install Time: About 4 hours (per 034Motorsport)
• Part Number: 034-401-1070

Vehicle Compatibility: 7 applications across 1 make. Select a make to view.

Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
