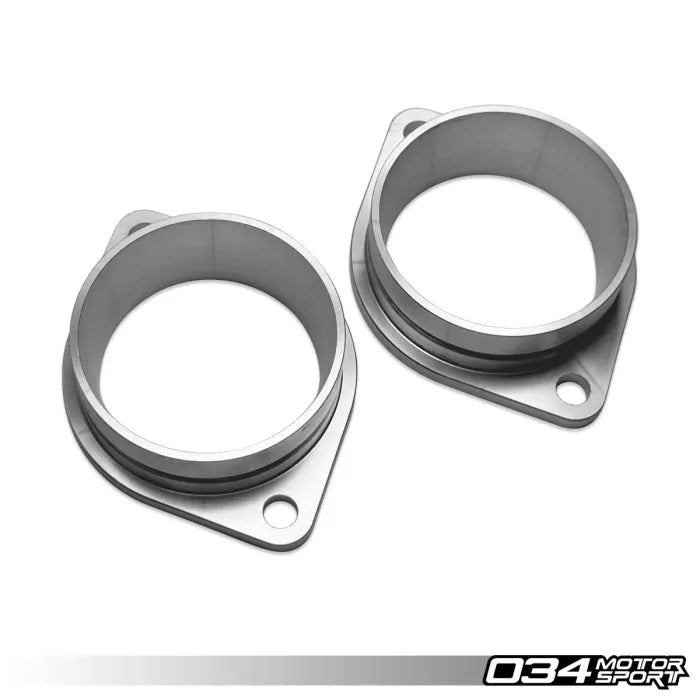

These turbo adapter flanges are made for the TTE720 aftermarket turbocharger (52.0mm) on the B9 and B9.5 Audi RS4 and RS5 with the 2.9 TFSI engine. They are CNC machined from 6061-T6 billet aluminium and adapt the 034Motorsport SüperDüper Turbo Inlet Pipe to the turbo, with an O-ring sealing the adapter to the inlet. 034Motorsport says each flange is designed for its specific turbocharger to give a smooth airflow transition into the turbo and higher airflow velocity. The brand also says the flanges make the inlet easier to fit and remove, as the factory inlet needs special tools, while the easily accessible hose clamps allow the whole intake system to come off.
Features
- CNC machined from 6061-T6 billet aluminium
- Designed for the TTE720 turbocharger (52.0mm)
- Adapts the 034Motorsport SüperDüper Turbo Inlet

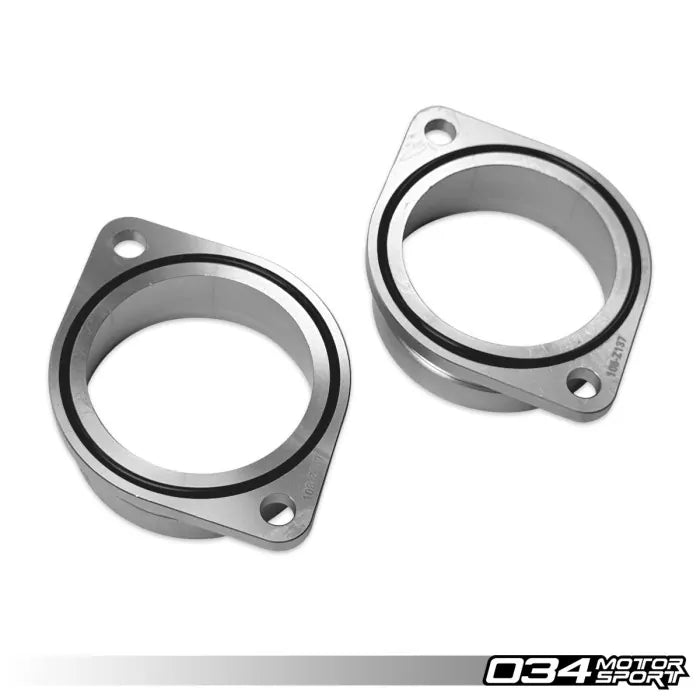

- Includes O-ring to seal the adapter to the inlet
- Smoother airflow transition into the turbo, per 034Motorsport
- Accessible hose clamps make intake removal easier
- Easy, direct swap installation
Specifications
- Brand: 034Motorsport
- Product Type: Turbo Adapter Flanges
- Material: 6061-T6 billet aluminium, CNC machined
- Turbo: TTE720 - 52.0mm
- Works With: 034Motorsport SüperDüper Turbo Inlet Pipe (4-ply silicone hose)
- Includes: O-ring to seal the adapter to the inlet
- Part Number: 034-108-Z137
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Audi (2)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| RS4 | B9/B9.5 | 2.9 TFSI | 2018-on | For the TTE720 aftermarket turbo |
| RS5 | B9/B9.5 | 2.9 TFSI | 2018-on | For the TTE720 aftermarket turbo |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
