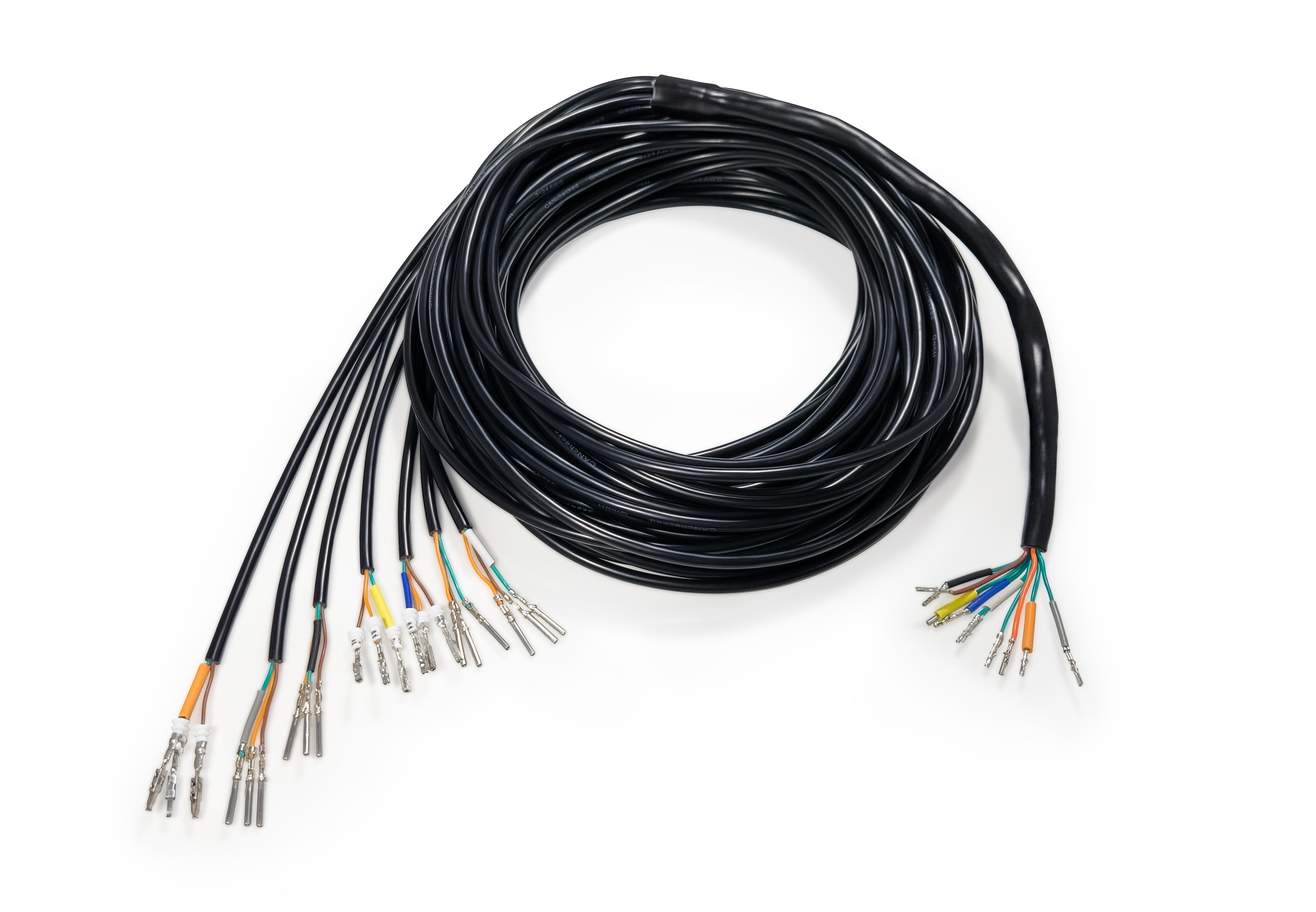

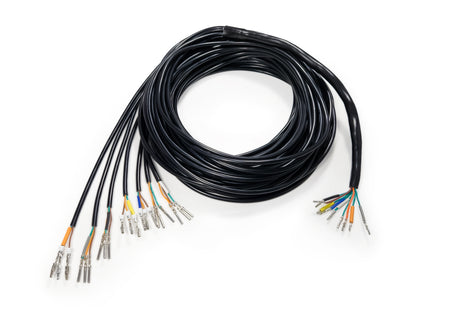

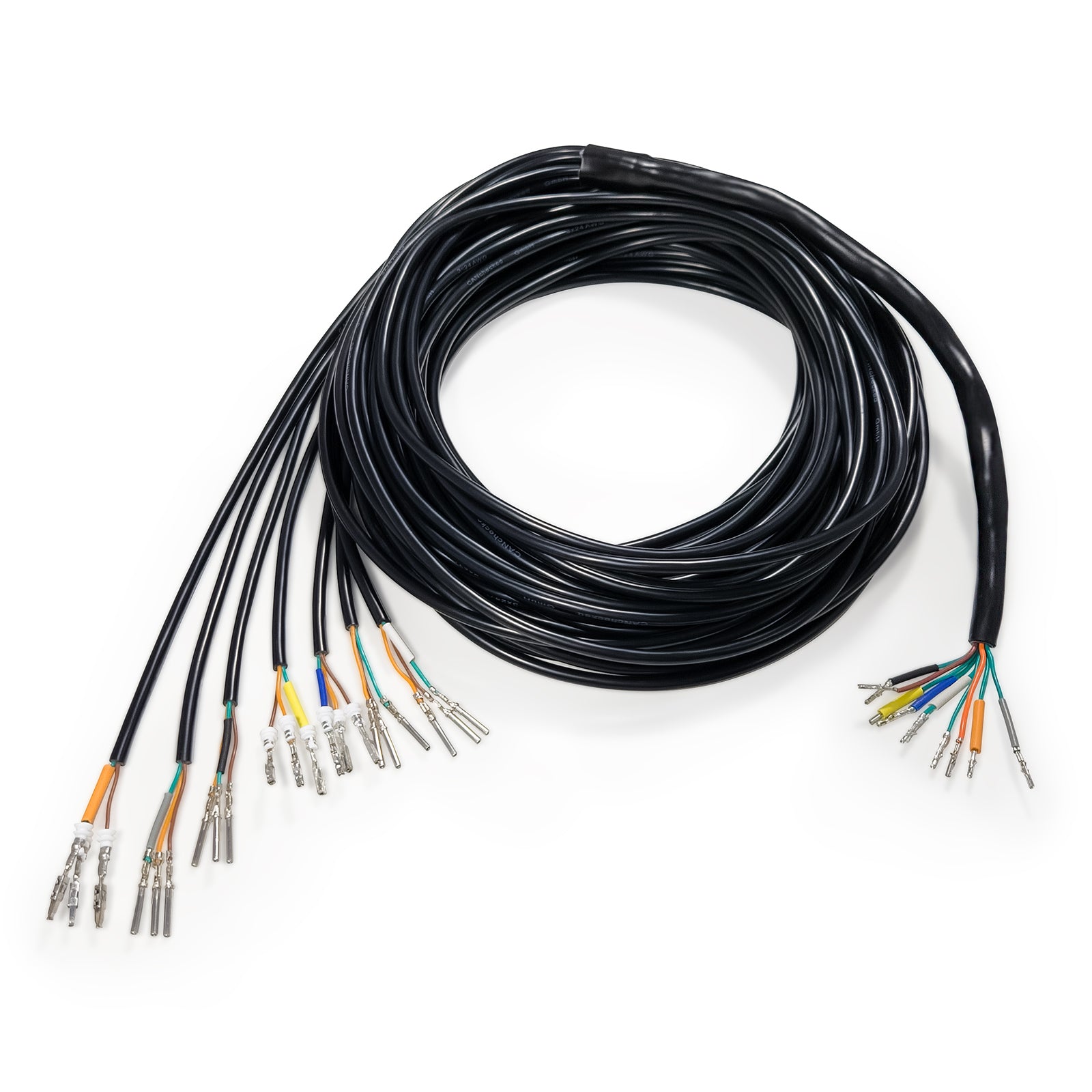

ANC08 Universal Wiring Harness for MFD15

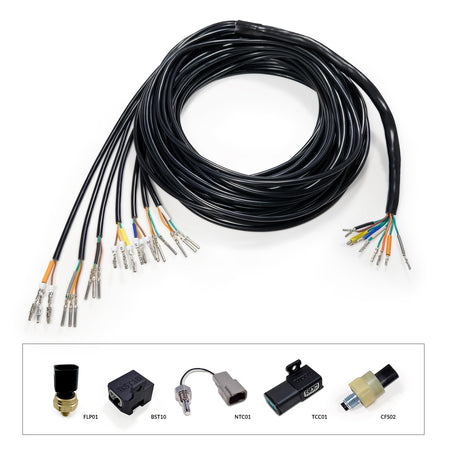

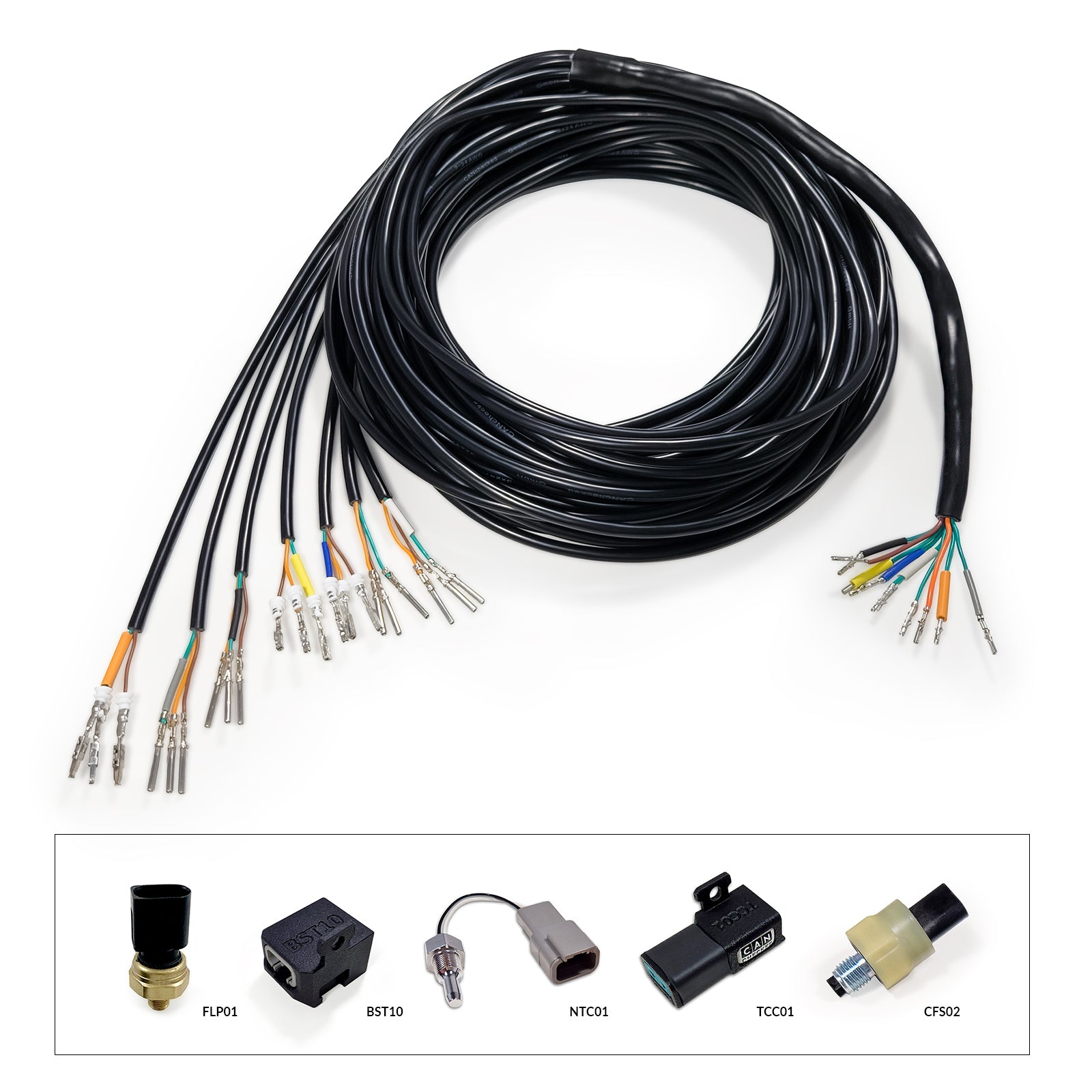

With the ANC08, you can connect up to six analog sensors plus one digital combo sensor to your MFD15 with minimal effort—without worrying about wiring or crimping contacts. The ANC08 is directly compatible with our in-house sensors. As long as you follow our defined wiring scheme, the sensors NTC01 (NTC temperature sensor), TCC01 (Type-K exhaust gas temperature converter), FLP01 (pressure sensor for liquid media), BST10 (boost pressure sensor), and CFS02 (combined pressure and temperature sensor) work right out of the box.

This means: insert the pins into the supplied mating connector, plug the wiring harness into the display, assign the corresponding widgets on the display—and you're ready for the road.

Features:

• Plug and play with our in-house sensors
• Uniform color scheme for clean wiring
• No special tools required – professionally crimped pins
• 300 cm length for versatile applications
• Individual strands for maximum flexibility
• Sheathed strands for long-lasting durability

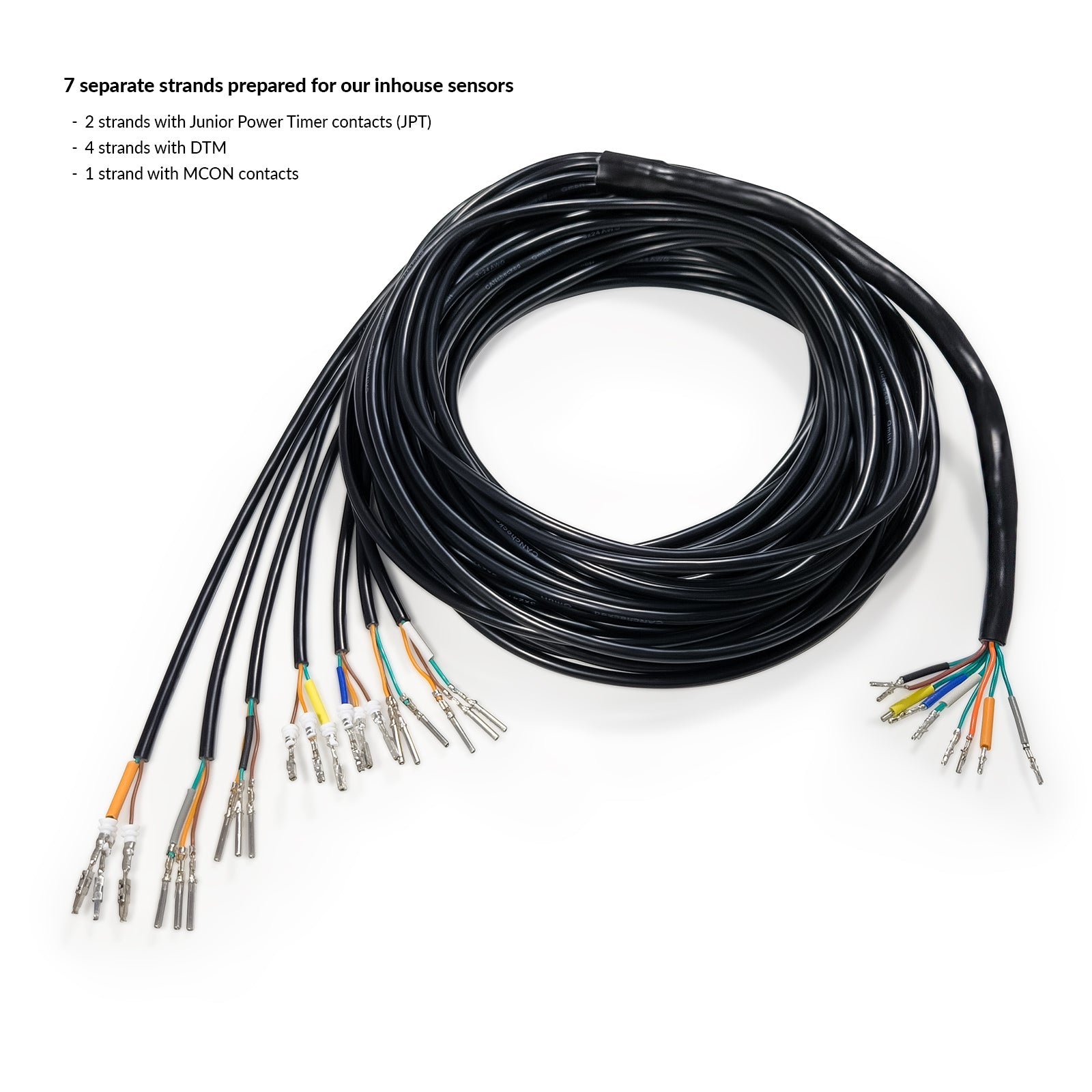

The ANC08 must be pinned both at the display and at the sensor mating connectors. In total, one combined pressure and temperature sensor, four additional sensors with DTM connectors (TCC01, NTC01 and/or BST10), and two additional FLP01 sensors are supported. This allows you to display up to eight measurement values on your MFD15—completely without CAN bus.
