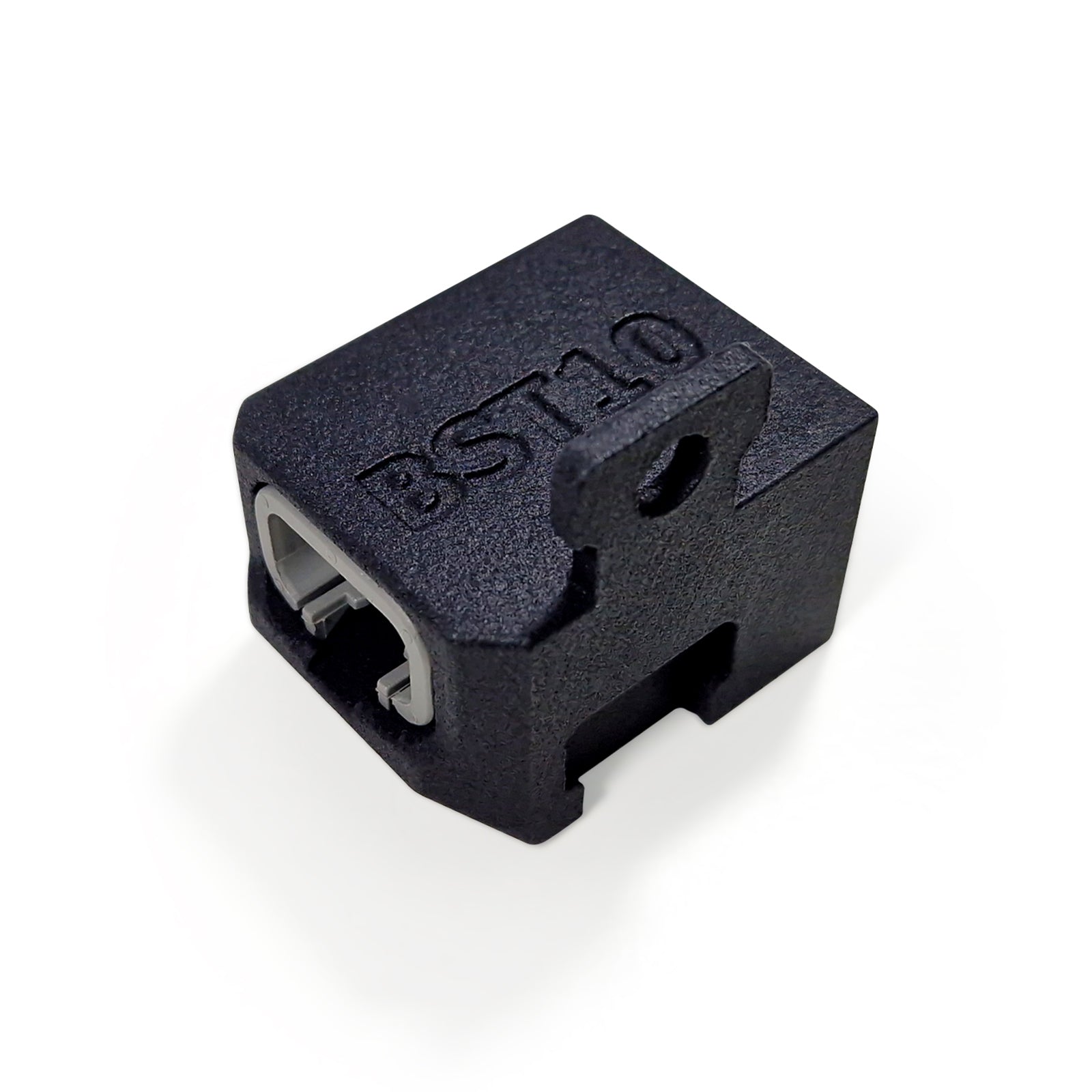

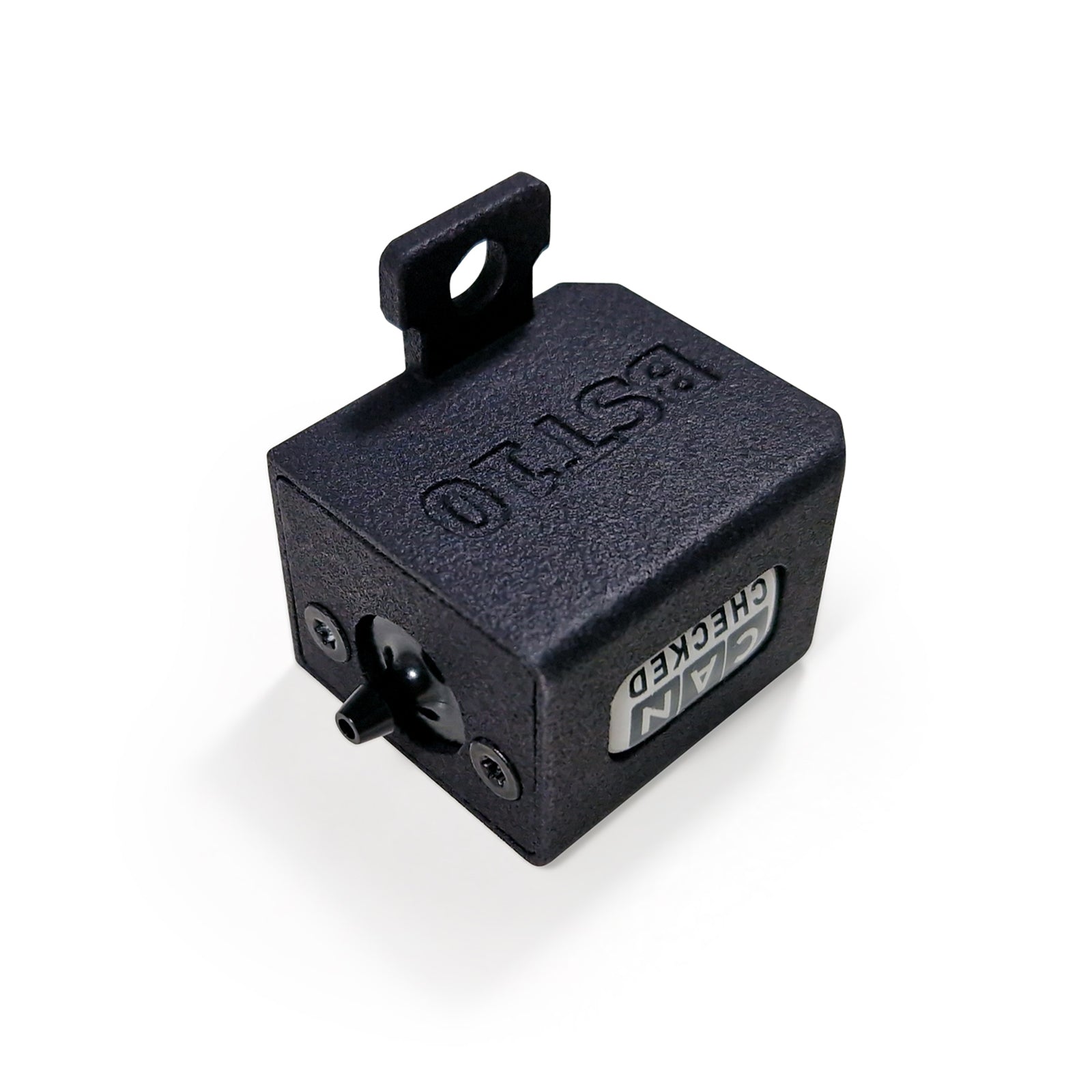

Boost Sensor BST10
Thank you for purchasing the BST10 Boost Sensor. This sensor can be connected via plug and play using our ANC04 wiring harness (CC22780) to the AIN4 input of your CANchecked data display to show boost pressure directly on the display.
Of course, you can also connect the sensor directly to your programmable ECU.

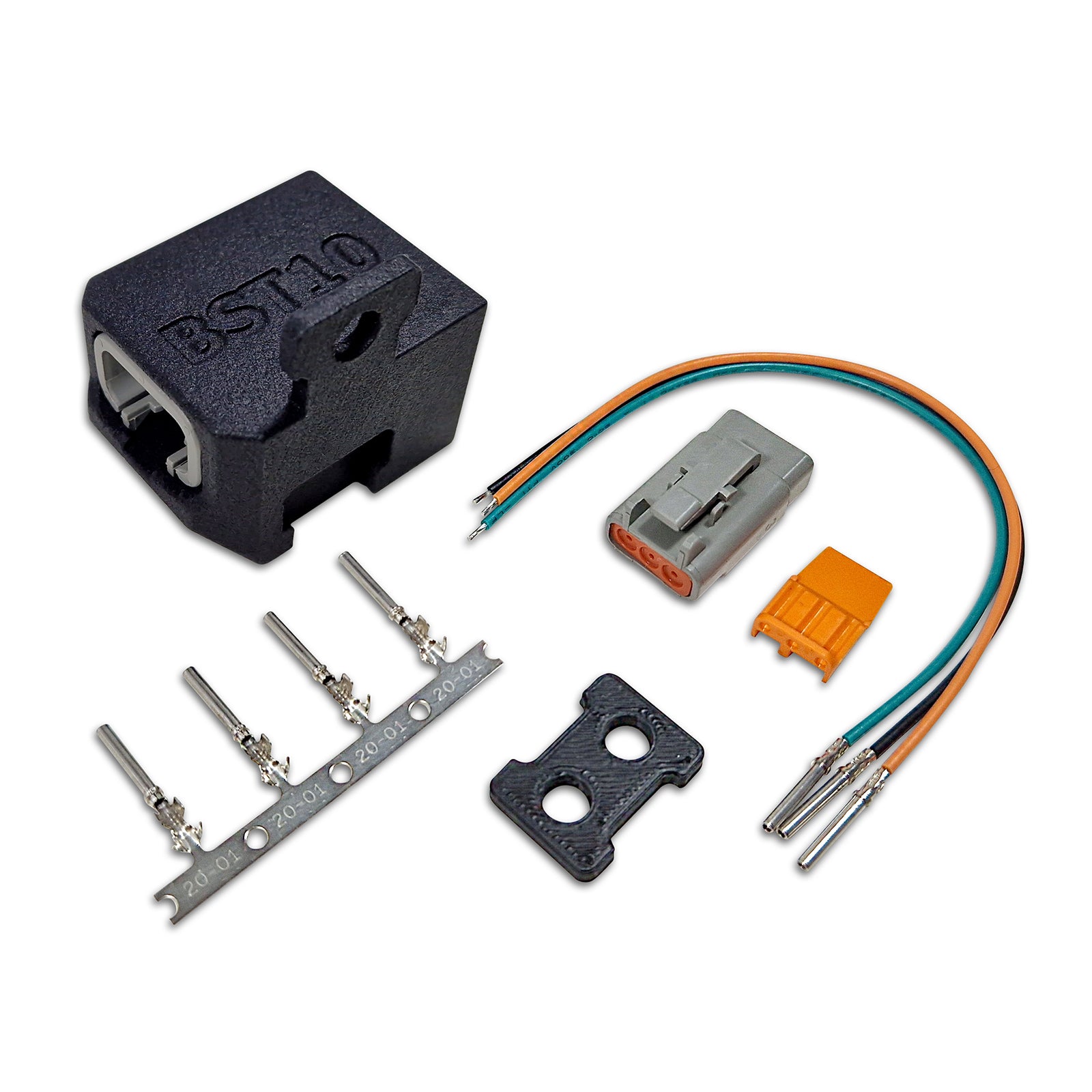

Included Accessories
- Sensor
- DTM 06-3S connector
- 4 pins for crimping
- Wedgelock
- Adapter piece
More Information
Sensor Characteristic (Absolute)
| Voltage | Pressure (kPa) | Pressure (bar) | Pressure (psi) |
|---|---|---|---|
| 0V | -31.11 | -0.31 | -4.51 |
| 5V | 746.67 | 7.47 | 108.3 |
Sensor Characteristic (Relative)
| Voltage | Pressure (kPa) | Pressure (bar) | Pressure (psi) |
|---|---|---|---|
| 0V | -131.11 | -1.31 | -18.99 |
| 5V | 646.67 | 6.47 | 93.8 |
