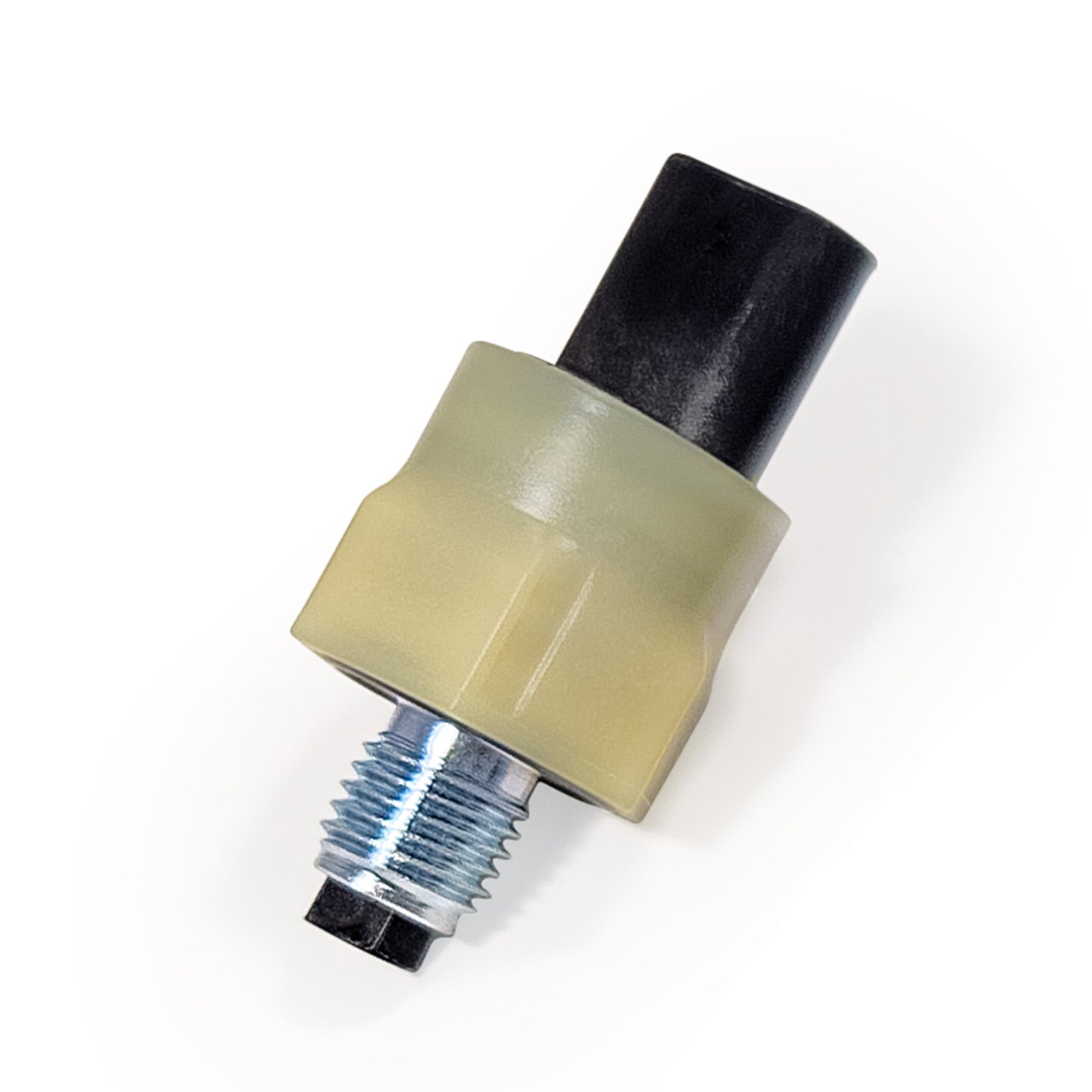

CANchecked Pressure and Temperature Sensor for Oil / Water / Fuel

The CFS02 Sensor is a combined electronic pressure and temperature sensor for oil, water, and fuels. The sensor is compatible with various displays and gauges such as MFD15, MFD28, MFD32 as well as freely programmable engine control units (ECUs). It is the ideal addition to our ANC08 (CC22781) MFD15 wiring harness for sensor expansion.

It reliably measures pressures from 0.5 to 10.5 bar (7.2 to 152 psi) and temperatures from -40 to 160 °C (-40 to 320 °F). The robust M12x1.5 male thread ensures easy and secure installation.

Main Features

• High-precision combined pressure and temperature sensor from large-scale production
• Suitable for oil, water, and fuel applications
• Wide measurement range for pressure and temperature
• M12x1.5 thread for versatile applications
• Compatible with CANchecked data displays and freely programmable control units

Technical Specifications

• Pressure measurement range: 0.5 – 10.5 bar (7.2 – 152 psi)
• Temperature measurement range: -40 to 160 °C (-40 to 320 °F)
• Thread: M12x1.5 male thread
• Signal type: PWM

Scope of Delivery

• Combined pressure and temperature sensor for oil, fuel, and water
• Quick start guide

Conclusion

Order the combined CANchecked pressure and temperature sensor now and measure oil, fuel, or water pressure and temperature precisely. Expand your monitoring capabilities, optimize engine performance, and rely on the quality and reliability of CANchecked.

This sensor is also available as a kit including wiring harness under CC22920 - CFS02 Kit.
