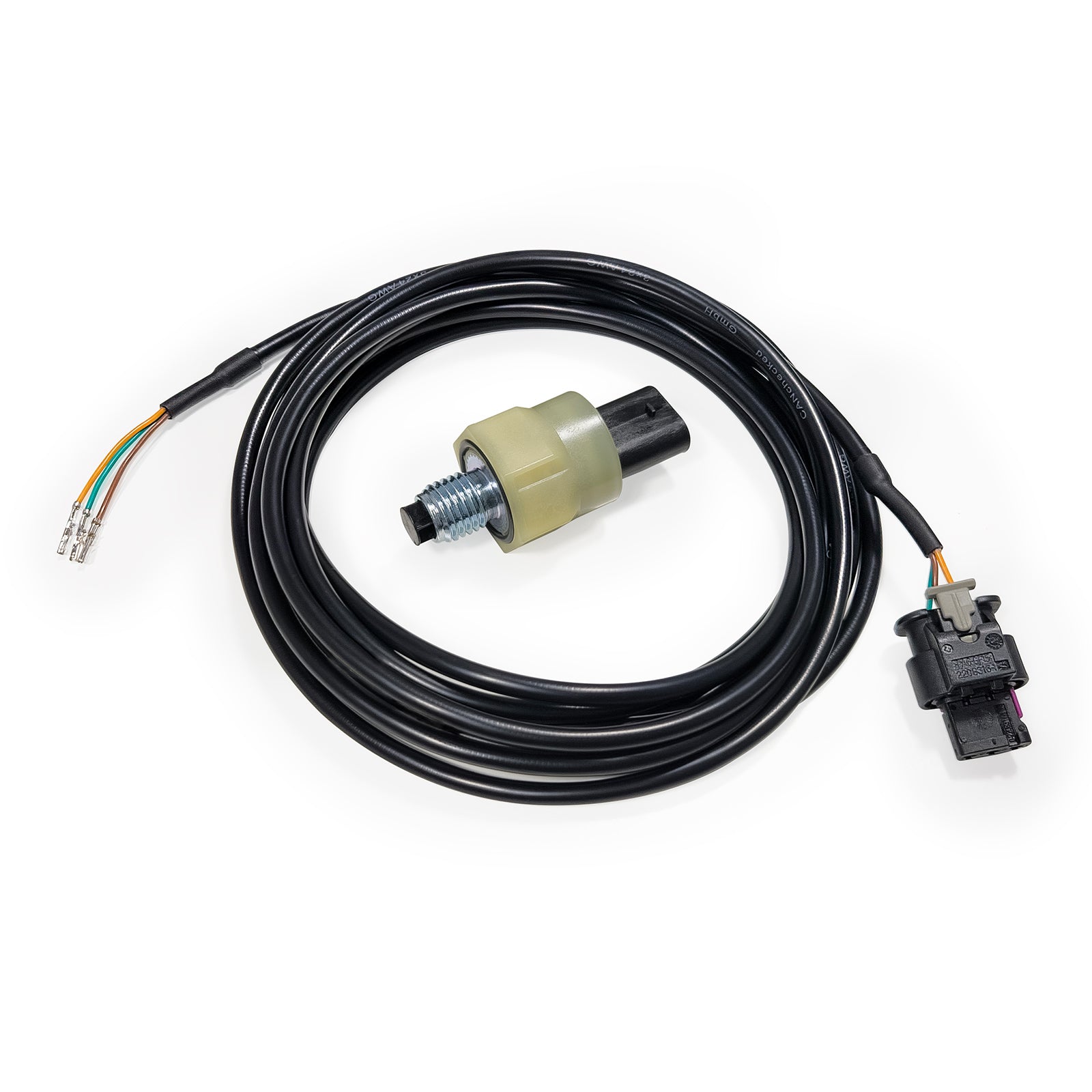

CANchecked CFS02 Kit - Wiring harness with combined temperature and pressure sensor
CANchecked Kit Including Combined Pressure and Temperature Sensor for Oil / Water / Fuel with Wiring Harness
The CFS02 Kit includes a combined electronic pressure and temperature sensor for oil, water, and fuel, as well as a pre-assembled wiring harness. The kit is compatible with various displays and gauges such as MFD15, MFD28, MFD32 and freely programmable engine control units (ECUs).
With this kit, you can reliably measure pressures from 0.5 to 10.5 bar (7.2 to 152 psi) and temperatures from -40 to 160 °C (-40 to 320 °F). The robust M12x1.5 male thread ensures easy and secure installation.
Main Features
- High-precision combined pressure and temperature sensor from large-scale production
- Suitable for oil, water, and fuel applications
- Wide measurement range for pressure and temperature
- M12x1.5 thread for versatile applications
- Compatible with CANchecked data displays and freely programmable control units
- Supplied including connection wiring harness
Technical Specifications
- Pressure measurement range: 0.5 – 10.5 bar (7.2 – 152 psi)
- Temperature measurement range: -40 to 160 °C (-40 to 320 °F)
- Thread: M12x1.5 male thread
- Signal type: PWM
Scope of Delivery
- Combined pressure and temperature sensor for oil, fuel, and water
- Plug-and-play wiring harness (3 meters length) with matching connection pins for CANchecked data displays
- Quick start guide
Plug-and-Play Wiring Harness Cable Colors
- 5V; Orange
- Ground; Brown
- PWM signal; Green
Conclusion
Order the kit with the combined CANchecked pressure and temperature sensor including wiring harness now and measure oil, fuel, or water pressure and temperature precisely with minimal installation effort thanks to the included harness. Expand your monitoring capabilities, optimize engine performance, and rely on the quality and reliability of CANchecked.
