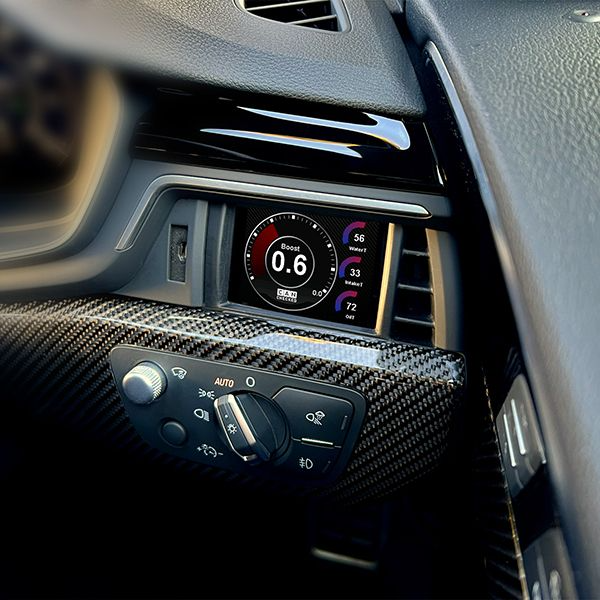

The CANchecked MFD28 is a vehicle-specific data display for left-hand-drive Audi A4, S4 and RS4 (B9) and A5, S5 and RS5 (F5) models. It integrates into the interior with a custom-made frame that CANchecked says mimics an original part, and it queries the control unit's sensors directly over the CAN bus. Up to 128 sensors can be queried and shown in ten views set up through CANchecked's DSS software, with four extra analogue inputs for sensors such as exhaust temperature or oil pressure. CANchecked adds that not every engine provides every value, and that the display can also read and clear control unit errors in plain text.
Features
- Query up to 128 sensors over CAN bus
- 10 customisable views set up with the DSS software

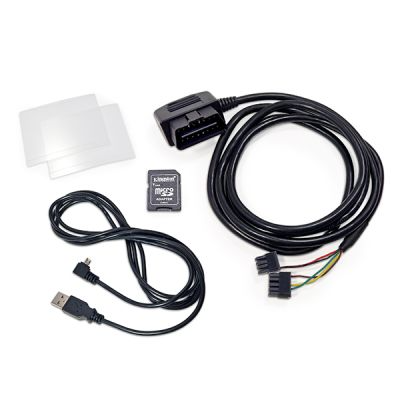

- Pre-configured views and a plug-and-play cable set
- 4 additional analogue inputs plus ethanol sensor integration
- Performance meter for 0-100, 100-200 and 0-200 times
- Data logging to the internal SD card, on demand or permanent
- Reads and clears control unit errors in plain text
Specifications
- Brand: CANchecked
- Product Type: Data Display
- Model: MFD28
- Installation: Custom-made frame, plug-and-play cable set
- Views: Up to 10 customisable views via the Display Setup Software (DSS)
- Sensor Queries: Up to 128 sensors, pre-configured TRI file as standard
- Analogue Inputs: 4 additional, plus ethanol sensor integration
- Logging: Internal SD card
- Part Number: CC31046
Vehicle Compatibility: 6 applications across 1 make. Select a make to view.
Audi (6)
| Model | Variant | Engine | Years | Notes |
|---|---|---|---|---|
| A4 | B9 | LHD only | ||
| S4 | B9 | LHD only | ||
| RS4 | B9 | LHD only | ||
| A5 | F5 | LHD only | ||
| S5 | F5 | LHD only | ||
| RS5 | F5 | LHD only |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
