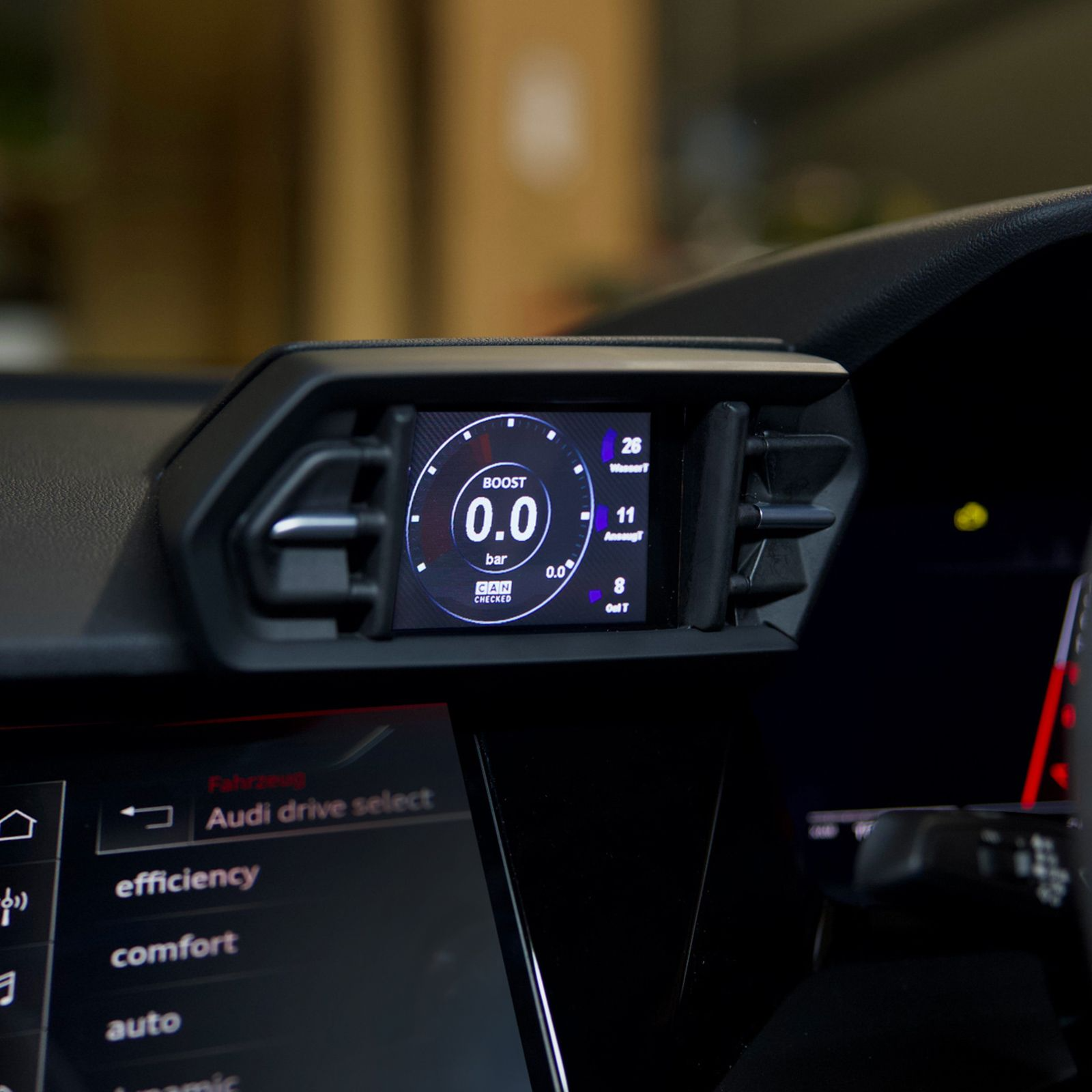

The CANchecked MFD32 Gen2 is a vehicle-specific data display for the Audi A3, S3 and RS3 8Y that turns an air vent into a configurable screen. The vehicle-specific bezel still lets air flow past the display, and CANchecked says most displays come with illustrated instructions so an owner can fit one without a workshop. It reads in-depth vehicle data from the CAN bus on a touchscreen navigated with swipe gestures, and pages can be built from 20 widget types. Alarms, logging to an internal SD card and a built-in performance meter are part of the package.
Features
- Vehicle-specific bezel that still allows airflow
- CAN bus readout, gear display from CAN or speed and rpm
- Touchscreen with swipe navigation between pages
- Up to ten custom pages, 20 widget types, 64 widgets per page
- Up to 4 analogue inputs plus an ethanol sensor input
- Customisable alarms, SD card logging and a built-in performance meter
- Reads and clears fault codes from engine, transmission, ABS and AWD
Specifications
- Brand: CANchecked
- Product Type: Data Display
- Model: MFD32 Gen2
- Mounting: Air vent position, with vehicle-specific bezel
- Pages and Widgets: Up to 10 pages, 20 widget types, up to 64 widgets per page
- Analogue Inputs: Up to 4, plus ethanol sensor input
- Logging: Internal SD card
- Performance Meter: 0-100, 100-200 and 0-200 times
- Part Number: CC31064
Vehicle Compatibility: 3 applications across 1 make. Select a make to view.
Audi (3)
| Model | Variant | Engine | Years |
|---|---|---|---|
| A3 | 8Y | ||
| S3 | 8Y | ||
| RS3 | 8Y |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
