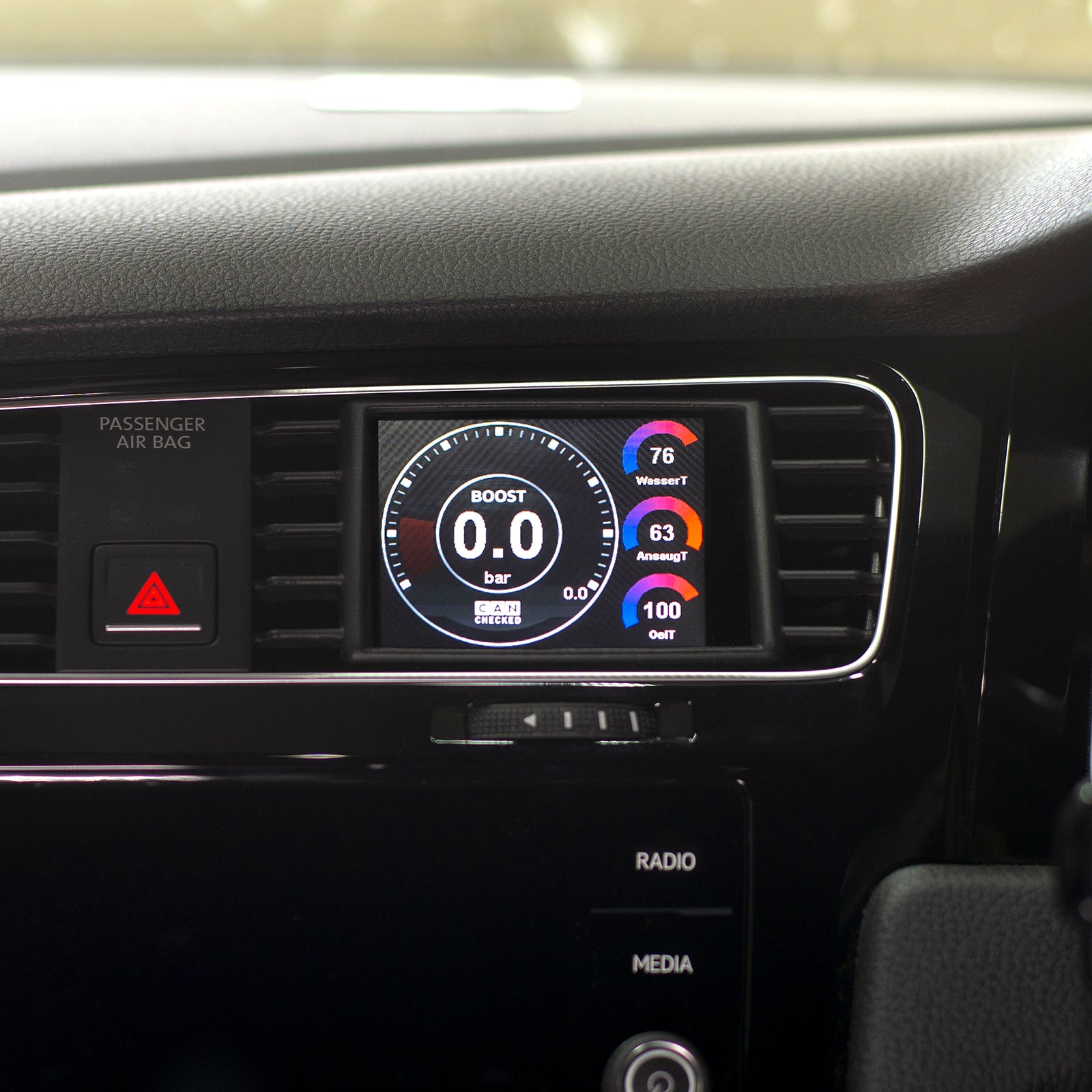

This CANchecked MFD32 Gen2 is a vehicle-specific data display for the Volkswagen Golf Mk7 and Mk7.5, covering the GTI and the Golf R. It turns the air vent into a display, and CANchecked says the vehicle-specific bezel still allows airflow past the screen. The unit reads in-depth vehicle data over the CAN bus, shows the current gear and logs data to an internal SD card. Pages are navigated with swipe gestures on the touchscreen, with up to ten pages available.
Features
- Vehicle-specific vent bezel that still lets air flow past
- Touchscreen with swipe navigation across up to ten pages
- Reads in-depth vehicle data over the CAN bus
- Gear shown via CAN bus or calculated from speed and rpm
- Up to four analogue inputs plus an ethanol sensor input
- Customisable alarms and logging to the internal SD card
- Built-in performance meter for 0-100, 100-200 and 0-200 times
Specifications
- Brand: CANchecked
- Product Type: Data Display
- Model: MFD32 Gen2
- Mounting: Vehicle-specific air vent bezel
- Pages and Widgets: Up to ten pages, 20 widget types, up to 64 widgets per page
- Analogue Inputs: Up to 4, plus ethanol sensor input
- Data Logging: Internal SD card
- Gear Display: Via CAN bus, or calculated from speed and rpm
- Part Number: CC32036
Vehicle Compatibility: 2 applications across 1 make. Select a make to view.
Volkswagen (2)
| Model | Variant | Engine | Years |
|---|---|---|---|
| Golf | Mk7/Mk7.5 GTI | ||
| Golf R | Mk7/Mk7.5 |
Please confirm fitment against your vehicle before ordering. Contact us if you need help selecting the right part.
