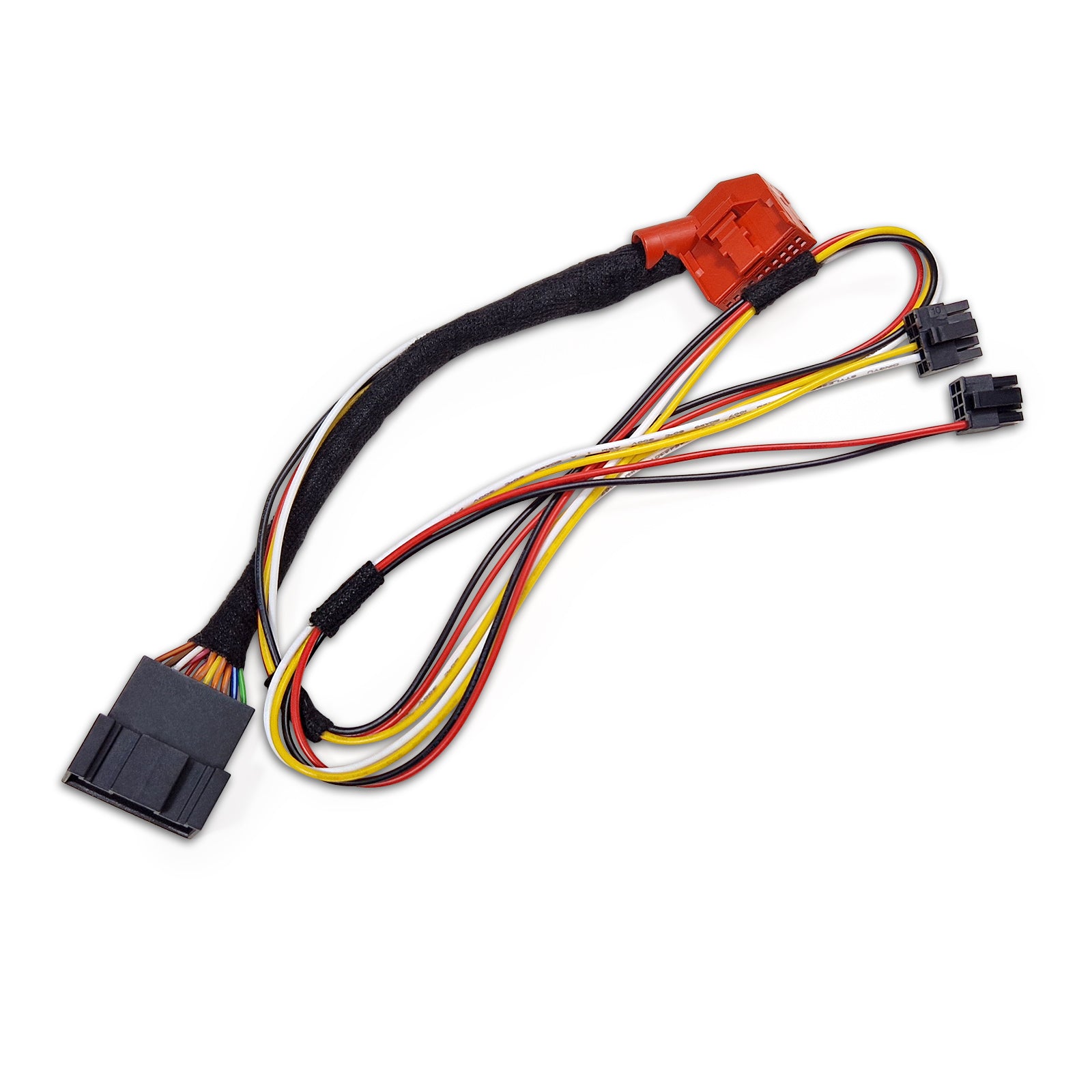

VAG Diagnostic Gateway Cable Harness for MFD15
The VAG diagnostic gateway cable harness is the consistent further development of our well-known VAG OBD cable. It has been specifically designed for use with our MFD15 display.
One end features the 6-way and 12-way Molex connectors for the MFD15 display. The other end is designed as a Y-cable, allowing the display to be seamlessly integrated into the vehicle’s gateway.
This wiring harness keeps the diagnostic socket free while enabling direct access to CAN High/Low as well as 12V ignition positive and ground directly from the drivetrain instead of the diagnostic bus.
The advantages are clear: faster data acquisition and compatibility even when a freely programmable ECU is installed in the vehicle.
