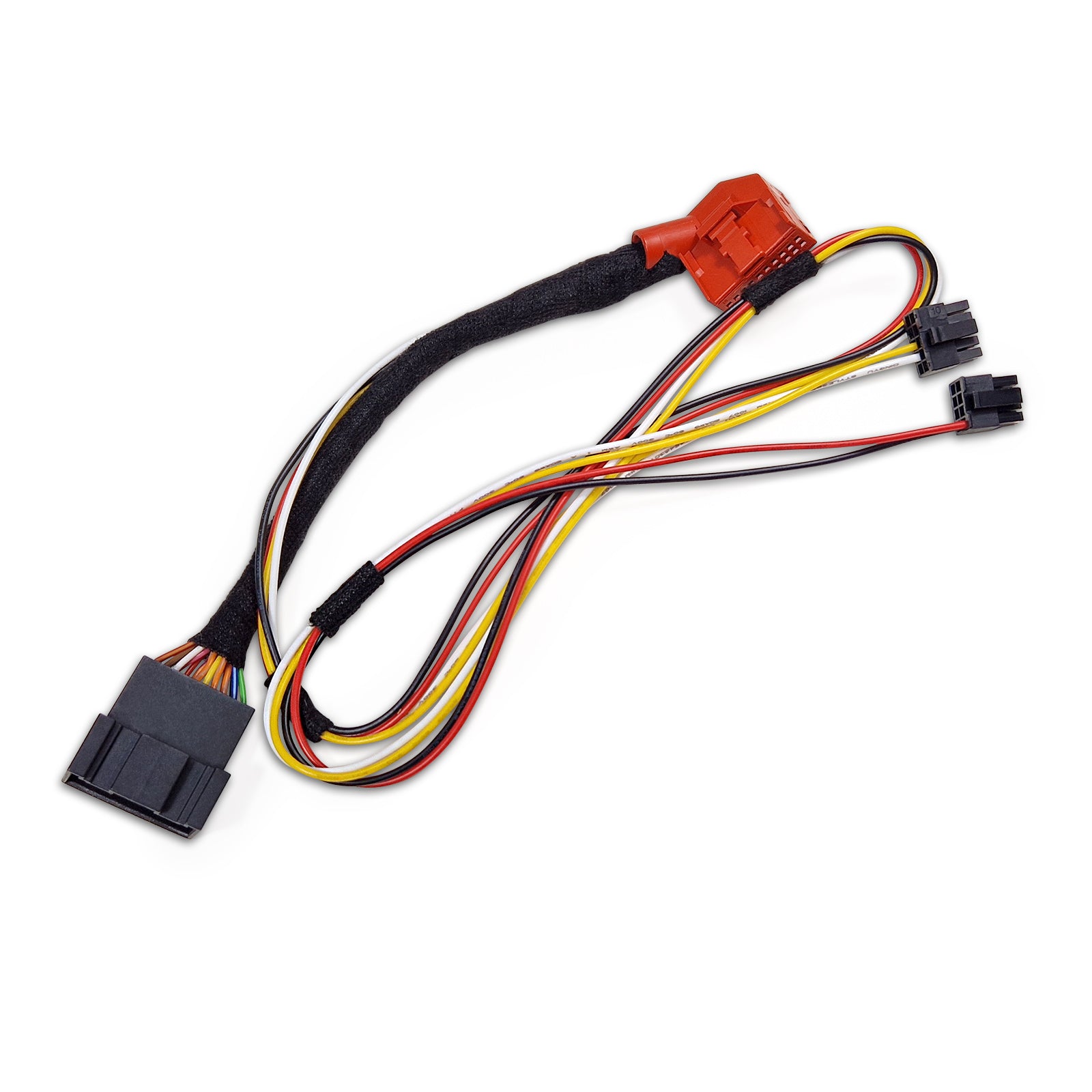

VAG Diagnostic Gateway Cable Harness
The VAG diagnostic gateway cable harness is the consistent further development of our well-known VAG OBD cable. It is specifically designed for seamless integration with our display systems.
One end features the 8-pin and 10-pin Molex connectors for our MFD28 and MFD32 displays. The other end is designed as a Y-cable, allowing the display to be integrated directly into the vehicle’s gateway.
This wiring harness keeps the diagnostic socket free while enabling direct access to CAN High/Low, 12V ignition positive, and ground directly from the drivetrain instead of the diagnostic bus.
The advantages are clear: faster data acquisition and compatibility even when a freely programmable ECU is installed in the vehicle.
